Sialic Acid Production by Metabolically Engineered Escherichia coli

1

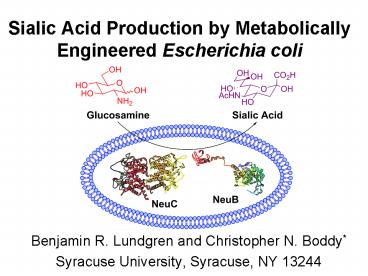

Sialic Acid Production by Metabolically
Engineered Escherichia coli

• Benjamin R. Lundgren and Christopher N. Boddy
• Syracuse University, Syracuse, NY 13244

2
Sialic acid is a key molecule in cell adhesion
and cell signaling
N-acetylneuraminic acid, Neu5Ac, undergoes
extensive modifications to generate the diversity
of the sialic acid family
3
Sialic acid encompasses a large family of
cell-surface carbohydrates

• Biological Function
• Cell Adhesion
• Cell Signaling
• Glycoprotein Stability
• Bacterial Virulence
• Tumor Metastasis

• Medical Importance
• Influenza Inhibitors
• Marker for Disorders
• Biologics
• Diagnostics

Limited supply of sialic acid analogs has
hindered advancement in basic research,
diagnostic development and therapeutic production
4
Current resources for sialic acid are scarce,
costly, and non-scalable
Chemical Synthesis
challenging
Enzymatic Synthesis
Natural Resources
costly not readily scalable
low yield purity
Microbial Fermentation?
5
Fermentation as an alternative route in sialic
acid production

• Low cost
• Scalable
• Can be crystallized from aqueous solutions at
  concentrations gt 150 g/L
• Bacterial sialic acid metabolism is well
  characterized

Harness the chemistry of biological pathways in
bacteria to produce sialic acid
6
Sialic Acid
Feedstock
Plasmid
Gene Expression
E. coli Cell
Encodes sialic acid biosynthesis
Host DNA Lacks genes for sialic acid degradation
7
Removal of sialic acid catabolism in E. coli is
crucial for sialic acid production
OUT
IN
Sialic Acid
Sialic Acid
NanA
NanT
ManNAc Pyruvate
Aldolase
ATP
Transporter
NanK
ADP
Fructose-6-P
ManNAc-6-P
NanE
NagB
NagA
GlcNAc-6-P
GlcN-6-P
Deletion of transporter and aldolase eliminates
sialic acid degradation
8
NeuC and NeuB catalyze the de novo biosynthesis
of intracellular sialic acid in N. meningitidis
group B
NeuC
NeuB
Sialic Acid
UDP-GlcNAc
ManNAc
CTP
PEP
Pi
H2O
UDP
PPi
NeuA
NeuS
Export
Polysialic Acid Capsule
CMP-Sialic Acid
Sialic Acidn
Insertion of NeuB and NeuC allows in vivo
synthesis of sialic acid
9
Glucosamine synthase increases the synthesis of
key metabolite for sialic acid biosynthesis
GlmS
GlmM
GlcN-6-P
GlcN-1-P
Fru-6-P
Ac-CoA
Gln
Glu
GlmU
CoA
GlmU
GlcNAc-1-P
UDP-GlcNAc
UTP
PPi
NeuBC pathway
Sialic Acid
Increases production of sialic acid from low-cost
feedstocks
10
Sialic acid production by genetically
metabolically engineered E. coli
11
Various carbon sources lead to sialic acid
production
Sialic acid production from glucose is the
cheapest
12
Multiple feedings of glucose leads to a sialic
acid titer of 1.7 grams per liter
Production costs lt1 per gram of sialic acid
13
Sialic Acid Analogs Tools for discovery in
sialic acid research

• Serve as biological probes, components of drugs
  and diagnostics

N-azido sialic acid
N-acyl sialic acid
imaging of cells in vivo
modulate cell-cell interactions
14
Analogs can be produced using chemically modified
feedstocks
GlmS NeuC NeuB
N-acyl glucosamine
N-acyl sialic acid
Feeding of N-acyl glucosamines to engineered E.
coli results in production of N-acyl sialic acids
15
Analogs can be produced in vivo by expressing
tailoring enzymes
GlmS NeuC NeuB
Glucose
Sialic Acid
Hydroxylase
Produce gram quantities of important analogs
N-glycolyl sialic acid
16
Sialic acid production by microbial fermentation

• Is efficient, rapid, and cost effective
• Higher yields from dense-cell cultures
• Generate large amounts of analogs
• Shows the feasibility to produce complex,
  unavailable small molecules

17
Acknowledgements

• Christopher N. Boddy
• The Blattner lab at University of WI-Madison
• Timothy J. Durfee
• Kinya Hotta
• The Borer and Doyle labs at Syracuse University
• Syracuse University and the Structural Biology,
  Biochemistry and Biophysics (SB3) graduate
  program.
