Title: Synchronization, and Spatial Presentation of a cmo using Petri Net


1

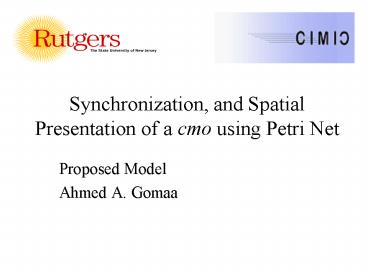

Synchronization, and Spatial Presentation of a
cmo using Petri Net
  • Proposed Model
  • Ahmed A. Gomaa

2
cmo presentation
Case I Lung Transplant
Desc1 Posteroanterior chest radiograph of a
patient with thoracic actinomycosis show an
ill-defined opacity simulating lung
cancer. Desc2 Posteroanterior chest radiograph
of a patient with thoracic actinomycosis show an
ill-defined opacity simulating lung cancer. Desc
3 Frontal view of both lungs at autopsy. The
lungs are edematous, especially the right lung,
with areas of hemorrhage and pleural fibrosis.
Fibrinopurulent adhesions were noted along the
posterior and basal surfaces of both lungs,
Previously, a specific dietary supplement,
selected vegetables (SV), was found to be
associated with prolonged survival of stage III
and IV non-small cell lung cancer (NSCLC)
patients. In this study, several anticancer
components in SV were easured the anticancer
activity of SV was assessed using a lung tumor
model, line 1 in BALB/c mice. SV was also used in
conjunction with conventional therapies by stage
IIIB and IV NSCLC patients whose survival and
clinical responses were evaluated. A daily
portion (283 g) of SV was found to contain 63 mg
of inositol hexaphosphate, 4.4 mg of daidzein,
2.6 mg of genistein, and 16 mg of coumestrol.
Mouse food containing 5 SV (wt/wt) was
associated with a 53-74 inhibition of tumor
growth rate. Fourteen of the 18 patients who
ingested SV daily for 2-46 months were included
in the analyses none showed evidence of toxicity.
P9 surgery.mpg
Lung surgery involves entering the chest wall to
get to the lung. There are two ways to do this.
Your surgeon will choose the method thats best
for your condition. Thoracoscopy uses several
small incisions. The surgeon places a thin tube
containing a camera through one incision and can
view the lungs on a video monitor. Thoracotomy
uses a larger incision in the chest. This opening
allows the surgeon to see the lungs directly.
Either procedure may be done alone, or a
thoracoscopy may be done to help decide whether a
thoracotomy is needed. Pulmonary
transplantation has become a viable treatment
option for patients with end stage
cardiopulmonary disease. Patients eligible for
pulmonary transplantation include any person who
is severely debilitated by their cardiopulmonary
disease and is not hampered by any other organ
system dysfunction. Candidates frequently have
the diagnosis of obstructive lung disease (e.g.
emphysema. cystic fibrosis, bronchiectasis),
pulmonary hypertension (both primary and
secondary or pulmonary fibrosis (e.g.
sarcoidosis, IPF, silicosis). This same team
performs all cardiothoracic transplants for
.
P5 Xray1.bmp
P3 case_desc.txt
P6 Xray2.bmp
P2 title.gif
P4 patient.mpg
P8 Xrays_desc.txt
P7 autopsy1.gif
P10 surgerydesc.txt
0 Sec
45 Sec
30 Sec
10 Sec
85 Sec
3
Synchronization Presentation of the cmo
High resolution monitor
Audio
Xray1.bmp dur 15s
Physician Medscape.com subscriber
Intro.wav dur 10s
Video
Xray2.bmp dur 15s
Surgery.mpeg dur 40s
High resolution monitor
Start
End
Text
Audio
case_desc.txt dur 20s
Medscape.com subscriber
Medscape.com subscriber
Text
Surgerydesc.txt dur 40s
Autospy.gif dur 15s
Authorized viewers
Text
Video
P4 patient.mpg dur 20s
Xrays_desc.txt dur 15s
Title.gif dur 10s
0 Sec
45 Sec
30 Sec
10 Sec
85 Sec
Timeline
An original plan for for the cmo, including
synchronization, fidelity and security
constraints.
4
Spatial Presentation of a cmo
High resolution monitor
Audio
Xray1.bmp dur 15s
Physician Medscape.com subscriber
Intro.wav dur 10s
Video
Xrays_desc.txt dur 15s
Xray2.bmp dur 15s
Surgery.mpeg dur 40s
High resolution monitor
Start
End
Text
Text
case_desc.txt dur 20s
Medscape.com subscriber
Medscape.com subscriber
Text
Autospy.gif dur 15s
Surgerydesc.txt dur 40s
Authorized viewers
Video
P4 patient.mpg dur 20s
Title.gif dur 10s
0 Sec
45 Sec
30 Sec
10 Sec
85 Sec
Timeline
An original plan for for the cmo, including
Spatial, fidelity and security constraints.
5
Spatial
Xray1.bmp dur 15s
Intermediate Transition IT
Xrays_desc.txt dur 15s
Xray2.bmp dur 15s
High resolution monitor
Text
Autospy.gif dur 15s
Starting Transition ST
Ending Transition ET
Medscape.com subscriber
High resolution monitor
1- In the Synchronization presentation, each
place holds its duration, If not, we can
understand the time flow. 2- In the spatial
presentation, each place holds its location, If
not we can understand the space flow. 3- For all
places between two temporal transitions, there
exits one spatial presentation. 4-The spatial
presentation have one Starting transition ST,
one Ending transition ET, and one or more
Intermediate transitions IT1. 5- Need a special
type of transition ( Intermediate) to accommodate
the liaison between spatial and temporal
presentation Once a spatial token exists in an
input place. The Intermediate transition fires
spatial tokens to output places. The transition
does not consume the input spatial token, just
produces new spatial tokens for each outgoing
place. 6-The ending transition fires when all
place duration ends. The ending transition
consumes all spatial tokens. Spatial
Scenario ST fires, ST send spatial token to
Text. IT enabled IT fires IT sends spatial
tokens to Image1, Image 2 and Image3. ET enabled.
ET fires, when places duration end .
Xray1.bmp dur 15s
Xray2.bmp dur 15s
High resolution monitor
Medscape.com subscriber
Autospy.gif dur 15s
Text
Xrays_desc.txt dur 15s
Synchronization
6
Combining Spatial and Synchronization
presentation
  • The original spatial transition fires at the
    same time the temporal transition fires.
  • Each place is activated once all temporal tokens
    are in the place
  • The spatial token does not affect at all the
    activation of the object. It just allows the
    object to display.
  • Audio Objects does not accept spatial arcs..

Audio
Intro.wav dur 10s
Start
Text
case_desc.txt dur 20s
Timeline
spatial transition
Authorized viewers
Title.gif dur 10s
Video
P4 patient.mpg dur 20s
30 Sec
0 Sec
10 Sec
7
Combining Spatial and Synchronization
presentation
45 Sec
30 Sec
8
High resolution monitor
Audio
Xray1.bmp dur 15s
Physician Medscape.com subscriber
Intro.wav dur 10s
Video
Xray2.bmp dur 15s
Surgery.mpeg dur 40s
High resolution monitor
Start
Text
End
case_desc.txt dur 20s
Medscape.com subscriber
Medscape.com subscriber
Text
Autospy.gif dur 15s
Surgerydesc.txt dur 40s
Authorized viewers
Text
Video
P4 patient.mpg dur 20s
Title.gif dur 10s
Xrays_desc.txt dur 15s
Synchronization and Spatial
An original plan for for the cmo, including
synchronization, Spatial, fidelity and security
constraints.
