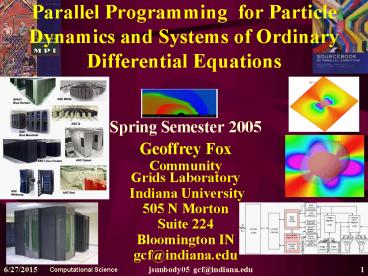

Parallel Programming for Particle Dynamics and
Systems of Ordinary Differential Equations

• Spring Semester 2005
• Geoffrey Fox
• Community Grids Laboratory
• Indiana University
• 505 N Morton
• Suite 224
• Bloomington IN
• gcf_at_indiana.edu

2
Abstract of Parallel Programming for Particle
Dynamics

• This uses the simple O(N2) Particle Dynamics
  Problem as a motivator to discuss solution of
  ordinary differential equations
• We discuss Euler, Runge Kutta and predictor
  corrector methods
• Various Message parallel O(N2) algorithms are
  described with performance comments
• The initial discussion covers the type of
  problems that use these algorithms
• Advanced topics include fast multipole methods
  and their application to earthquake simulations

3
Classes of Physical Simulations

• Mathematical (Numerical) formulations of
  simulations fall into a few key classes which
  have their own distinctive algorithmic and
  parallelism issues
• Most common formalism is that of a field theory
  where quantities of interest are represented by
  densities defined over a 1,2,3 or 4 dimensional
  space.
• Such a description could be fundamental as in
  electromagnetism or relativity for gravitational
  field or approximate as in CFD where a fluid
  density averages over a particle description.
• Our Laplace example is of this form where field ?
  could either be fundamental (as in
  electrostatics) or approximate if comes from
  Euler equations for CFD

4
Applications reducing to Coupled set of Ordinary
Differential Equations

• Another set of models of physical systems
  represent them as coupled set of discrete
  entities evolving over time
• Instead of ?(x,t) one gets ?i(t) labeled by an
  index i
• Discretizing x in continuous case leads to
  discrete case but in many cases, discrete
  formulation is fundamental
• Within coupled discrete system class, one has two
  important approaches
• Classic time stepped simulations -- loop over all
  i at fixed t updating to
• Discrete event simulations -- loop over all
  events representing changes of state of ?i(t)

5
Particle Dynamics or Equivalent Problems

• Particles are sets of entities -- sometimes fixed
  (atoms in a crystal) or sometimes moving
  (galaxies in a universe)
• They are characterized by force Fij on particle i
  due to particle j
• Forces are characterized by their range r
  Fij(xi,xj) is zero if distance xi-xj greater
  than r
• Examples
• The universe
• A globular star cluster
• The atoms in a crystal vibrating under
  interatomic forces
• Molecules in a protein rotating and flexing under
  interatomic force
• Laws of Motion are typically ordinary
  differential equations
• Ordinary means differentiate wrt one variable --
  typically time

6
Classes of Particle Problems

• If the range r is small (as in a crystal), the
  one gets numerical formulations and parallel
  computing considerations similar to those in
  Laplace example with local communication
• We showed in Laplace module that efficiency
  increases as range of force increases
• If r is infinite ( no cut-off for force) as in
  gravitational problem, one finds rather different
  issues which we will discuss in this module
• There are several non-particle problems
  discussed later that reduce to long range force
  problem characterized by every entity interacting
  with every other entity
• Characterized by a calculation where updating
  entity i involves all other entities j

7
Circuit Simulations I

• An electrical or electronic network has the same
  structure as a particle problem where particles
  are components (transistor, resistance,
  inductance etc.) and force between components i
  and j is nonzero if and only if i and j are
  linked in the circuit
• For simulations of electrical transmission
  networks (the electrical grid), one would
  naturally use classic time stepped simulations
  updating each component i from state at time t to
  state at time t?t.
• If one is simulating something like a chip, then
  time stepped approach is very wasteful as 99.99
  of the components are doing nothing (i.e. remain
  in same state) at any given time step!
• Here is where discrete event simulations (DES)
  are useful as one only computes where the action
  is
• Biological simulations often are formulated as
  networks where each component (say a neuron or a
  cell) is described by an ODE and the network
  couples components

8
Circuit Simulations II

• Discrete Event Simulations are clearly preferable
  on sequential machines but parallel algorithms
  are hard due to need for dynamic load balancing
  (events are dynamic and not uniform throughout
  system) and synchronization (which events can be
  executed in parallel?)
• There are several important approaches to DES of
  which best known is Time Warp method originally
  proposed by David Jefferson -- here one
  optimistically executes events in parallel and
  rolls back to an earlier state if this is found
  to be inconsistent
• Conservative methods (only execute those events
  you are certain cannot be impacted by earlier
  events) have little paralellism
• e.g. there is only one event with lowest global
  time
• DES do not exhibit the classic loosely
  synchronous compute-communicate structure as
  there is no uniform global time
• typically even with time warp, no scalable
  parallelism

9
Discrete Event Simulations

• Suppose we try to execute in parallel events E1
  and E2 at times t1 and t2 with t1lt t2.
• We show the timelines of several(4) objects in
  the system and our two events E1 and E2
• If E1 generates no interfering events or one E12
  at a time greater than t2 then our parallel
  execution of E2 is consistent
• However if E1 generates E12 before t2 then
  execution of E2 has to be rolled back and E12
  should be executed first

E1
E21
E11
Objects in System
E22
E12
E12
Time
E2
10
Matrices and Graphs I

• Especially in cases where the force is linear
  in the ?i(t) , it is convenient to think of force
  being specified by a matrix M whose elements mij
  are nonzero if and only if the force between i
  and j is nonzero. A typical force law is Fi ?
  mij ?j(t)
• In Laplace Equation example, the matrix M is
  sparse ( most elements are zero) and this is a
  specially common case where one can and needs to
  develop efficient algorithms
• We discuss in another talk the matrix formulation
  in the case of partial differential solvers

11
Matrices and Graphs II

• Another way of looking at these problems is as
  graphs G where the nodes of the graphs are
  labeled by the particles i, and one has edges
  linking i to j if and only if the force Fij is
  non zero
• In these languages, long range force problems
  correspond to dense matrix M (all elements
  nonzero) and fully connected graphs G

10
1
3
4
7
11
9
5
2
6
8
12
12
Other N-Body Like Problems - I

• The characteristic structure of N-body problem is
  an observable that depends on all pairs of
  entities from a set of N entities.
• This structure is seen in diverse applications
• 1) Look at a database of items and calculate some
  form of correlation between all pairs of database
  entries
• 2) This was first used in studies of measurements
  of a "chaotic dynamical system" with points xi
  which are vectors of length m Put rij distance
  between xi and xj in m dimensional space Then
  probability p(rij r) is proportional to r(d-1)
• where d (not equal to m) is dynamical dimension
  of system
• calculate by forming all the rij (for i and j
  running over observable points from our system --
  usually a time series) and accumulating in a
  histogram of bins in r
• Parallel algorithm in a nutshell Store
  histograms replicated in all processors,
  distribute vectors equally in each processor and
  just pipeline xj through processors and as they
  pass through accumulate rij add histograms
  together at end.

13
Other N-Body Like Problems - II

• 3) Green's Function Approach to simple Partial
  Differential equations gives solutions as
  integrals of known Green's functions times
  "source" or "boundary" terms.
• For the simulation of earthquakes in GEM project
  the source terms are strains in faults and the
  stresses in any fault segment are the integral
  over strains in all other segments
• Compared to particle dynamics, Force law replaced
  by Green's function but in each case total
  stress/Force is sum over contributions associated
  with other entities in formulation
• 4) In the so called vortex method in CFD
  (Computational Fluid Dynamics) one models the
  Navier Stokes Equation as the long range
  interactions between entities which are the
  vortices
• 5) Chemistry uses molecular dynamics and so
  particles are molecules but force is not Newton's
  laws usually but rather Van der Waals forces
  which are long range but fall off faster than 1/r2

14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
Eulers Method for ODEs

• Eulers method involves a simple linear
  extrapolation to proceed from point to point with
  the ODE providing the slope
• Grid ti t0 hi and X0 Initial Value
• Xi1 Xi h f(ti,Xi)
• In practice not used as not accurate enough

19
Estimate of Local Error in Eulers Method

• Let X(ti) be numerical solution and Y(ti) the
  exact solution. We have Taylor Expansion
• And by assumption X(ti) Y(ti) and in Eulers
  method we use exact derivative at ti. ThusAnd
  so X(tih) Y(tih) O(h2) and so local error
  is O(h2)
• Accumulating this error over 1/h steps gives a
  global error of order h

20
Relationship of Error to Computational Approach

• Whenever f satisfies certain smoothness
  conditions, there is always a sufficiently small
  step size h such that the difference between the
  real function value Yi1 at ti1 and the
  approximation Xi1 is less than some required
  error magnitude ?. e.g. Burden and Faires
• Euler's method very quick as one computation of
  the derivative function f at each step.
• Other methods require more computation per step
  size h but can produce the specified error ? with
  fewer steps as can use a larger value of h. Thus
  Eulers method is not best.

21
Simple Example of Eulers Equation

• The CSEP Book http//csep.hpcc.nectec.or.th/CSEP/
  has lots of useful material. Consider simple
  example from there
• With the trivial and uninteresting (as step size
  too large) choice h0.25, we get

And so
22
(No Transcript)
23
Whats wrong with Eulers Method?

• To extrapolate from ti to ti1 one should
  obviously best use (if just a straight line) the
  average slope (of tangent) and NOT the value at
  start
• This immediately gives an error smaller by factor
  h but isnt trivial because you dont seem to
  know f(ti0.5h,X(ti0.5h))

24
Runge-Kutta Methods Modified Euler I

• In the Runge Kutta methods, one uses intermediate
  values to calculate such midpoint derivatives
• Key idea is that use an approximation for
  X(ti0.5h) as this is an argument of f which is
  multiplied by h. Thus error is (at least) one
  factor of h better than approximation
• So if one wishes just to do one factor of h
  better than Euler, one can use Euler to estimate
  value of X(ti0.5h)

25
Runge-Kutta Methods Modified Euler II

• Midpoint Method is ?1 f(ti,X(ti)) ?2
  f(ti0.5h,X(ti0.5h)) Xi1 Xi h ?2

Global Error is O(h2))Second Order Method
?2 Approximate Tangent at Midpoint
?1 Tangentat ti
Exact Yi1
Midpoint Approximation Xi1
Xi Yi
Approximate Tangent at Midpoint through ti
ti
ti1
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
Time Discretization

• In ordinary differential equations, one focuses
  on different ways of represent d?i(t)/dt in some
  difference form such as Eulers form
  d?i(t)/dt (?i(t ?t) - ?i(t)) / ?t
• Or more accurate Runge-Kutta and other formulae
• The same time discretization methods are
  applicable to (time derivatives in) partial
  differential equations involving time and are
  used to approximate ??i(x,t) / ?t

31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
The Mathematical Problem

• We have 3 long vectors of size N
• X X1, X2, X3, XN
• V V1, V2, V3, VN
• M M1, M2, M3, MN is constant
• Critical Equation isdVi / dt Sum over all
  other particles j of the force due to j th
  particle which is (Xj Xi)/(distance between i
  and j )3 which we term Grav(X,M)
• We call the message parallel (MPI) implementation
  of the calculation of Grav the function MPGrav

35
The Problem

• D(X,V)/dt Function of X,V, M
• Where each of X, V and M are N dimensional arrays
• And there some scalars such as Gravitational
  Constant

36
Essential Ideas

• The array size N is from 100,000 (Chemistry) to
  100,000,000 (cosmology)
• In simplest case of Eulers method
• X(tdt) X(t) h V(t)
• V(tdt) V(t) h Grav(Vectors X and M)
• Runge-Kutta is more complicated but this doesnt
  effect essential issues for parallelism
• The X equation needs to be calculated for each
  component i it takes time of order N
• The V equation also needs to be calculated for
  each component i but now each component is
  complicted and needs a computation itself of O(N)
  total time is of order N2 and dominates

37
Form of parallel Computation

• Computation of numerical method is inherently
  iterative at each time step, the solution
  depends on the immediately preceding one.
• At each time step, MPGrav is called (several
  times as using Runge Kutta)
• For each particle i, one must sum over the forces
  due to all other particles j.
• This requires communication as information about
  other particles are stored in other processors
• We will use 4th order Runge Kutta to integrate in
  time and the program is designed around an
  overall routine looping over time with
  parallelism hidden in MPGrav routines and so
  identical between parallel and sequential versions

38
(No Transcript)
39
Status of Parallelism in Various N Body Cases

• Data Parallel approach is really only useful for
  the simple O(N2) case and even here it is quite
  tricky to express algorithm so that it is
• both Space Efficient and
• Captures factor of 2 savings from Newton's law of
  action and reaction Fij - Fji
• We have discussed these issues in a different
  foilset
• The shared memory approach is effective for a
  modest number of processors in both algorithms.
• It is only likely to scale properly for O(N2)
  case as the compiler will find it hard to capture
  clever ideas needed to make fast multipole
  efficient
• Message Parallel approach gives you very
  efficient algorithms in both O(N2) and O(NlogN)
• O(N2) case has very low communication
• O(NlogN) has quite low communication

40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
Relation to General Speed Up and Efficiency
Analysis

• We discussed in case of Jacobi example, that in
  many problems there is an elegant formulafcomm
  constant . tcomm/(n1/d tfloat)
• d is system information dimension which is equal
  to geometric dimension in problems like Jacobi
  Iteration where communication is a surface and
  calculation a volume effect
• This geometric type formula comes in any case
  where we are solving partial differential
  equation by local algorithm (locality corresponds
  to geometry)

52
(No Transcript)
53
(No Transcript)
54
Factor of 2 in N-body Algorithm

• Symmetry of force on particles Fij -Fji
  (Newton's Law of Action and Reaction!)
• Only half need to be computed
• Sequentially this can easily be taken into
  account for one just does loops with sum over
  particles i, and then sums for force calculation
  over particles j lt i and then calculate
  algebraic form of Fij and then accumulates --
  Force on i is incremented by Fij and Force on j
  is decremented by Fij
• Parallel version has two issues
• Firstly one cannot use "owner-computes" rule
  directly as typically i and j are stored in
  different processors and one must calculate Fij
  in wrong processor for either i or j (in
  algorithm above the force on the particle with
  the larger index is calculated in wrong
  processor)
• Secondly one must worry about load balancing as
  processors responsible for particles with low
  numbered particles will have more work

55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
Best Message Parallel N Body Algorithm - III

• So owners compute rule is preserved as the home
  for particle i accumulates the force on I and
  calculates its acceleration and change in
  velocity and position
• Ignoring blocking, we send a message for each
  particle around in a pipeline that visits each
  other processor
• Message contains the mass, position and the
  off-processor contribution to force that is
  incremented as message travels through the
  processors
• Message returns to the home processor for each
  particle and the travelling force is added into
  the part of the force that had been accumulated
  in home processor.

60
Best Message Parallel N Body Algorithm - IV

• Key characteristic of algorithm are rotating
  messages containing data about and updating force
  for each particle
• Essential idea for efficiency is that when a
  message arrives in a new processor, it is used to
  update all particles that it should in that
  processor so message visits each processor once
  and once only
• On average message only updates 50 of particles
  in each new processor
• Load balancing requires some sort of scattered
  decomposition so each processor has as many high
  and lo numbered particles
• Insensitivity to message latency requires that we
  block messages and send several at a time
• This algorithm is too hard to be found by a
  compiler unless you build it in.

61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
