The Advanced Networks and Services Underpinning the Large-Scale Science of DOE

1

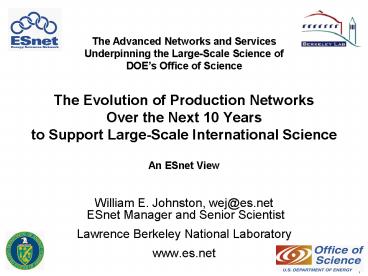

The Advanced Networks and ServicesUnderpinning
the Large-Scale Science ofDOEs Office of
ScienceThe Evolution of Production
NetworksOver the Next 10 Yearsto Support
Large-Scale International ScienceAn ESnet View

• William E. Johnston, wej_at_es.net ESnet Manager
  and Senior Scientist
• Lawrence Berkeley National Laboratory
• www.es.net

2
DOE Office of Science Drivers for Networking

• The DOE Office of Science supports more than 40
  of all US RD in high-energy physics, nuclear
  physics, and fusion energy sciences
  (http//www.science.doe.gov)
• This large-scale science that is the mission of
  the Office of Science depends on high-speed
  networks for
• Sharing of massive amounts of data
• Supporting thousands of collaborators world-wide
• Distributed data processing
• Distributed simulation, visualization, and
  computational steering
• Distributed data management
• The role of ESnet is to provides networking that
  supports and anticipates these uses for the
  Office of Science Labs and their collaborators
• The issues were explored in two Office of Science
  workshops that formulated networking requirements
  to meet the needs of the science programs (see
  refs.)

3
Increasing Large-Scale Science Collaborationis
Reflected in Network Usage

• As of May, 2005 ESnet is transporting about 530
  Terabytes/mo.
• ESnet traffic has increased by 10X every 46
  months, on average, since 1990

ESnet Monthly Accepted Traffic Feb., 1990 May,
2005
TBytes/Month
Feb, 90 Aug, 90 Feb, 91 Aug, 91 Feb, 92 Aug,
92 Feb, 93 Aug, 93 Feb, 94 Aug, 94 Feb, 95 Aug,
95 Feb, 96 Aug, 96 Feb, 97 Aug, 97 Feb, 98 Aug,
98 Feb, 99 Aug, 99 Feb, 00 Aug, 00 Feb, 01 Aug,
01 Feb, 02 Aug, 02 Feb, 03 Aug, 03 Feb, 04 Aug,
04 Feb, 05
4
Large-Scale Science Has Changed How the Network
is Used
Total ESnet traffic Feb., 2005 323 TBy in
approx. 6,000,000,000 flows
ESnet Top 100 Host-to-Host Flows, Feb., 2005
TBytes/Month
DOE Lab-International RE
All other flows(lt 0.28 TBy/month each)
Lab-U.S. RE (domestic)
Lab-Lab(domestic)
International
Domestic
Inter-Lab
Lab-Comm.(domestic)

• Top 100 flows 84 TBy

• A small number of large-scale science users now
  account fora significant fraction of all ESnet
  traffic
• Over the next few years this will grow to be the
  dominate use of the network

5
Large-Scale Science Has Changed How the Network
is Used

• These flows are primarily bulk data transfer at
  this point and are candidates for circuit based
  services for several reasons
• Traffic engineering to manage the traffic on
  the backbone
• Guaranteed bandwidth is needed to satisfy
  deadline scheduling requirements
• Traffic isolation will permit the use of
  efficient, but TCP unfriendly, data transfer
  protocols

6
Virtual Circuit Network Services

• A top priority of the science community
• Today
• Primarily to support bulk data transfer with
  deadlines
• In the near future
• Support for widely distributed Grid workflow
  engines
• Real-time instrument operation
• Coupled, distributed applications
• To get an idea of how circuit services might be
  used to support the current trends, look at the
  one year history of the flows that are currently
  the top 20
• Estimate from the flow history what would be the
  characteristics of a circuit set up to manage the
  flow

7
Source and Destination of the Top 20 Flows, Sept.
2005
8
What are Characteristics of Todays Flows How
Dynamic a Circuit?
LIGO CalTech Over 1 year the circuit duration
is about 3 months
Gigabytes/day
(no data)
9
What are Characteristics of Todays Flows How
Dynamic a Circuit?
SLAC - IN2P3 (FR)Over 1 year circuit duration
is about 1 day to 1 week
Gigabytes/day
(no data)
10
Between ESnet, Abilene, GÉANT, and the connected
regional RE networks, there will be dozens of
lambdas in production networks that are shared
between thousands of users who want to use
virtual circuits Very complex inter-domain
issues
similar situationin GÉANT and theEuropean NRENs
Abilene
ESnet-Abilenex-connects
ESnet
similar situationin US regionals
US RE environment
11
OSCARS Virtual Circuit Service

• Despite the long circuit duration, these circuits
  cannot be managed by hand too many circuits
• There must automated scheduling, authorization,
  path analysis and selection, and path setup
  management plane and control plane
• Virtual circuits must operate across domains
• End points will be on campuses or research
  institutes that are served by ESnet, Abilenes
  regional networks, and GÉANTs regional networks
  typically five domains to cross to do
  end-to-end system connection
• There are many issues here that are poorly
  understood
• A collaboration between Internet2/HOPI,
  DANTE/GÉANT, and ESnet is building a
  prototype-production, interoperable service
• ESnet virtual circuit project On-demand Secure
  Circuits and Advance Reservation System (OSCARS)
  (Contact Chin Guok (chin_at_es.net) for
  information.)

12
What about lambda switching?

• Two factors argue that this is a long ways out
  for production networks
• 1) There will not be enough lambdas available to
  satisfy the need
• Just provisioning a single lambda ring around the
  US (7000miles -11,000km) is still about
  2,000,000 even on RE networks
• This should drop by a factor of 5 -10 over next
  decade
• 2) Even if there were a lot of lambdas
  (hundreds?) there are thousands of large-scale
  science users
• Just considering sites (and not scientific
  groups) there are probably 300 major research
  science research sites in the US and a comparable
  number in Europe
• So, lambdas will have to be shared for the
  foreseeable future
• Multiple QoS paths per lambda
• Guaranteed minimum level of service for best
  effort traffic when utilizing the production IP
  networks
• Allocation management
• There will be hundreds to thousands of contenders
  with different science priorities

13
References DOE Network Related Planning
Workshops

• 1) High Performance Network Planning Workshop,
  August 2002
• http//www.doecollaboratory.org/meetings/hpnpw
• 2) DOE Science Networking Roadmap Meeting, June
  2003
• http//www.es.net/hypertext/welcome/pr/Roadmap/ind
  ex.html
• 3) DOE Workshop on Ultra High-Speed Transport
  Protocols and Network Provisioning for
  Large-Scale Science Applications, April 2003
• http//www.csm.ornl.gov/ghpn/wk2003
• 4) Science Case for Large Scale Simulation, June
  2003
• http//www.pnl.gov/scales/
• 5) Workshop on the Road Map for the
  Revitalization of High End Computing, June 2003
• http//www.cra.org/Activities/workshops/nitrd
• http//www.sc.doe.gov/ascr/20040510_hecrtf.pdf
  (public report)
• 6) ASCR Strategic Planning Workshop, July 2003
• http//www.fp-mcs.anl.gov/ascr-july03spw
• 7) Planning Workshops-Office of Science
  Data-Management Strategy, March May 2004
• http//www-conf.slac.stanford.edu/dmw2004

14

• The Full Talk

15
ESnet Today Provides Global High-Speed Internet
Connectivity forDOE Facilities and Collaborators
Japan (SINet) Australia (AARNet) Canada
(CAnet4 Taiwan (TANet2) Singaren
CAnet4 France GLORIAD (Russia, China)Korea
(Kreonet2
MREN Netherlands StarTapTaiwan (TANet2, ASCC)
PNWGPoP/PAcificWave
SEA
ESnet Science Data Network (SDN) core
ESnet IP core
NYC
CHI-SL
MAE-E
SNV
CHI
Equinix
PAIX-PA Equinix, etc.
SNV SDN
DC
ATL
SDSC
ALB
42 end user sites
Office Of Science Sponsored (22)
ELP
NNSA Sponsored (12)
International (high speed) 10 Gb/s SDN core 10G/s
IP core 2.5 Gb/s IP core MAN rings ( 10
G/s) OC12 ATM (622 Mb/s) OC12 / GigEthernet OC3
(155 Mb/s) 45 Mb/s and less
Joint Sponsored (3)
Other Sponsored (NSF LIGO, NOAA)
ESnet IP core Packet over SONET Optical Ring and
Hubs
Laboratory Sponsored (6)
commercial and RE peering points

ESnet core hubs
IP
high-speed peering points with Internet2/Abilene
16
DOE Office of Science Drivers for Networking

• The DOE Office of Science supports more than 40
  of all US RD in high-energy physics, nuclear
  physics, and fusion energy sciences
  (http//www.science.doe.gov)
• This large-scale science that is the mission of
  the Office of Science depends on networks for
• Sharing of massive amounts of data
• Supporting thousands of collaborators world-wide
• Distributed data processing
• Distributed simulation, visualization, and
  computational steering
• Distributed data management
• The role of ESnet is to provide networking that
  supports these uses for the Office of Science
  Labs and their collaborators
• The issues were explored in two Office of Science
  workshops that formulated networking requirements
  to meet the needs of the science programs (see
  refs.)

17
CERN / LHC High Energy Physics Data Provides One
ofSciences Most Challenging Data Management
Problems (CMS is one of several experiments at
LHC)
100 MBytes/sec
event simulation
Online System
PByte/sec
Tier 0 1
eventreconstruction
HPSS
human
CERN LHC CMS detector 15m X 15m X 22m, 12,500
tons, 700M.
2.5-40 Gbits/sec
Tier 1
German Regional Center
French Regional Center
FermiLab, USA Regional Center
Italian Center
0.6-2.5 Gbps
analysis
Tier 2
0.6-2.5 Gbps
Tier 3
Institute 0.25TIPS

• 2000 physicists in 31 countries are involved in
  this 20-year experiment in which DOE is a major
  player.
• Grid infrastructure spread over the US and Europe
  coordinates the data analysis

Institute
Institute
Institute
100 - 1000 Mbits/sec
Physics data cache
Tier 4
Courtesy Harvey Newman, CalTech
Workstations
18
LHC Networking

• This picture represents the MONARCH model a
  hierarchical, bulk data transfer model
• Still accurate for Tier 0 (CERN) to Tier 1
  (experiment data centers) data movement
• Not accurate for the Tier 2 (analysis) sites
  which are implementing Grid based data analysis

19
Example Complicated Workflow Many Sites
20
Distributed Workflow

• Distributed / Grid based workflow systems involve
  many interacting computing and storage elements
  that rely on smooth inter-element communication
  for effective operation
• The new LHC Grid based data analysis model will
  involve networks connecting dozens of sites and
  thousands of systems for each analysis center

21
Example Multidisciplinary Simulation
A complete approach to climate modeling
involves many interacting models and data that
are provided by different groups at different
locations (Tim Killeen, NCAR)
Chemistry CO2, CH4, N2O ozone, aerosols
Climate Temperature, Precipitation, Radiation,
Humidity, Wind
Heat Moisture Momentum
CO2 CH4 N2O VOCs Dust
Minutes-To-Hours
Biogeophysics
Biogeochemistry
Carbon Assimilation
Aero- dynamics
Decomposition
Water
Energy
Mineralization
Microclimate Canopy Physiology
Phenology
Hydrology
Inter- cepted Water
Bud Break
Soil Water
Snow
Days-To-Weeks
Leaf Senescence
Evaporation Transpiration Snow Melt Infiltration R
unoff
Gross Primary Production Plant
Respiration Microbial Respiration Nutrient
Availability
Species Composition Ecosystem Structure Nutrient
Availability Water
Years-To-Centuries
Ecosystems Species Composition Ecosystem Structure
WatershedsSurface Water Subsurface
Water Geomorphology
Disturbance Fires Hurricanes Ice Storms Windthrows
Vegetation Dynamics
Hydrologic Cycle
(Courtesy Gordon Bonan, NCAR Ecological
Climatology Concepts and Applications. Cambridge
University Press, Cambridge, 2002.)
22
Distributed Multidisciplinary Simulation

• Distributed multidisciplinary simulation involves
  integrating computing elements at several remote
  locations
• Requires co-scheduling of computing, data
  storage, and network elements
• Also Quality of Service (e.g. bandwidth
  guarantees)
• There is not a lot of experience with this
  scenario yet, but it is coming (e.g. the new
  Office of Science supercomputing facility at Oak
  Ridge National Lab has a distributed computing
  elements model)

23
Projected Science Requirements for Networking
Science Areas considered in the Workshop 1(not including Nuclear Physics and Supercomputing) Today End2End Throughput 5 years End2End Documented Throughput Requirements 5-10 Years End2End Estimated Throughput Requirements Remarks
High Energy Physics 0.5 Gb/s 100 Gb/s 1000 Gb/s high bulk throughput with deadlines (Grid based analysis systems require QoS)
Climate (Data Computation) 0.5 Gb/s 160-200 Gb/s N x 1000 Gb/s high bulk throughput
SNS NanoScience Not yet started 1 Gb/s 1000 Gb/s remote control and time critical throughput (QoS)
Fusion Energy 0.066 Gb/s(500 MB/s burst) 0.198 Gb/s(500MB/20 sec. burst) N x 1000 Gb/s time critical throughput (QoS)
Astrophysics 0.013 Gb/s(1 TBy/week) NN multicast 1000 Gb/s computational steering and collaborations
Genomics Data Computation 0.091 Gb/s(1 TBy/day) 100s of users 1000 Gb/s high throughput and steering
24
ESnet Goal 2009/2010
AsiaPac

• 10 Gbps enterprise IP traffic
• 40-60 Gbps circuit based transport

SEA
Europe
CERN
CERN
Aus.
Europe
ESnet Science Data Network (2nd Core 30-50
Gbps,National Lambda Rail)
Japan
Japan
CHI
SNV
Europe
NYC
DEN
DC
MetropolitanAreaRings
Aus.
ESnet IP Core (10 Gbps)
ALB
ATL
SDG
ESnet hubs
New ESnet hubs
Metropolitan Area Rings
High-speed cross connects with Internet2/Abilene
10Gb/s 10Gb/s 30Gb/s 40Gb/s
Production IP ESnet core
Science Data Network core
Lab supplied
Major international
25
Observed Drivers for the Evolution of ESnet
ESnet is currently transporting About 530
Terabytes/mo.and this volume is increasing
exponentially ESnet traffic has increased by
10X every 46 months, on average, since 1990
ESnet Monthly Accepted Traffic Feb., 1990 May,
2005
TBytes/Month
Feb, 90 Aug, 90 Feb, 91 Aug, 91 Feb, 92 Aug,
92 Feb, 93 Aug, 93 Feb, 94 Aug, 94 Feb, 95 Aug,
95 Feb, 96 Aug, 96 Feb, 97 Aug, 97 Feb, 98 Aug,
98 Feb, 99 Aug, 99 Feb, 00 Aug, 00 Feb, 01 Aug,
01 Feb, 02 Aug, 02 Feb, 03 Aug, 03 Feb, 04 Aug,
04 Feb, 05
26
Observed Drivers The Rise of Large-Scale Science

• A small number of large-scale science users now
  account fora significant fraction of all ESnet
  traffic
• ESnet Top 100 Host-to-Host Flows, Feb., 2005

Total ESnet traffic Feb., 2005 323 TBy in
approx. 6,000,000,000 flows
DOE Lab-International RE
TBytes/Month
Lab-U.S. RE (domestic)
All other flows(lt 0.28 TBy/month each)
Lab-Lab(domestic)
International
Lab-Comm.(domestic)
Domestic
Inter-Lab

• Top 100 flows 84 TBy

27
Traffic Evolution over the Next 5-10 Years

• The current traffic pattern trend of the
  large-scale science projects giving rise to the
  top 100 data flows that represent about 1/3 of
  all network traffic will continue to evolve
• This evolution in traffic patterns and volume is
  driven by large-scale science collaborations and
  will result in large-scale science data flows
  overwhelming everything else on the network in
  3-5 yrs. (WEJ predicts)
• The top 100 flows will become the top 1000 or
  5000 flows
• These large flows will account for 75-95 of a
  much larger total ESnet traffic volume as
• the remaining 6 billion flows will continue to
  account for the remainder of the traffic, which
  will also grow even as its fraction of the total
  becomes smaller

28
Virtual Circuit Network Services

• Every requirements workshop involving the science
  community has put bandwidth-on-demand as the
  highest priority e.g. for
• Massive data transfers for collaborative analysis
  of experiment data
• Real-time data analysis for remote instruments
• Control channels for remote instruments
• Deadline scheduling for data transfers
• Smooth interconnection for complex Grid
  workflows

29
What is the Nature of the Required Circuits

• Today
• Primarily to support bulk data transfer with
  deadlines
• In the near future
• Support for widely distributed Grid workflow
  engines
• Real-time instrument operation
• Coupled, distributed applications
• To get an idea of how circuit services might be
  used look at the one year history of the flows
  that are currently the top 20
• Estimate from the flow history what would be the
  characteristics of a circuit set up to manage the
  flow

30
Source and Destination of the Top 20 Flows, Sept.
2005
31
What are Characteristics of Todays Flows How
Dynamic a Circuit?
LIGO CalTech Over 1 year the circuit duration
is about 3 months
Gigabytes/day
(no data)
32
What are Characteristics of Todays Flows How
Dynamic a Circuit?
SLAC - IN2P3 (FR)Over 1 year circuit duration
is about 1 day to 1 week
Gigabytes/day
(no data)
33
What are Characteristics of Todays Flows How
Dynamic a Circuit?
SLAC - INFN (IT)Over 1 year circuit duration
is about 1 to 3 months
Gigabytes/day
(no data)
34
What are Characteristics of Todays Flows How
Dynamic a Circuit?
FNAL - IN2P3 (FR)Over 1 year circuit duration
is about 2 to 3 months
Gigabytes/day
(no data)
35
What are Characteristics of Todays Flows How
Dynamic a Circuit?
INFN (IT) - SLACOver 1 year circuit duration
is about 3 weeks to 3 months
Gigabytes/day
(no data)
36
Characteristics of Todays Circuits How
Dynamic?

• These flows are candidates for circuit based
  services for two reasons
• Traffic engineering to manage the traffic on
  the IP production backbone
• To satisfy deadline scheduling requirements
• Traffic isolation to permit the use of efficient,
  but TCP unfriendly, data transfer protocols
• Despite the long circuit duration, this cannot be
  managed by hand too many circuits
• There must automated scheduling, authorization,
  path analysis and selection, and path setup

37
Virtual Circuit Services - What about lambda
switching?

• Two factors argue that this is a long ways out
  for production networks
• 1) There will not be enough lambdas available to
  satisfy the need
• Just provisioning a single lambda ring around the
  US (7000miles -11,000km) is still about
  2,000,000 even on RE networks
• This should drop by a factor of 5 -10 over next 5
  -10 years
• 2) Even if there were a lot of lambdas
  (hundreds?) there are thousands of large-scale
  science users
• Just considering sites (and not scientific
  groups) there are probably 300 major research
  science research sites in the US and a comparable
  number in Europe
• So, lambdas will have to be shared for the
  foreseeable future
• Multiple QoS paths per lambda
• Guaranteed minimum level of service for best
  effort traffic when utilizing the production IP
  networks
• Allocation management
• There will be hundreds to thousands of contenders
  with different science priorities

38
OSCARS Guaranteed Bandwidth Service

• Virtual circuits must operate across domains
• End points will be on campuses or research
  institutes that are served by ESnet, Abilenes
  regional networks, and GÉANTs regional networks
  typically five domains to cross to do
  end-to-end system connection
• There are many issues here that are poorly
  understood
• An ESnet Internet2/HOPI DANTE/GÉANT
  collaboration
• ESnet virtual circuit project On-demand Secure
  Circuits and Advance Reservation System (OSCARS)
  (Contact Chin Guok (chin_at_es.net) for
  information.)

39
OSCARS Guaranteed Bandwidth Service
bandwidthbroker
allocationmanager
authorization
resource manager
policer
usersystem1
shaper
path manager (dynamic, global view of network)
site A
resource manager

• To address all of the issues is complex
• There are many potential restriction points
• There are many users that would like priority
  service, which must be rationed

usersystem2
resource manager
policer
site B
40
ESnet 2010 Lambda Infrastructure and LHC T0-T1
Networking
TRIUMF
CERN-1
CANARIE
Seattle
CERN-2
Boise
CERN-3
BNL
Chicago
Clev
New York
Denver
Sunnyvale
KC
Pitts
GÉANT-1
FNAL
Wash DC
Raleigh
Tulsa
LA
Albuq.
Phoenix
GÉANT-2
San Diego
Atlanta
Dallas
Jacksonville
El Paso - Las Cruces
Pensacola
NLR PoPs
Baton Rouge
Houston
ESnet IP core hubs
San Ant.
ESnet Production IP core (10-20 Gbps) ESnet
Science Data Network core (10G/link)(incremental
upgrades, 2007-2010) Other NLR links CERN/DOE
supplied (10G/link) International IP connections
(10G/link)
ESnet SDN/NLR hubs
Tier 1 Centers
Cross connects with Internet2/Abilene
New hubs
41
Abilene and LHC Tier 2, Near-Term Networking
TRIUMF
CERN-1
CANARIE
Seattle
CERN-2
Boise
CERN-3
Chicago
BNL
Clev
New York
Denver
Sunnyvale
KC
Pitts
GÉANT-1
FNAL
Wash DC
Raleigh
Tulsa
LA
Albuq.
Phoenix
GÉANT-2
San Diego
Atlanta
Dallas
Jacksonville
El Paso - Las Cruces

• Atlas Tier 2 Centers
• University of Texas at Arlington
• University of Oklahoma Norman
• University of New Mexico Albuquerque
• Langston University
• University of Chicago
• Indiana University Bloomington
• Boston University
• Harvard University
• University of Michigan

Pensacola
NLR PoPs
Baton Rouge
Houston

• CMS Tier 2 Centers
• MIT
• University of Florida at Gainesville
• University of Nebraska at Lincoln
• University of Wisconsin at Madison
• Caltech
• Purdue University
• University of California San Diego

ESnet IP core hubs
San Ant.
ESnet Production IP core (10-20 Gbps) ESnet
Science Data Network core (10G/link)(incremental
upgrades, 2007-2010) Other NLR links CERN/DOE
supplied (10G/link) International IP connections
(10G/link)
ESnet SDN/NLR hubs
lt 10G connections to Abilene
10G connections to USLHC or ESnet
Tier 1 Centers
Abilene/GigaPoP nodes
Cross connects with Internet2/Abilene
USLHC nodes
New hubs
WEJ projection of future Abilene
42
Between ESnet, Abilene, GÉANT, and the connected
regional RE networks, there will be dozens of
lambdas in production networks that are shared
between thousands of users who want to use
virtual circuits Very complex inter-domain
issues
similar situationin Europe
Abilene
ESnet-Abilenex-connects
ESnet
similar situationin US regionals
US RE environment
43
ESnet Optical Networking Roadmap

• Dedicated virtual circuits

• Dynamic virtual circuit allocation

• GMPLS

2005 2006 2007
2008 2009 2010

• Interoperability between GMPLS circuits, VLANs,
  and MPLS circuits (Layer 1-3)

• Interoperability between VLANs and MPLS
  circuits(Layer 2 3)

• Dynamic provisioning of MPLS circuits (Layer 3)

44
Tying Domains Together (1/2)

• Motivation
• For a virtual circuit service to be successful,
  it must
• Be end-to-end, potentially crossing several
  administrative domains
• Have consistent network service guarantees
  throughout the circuit
• Observation
• Setting up an intra-domain circuit is easy
  compared with coordinating an inter-domain
  circuit
• Issues
• Cross domain authentication and authorization
• A mechanism to authenticate and authorize a
  bandwidth on-demand (BoD) circuit request must be
  agreed upon in order to automate the process
• Multi-domain Acceptable Use Policies (AUPs)
• Domains may have very specific AUPs dictating
  what the BoD circuits can be used for and where
  they can transit/terminate
• Domain specific service offerings
• Domains must have way to guarantee a certain
  level of service for BoD circuits
• Security concerns
• Are there mechanisms for a domain to protect
  itself? (e.g. RSVP filtering)

45
Tying Domains Together (2/2)

• Approach
• Utilize existing standards and protocols (e.g.
  GMPLS, RSVP)
• Adopt widely accepted schemas/services (e.g X.509
  certificates)
• Collaborate with like-minded projects (e.g. JRA3
  (DANTE/GÉANT), BRUW (Internet2/HOPI) to
• 1. Create a common service definition for BoD
  circuits
• 2. Develop an appropriate User-Network-Interface
  (UNI) and Network-Network-Interface (NNI)
