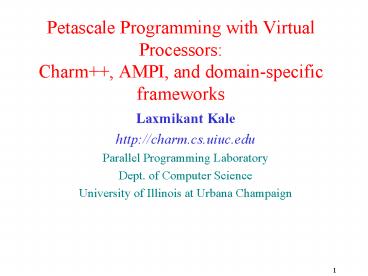

Petascale Programming with Virtual
ProcessorsCharm, AMPI, and domain-specific
frameworks

• Laxmikant Kale
• http//charm.cs.uiuc.edu
• Parallel Programming Laboratory
• Dept. of Computer Science
• University of Illinois at Urbana Champaign

2
Outline

• Challenges and opportunities character of the
  new machines
• Charm and AMPI
• Basics
• Capabilities,
• Programming techniques
• Dice them fine
• VPS to the rescue
• Juggling for overlap
• Load balancing
• scenarios and strategies

• Case studies
• Classical Molecular Dynamics
• Car-Parinello AI MD Quantum Chemistry
• Rocket SImulation
• Raising level of abstraction
• Higher level compiler supported notations
• Domain-specific frameworks
• Example
• Unstructured mesh (FEM) framework

3
Machines current, planned and future

• Current
• Lemieux 3000 processors, 750 nodes,
  full-bandwidth fat-tree network
• ASCI Q similar architecture
• System X Infiniband
• Tungston myrinet
• Thunder
• Earth Simulator
• Planned
• IBMs Blue Gene L 65k nodes, 3D-taurus topology
• Red Storm (10k procs)

• Future?
• BG/L is an example
• 1M processors!
• 0.5 MB per procesor
• HPCS 3 architecural plans

4
Some Trends Communication

• Bisection bandwidth
• Cant scale as well with number of processors
• without being expensive
• Wire-length delays
• even on lemieux messages going thru the highest
  level switches take longer
• Two possibilities
• Grid topologies, with near neighbor connections
• High Link speed, low bisection bandwidth
• Expensive, full-bandwidth networks

5
Trends Memory

• Memory latencies are 100 times slower than
  processor!
• This will get worse
• A solution put more processors in,
• To increase bandwidth between processors and
  memory
• On chip DRAM
• In other words low memory-to-processor ratio
• But this can be handled with programming style
• Application viewpoint, for physical modeling
• Given a fixed amount of run-time (4 hours or 10
  days)
• Doubling spatial resolution
• increases CPU needs more than 2-fold (smaller
  time-steps)

6
Application Complexity is increasing

• Why?
• With more FLOPS, need better algorithms..
• Not enough to just do more of the same..
• Example Dendritic growth in materials
• Better algorithms lead to complex structure
• Example Gravitational force calculation
• Direct all-pairs O(N2), but easy to parallelize
• Barnes-Hut N log(N) but more complex
• Multiple modules, dual time-stepping
• Adaptive and dynamic refinements
• Ambitious projects
• Projects with new objectives lead to dynamic
  behavior and multiple components

7
Specific Programming Challenges

• Explicit management of resources
• This data on that processor
• This work on that processor
• Analogy memory management
• We declare arrays, and malloc dynamic memory
  chunks as needed
• Do not specify memory addresses
• As usual, Indirection is the key
• Programmer
• This data, partitioned into these pieces
• This work divided that way
• System map data and work to processors

8
Virtualization Object-based Parallelization

• Idea Divide the computation into a large number
  of objects
• Let the system map objects to processors

User is only concerned with interaction between
objects
System implementation
User View
9
Virtualization Charm and AMPI

• These systems seek an optimal division of labor
  between the system and programmer
• Decomposition done by programmer,
• Everything else automated

Decomposition
Mapping
HPF
Charm
Abstraction
Scheduling
MPI
Expression
Specialization
10
Charm and Adaptive MPI

• Charm Parallel C
• Asynchronous methods
• Object arrays
• In development for over a decade
• Basis of several parallel applications
• Runs on all popular parallel machines and
  clusters

• AMPI A migration path for legacy MPI codes
• Allows them dynamic load balancing capabilities
  of Charm
• Uses Charm object arrays
• Minimal modifications to convert existing MPI
  programs
• Automated via AMPizer
• Collaboration w. David Padua
• Bindings for
• C, C, and Fortran90

Both available from http//charm.cs.uiuc.edu
11
Protein Folding
Molecular Dynamics
Quantum Chemistry (QM/MM)
Computational Cosmology
Parallel Objects, Adaptive Runtime System
Libraries and Tools
Crack Propagation
Space-time meshes
Dendritic Growth
Rocket Simulation
The enabling CS technology of parallel objects
and intelligent Runtime systems has led to
several collaborative applications in CSE
12
Message From This Talk

• Virtualization is ready and powerful to meet the
  needs of tomorrows applications and machines
• Virtualization and associated techniques that we
  have been exploring for the past decade are ready
  and powerful enough to meet the needs of high-end
  parallel computing and complex and dynamic
  applications
• These techniques are embodied into
• Charm
• AMPI
• Frameworks (Strucured Grids, Unstructured Grids,
  Particles)
• Virtualization of other coordination languages
  (UPC, GA, ..)

13
Acknowlwdgements

• Graduate students including
• Gengbin Zheng
• Orion Lawlor
• Milind Bhandarkar
• Terry Wilmarth
• Sameer Kumar
• Jay deSouza
• Chao Huang
• Chee Wai Lee

• Recent Funding
• NSF (NGS Frederica Darema)
• DOE (ASCI Rocket Center)
• NIH (Molecular Dynamics)

14
Charm Object Arrays

• A collection of data-driven objects (aka chares),

• With a single global name for the collection, and
• Each member addressed by an index
• Mapping of element objects to processors handled
  by the system

Users view
A0
A1
A2
A3
A..
15
Charm Object Arrays

• A collection of chares,
• with a single global name for the collection, and
• each member addressed by an index
• Mapping of element objects to processors handled
  by the system

Users view
A0
A1
A2
A3
A..
System view
A3
A0
16
Chare Arrays

• Elements are data-driven objects
• Elements are indexed by a user-defined data
  type-- sparse 1D, 2D, 3D, tree, ...
• Send messages to index, receive messages at
  element. Reductions and broadcasts across the
  array
• Dynamic insertion, deletion, migration-- and
  everything still has to work!

17
Charm Remote Method Calls

• To call a method on a remote C object foo, use
  the local proxy C object CProxy_foo generated
  from the interface file

method and parameters

• This results in a network message, and eventually
  to a call to the real objects method

In another .C file
void foobar(int x) ...
18
Charm Startup Process Main
module myModule array1D foo entry
foo(int problemNo) entry void bar(int x)
mainchare myMain entry myMain(int
argc,char argv)
Interface (.ci) file
Special startup object
Generated class
include myModule.decl.h class myMain public
CBase_myMain myMain(int argc,char argv)
int nElements7, inElements/2 CProxy_foo
fCProxy_foockNew(2,nElements)
fi.bar(3) include myModule.def.h
Called at startup
In a .C file
19
Other Features

• Broadcasts and Reductions
• Runtime creation and deletion
• nD and sparse array indexing
• Library support (modules)
• Groups per-processor objects
• Node Groups per-node objects
• Priorities control ordering

20
AMPI Adaptive MPI

• MPI interface, for C and Fortran, implemented on
  Charm
• Multiple virtual processors per physical
  processor
• Implemented as user-level threads
• Very fast context switching-- 1us
• E.g., MPI_Recv only blocks virtual processor, not
  physical
• Supports migration (and hence load balancing) via
  extensions to MPI

21
AMPI
22
AMPI
Implemented as virtual processors (user-level
migratable threads)
23
How to Write an AMPI Program

• Write your normal MPI program, and then
• Link and run with Charm
• Compile and link with charmc
• charmc -o hello hello.c -language ampi
• charmc -o hello2 hello.f90 -language ampif
• Run with charmrun
• charmrun hello

24
How to Run an AMPI program

• Charmrun
• A portable parallel job execution script
• Specify number of physical processors pN
• Specify number of virtual MPI processes vpN
• Special nodelist file for net- versions

25
AMPI MPI Extensions

• Process Migration
• Asynchronous Collectives
• Checkpoint/Restart

26
How to Migrate a Virtual Processor?

• Move all application state to new processor
• Stack Data
• Subroutine variables and calls
• Managed by compiler
• Heap Data
• Allocated with malloc/free
• Managed by user
• Global Variables

27
Stack Data

• The stack is used by the compiler to track
  function calls and provide temporary storage
• Local Variables
• Subroutine Parameters
• C alloca storage
• Most of the variables in a typical application
  are stack data

28
Migrate Stack Data

• Without compiler support, cannot change stacks
  address
• Because we cant change stacks interior pointers
  (return frame pointer, function arguments, etc.)
• Solution isomalloc addresses
• Reserve address space on every processor for
  every thread stack
• Use mmap to scatter stacks in virtual memory
  efficiently
• Idea comes from PM2

29
Migrate Stack Data
Processor As Memory
Processor Bs Memory
0xFFFFFFFF
0xFFFFFFFF
Thread 1 stack
Thread 2 stack
Migrate Thread 3
Thread 3 stack
Thread 4 stack
Heap
Heap
Globals
Globals
Code
Code
0x00000000
0x00000000
30
Migrate Stack Data
Processor As Memory
Processor Bs Memory
0xFFFFFFFF
0xFFFFFFFF
Thread 1 stack
Thread 2 stack
Migrate Thread 3
Thread 3 stack
Thread 4 stack
Heap
Heap
Globals
Globals
Code
Code
0x00000000
0x00000000
31
Migrate Stack Data

• Isomalloc is a completely automatic solution
• No changes needed in application or compilers
• Just like a software shared-memory system, but
  with proactive paging
• But has a few limitations
• Depends on having large quantities of virtual
  address space (best on 64-bit)
• 32-bit machines can only have a few gigs of
  isomalloc stacks across the whole machine
• Depends on unportable mmap
• Which addresses are safe? (We must guess!)
• What about Windows? Blue Gene?

32
Heap Data

• Heap data is any dynamically allocated data
• C malloc and free
• C new and delete
• F90 ALLOCATE and DEALLOCATE
• Arrays and linked data structures are almost
  always heap data

33
Migrate Heap Data

• Automatic solution isomalloc all heap data just
  like stacks!
• -memory isomalloc link option
• Overrides malloc/free
• No new application code needed
• Same limitations as isomalloc
• Manual solution application moves its heap data
• Need to be able to size message buffer, pack data
  into message, and unpack on other side
• pup abstraction does all three

34
Comparison with Native MPI

• Performance
• Slightly worse w/o optimization
• Being improved
• Flexibility
• Small number of PE available
• Special requirement by algorithm

Problem setup 3D stencil calculation of size
2403 run on Lemieux. AMPI runs on any of PEs
(eg 19, 33, 105). Native MPI needs cube .
35
Benefits of Virtualization

• Software engineering
• Number of virtual processors can be independently
  controlled
• Separate VPs for different modules
• Message driven execution
• Adaptive overlap of communication
• Modularity
• Predictability
• Automatic out-of-core
• Asynchronous reductions
• Dynamic mapping
• Heterogeneous clusters
• Vacate, adjust to speed, share
• Automatic checkpointing
• Change set of processors used

• Principle of persistence
• Enables runtime optimizations
• Automatic dynamic load balancing
• Communication optimizations
• Other runtime optimizations

More info http//charm.cs.uiuc.edu
36
Data driven execution
Scheduler
Scheduler
Message Q
Message Q
37
Adaptive Overlap of Communication

• With Virtualization, you get Data-driven
  execution
• There are multiple entities (objects, threads) on
  each proc
• No single object or threads holds up the
  processor
• Each one is continued when its data arrives
• No need to guess which is likely to arrive first
• So Achieves automatic and adaptive overlap of
  computation and communication
• This kind of data-driven idea can be used in MPI
  as well.
• Using wild-card receives
• But as the program gets more complex, it gets
  harder to keep track of all pending communication
  in all places that are doing a receive

38
Why Message-Driven Modules ?
SPMD and Message-Driven Modules (From A. Gursoy,
Simplified expression of message-driven programs
and quantification of their impact on
performance, Ph.D Thesis, Apr 1994.)
39
Checkpoint/Restart

• Any long running application must be able to save
  its state
• When you checkpoint an application, it uses the
  pup routine to store the state of all objects
• State information is saved in a directory of your
  choosing
• Restore also uses pup, so no additional
  application code is needed (pup is all you need)

40
Checkpointing Job

• In AMPI, use MPI_Checkpoint(ltdirgt)
• Collective call returns when checkpoint is
  complete
• In Charm, use CkCheckpoint(ltdirgt,ltresumegt)
• Called on one processor calls resume when
  checkpoint is complete
• Restarting
• The charmrun option restart ltdirgt is used to
  restart
• Number of processors need not be the same

41
AMPIs Collective Communication Support

• Communication operation in which all or a large
  subset participate
• For example broadcast
• Performance impediment
• All to all communication
• All to all personalized communication (AAPC)
• All to all multicast (AAM)

42
Communication Optimization
Organize processors in a 2D (virtual) Mesh
Message from (x1,y1) to (x2,y2) goes via (x1,y2)
2 messages instead of P-1
But each byte travels twice on the network
43
Performance Benchmark
A Mystery ?
44
CPU time vs Elapsed Time

• Time breakdown of an all-to-all operation using
  Mesh library
• Computation is only a small proportion of the
  elapsed time
• A number of optimization techniques are developed
  to improve collective communication performance

45
Asynchronous Collectives

• Time breakdown of 2D FFT benchmark ms
• VPs implemented as threads
• Overlapping computation with waiting time of
  collective operations
• Total completion time reduced

46
Shrink/Expand

• Problem Availability of computing platform may
  change
• Fitting applications on the platform by object
  migration

Time per step for the million-row CG solver on a
16-node cluster Additional 16 nodes available at
step 600
47
Projections Performance Analysis Tool
48
Projections

• Projections is designed for use with a
  virtualized model like Charm or AMPI
• Instrumentation built into runtime system
• Post-mortem tool with highly detailed traces as
  well as summary formats
• Java-based visualization tool for presenting
  performance information

49
Trace Generation (Detailed)

• Link-time option -tracemode projections
• In the log mode each event is recorded in full
  detail (including timestamp) in an internal
  buffer
• Memory footprint controlled by limiting number of
  log entries
• I/O perturbation can be reduced by increasing
  number of log entries
• Generates a ltnamegt.ltpegt.log file for each
  processor and a ltnamegt.sts file for the entire
  application
• Commonly used Run-time options
• traceroot DIR
• logsize NUM

50
Visualization Main Window
51
Post mortem analysis views

• Utilization Graph
• Mainly useful as a function of processor
  utilization against time and time spent on
  specific parallel methods
• Profile stacked graphs
• For a given period, breakdown of the time on each
  processor
• Includes idle time, and message-sending,
  receiving times
• Timeline
• upshot-like, but more details
• Pop-up views of method execution, message arrows,
  user-level events

52
(No Transcript)
53
Projections Views continued

• Histogram of method execution times
• How many method-execution instances had a time of
  0-1 ms? 1-2 ms? ..

54
Projections Views continued

• Overview
• A fast utilization chart for entire machine
  across the entire time period

55
(No Transcript)
56
Projections Conclusions

• Instrumentation built into runtime
• Easy to include in Charm or AMPI program
• Working on
• Automated analysis
• Scaling to tens of thousands of processors
• Integration with hardware performance counters

57
Multi-run analysis in progress

• Collect performance data from different runs
• On varying number of processors
• See which functions increase in computation time
• Algorithmic overhead
• See how the communication costs scale up
• per processor and total

58
Load Balancing
59
Load balancing scenarios

• Dynamic creation of tasks
• Initial vs continuous
• Coarse grained vs fine grained tasks
• Master-slave
• Tree structured
• Use Seed Balancers in Charm/AMPI
• Iterative Computations
• When there is a strong correlation across
  iterations
• Measurement based load balancers
• When the correlation is weak
• Wehen there is no co-relation use seed baalncer

60
Measurement Based Load Balancing

• Principle of persistence
• Object communication patterns and computational
  loads tend to persist over time
• In spite of dynamic behavior
• Abrupt but infrequent changes
• Slow and small changes
• Runtime instrumentation
• Measures communication volume and computation
  time
• Measurement based load balancers
• Use the instrumented data-base periodically to
  make new decisions
• Many alternative strategies can use the database

61
Periodic Load balancing Strategies

• Stop the computation?
• Centralized strategies
• Charm RTS collects data (on one processor) about
• Computational Load and Communication for each
  pair
• If you are not using AMPI/Charm, you can do the
  same instrumentation and data collection
• Partition the graph of objects across processors
• Take communication into account
• Pt-to-pt, as well as multicast over a subset
• As you map an object, add to the load on both
  sending and receiving processor
• The red communication is free, if it is a
  multicast.

62
Object partitioning strategies

• You can use graph partitioners like METIS, K-R
• BUT graphs are smaller, and optimization
  criteria are different
• Greedy strategies
• If communication costs are low use a simple
  greedy strategy
• Sort objects by decreasing load
• Maintain processors in a heap (by assigned load)
• In each step assign the heaviest remaining
  object to the least loaded processor
• With small-to-moderate communication cost
• Same strategy, but add communication costs as you
  add an object to a processor
• Always add a refinement step at the end
• Swap work from heaviest loaded processor to some
  other processor
• Repeat a few times or until no improvement
• Refinement-only strategies

63
Object partitioning strategies

• When communication cost is significant
• Still use greedy strategy, but
• At each assignment step, choose between assigning
  O to least loaded processor and the processor
  that already has objects that communicate most
  with O.
• Based on the degree of difference in the two
  metrics
• Two-stage assignments
• In early stages, consider communication costs as
  long as the processors are in the same (broad)
  load class,
• In later stages, decide based on load
• Branch-and-bound
• Searches for optimal, but can be stopped after a
  fixed time

64
Crack Propagation
Decomposition into 16 chunks (left) and 128
chunks, 8 for each PE (right). The middle area
contains cohesive elements. Both decompositions
obtained using Metis. Pictures S. Breitenfeld,
and P. Geubelle
As computation progresses, crack propagates, and
new elements are added, leading to more complex
computations in some chunks
65
Load balancer in action
Automatic Load Balancing in Crack Propagation
1. Elements Added
3. Chunks Migrated
2. Load Balancer Invoked
66
Distributed Load balancing

• Centralized strategies
• Still ok for 3000 processors for NAMD
• Distributed balancing is needed when
• Number of processors is large and/or
• load variation is rapid
• Large machines
• Need to handle locality of communication
• Topology sensitive placement
• Need to work with scant global information
• Approximate or aggregated global information
  (average/max load)
• Incomplete global info (only neighborhood)
• Work diffusion strategies (1980s work by author
  and others!)
• Achieving global effects by local action

67
Other features

• Client-Server interface (CCS)
• Live Visualization support
• Libraries
• Communication optimization libraries
• 2D, 3D FFTs, CG, ..
• Debugger
• freeze/thaw

68
Scaling to PetaFLOPS machines Advice

• Dice them fine
• Use a fine grained decomposition
• Just enough to amortize the overhead
• Juggle as much as you can
• Keeping communication ops in flight for latency
  tolerance
• Avoid synchronizations as much as possible
• Use asynchronous reductions,
• Async. Collectives in general

69
Grainsize control

• A Simple definition of grainsize
• Amount of computation per message
• Problem short message/ long message
• More realistic
• Computation to communication ratio

70
Grainsize Control Wisdom

• One may think that
• One should chose the largest grainsize that will
  generate sufficient parallelization
• In fact
• One should select smallest grainsize that will
  amortize the overhead
• Total CPU Time T
• T Tseq (Tseq/g)Toverhead

71
How to avoid Barriers/Reductions

• Sometimes, they can be eliminated
• with careful reasoning
• Somewhat complex programming
• When they cannot be avoided,
• one can often render them harmless
• Use asynchronous reduction (not normal MPI)
• E.g. in NAMD, energies need to be computed via a
  reductions and output.
• Not used for anything except output
• Use Asynchronous reduction, working in the
  background
• When it reports to an object at the root, output
  it

72
Asynchronous reductions Jacobi

• Convergence check
• At the end of each Jacobi iteration, we do a
  convergence check
• Via a scalar Reduction (on maxError)
• But note
• each processor can maintain old data for one
  iteration
• So, use the result of the reduction one iteration
  later!
• Deposit of reduction is separated from its
  result.
• MPI_Ireduce(..) returns a handle (like MPI_Irecv)
• And later, MPI_Wait(handle) will block when you
  need to.

73
Asynchronous reductions in Jacobi
reduction
Processor timeline with sync. reduction
compute
compute
This gap is avoided below
Processor timeline with async. reduction
reduction
compute
compute
74
Asynchronous or Split-phase interfaces

• Notify/wait syncs in CAF

75
Case Studies Examples of Scalability

• Series of examples
• Where we attained scalability
• What techniques were useful
• What lessons we learned
• Molecular Dynamics NAMD
• Rocket Simulation

76

Object Based Parallelization for MD Force
Decomposition Spatial Deomp.

• Now, we have many objects to load balance
• Each diamond can be assigned to any proc.
• Number of diamonds (3D)
• 14Number of Patches

77
Bond Forces

• Multiple types of forces
• Bonds(2), Angles(3), Dihedrals (4), ..
• Luckily, each involves atoms in neighboring
  patches only
• Straightforward implementation
• Send message to all neighbors,
• receive forces from them
• 262 messages per patch!
• Instead, we do
• Send to (7) upstream nbrs
• Each force calculated at one patch

78
Virtualized Approach to implementation using
Charm
192 144 VPs
700 VPs
30,000 VPs
These 30,000 Virtual Processors (VPs) are
mapped to real processors by charm runtime system
79
(No Transcript)
80
Case Study NAMD (Molecular Dynamics)
1.02 TeraFLOPs
NAMD Biomolecular Simulation on Thousands of
Processors J. C. Phillips, G. Zheng, S. Kumar,
and L. V. Kale Proc. Of Supercomputing
2002 Gordon Bell Award Unprecedented performance
for this application
ATPase synthase
81
Scaling to 64K/128K processors of BG/L

• What issues will arise?
• Communication
• Bandwidth use more important than processor
  overhead
• Locality
• Global Synchronizations
• Costly, but not because it takes longer
• Rather, small jitters have a large impact
• Sum of Max vs Max of Sum
• Load imbalance important, but low grainsize is
  crucial
• Critical paths gains importance

82
Electronic Structures using CP

• Car-Parinello method
• Based on pinyMD
• Glenn Martyna, Mark Tuckerman
• Data structures
• A bunch of states (say 128)
• Represented as
• 3D arrays of coeffs in G-space, and
• also 3D arrays in real space
• Real-space prob. density
• S-matrix one number for each pair of states
• For orthonormalization
• Nuclei

• Computationally
• Transformation from g-space to real-space
• Use multiple parallel 3D-FFT
• Sums up real-space densities
• Computes energies from density
• Computes forces
• Normalizes g-space wave function

83
One Iteration
84
Parallel Implementation
85
(No Transcript)
86
Orthonormalization

• At the end of every iteration, after updating
  electron configuration
• Need to compute (from states)
• a correlation matrix S, Si,j depends on
  entire data from states i, j
• its transform T
• Update the values
• Computation of S has to be distributed
• Compute Si,j,p, where p is plane number
• Sum over p to get Si,j
• Actual conversion from S-gtT is sequential

87
Orthonormalization
88
Computation/Communication Overlap
89
G-Space PlanesIntegration, 1D-FFT
Real-Space Planes 2D-FFT
Compute Forces on/by Nuclei
Rho-Real-Space Planes
Rho-Real-Space Planes
Real-Space Planes 2D-IFFT
G-Space PlanesIntegration, 1D-IFFT
Pair-calculators
90
(No Transcript)
91
(No Transcript)
92
(No Transcript)
93
(No Transcript)
94
Rocket Simulation

• Dynamic, coupled physics simulation in 3D
• Finite-element solids on unstructured tet mesh
• Finite-volume fluids on structured hex mesh
• Coupling every timestep via a least-squares data
  transfer
• Challenges
• Multiple modules
• Dynamic behavior burning surface, mesh adaptation

Robert Fielder, Center for Simulation of Advanced
Rockets
Collaboration with M. Heath, P. Geubelle, others
95
Application Example GEN2
96
Rocket simulation via virtual processors

• Scalability challenges
• Multiple independently developed modules,
• possibly executing concurrently
• Evolving simulation
• Changes the balance between fluid and solid
• Adaptive refinements
• Dynamic insertion of sub-scale simulation
  components
• Crack-driven fluid flow and combustion
• Heterogeneous (speed-wise) clusters

97
Rocket simulation via virtual processors
98
AMPI and Roc Communication

• By separating independent modules into separate
  sets of virtual processors, flexibility was
  gained to deal with alternate formulations
• Fluids and solids executing concurrently OR one
  after other.
• Change in pattern of load distribution within or
  across modules

Rocflo
Rocflo
Rocflo
Rocflo
Rocflo
99
Using a SImulator
100
Performance Prediction on Large Machines

• Solution
• Leverage virtualization
• Develop a machine emulator
• Simulator accurate time modeling
• Run a program on 100,000 processors using only
  hundreds of processors

• Problem
• How to develop a parallel application for a
  non-existent machine?
• How to predict performance of applications on
  future machines?
• How to do performance tuning without continuous
  access to a large machine?

Originally targeted to BlueGene/Cyclops Now
generalized (and used for BG/L)
101
Why Emulate?

• Allow development of parallel software
• Exposes scalability limitations in data
  structures, e.g.
• O(P) arrays are ok if P is not a million
• Software is ready before the machine is

102
How to emulate 1M processor apps

• Leverage processor virtualization
• Let each Virtual Processor of Charm stand for a
  real processor of the emulated machine
• Adequate if you want emulate MPI apps on 1 M
  processors!

103
Emulation on a Parallel Machine
Simulated multi-processor nodes
Simulating (Host) Processors
Emulating 8M threads on 96 ASCI-Red processors
104
How to emulate 1M processor apps

• A twist what if you want to emulate Charm app?
• E.g. 8 M objects VPs using 1M target machine
  processors?
• A little runtime trickery
• Processors modeled as data structures, while VPs
  as VPs!

VP
VP
VP
VP
Processor
Processor
105
Memory Limit?

• Some applications have low memory use
• Molecular dynamics
• Some Large machines may have low
  memory-per-processor
• E.g. BG/L 256 MB for 2 processor node
• A BG/C design 16-32 MB for 32 processor node
• More general solution is still needed
• Provided by out-of-core execution capability of
  Charm

106
Message Driven Execution and Out-of-Core Execution
Virtualization leads to Message Driven Execution
So, we can Prefetch data accurately Automatic
Out-of-core execution
107
A Success Story

• Emulation based implementation of lower layers,
  as well as Charm and AMPI completed last year
• As a result,
• BG/L Port of Charm/AMPI accomplished in 1-2
  days
• Actually, 1-2 hours for the basic port
• 1-2 days to fix a OS level bug that prevented
  user-level multi-threading

108
Emulator Performance

• Scalable
• Emulating a real-world MD application on a 200K
  processor BG machine

Gengbin Zheng, Arun Singla, Joshua Unger,
Laxmikant V. Kalé, A Parallel-Object
Programming Model for PetaFLOPS Machines and Blue
Gene/Cyclops'' in NGS Program Workshop, IPDPS02
109
Performance Prediction

• How to predict component performance?
• Multiple resolution levels
• Sequential Component
• user supplied expression timers performance
  counters instruction level simulation
• Communication component
• Simple latency-based network model
  contention-based network simulation
• Parallel Discrete Event Simulation (PDES)
• Logical processor (LP) has virtual clock
• Events are time-stamped
• State of an LP changes when an event arrives to
  it
• ProtocolsConservative vs. optimistic protocols
• Conservative (example DaSSF, MPISIM)
• Optimistic (examples Time Warp, SPEEDES)

110
Why not use existing PDES?

• Major synchronization overheads
• Checkpointing overhead
• Rollback overhead
• We can do better
• Inherent determinacy of parallel application
• Most parallel programs are written to be
  deterministic,

111
Categories of Applications

• Linear-order applications
• No wildcard receives
• Strong determinacy, no timestamp correction
  necessary
• Reactive applications (atomic)
• Message driven objects
• Methods execute as corresponding messages arrive
• Multi-dependent applications
• Irecvs with WaitAll
• Uses of structured dagger to capture dependency

Gengbin Zheng, Gunavardhan Kakulapati, Laxmikant
V. Kalé, BigSim A Parallel Simulator for
Performance Prediction of Extremely Large
Parallel Machines'', in IPDPS 2004
112
Architecture of BigSim Simulator
Performance visualization (Projections)
Simulation output trace logs
Online PDES engine
Charm Runtime
Instruction Sim (RSim, IBM, ..)
Simple Network Model
Performance counters
Load Balancing Module
BigSim Emulator
Charm and MPI applications
113
Architecture of BigSim Simulator
Performance visualization (Projections)
Network Simulator
Offline PDES
BigNetSim (POSE)
Simulation output trace logs
Online PDES engine
Charm Runtime
Instruction Sim (RSim, IBM, ..)
Simple Network Model
Performance counters
Load Balancing Module
BigSim Emulator
Charm and MPI applications
114
Big Network Simulation

• Simulate network behavior packetization,
  routing, contention, etc.
• Incorporate with post-mortem timestamp correction
  via POSE
• Currently models torus (BG/L), fat-tree (qs-net)

115
BigSim Validation on Lemieux
116
Performance of the BigSim
Speed up
Real processors (PSC Lemieux)
117
FEM simulation

• Simple 2D structural simulation in AMPI
• 5 million element mesh
• 16k BG processors
• Running on only 32 PSC Lemieux processors

118
Case Study - LeanMD

• Molecular dynamics simulation designed for large
  machines
• K-away cut-off parallelization

• Benchmark er-gre with 3-away
• 36573 atoms
• 1.6 million objects vs. 6000 in 1-away
• 8 step simulation
• 32k processor BG machine
• Running on 400 PSC Lemieux processors

Performance visualization tools
119
Load Imbalance
Histogram
120
Performance visualization
121
Domain Specific Frameworks
122
Component Frameworks

• Motivation
• Reduce tedium of parallel programming for
  commonly used paradigms
• Encapsulate required parallel data structures and
  algorithms
• Provide easy to use interface,
• Sequential programming style preserved
• No alienating invasive constructs
• Use adaptive load balancing framework
• Component frameworks
• FEM
• Multiblock
• AMR

123
FEM framework

• Present clean, almost serial interface
• Hide parallel implementation in the runtime
  system
• Leave physics and time integration to user
• Users write code similar to sequential code
• Or, easily modify sequential code
• Input
• connectivity file (mesh), boundary data and
  initial data
• Framework
• Partitions data, and
• Starts driver for each chunk in a separate thread
• Automates communication, once user registers
  fields to be communicated
• Automatic dynamic load balancing

124
Why use the FEM Framework?

• Makes parallelizing a serial code faster and
  easier
• Handles mesh partitioning
• Handles communication
• Handles load balancing (via Charm)
• Allows extra features
• IFEM Matrix Library
• NetFEM Visualizer
• Collision Detection Library

125
Serial FEM Mesh
126
Partitioned Mesh
127
FEM Mesh Node Communication

• Summing forces from other processors only takes
  one call
• FEM_Update_field
• Similar call for updating ghost regions

128
FEM Framework Users CSAR

• Rocflu fluids solver, a part of GENx
• Finite-volume fluid dynamics code
• Uses FEM ghost elements
• Author Andreas Haselbacher

Robert Fielder, Center for Simulation of Advanced
Rockets
129
FEM Experience

• Previous
• 3-D volumetric/cohesive crack propagation code
• (P. Geubelle, S. Breitenfeld, et. al)
• 3-D dendritic growth fluid solidification code
• (J. Dantzig, J. Jeong)
• Adaptive insertion of cohesive elements
• Mario Zaczek, Philippe Geubelle
• Performance data
• Multi-Grain contact (in progress)
• Spandan Maiti, S. Breitenfield, O. Lawlor, P.
  Guebelle
• Using FEM framework and collision detection
• NSF funded project
• Space-time meshes

• Did initial parallelization in 4 days

130
Performance data ASCI Red
Mesh with 3.1 million elements
Speedup of 1155 on 1024 processors.
131
Dendritic Growth

• Studies evolution of solidification
  microstructures using a phase-field model
  computed on an adaptive finite element grid
• Adaptive refinement and coarsening of grid
  involves re-partitioning

Jon Dantzig et al with O. Lawlor and Others from
PPL
132
Overhead of Multipartitioning
Conclusion Overhead of virtualization is small,
and in fact it benefits by creating automatic
133
Parallel Collision Detection

• Detect collisions (intersections) between objects
  scattered across processors

• Approach, based on Charm Arrays
• Overlay regular, sparse 3D grid of voxels (boxes)
• Send objects to all voxels they touch
• Collide objects within each voxel independently
  and collect results
• Leave collision response to user code

134
Parallel Collision Detection

• Results 2?s per polygon
• Good speedups to 1000s of processors

ASCI Red, 65,000 polygons per processor. (scaled
problem) Up to 100 million polygons

• This was a significant improvement over the
  state-of-art.
• Made possible by virtualization, and
• Asynchronous, as needed, creation of voxels
• Localization of communication voxel often on the
  same processor as the contributing polygon

135
Summary

• Processor virtualization is a powerful techniques
• Charm/AMPI are production quality systems
• with bells and whistles
• Can scale to petaFLOPS class machines
• Domain-specific frameworks
• Can raise the level of abstraction and promote
  reuse
• Unstructured Mesh framework
• Next compiler support, new coordination
  mechanisms
• Software available
• http//charm.cs.uiuc.edu

136
Optimizing for Communication Patterns

• The parallel-objects Runtime System can observe,
  instrument, and measure communication patterns
• Communication is from/to objects, not processors
• Load balancers can use this to optimize object
  placement
• Communication libraries can optimize
• By substituting most suitable algorithm for each
  operation
• Learning at runtime

V. Krishnan, MS Thesis, 1996
137
Molecular Dynamics Benefits of avoiding barrier

• In NAMD
• The energy reductions were made asynchronous
• No other global barriers are used in cut-off
  simulations
• This came handy when
• Running on Pittsburgh Lemieux (3000 processors)
• The machine ( our way of using the communication
  layer) produced unpredictable, random delays in
  communication
• A send call would remain stuck for 20 ms, for
  example
• How did the system handle it?
• See timeline plots

138
Golden Rule of Load Balancing
Fallacy objective of load balancing is to
minimize variance in load across processors
Example 50,000 tasks of equal size, 500
processors A All processors get 99,
except last 5 gets 10099 199 OR, B All
processors have 101, except last 5 get 1
Identical variance, but situation A is much worse!
Golden Rule It is ok if a few processors idle,
but avoid having processors that are overloaded
with work
Finish time maxTime on Ith processorExcepting
data dependence and communication overhead issues
139
Amdahlss Law and grainsize

• Before we get to load balancing
• Original law
• If a program has K sequential section, then
  speedup is limited to 100/K.
• If the rest of the program is parallelized
  completely
• Grainsize corollary
• If any individual piece of work is gt K time
  units, and the sequential program takes Tseq ,
• Speedup is limited to Tseq / K
• So
• Examine performance data via histograms to find
  the sizes of remappable work units
• If some are too big, change the decomposition
  method to make smaller units

140
Grainsize LeanMD for Blue Gene/L

• BG/L is a planned IBM machine with 128k
  processors
• Here, we need even more objects
• Generalize hybrid decomposition scheme
• 1-away to k-away

2-away cubes are half the size.
141
76,000 vps
5000 vps
256,000 vps
142
New strategy
