STING CONSORTIA INDIA US ASIA ADAPTIX Systems US

1

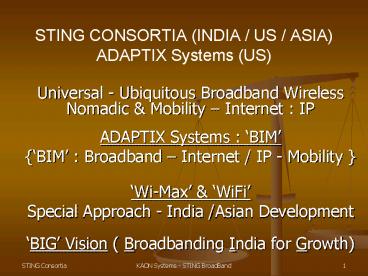

STING CONSORTIA (INDIA / US / ASIA)ADAPTIX
Systems (US)

• Universal - Ubiquitous Broadband Wireless Nomadic
  Mobility Internet IP
• ADAPTIX Systems BIM
• BIM Broadband Internet / IP - Mobility
• Wi-Max WiFi
• Special Approach - India /Asian Development
• BIG Vision ( Broadbanding India for Growth)

2
STING Consortia / STING BroadBand Overview

• Global provisioning of Broadband Internet / IP
  Mobility (BIM) / Wireless Convergent
• Info-Communications Products and Technologies
• Effective, economic and secure wireless solutions
  for provisioning high-speed Info-Communications
• Data / packet voice (better than toll quality)
• CD quality audio, Full motion IP Video)
• Mobile wireless data Telephony backhaul
• Target Markets
• Enterprises Telecom Service Providers ISPs
  e-Government SMEs / SOHOs Consumers

3
STING Consortia Business Focus

• Fixed / Portable - Nomadic / fully Mobile
• Broadband Wireless Access (BWA) Systems
• OFDMA-TDD Partnership with worlds leading OFDMA
  developer and worldwide patents holder
• WiMAX Standards International
  Inter-Operability
• ASIC Chipsets, Embedded Software in DSPs / FGPAs
  Reference Design Licensing
• Universal and Ubiquitous Broadband IP Mobility

4
STING Consortia Access Product Evolution
2002
2004 - 2006
2006 - 2007
Year
2005 - 2006
Cost Price
500 _at_ lt100
375 _at_30k
229 _at_150K
59 _at_ 1MM
COGS
500 _at_ lt100
180 _at_30k
109 _at_150K
22 _at_ 1MM
PC Card
Prototype
Fixed Portable
DSP or ASIC for Mobile Handset
5
Base Station V1.0 (Trial System)

• Adaptive modulation
• Downlink 64QAM, 16QAM, QPSK
• Uplink 16QAM, QPSK
• 1 to 6 sectors per base station
• Typical configurations per sector
• 8.7 Mbps downlink/1.2 Mbps uplink
• 5.8 Mbps downlink/2.3 Mbps uplink
• 4W (optional 8W)
• Standard 19 rack
• 10/100 Base-T network interface

6
Base Station V2.0 Carrier Class

• WiMax carrier class design
• ATCA standard chassis
• 4 Sectors per chassis
• Router integrated on blade
• RF Power Amplifiers 4 20W
• Diversity antennas supported
• Redundancy capable
• Both TDD and FDD compatible

7
STING User Terminal (CPE) V1.5

• Fixed and portable
• QOS for Data and voice
• Adaptive modulation
• Downlink 64QAM, 16QAM, QPSK
• Uplink 16QAM, QPSK
• Up to 2.5 Mbps
• Small 22cm x 12cm x 2.8 cm
• Lightweight 0.7 Kg
• Two dipole antennas with diversity
• USB and 10/100 Base-T Interfaces

8
Plug Play User Self InstallationElement
Management System

• Graphical User Interface
• Fault Management
• Configuration Management

• Accounting Billing Management
• Security Management

9
OFDM Technology Milestones
1992
1993
1994
1999
2000
2001
2004
Wi-LANs W-OFDM Patents filed in Canada and US
Wi-LANs First W-OFDM Proto-types Developed
Wi-LANs W-OFDM patents issued
First W-OFDM LAN Standards ETSI HiperLAN/2 IEEE
802.11a Wi-LANs First Gen W-OFDM
Product Launched
OFDM Forum Established by Wi-LAN
Philips Mobile W-OFDM Demonstrated
2nd Generation W-OFDM Products Launched FCC
changes rules to allow W-OFDM in 2.4 GHz New
2.4 GHz W-OFDM LAN Standard 802.11g
STING Consortia ADAPTIX Systems STING
BroadBand launch Worlds first 4G / G-less BIM
Converged Platform 802.16 / WiMAX Standard
Endorsed 802.16e Mobility Extension Under Review
10
WiMax Standard
11
IEEE 802.16(x) Standards

• IEEE 802.16
• Air Interface for Fixed Broadband Wireless Access
  System MAC and PHY Specifications for 10 66 GHZ
• One PHY Single Carrier
• Connection-oriented, TDM/TDMA MAC, QoS, Security
• IEEE 802.16(a)-(e)
• Amendment to 802.16, MAC Modifications and
  Additional PHY Specifications for 2 11 GHz
• Three PHYs OFDM, OFDMA, Single Carrier
• Additional MAC functions OFDM and OFDMA PHY
  support, Mesh topology support
• 802.16e Full Mobility Solution expected by
  2005

12
IEEE 802.16x Standards
13
802.16x and 802.11x Standards /
Performance(STING Seamless Compatibility
Inter-Operability)
14
The WiMAX Forum

• Charter Certify equipment that conforms to the
  IEEE 802.16(x) standards and are proven to be
  interoperable
• Includes equipment that conforms to other
  interoperable standards, such as ETSI HiperMAN
• A Non-profit organization comprising
• Broadband wireless access
• Equipment suppliers / manufacturers
• Systems / Sub-Systems / Component Suppliers
• (Silicon, RF, Antenna, Software, Test Services)
• Service Providers (Carriers, Wireless ISPs, TSPs)

15
WiMAX ForumProliferating OFDM
Founding Members

• Non-profit corporation made up key wireless
  industry participants.
• Formed to promote and certify the compatibility
  and interoperability of OFDM FWA equipment
  between vendors.
• Wi-Max Forum efforts would help accelerate the
  proliferation of OFDM based IEEE WirelessMAN and
  ETSI HiperMAN equipment

WiMAX Members
Fujitsu OFDM Forum Hughes Network
Systems RF Magic Intel Yahoo Winova
Wireless SiWorks Andrew Corporation
Atheros China Motion Telecom NEWS IQ Alvarion
Filtronics Proxim Telnecity Group
Partial List
16
Scope of WiMax

• Equivalent in purpose to Wi-Fi Alliance for
  802.11
• Based upon market requirements, reduced the
  breadth of the standard so that Baseline
  Inter-Operability can be achieved / assured
  between Vendors Carriers
• Multi-vendor process to create Certification
  tests
• Based upon ISO/IEC 9646 process
• Host Plugfest Inter-Operability events among
  vendors
• Enable Certification on a worldwide basis
• Provide WiMax - Certification

17
WiMax Certification

• WiMax Certification
• 3rd Party validation testing - Guarantee of
  quality
• Service Provider choose from multiple vendors
• Multiple sources for WiMax hardware reduces risk
  of product availability for deployments
• Interoperability amongst WiMAX-certified Base
  Stations and Subscriber Terminals
• Backward compatibility with 802.16 IEEE stacks
• Innovative Time-to-Market solutions with a
  stable, standards-based PHY design
• WiMAX WiFi Comparative Certification
• WiMax Certification is more involved than WiFi
• WiMAX equipment used in Carrier environment
• WiMAX tests for Conformance
  Inter-Operability

18
Global Standards

• WiMAX promotes / aims for Harmonization of
  Standards
• Participating Organizations WiMAX members
• Participating Standards Bodies ETSI, IEEE
• Conformance and Inter-Operability Specifications
• Inter-Operability events and Marketing
• Objectives Global Inter-Operability
• Test Labs with a Global presence
• Fixed, Nomadic Portable, Mobile Wireless
  Access
• Reduced Risks and Costs - for Carriers / System
  Operators, when deployments in several Regions
• Reduced risk of Product Supply

19
WiMax Timeline
WiMAX Plugfest Dec04
WiMAX Plugfest Feb04
WiMAX Plugfest Apr05
Establishment of Service Provider Working Group
WiMAX certified Products Deployed
WiMAX Forum over 67 members
Certification Tests Ready Oct04
WiMAX Certification Begins
Q104
Q204
Q304
Q404
Q105
Q205
20
Standards InteroperabilityThe Path to Volume
Economics
Ethernet
Wi-Fi

• Formula
• Existing Market with Proprietary Solutions
• IEEE Standard
• Low Cost Manufacturing
• Available Spectrum (wireless)

Volume
1980s
1990s
2000
2010
21
Spectrum Bands WiMax WiFi
WiFi
WiMAX
Low/Mid UNII-band (802.11a) 5150-5350
Upper UNII-band 5725-5850
3.5GHz band 3400-3600
MMDS 2500-2690 2700-2900
3300-3400
WRC (new) 5470-5725
ISM (802.11b/g) 2400-2480
US WCS 2305-2320 2345-2360
22
U.S. International WLL Spectrum
Upper U-NII ISM
Low/Mid U-NII
ISM
UPCS
ISM
WCS
UHF
MMDS
Intl

1
3
2
4
5
GHz
23
WiMax Press Coverage
WiMAX The (Next) Great Wireless Hope
WiMAX in Focus
Hot Spots Wont Be Limited For Long
WiMAX Promises Breakthrough in Broadband Access
Waiting for WiMAX
WiMAX Worth Watching
The Next Big Thing For Wireless?
10 Technologies to Watch in 2004
Most Promising Technology of The Year
24
Typical Network Architecture
Global Internet
IP - Transmission Core Network
Core Access Network
WiMax
25
Air-interface Beyond 3G WiMaxSTING OFDMA-TDD
Technology

• All IP
• OFDMA
• 20Mbps?
• X10 capacity
• Granularity and QoS

26
Global Wireless Standards
WAN
IEEE 802.16e WirelessMAN
IEEE 802.20 (proposed)
3GPP GSM / UMTS / CDMA2000
MAN
IEEE 802.16 WirelessMAN
ETSI HiperMAN HIPERACCESS
LAN
IEEE 802.11 WirelessLAN
ETSI HiperLAN
PAN
IEEE 802.15 Bluetooth
ETSI HiperPAN
27
Ubiquitous Broadband Mobility
28
STING Consortia WiMax Differentiators

• Universal WiMax Common Air Interface
• STING OFDMA enhanced user diversity
• Completely WiMax standards compliant
• Enhanced benefit to KS-Customer Carriers, ( -
  yet, seamless support of other Manufacturers /
  User Terminals
• First to Market advantage (1-2 years ahead !)
• - using Software Defined Radio Technologies
• Seamless upgrades and avoids obsolescence

29
Contact

• Rabindra (Robin) S Grewal
• Chairman CEO
•
• STING Consortia and STING BROADBAND
•
• 8A, PANCHSHEEL MARG,
• CHANAKYAPURI, NEW DELHI 110021 (India)
•
• URL stingbroadband.com
•
• TEL [phone]
•           91 11 2611 5818
• MOB 91 98 110 41144
• Email sting_at_vsnl.com, stingbroadband_at_yahoo.com
•
