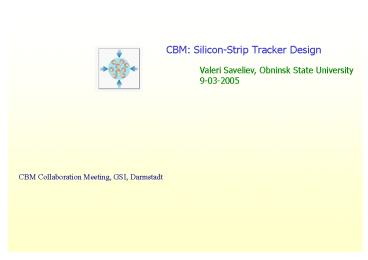

CBM: Silicon-Strip Tracker Design

1
CBM Silicon-Strip
Tracker Design
Valeri Saveliev, Obninsk State University 9-03-200
5
CBM Collaboration Meeting, GSI, Darmstadt
2
CBM Si-strip Tracker
3
CBM STS General
Considerations
4
CBM STS General
Considerations
(Future) GSI CBM
Rate (Hz)
ATLAS CMS
ALICE TRD L1 Trigger
Large Number of Channels High Bandwidth
High Archival Rate (PetaBytes/a)
0.1 TB/sec
Event Size (bytes)
5
CBM STS General
Considerations
6
HERA-b Vertex
Detector (Stereo angles)
7
HERA-b Vertex
Detector (Stereo angles)
8
LHCb Inner
Tracker (Stereo angles)
9
LHCb Velo
Tracker (R,f )
10
CBM
Si-strip Tracker
11

Si-Strip Tracker Geometry
12

Si-Strip Tracker Geometry
13

Si-strip Tracker MC
14

CBM Geant 4
15
Occupancy
of Si-Strip STS
STS_4
STS_5
STS_6
STS_7
16
Occupancy of
Si-Strip Tracker
17
Basic
Technology of Si-strip Tracker
18
Resolution
of Si-Strip Tracker
Y position of strip
s2
150
s2
s1 const ( 8 microns )
450
X position of strips
900
s2
s1
s1
19
Fake Hits of
Si-Strip Tracker
20
Si
strip Tracker Layout
Feature Value/Quantity
Angular coverage 50 to 500 mrad
Number of super layers 4
Detector modules per plane 28-60
Detector thickness 100-150 µm
Sensitive detector area 20x20 cm2 to 50x50 cm2
Operational temperature 40C
Strip pitch 25 µm
21

STSHitProducer
22

STSHitProducer
23

STSHitProducer
24

STSHitProducer
20 cm
25

STSHitsProducer
DeltaX, DeltaY between points real heats in
STS4 inner wafer
26

STSHitsProducer
27

STSHitsProducer
DeltaXErr, DeltaYErr between points real
heats in STS4 inner wafer
28
Basic
Technology of Si-strip Tracker
29
Basic
Technology of Si-strip STS
Sensors are 4 , 300 µ thick, double-sided, 70
40.1 mm2, 110 µ/208µ readout pitch (p junction
side/n ohmic side). A set of strips are
connected in serpentine thus strips with
following length 28 cm, 56 cm, 112 cm and 224 cm
are tested.
30

Si-Strip Tracker Geometry
31
CBM
STS R-f Sensors
32

CBM STS R-f Sensors
33

CBM STS R-f Sensors
34

Summary

• Si strip Layout with stereoangles is under
  investigations
• New Geometry is implemented
• Layout of the Si-Strip STS is fixed for first
  analysis
• Definition of the Hits Structure and
  HitsProduser are implemented

• Analysis of Si-strip Tracker with current Layout

• R-f topology will be included in analysis
