Title: Unified Modeling Language


1

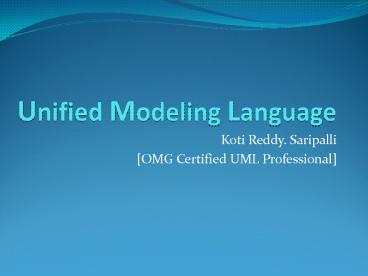

Unified Modeling Language
  • Koti Reddy. Saripalli
  • OMG Certified UML Professional

2
Hitech City To Airport
3
Through Directions Text
4
Through Model Pictorial
5
How Model Matters for Software ???
6
Can U Describe This ???
7
Unified Modeling Language
  • Unified Modeling Language (UML) is a standardized
    general-purpose modeling language in the field of
    software engineering.
  • Created by Grady Booch, Ivar Jacobson, and Jim
    Rumbaugh. The specification itself is owned and
    managed by the Object Management Group.

8
The Big Three
9
Background
  • In 1965 the first Object Oriented (OO)
    programming language, Simula I, was introduced.
  • Almost immediately interest in OO design began to
    rapidly grow. This led to the emergence of
    numerous competing OO design methods.
  • By the early 90s there were 50 OO design
    languages.
  • Top 3 Modeling Languages (Each one had Pros
    Cons)
  • OOAD Object Oriented Analysis Design - Grady
    Booch,
  • OMT Object Management Techinque James
    Rumbaugh
  • OSE Object Oriented Software Engineering Ivar
    Jacobson

10
Unified Modeling Language
  • OOAD Grady Booch
  • Very Complex, Efficient for low level design,
    Good at design weak at Analysis
  • OMT Ivar Jacobson
  • Simple, Good for high level design, Good at
    analysis, weak at design.
  • OOSE James Rumbaugh
  • Major feature is Use Classes, viewing the
    design from user perspective.
  • UML
  • Booch, Jacob, Rumbaugh, joined hands together in
    creation of new modeling language by
    consolidating their individual ones.
  • Called the creation as Unified Modeling Language.
  • Analysis refers to understanding the problem,
    Design refers to illustrating solution.

11
UML Timeline
12
UML Diagrams
  • Behavioral
  • behavioral features of a system / business
    process
  • Use Case Diagram
  • Activity Diagram
  • State Machine Diagram
  • Structural
  • element of spec. irrespective of time
  • Class Diagram
  • Component Diagram
  • Deployment Diagram
  • Interaction
  • emphasize object interaction
  • Communication(collaboration)
  • Sequence

13
Class Diagrams - Intro
  • Show the classes of the system, their
    inter-relationships, and the operations and
    attributes of the classes
  • Things to look for
  • Members
  • Data Member (s)
  • Method Member (s)
  • Association (s)
  • Visibility
  • Protected
  • Public
  • - Private

14
Class Diagrams - Associations
  • Aggregation Employee contains the reference of
    Division, Thought Employee object dead, Division
    object can still alive. (Part-Of)
  • Composition Car contains reference of Wheel,
    Wheel dies along with the car (Has-a).
  • Association one type is using another type
    Aggregation or Composition are one type of
    association. And also if a type method uses
    another type as parameter or return value like
  • public Employee GetEmp(int id)

15
Class Diagrams - Advanced
  • Interfaces Interfaces are represented as classes
    but with a stereo type attached.
  • Inheritance
  • Generalization Parent Type.
  • Specialization Child Type

16
Object Diagram
  • Class Diagram Show the classes of the system,
    their inter-relationships, and the operations and
    attributes of the classes. But not the runtime
    version of these.
  • A pictorial representation of the relationships
    between these instantiated classes at any point
    of time (called objects) is called an "Object
    diagram."

17
Sequence Diagrams
  • Is a behavioural diagram, focus on time ordering
    of messages (where a message is nothing but a
    method call) in given task.
  • Ingridients
  • X axis
  • Y axis
  • Objects
  • Life Line
  • Method Calls along with Time
  • First Diagram

18
Activity Diagrams
  • A graphical representation of how data move
    around an information system. This is a
    behavioral diagram.

19
Component Diagrams
  • Describe software components and their
    dependencies to each other. This is a structural
    diagram.
  • Package will show the packaging of these
    components.
  • In .net, package is called Assembly.

20
Deployment Diagrams
  • A deployment diagram shows the configuration of
    run time processing nodes and the components that
    live on them.

21
Collaboration Diagram
  • Collaboration Diagrams are used to model the
    interactions between classes in the object
    model.  Collaboration diagrams are also known as
    Object Message diagrams.

22
State Machiene Diagrams
  • State diagrams (also called State Chart diagrams)
    are used to help the developer better understand
    any complex/unusual functionalities or business
    flows of specialized areas of the system

23
Usecase Diagrams
  • Use cases to capture the intended behaviour of
    the system you are developing, without having to
    specify how that behaviour is implemented. Use
    cases provide a way for your developers to come
    to a common understanding with your system's end
    users and domain experts.
  • Consists Actors, Use cases, Include and extended.

24
