One Gene, One Polypeptide

1

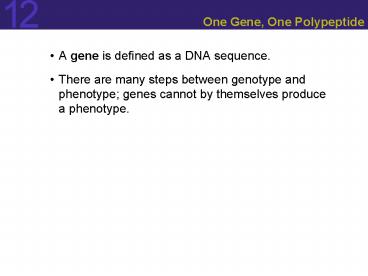

One Gene, One Polypeptide

• A gene is defined as a DNA sequence.
• There are many steps between genotype and
  phenotype genes cannot by themselves produce a
  phenotype.

2
DNA, RNA, and the Flow of Information

• RNA (ribonucleic acid) differs from DNA in three
  ways
• RNA is single-stranded
• The sugar in RNA is ribose, not deoxyribose.
• RNA has uracil instead of thymine.
• RNA can base-pair with single-stranded DNA
• A pairs with U instead of T
• RNA can also fold over and base-pair with itself.

3
DNA, RNA, and the Flow of Information

• Francis Cricks central dogma stated that DNA
  codes for RNA, and RNA codes for protein.
• How does information get from the nucleus to the
  cytoplasm?
• What is the relationship between a specific
  nucleotide sequence in DNA and a specific amino
  acid sequence in protein?

4
Figure 12.2 The Central Dogma
5
DNA, RNA, and the Flow of Information

• Messenger RNA
• mRNA moves from the nucleus of eukaryotic cells
  into the cytoplasm, where it serves as a template
  for protein synthesis.
• Transfer RNA
• tRNA, is the link between the code of the mRNA
  and the amino acids of the polypeptide,
  specifying the correct amino acid sequence in a
  protein.

6
Figure 12.3 From Gene to Protein
7
Transcription DNA-Directed RNA Synthesis

• Transcription requires the following
• A DNA template for complementary base pairing
• The appropriate ribonucleoside triphosphates
  (ATP, GTP, CTP, and UTP) to act as substrates
• The enzyme RNA polymerase

8
Transcription DNA-Directed RNA Synthesis

• Just one DNA strand (the template strand) is used
  to make the RNA.
• The DNA double helix partly unwinds to serve as
  template.
• As the RNA transcript forms, it peels away,
  allowing the already transcribed DNA to be
  rewound into the double helix.

9

• Steps of transcription
• Initiation
• Elongation
• Termination

10
Transcription DNA-Directed RNA Synthesis

• INITIATION
• The first step of transcription, initiation,
  begins at a promoter, a special sequence of DNA.
• There is at least one promoter for each gene to
  be transcribed.
• The RNA polymerase binds to the promoter region
  when conditions allow.

11
Figure 12.4 (Part 1) DNA is Transcribed in RNA
12
Transcription DNA-Directed RNA Synthesis

• ELONGATION
• After binding, RNA polymerase unwinds the DNA
  about 20 base pairs at a time and reads the
  template in the 3-to-5 direction (elongation).
• The new RNA elongates from its 5 end to its 3
  end thus the RNA transcript is antiparallel to
  the DNA template strand.
• Transcription errors for RNA polymerases are high
  relative to DNA polymerases.

13
Figure 12.4 (Part 2) DNA is Transcribed in RNA
14
Transcription DNA-Directed RNA Synthesis

• TERMINATION
• Particular base sequences in the DNA specify
  termination.
• Gene mechanisms for termination vary
• For some, the newly formed transcript simply
  falls away from the DNA template.
• For other genes, a helper protein pulls the
  transcript away.
• In prokaryotes, translation of the mRNA often
  begins before transcription is complete.

15
Figure 12.4 (Part 3) DNA is Transcribed in RNA
16
The Genetic Code

• A genetic code relates genes (DNA) to mRNA and
  mRNA to the amino acids of proteins.
• mRNA is read in three-base segments called
  codons.
• The number of different codons possible is 64
  (43), because each position in the codon can be
  occupied by one of four different bases.
• The 64 possible codons code for only 20 amino
  acids and the start and stop signals.

17
Figure 12.5 The Universal Genetic Code
18
The Genetic Code

• AUG, which codes for methionine, is called the
  start codon, the initiation signal for
  translation.
• Three codons (UAA, UAG, and UGA) are stop codons,
  which direct the ribosomes to end translation.

19
The Genetic Code

• The genetic code is redundant but not ambiguous.
• Redundancy
• After subtracting start and stop codons, the
  remaining 60 codons code for 19 different amino
  acids.
• This means that many amino acids have more than
  one codon. Thus the code is redundant.
• Lack of ambiguity
• However, the code is not ambiguous. Each codon is
  assigned only one amino acid.

20
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• Transfer RNA
• The molecule tRNA is required to assure
  specificity in the translation of mRNA into
  proteins.
• The tRNAs must read mRNA correctly.
• The tRNAs must carry the correct amino acids.

21
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• The codon in mRNA and the amino acid in a protein
  are related by way of an adaptera specific tRNA
  molecule.
• tRNA has three functions
• It carries an amino acid.
• It associates with mRNA molecules.
• It interacts with ribosomes.

22
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• A tRNA molecule has 75 to 80 nucleotides and a
  three-dimensional shape (conformation).
• The shape is maintained by complementary base
  pairing and hydrogen bonding.
• The three-dimensional shape of the tRNAs allows
  them to combine with the binding sites of the
  ribosome.

23
Figure 12.7 Transfer RNA
24
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• At the 3 end of every tRNA molecule is a site to
  which its specific amino acid binds covalently.
• Midpoint in the sequence are three bases called
  the anticodon.
• The anticodon is the contact point between the
  tRNA and the mRNA.
• The anticodon is complementary (and antiparallel)
  to the mRNA codon.
• The codon and anticodon unite by complementary
  base pairing.

25
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• Amino acids are attached to the correct tRNAs by
  activating enzymes called aminoacyl-tRNA
  synthetases.

26
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• Each ribosome has two subunits a large one and a
  small one.
• When they are not translating, the two subunits
  are separate.

27
Figure 12.9 Ribosome Structure
28
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• The large subunit has four binding sites
• The T site where the tRNA first lands
• The A site where the tRNA anticodon binds to the
  mRNA codon
• The P site where the tRNA adds its amino acid to
  the polypeptide chain
• The E site where the tRNA goes before leaving the
  ribosome

29
Preparation for Translation Linking RNAs, Amino
Acids, and Ribosomes

• The small ribosomal subunit plays a role in
  validating the three-base-pair match between the
  mRNA and the tRNA.
• If hydrogen bonds have not formed between all
  three base pairs, the tRNA is ejected from the
  ribosome.

30

• Translation
• Initiation
• Elongation
• Termination

31
Figure 12.3 From Gene to Protein
32
Translation RNA-Directed Polypeptide Synthesis

• INITIATION
• Translation begins with an initiation complex a
  charged tRNA with its amino acid and a small
  subunit, both bound to the mRNA.
• This complex is bound to a region upstream of
  where the actual reading of the mRNA begins.
• The start codon (AUG) designates the first amino
  acid in all proteins.
• The large subunit then joins the complex.
• The process is directed by proteins called
  initiation factors.

33
Figure 12.10 The Initiation of Translation
34
Translation RNA-Directed Polypeptide Synthesis

• ELONGATION
• Ribosomes move in the 5-to-3 direction on the
  mRNA.
• The large subunit catalyzes two reactions
• Breaking the bond between the tRNA in the P site
  and its amino acid
• Peptide bond formation between this amino acid
  and the one attached to the tRNA in the A site
• This is called peptidyl transferase activity.

35
Figure 12.11 Translation The Elongation Stage
36
Translation RNA-Directed Polypeptide Synthesis

• After the first tRNA releases methionine, it
  dissociates from the ribosome and returns to the
  cytosol.
• The second tRNA, now bearing a dipeptide, moves
  to the P site.
• The next charged tRNA enters the open A site.
• The peptide chain is then transferred to the P
  site.
• These steps are assisted by proteins called
  elongation factors.

37
Translation RNA-Directed Polypeptide Synthesis

• TERMINATION
• When a stop codonUAA, UAG, or UGAenters the A
  site, a release factor and a water molecule enter
  the A site, instead of an amino acid.
• The newly completed protein then separates from
  the ribosome.

38
Figure 12.12 The Termination of Translation
39
Regulation of Translation

• Polysomes are mRNA molecules with more than one
  ribosome attached.
• These make protein more rapidly, producing
  multiple copies of protein simultaneously.

40
Figure 12.13 A Polysome (Part 1)
41
Figure 12.3 From Gene to Protein
42
Posttranslational Events

• Two posttranslational events can occur after the
  polypeptide has been synthesized
• The polypeptide may be moved to another location
  in the cell, or secreted.
• The polypeptide may be modified by the addition
  of chemical groups, folding, or trimming.

43
Figure 12.14 Destinations for Newly Translated
Polypeptides in a Eukaryotic Cell
44
Posttranslational Events

• As the polypeptide chain forms, it folds into its
  3-D shape.
• The amino acid sequence also contains an address
  label indicating where in the cell the
  polypeptide belongs. It gives one of two sets of
  instructions
• Finish translation and be released to the
  cytoplasm.
• Stall translation, go to the ER, and finish
  synthesis at the ER surface.

45
Posttranslational Events

• Polypeptides destined for the ER have a
  25-amino-acid-long leader sequence.
• Before translation is finished, the leader
  sequence binds to a signal recognition particle.
• This stalls protein synthesis until the ribosome
  attaches to a specific receptor protein on the
  surface of the ER.
• Translation continues with the protein moving
  through a pore in the ER membrane.

46
Posttranslational Events

• Other signals are needed to direct further
  protein sorting
• Sequences of amino acids that allow the protein
  to stay in the ER
• Sugars added in the Golgi apparatus to form
  glycoproteins, which go to lysosomes or the
  plasma membrane
• Proteins with no signals from the ER go through
  the Golgi apparatus and are secreted from the
  cell.

47
Posttranslational Events

• Most proteins are modified after translation.
• These modifications are often essential to the
  functioning of the protein.
• Three types of modifications
• Proteolysis (cleaving)
• Glycosylation (adding sugars)
• Phosphorylation (adding phosphate groups)

48
Figure 12.16 Posttranslational Modifications to
Proteins
49
Mutations Heritable Changes in Genes

• Mutations are heritable changes in DNAchanges
  that are passed on to daughter cells.
• Multicellular organisms have two types of
  mutations
• Somatic mutations are passed on during mitosis,
  but not to subsequent generations.
• Germ-line mutations are mutations that occur in
  cells that give rise to gametes.

50
Mutations Heritable Changes in Genes

• All mutations are alterations of the DNA
  nucleotide sequence and are of two types
• Point mutations are mutations of single genes.
• Chromosomal mutations are changes in the
  arrangements of chromosomal DNA segments.

51
Mutations Heritable Changes in Genes

• Point mutations result from the addition or
  subtraction of a base or the substitution of one
  base for another.
• Point mutations can occur as a result of mistakes
  during DNA replication or can be caused by
  environmental mutagens.
• Because of redundancy in the genetic code, some
  point mutations, called silent mutations, result
  in no change in the amino acids in the protein.

52
Silent Mutation
53
Mutations Heritable Changes in Genes

• Some mutations, called missense mutations, cause
  an amino acid substitution.
• An example in humans is sickle-cell anemia, a
  defect in the b-globin subunits of hemoglobin.
• The b-globin in sickle-cell differs from the
  normal by only one amino acid.
• Missense mutations may reduce the functioning of
  a protein or disable it completely.

54
Missense mutation
55
Mutations Heritable Changes in Genes

• Nonsense mutations are base substitutions that
  substitute a stop codon.
• The shortened proteins are usually not functional.

56
Nonsense mutation
57
Mutations Heritable Changes in Genes

• A frame-shift mutation consists of the insertion
  or deletion of a single base in a gene.
• This type of mutation shifts the code, changing
  many of the codons to different codons.
• These shifts almost always lead to the production
  of nonfunctional proteins.

58
Frame-shift mutation
59
Mutations Heritable Changes in Genes

• Spontaneous mutations are permanent changes,
  caused by any of several mechanisms
• DNA polymerase sometimes makes errors in
  replication which can escape being repaired.
• Meiosis is imperfect. Nondisjunction and
  translocations can occur.

60
Mutations Heritable Changes in Genes

• Induced mutations are permanent changes caused by
  some outside agent (mutagen).
• Mutagens can alter DNA in several ways
• Altering covalent bonds in nucleotides
• Adding groups to the bases
• Radiation damages DNA
• Ionizing radiation (X rays) produces free
  radicals.
• Ultraviolet radiation is absorbed by thymine and
  causes interbase covalent bonds to form.

61
Mutations Heritable Changes in Genes

• Mutations have both benefits and costs.
• Germ line mutations provide genetic diversity for
  evolution, but usually produce an organism that
  does poorly in its environment.
• Somatic mutations do not affect offspring, but
  can cause cancer.

62
Mutations Heritable Changes in Genes

• Mutations are rare events and most of them are
  point mutations involving one nucleotide.
• Mutations can be detrimental, neutral, or
  occasionally beneficial.
• Random accumulation of mutations in the extra
  copies of genes can lead to the production of new
  useful proteins.
