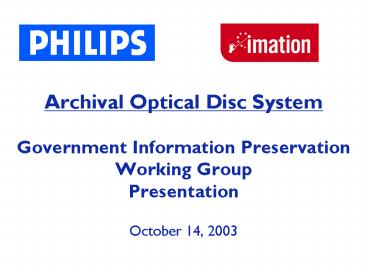

Archival Optical Disc System Government Information Preservation Working Group Presentation

1
Archival Optical Disc SystemGovernment
Information Preservation Working Group
Presentation

• October 14, 2003

2
Agenda

• Introduction
• Discussion on industry concerns with optical
  media performance
• Discussion on the issues causing concerns
• Proposal for a concept to address concerns
• Request for support from Working Group members to
  validate concept

3
Imation Corp (NYSE IMN)

• Y2003 Revenue 1.163 B
• 54 international
• Operations in 60 countries
• 2,800 employees, 300 in RD
• Headquarters Oakdale, MN

• Data Storage Info. Mgmt.
• Removable Media
• Enterprise
• Midrange
• Personal
• Data Center Services
• Government Services

World Headquarters, Oakdale, Minnesota, USA
4
Imation is the Only U.S.-Based Manufacturer of
Removable Media

• State-of-the-art manufacturing facilities
• All plants certified to new ISO 90012000
  standards

5
Imations Advanced Global Technical Centers
Support Customer Needs Worldwide

• Oakdale, Minnesota
• Neuss, Germany
• London, Ontario, Canada
• Weatherford, Oklahoma
• Tokyo, Japan
• Beijing, China

Canada
Neuss
Tokyo

?

Weatherford
Oakdale
Beijing
6
Imation/3M Optical Product History
1980
1984
1988
1992
1996
2000
2004
2008
5.25 Rewritable
Blu-ray HD DVD
1 GB
650 MB
1.3 GB
12 Write-Once
Magneto-Optical Near Field
Photopolymer Holography
Magnetic Patterned Media
7
Royal Philips Electronics

• One of the largest global electronics company
  with 2003 sales of EUR 29 bln (H1 2004 EUR 13,911
  mln)
• Multinational workforce of 165,600 employees
• Active in the areas of medical systems, domestic
  appliances and personal care, consumer
  electronics, lighting, semiconductors and optical
  storage
• Present in over 150 countries
• RD expenditures
• H1 2004 EUR 1,268 mln
• 2003 EUR 2,600 mln

• Headquarters
• Amsterdam, The Netherlands

8
Core Competence in Optical Storage
ICs / Embedded software
CD/DVD Modules
Automotive Modules
Data products
Consumer Electronics Products
Optical Discs
9
Leading in Technology

• DVDR/RW Philips first to market
• DVDR/RW drives 16x
• DVDR 16x Media
• DVDR DL 8.5 GB Media

• Blu-ray disc
• Triple Writer, OPU 81

• Solid State Changer for Automotive

10
Philips Optical Storage
Main Production and Development Centers
Eindhoven
Wetzlar
Gyor
CMC Taipei
Shanghai
PBDS Taipei
Singapore
Development centers
Production centers
Production partners
11
Industry Concerns
12
Issues to be addressed

• There are many industry concerns regarding
  reliability and performance of optical media
• Compatibility - Media / Drive
• Ease of use
• Quality of recordings how to verify
• Lifetime of media how long will it last
• Data obsolescence will old media read on new
  drives
• Concerns expressed by NIST and end-users
• Business and professional users
• Home consumers

13
Are concerns real or perceived?

• Current technology is designed for robust
  performance
• Technology implementation has large variability
• Need to be able to verify that the technology is
  performing safely within specifications
• Unrecoverable data cannot be the first indicator
  of a problem
• Need to verify performance of both media and drive

14
Why is there variability?

• Optical is truly a consumer product
• open format with many media and drive
  manufacturers
• vast majority of manufacturers are media only or
  drive only producers
• typical media factory has 10s to 100s of lines
• multiple compatible formats
• rapid technology migration
• extremely cost competitive

15
What influences long-term reliability?

• Media
• Materials
• Dyes, seal-coats, plastics, metals (reflectors)
• Robust manufacturing process
• Mastering through printing / labeling
• Environmental control
• Manufacturing control
• Repeatable process
• Materials / supplier management
• Trained and experienced labor force

16
But its more than just media

• Drive and System Management
• Recording process
• Recording speed
• Data verification
• Care and Handling
• Environmental containment (Heat, Light, Moisture,
  Debris)
• Scratch-resistance
• Long lived
• System migration - utilize latest technology
• Data migration - avoid costly data conversion
• Data protection true write-once media, security

17
Concept Proposal Archival Optical Disc System

• System based on CD, DVD and Blu-ray standard
• Not a new disc format
• Read-out compatible with installed base of
  optical drives
• When disc is recorded in drive,
• Quality of recording (data) is verified at time
  of recording
• System will have ability to monitor health of
  disc each time disc is read to ensure long-term
  reliability
• Vital information describing recording
  characteristics is written to disc for on-going
  audit purposes
• Timestamp information
• Version control
• Drive identifier
• Disc and drive are enhanced and manufactured for
  true archival applications
• Features included beyond required standards and
  specifications

18
What were proposing different

• Develop system and media manufacturing process
  that removes the variability of drives and media
• Leverage combined experiences in design,
  materials, and manufacturing process selection
• Optimized to meet long-term reliability
  requirements
• Media life certified for gt50 years
• Robust storage and handling
• Additional features to provide user with
  verification

19
Considerations / recommendations

• Start with DVD family products
• Create lifetime proof for DVD media
• Optimize drives towards lifetime proof media
• Develop and introduce archive grade discs for
  Professional archiving and potentially consumer
• Define robust writing SW application

20
Request to GIPWoG

• Is there need for archive grade media?
• Or does off-the-shelf product meet requirements?
• Is DVD the right starting point?
• What levels of verification or certification
  would you anticipate?
• Would you be willing to support us in the
  measurement and testing?
• Opportunity / interest to participate in beta
  testing?

21
Request to GIPWoG

• Is there a broader role for the GIPWoG to support
  the acceptance of this system?
• Within the U.S. Government
• In the business and professional markets

22
Key Contact Information

• Imation
• Rusty Rosenberger
• wrrosenberger_at_imation.com, 1-651-704-7504
• James Kwiecien
• jzkwiecien_at_imation.com, 1-651-704-4645
• Philips
• Frank Simonis
• frank.simonis_at_philips.com, 31-40-27-35530-34309

23
Thank you.
