Nonlinear Dimensionality Reduction Approach (ISOMAP, LLE)

1

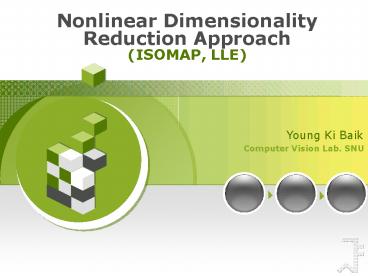

Nonlinear Dimensionality Reduction Approach
(ISOMAP, LLE)
Young Ki Baik
Computer Vision Lab. SNU
2
References

• ISOMAP
• A global geometric framework for nonlinear
  dimensionality reduction
• J.B.Tenenbaum, V.De Silva, J.C.Langford (science
  2000)
• LLE
• Nonlinear Dimensionality Reduction by Locally
  Linear Embedding
• Sam T. Roweis and Lawrence K. Saul (science 2000)
• ISOMAP and LLE
• LLE and Isomap Analysis of Spectra and Colour
  Images
• Dejan Kulpinski (Thesis 1999)
• Out-of-Sample Extensions for LLE, Isomap, MDS,
  Eignemaps, and Spectral Clustering
• Yoshua Bengio et. Al. (TR2003)

3
Contents

• Introduction
• PCA and MDS
• ISOMAP and LLE
• Conclusion

4
Dimensionality Reduction

• Problem
• Complex stimuli can be represented by points in a
  high-dimensional vector space.
• They typically have a much more compact
  description.
• The goal
• The meaningful low-dimensional structures hidden
  in their high-dimensional observations in order
  to compress the signals in size and discover
  compact representations of their variable.

5
Dimensionality Reduction

• Simple example
• 3-D data

6
Dimensionality Reduction

• Linear method
• PCA (Principle Component Analysis)
• Preserves the variance
• MDS (Multi Dimensional Scaling)
• Preserves inter-point distance
• Non-linear method
• ISOMAP
• LLE

7
Linear Dimensionality Reduction

• PCA
• Find a low-dimensional embedding of the data
  points that best preserves their variance as
  measured in the high-dimensional input space.
• Eigenvectors are the principal directions, and
  eigen- values represent the variance of the data
  along each principal direction.

is the marginal variance along the principle
direction
8
Linear Dimensionality Reduction

• PCA
• Projecting onto e1 captures the majority of the
  variance and hence it minimizes the error.
• Choosing subspace dimension M
• Large M means lower expected
• error in the subspace data
• approximation

Reduction
9
Linear Dimensionality Reduction

• MDS
• Find an embedding that preserves the inter-point
  distances, equivalent to PCA when the distances
  are Euclidean.

PCA
MDS
10
Linear Dimensionality Reduction

• MDS
• distances
• Relation

11
Linear Dimensionality Reduction

• MDS
• Providing dimension reduction.
• Relating tools

Method 1
PCA
MDS
Method 2
Dimension Reduction
Method
12
Nonlinear Dimensionality Reduction

• Many data sets contain essential nonlinear
  structures that invisible to PCA and MDS.
• Resort to some nonlinear dimensionality reduction
  approaches.

13
ISOMAP

• Example of non-linear structure(swiss roll)
• Only the geodesic distances reflect the true
  low-dimensional geometry of the manifold.
• ISOMAP (Isometric feature Mapping)
• Preserves the intrinsic geometry of the data.
• Uses the geodesic manifold distances between all
  pairs.

14
ISOMAP (algorithm description)

• Step 1
• Determining neighboring points within a fixed
  radius based on the input space distance
• These neighborhood relation are represented as a
  weighted graph G over the data points.
• Step 2
• Estimating the geodesic distances
  between all pairs of points on the manifold by
  computing their shortest path distances in the
  graph G.
• Step 3
• Constructing an embedding of the data in
  d-dimensional Euclidean space Y that best
  preserves the manifolds geometry.

15
ISOMAP (algorithm description)

• Step 1
• Determining neighboring points within a fixed
  radius based on the input space distance
• e-radius
  K-nearest neighbors
• These neighborhood relations are represented as a
  weighted graph G over the data points.

K4
e
i
j
k
16
ISOMAP (algorithm description)

• Step 2
• Estimating the geodesic distances
  between all pairs of points on the manifold by
  computing their shortest path distances in the
  graph G.
• Can be done using Floyds algorithm or Dijkstras
  algorithm

j
i
k
17
ISOMAP (algorithm description)

• Step 3
• Constructing an embedding of the data in
  d-dimensional Euclidean space Y that best
  preserves the manifolds geometry.
• Minimize the cost function

18
Manifold Recovery Guarantee of ISOMAP

• Isomap is guaranteed asymptotically to recover
  the true dimensionality and geometric structure
  of nonlinear manifolds.
• As the sample data points increases, the graph
  distances provide increasingly better
  approximations to the intrinsic geodesic
  distances.

19
Experimental Results (ISOMAP)

• Face Hand
  writing
• face pose and illumination bottom
  loop and top arch

MDS open triangles Isomap filled circles
20
LLE

• LLE (Locally Linear Embedding)
• Neighborhood preserving embeddings.
• Mapping to global coordinate system of low
  dimensionality.
• Recovering global nonlinear structure from
  locally linear fits.
• Each data point and its neighbors is expected to
  lie on or close to a locally linear patch.
• Each data point is constructed by its neighbors
• Where Wij summarize the contribution of j-th data
  point to the i-th data reconstruction and is what
  we will estimated by optimizing the error.
• Reconstructed from only its neighbors.

21
LLE (algorithm description)

• We want to minimize
• the error function
• With the constraints
• Solution (using lagrange multipliers)

22
LLE (algorithm description)

• Choose d-dimensional
• coordinates, Y, to minimize
• Under
• Solution compute bottom d1 eigenvectors of M.
  (discard the last one)

23
LLE (algorithm summary)

• Step 1
• Compute the neighbors of each data point, Xi
• Step 2
• Compute the weight Wij that best reconstruct each
  data point Xi from its neighbors, minimizing the
  cost in eq(1) by constrainted linear fits.
• Step 3
• Compute the vectors Yi best reconstructed by the
  weights Wij, minimizing the quadratic form in
  eq(2) by its bottom nonzero eigenvectors.

1
2
24
Experimental Results (LLE)

• Lips
• PCA LLE

25
Conclusion

• ISOMAP
• Use the geodesic manifold distances between all
  pairs.
• LLE
• Recovers global nonlinear structure from locally
  linear fits.
• ISOMAP vs LLE
• Preserving the neighborhoods and their geometric
  relation.
• LLE requires massive input data sets and it must
  have same weight dimension.
• Merit of Isomap is fast processing time with
  dijkstras algorithm.
• Isomap is more practical than LLE.
