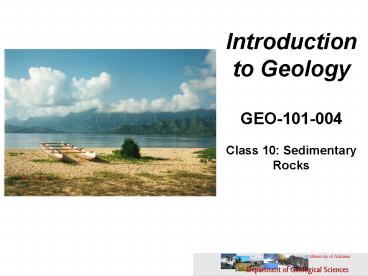

Introduction to Geology GEO101004 Class 10: Sedimentary Rocks

1
Introduction to GeologyGEO-101-004Class 10
Sedimentary Rocks
2
Exam 1

• Four items on each of your exams
• MC/TF Multiple choice and true/false section
  (graded out of 45)
• SA Short answer (graded out of 12)
• Essay Essay section (graded out of 10)
• Final letter grade (curve adjusted for a C
  average).
• This exam represented 15 of your final grade
• If you got 0 on this exam theoretically you can
  still get a B in the class
• If you got 100 you can still fail!
• Main piece of advice for success in this class --
  READ

3

• I will be away on the 16th and 22nd of February
  Dr. Delores Robinson and Dr. Geoffrey Tick will
  talking my place on those days

4
Question of the Day
____________, in the north Atlantic Ocean is a
volcanic island formed over a hot spot on a
divergent plate boundary
5
In the News..
The next few slides are courtesy of the Royal
Navy..
6
From E.J.W. Jones, Marine Geophysics
7
(No Transcript)
8
Why did it happen?

• Indian plate is being subducted beneath Eurasia /
  Burma plate
• Rate 50-60mm/yr but very oblique
• Two large earthquakes during C19th further to
  south (Figure from studies by Kerry Sieh, CalTech)

9
Generic subduction zone cross section
10
Lines Run
11
OVERLAY OF DATA COLLECTED AND CURRENT CHART
12
(No Transcript)
13
Channel and ridge
14
Examples of Landslide Scars
Slide Scar Complex
Slide Scar
Canyon leading on to abyssal plain
Length of image approx. 25km
Processed by Caris
15
Slide Scars and Thrust Faults
Slide scar propagating southwards
Ridges from thrust faulting
Processed by Caris
Canyon
Plate boundary
(Approx. 40km across)
16
Youthful Slide with Slide Blocks
Youthful Slide Scar
Slide Scar
Canyon
Youthful Slide Scar
Slide Scar
Canyon
Abyssal Plain
Abyssal Plain
Processed by Caris
Slide Blocks
Slide Blocks
17
Example of Slide Scar
Mature slide scar area with cross cutting canyons
Slide Scar
Canyon
Processed by Caris
Abyssal Plain
18
Diversion of Canyon
Canyon
Ridge causing diversion of canyon as it is
forced upwards
Processed by Caris
Abyssal Plain
19
Area of Active Erosion
Slide scars
Processed by Caris
Canyons
20
Older slide on newer ridge
21
What is a sedimentary rock?

• Sedimentary rocks are products of mechanical and
  chemical weathering
• They account for about 5 (by volume) of Earths
  outer 10 miles
• Contain evidence of past environments
• Provide information about sediment transport
• Often contain fossils

22
(No Transcript)
23
What is a sedimentary rock?

• Sedimentary rocks are important for economic
  considerations because they may contain
• Coal
• Petroleum and natural gas
• Sources of iron, aluminum, and manganese
• What else??

24
Turning sediment into rock

• Many changes occur to sediment after it is
  deposited
• Diagenesis chemical, physical, and biological
  changes that take place after sediments are
  deposited
• Burial promote diagenesis
• Occurs within the upper few kilometers of Earths
  crust at temperatures less than 150-200oC

25
Turning sediment into rock

• Diagenesis
• Includes
• Recrystallization development of more stable
  minerals from less stable ones
• Aragonite (a form of calcium carbonate secreted
  by marine animals to form shells) recrystalizes
  to form the more stable mineral calcite as burial
  takes place
• The end result is limestone

http//www.palaeos.com
http//mineral.galleries.com/
26
Turning sediment into rock

• Diagenesis
• Includes
• Lithification sediments are transformed into
  solid rock by
• Compaction the most common diagenetic change
• The weight of the overlying material compresses
  the sediment pore space is reduced
• Burial of a clay may result in a 40 reduction in
  volume
• Sands do not compact as much
• The squeezing out of pore water may promote other
  processes????

27
Turning sediment into rock

• Diagenesis
• Includes
• Lithification sediments are transformed into
  solid rock by
• Cementation the most important process for
  turning sediments to rock
• Cement is carried by fluids circulating in the
  pore spaces
• In time the cement precipitates onto the sediment
  grains and eventually fills the pore spaces and
  joins the particles
• Natural cements include calcite (reacts with
  HCl), silica (the hardest), and iron oxide
  (reddish color)

28
Question of the Day
Why are these rocks different colors? What can
you say about the source of these beach rocks?
Describe and explain the shape of the rocks
29
Types of sedimentary rocks

• Sediment originates from mechanical and/or
  chemical weathering
• Rock types are based on the source of the
  material
• Detrital sedimentary rocks transported sediment
  as solid particles
• Chemical sedimentary rocks sediment that was
  once in solution

30
Detrital sedimentary rocks

• The chief constituents of detrital rocks include
• Clay minerals the most abundant product of
  chemical weathering of silicate minerals e.g.
  feldspars
• Quartz very durable and resistant
• Feldspars
• Micas
• Chemical weathering will rapidly destroy
  feldspars and micas, so if they are present in a
  rock it indicates they might not have traveled
  far from their source
• Particle size is used to distinguish among the
  various rock types

http//mineral.galleries.com
31
(No Transcript)
32
Detrital sedimentary rocks

• Common detrital sedimentary rocks
• Shale
• Silt- and clay-sized (microscopic) particles in
  thin layers that are commonly referred to as
  laminea
• Most common sedimentary rock
• Forms in non-turbulent settings flood plains,
  lagoons.

33
Detrital sedimentary rocks

• Common detrital sedimentary rocks
• Shale
• Black shale organic rich
• Must have formed in swamp like environment
• A swamp is an oxygen poor environment where
  organic material does not readily oxidize and
  decay
• Exhibits an ability to split into layers -
  fissility

34
(No Transcript)
35
If shale is such a common rock in the sedimentary
rock world, why isn't it as prominently exposed
at the surface as sandstone?
07.04

• Shale crumbles easily, causing increased
  mechanical weathering, whereas sandstone resists
  weathering more effectively.
• Shale resists weathering more effectively,
  whereas sandstone crumbles easily, causing
  increased mechanical weathering.
• Shale has easily broken, highly reactive
  minerals, whereas sandstone has harder-to-break
  minerals.
• Shale dissolves in water, whereas sandstone
  dissolves only if enough carbonic acid is present
  in the water.

36
Detrital sedimentary rocks

• Common detrital sedimentary rocks
• Sandstone
• Composed of sand-sized particles (1/16 - 2 mm)
• Forms in a variety of environments
• Quartz is the predominant mineral

37
Sorting the degree of similarity is particle
size in a sedimentary rock If all the grains are
about the same size it is well sorted If all
grain size varies widely it is poorly sorted
38
A quartz sandstone
39
Detrital sedimentary rocks

• Conglomerate and breccia
• Both are composed of particles greater than 2mm
  in diameter large enough to be recognized as
  distinctive rock types
• Very valuable for determining the source of the
  rock
• Conglomerate consists largely of rounded gravels
• Mountain rivers, rapidly eroding coasts, glacial
  and landslide deposity
• Breccia is composed mainly of large angular
  particles not transported as far

40
Chemical sedimentary rocks

• Consist of precipitated material that was once in
  solution
• Salt
• Calcite
• Precipitation of material occurs by
• Inorganic processes
• Organic processes (biochemical origin)

http//www.palaeos.com
41
Chemical sedimentary rocks

• Common chemical sedimentary rocks
• Limestone
• Most abundant chemical rock
• Composed chiefly of the mineral calcite
• Marine biochemical limestones form as coral
  reefs, coquina (broken shells), and chalk
  (microscopic organisms)

42
(No Transcript)
43
Coquina
Figure 7.9
44
Fossiliferous limestone
45
Chalk
