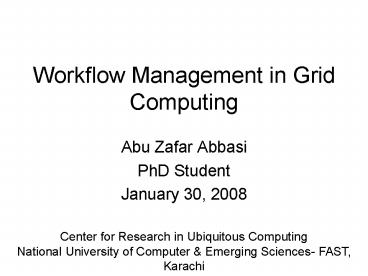

Workflow Management in Grid Computing

• Abu Zafar Abbasi
• PhD Student
• January 30, 2008

Center for Research in Ubiquitous
Computing National University of Computer
Emerging Sciences- FAST, Karachi
2
Workflow

• The automation of a business process, in whole
  or part, during which documents, information or
  tasks are passed from one participant to another
  for action, according to a set of procedural
  rules
• Workflow Management Coalition
• Workflow management system is the software that
  does it

3
Workflow in a Business Process
4
Workflow Overview
5
Interfaces/Components of a WFMS
6
Why use WorkFlow in Grid?

• Build applications through orchestration of
  distributed resources
• Utilization of resources that are located in a
  particular domain to increase throughput or
  reduce execution costs
• Execution spanning multiple administrative
  domains to obtain specific processing
  capabilities
• Integration of multiple teams involved in
  managing of different parts of the experiment
  workflow - thus promoting inter-organizational
  collaborations
• Workflow concepts now extends to science,
  engineering, and industrial process management
  also
• Ease of use for e-scientists and business people
  who lack grid programming and toolkit usage
  knowledge

7
Grid Workflow

• Grid workflow can be defined as the composition
  of grid application services which execute on
  heterogeneous and distributed resources in a
  well-defined order to accomplish a specific goal.
• R. Buyya
• The automation of the processes, which involves
  the orchestration of a set of Grid services,
  agents and actors that must be combined together
  to solve a problem or to define a new service.
• Geoffrey Fox GGF 10

8
Grid WFMS
9
Workflow in OGSA
10
Issues

• Lack of central control and ownership
• local policy is subject to change without
  informing the users of workflow systems
• Undedicated resource sharing
• Unavailability and change of status during wf
  execution
• Variation in computation and networking
  facilities
• Computation or data intensive jobs involving
  large number of activities
• Less human interaction
• Heterogeneity
• QoS Constraints (Time, Cost, Reliability,
  Security)
• A full-ahead-plan is not always suitable
• Exact location of resources assigned to each task
• Physical files of data, etc

11
Taxonomy of Grid Workflows (1/2)
12
Taxonomy of Grid Workflows (2/2)
13
Grid workflow Survey
14
Grid Workflow Survey

• DAGMan was developed to schedule jobs to Condor
  system in an order represented by a DAG and to
  process them.
• Pegasus map and execute complex workflow based on
  full-ahead-planning. In Pegasus, a workflow can
  be generated from metadata description of the
  desired data product using AI-based planning
• The Taverna project has developed a tool for the
  composition and enactment of bioinformatics
  workflow for the life science community. The tool
  provides a graphical user interface for the
  composition of workflows

15
Gridbus Workflow Management System

• Just in-time scheduling allows the decision of
  resources allocation to be made dynamically at
  the time of the execution of tasks in the
  workflow
• Takes advantage of various middleware services
  such as security, grid resource access, file
  movement and replica management services provided
  by the Globus middleware, and parametric
  application execution provided by the Gridbus
  Broker and VO directory service provided by the
  Grid Market Directory (GMD)

16
Architecture of Gridbus WFE
17
Components of Gridbus WFEE

• Workflow submission, workflow language parser,
  resource discovery, dispatcher, data movement and
  workflow scheduler
• Workflow submission accepts workflow enactment
  requests from planner level applications.
• Workflow language parser converts workflow
  description from XML format into Java objects,
  Task, Parameter and Data Constraint (workflow
  dependency) which can be accessed by workflow
  scheduler
• Resource discovery is intended to query grid
  information services such as Globus MDS, GMD and
  replica catalogs, to locate suitable resources
  for the tasks
• It support different middleware by creating
  dispatchers for each middleware to support its
  interaction with resources
• Data movement system enables data transfer
  between grid nodes by using HTTP and GridFTP
  protocols
• Workflow scheduler is the central component in
  WFEE. It interacts with resource discovery to
  find suitable grid resources at run time it
  locates a task on resources by using the
  dispatcher component it controls input data
  transference between task execution nodes through
  data movement

18
GWFEE Workflow Scheduling

• Decentralized Just In-time Scheduling
• Every task has its own scheduler
• Handles processing, resource selection, resource
  negotiation, task dispatcher and failure
  processing
• The lifetimes of TMs, as well as the whole
  workflow execution, are controlled by a workflow
  coordinator

Architecture
Event driven mechanism
19
Thank you
20
References

• David Hollingsworth, The Workflow Reference
  Model, Workflow Management Coalition, Document
  No. TC00-1003, 1995
• Geoffrey Fox Dennis Gannon, Workflow in Grid
  Systems, Concurrency and Computation Practice
  Experience, Volume 18,  Issue 10, John Wiley and
  Sons Ltd., August 2006, pp 1009-1019
• Jia Yu Rajkumar Buyya, A Taxonomy of
  Scientific Workflow for Grid Computing, SIGMOD
  Record, Vol 34, No.3, pp 44-49, September 2005
• Jia Yu and Rajkumar Buyya, "A Novel Architecture
  for Realizing Grid Workflow using Tuple
  Spaces",The Proceedings of 5th IEEE/ACM
  International Workshop on Grid Computing
  (GRID'04), USA, November 2004
• gridworkflow.org
