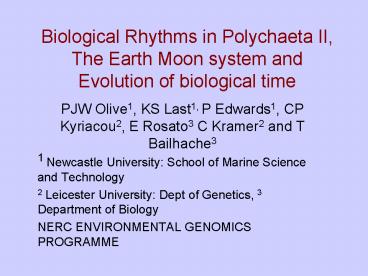

Biological Rhythms in Polychaeta II, The Earth Moon system and Evolution of biological time

1
Biological Rhythms in Polychaeta II, The Earth
Moon system and Evolution of biological time

• PJW Olive1, KS Last1, P Edwards1, CP Kyriacou2, E
  Rosato3 C Kramer2 and T Bailhache3
• 1 Newcastle University School of Marine Science
  and Technology
• 2 Leicester University Dept of Genetics, 3
  Department of Biology
• NERC ENVIRONMENTAL GENOMICS PROGRAMME

2
Clocks work in worms

• many clocks appear to function in marine worms
• Nereis virens (previous presentation
• Complex biorhythmical behaviour
• circadian period 24 hours
• circatidal period 12.4 hours
• circalunidian period 24.8 hours
• photoperiodic response to annual LD cycle
• Long term quasi circannual
• Life cycle semelparous modular annual
• Platynereis dumerilli
• lunar rhythms of epitoky (cf eclosion)
• Life cycle semelparous modular lunar
• Palola viridis
• Synchronised spawning with lunar, tidal, diel and
  annual components

3
Canonical clock genes in Nereis virens

• Clock
• Bmal 1
• Kaseine Kinase 1, 2? and ?
• Micro array (see Rosato this conference to
  search for the entire gene network involved in
  the tidal and circadian clocks

4
In situ hybridisation for clock gene expression
in larval brains

• An ongoing component of the study is the
  localisation of clock gene expression in larval
  brains
• Here expression of Bmal in Platynereis

5
What are the Polychaetes, when did they arise?
VIII International Polychaete Conference Madrid
2004

• Traditional morphological cladistic studies Rouse
  and Fauchald 1997, Zoo Scripta 26139-204
• WormNET compiling data from large and small
  nuclear ribosomal subunits, nuclear protein
  coding genes EF1?, EF2, RNApol II and MyoII and
  complete mitochondrial genomes
• Emerging concensus for the Polychaeta
• Clitellata (Earth worms and leeches) lie within
  the Polychaete clade as do Echiura and Sipuncula
• Robust sub-clades include PHYLLODOCIDA and
  EUNICIDA,
• Both are well represented in the early palaeozoic
  (fossil jaws (scolecodonts) from around 480MA
• likely rapid radiation around 600MA (D. McHugh

6
A recent concensus
7
Scolecodonts
8
Reproductive strategies in Cambrian Ordovician
Polychaetes

• Scolecodonts suggest a radiation of Eunicida and
  Phyllodocida by 500Ma
• Many of these animals were large bodied worms
  (judging by jaw size) living in intertidal and
  shallow habitats (Eriksson, 2004)
• Synchronised epidemic spawning, external
  fertilisation and planctonic development is
  typical of such animals now (Olive, 1984)
• Why not then? Rouse
• This requires a functional clock to synchronise
  reproductive activity (Lewis and Watson - this
  conference)

9
Core Hypothesis

• We propose that
• the original metazoan clock had the capacity to
  predict lunar/tidal time as well as the solar
  day
• that this clock had emerged at least in the
  Polychaete clade by the early to mid Cambrian
  i.e. around 600 Ma.
• What were the periodicities of the Earth Moon
  system at that time?

10
The earth moon sun time system
11
The earth moon sun time system
12
The present day periods

• Rotational period of the Earth, P1
• 0.9973 days
• Orbital period of the Moon, P2
• 27.3127 days
• The orbital period of the Earth, P3
• 365.2422 days

13
Changes in periods

• The period of the Earths rotation is declining
• The angular momentum of the Moon is declining
• The Moon is retreating from the Earth.

14
Historical astronomical evidence for changing
periods

• By the 17th Century it had become impossible to
  reconcile contemporary observations with biblical
  and babylonian records
• Halley 1677 used the transit of the Sun by
  Mercury as a measure of absolute time that can be
  compared with time based on the rotation of the
  earth - Universal time.

15
Universal Time and
Transit of Mercury across the Sun
Time point
16
Universal Time and Dynamical Time (from Morrison
1978)

• Positions of Moon measured against instants of
  time based on star fixes
• Star fix based on Universal Time (UT) derived
  from Earth Rotation
• Predicted positions calculated from integration
  of orbit equations Dynamical Time (TD)
• 14 times a century mercury transits the sun
  instants in TD
• Differences between instants in UT and TD
  deceleration of Earth
• Average deceleration
• -262 secs/century2

17
Historical astronomical evidence for changing
periods

• Kant 1754 formulated the concept of tidal
  friction
• The difference between Universal and Dynamical
  Time is due to the frictional resistance of the
  Earth to the lunar and solar induced tides

18
Lunar retreat

• Laser measurements following the Apollo mission
  provide confirmatory data - the Moon decelerates
  at a rate of 25.9 seconds per century per
  century
• The Moon retreats from the Earth at a rate of
  about 4 cm per year
• Thus billions of years ago the Moon was much
  closer to the Earth than now

19
Tidal Friction (Simplified)
The Earth rotation pulls the tidal bulge ahead
in relation to the Moon/earth line
20
Palaentological and Geological Confirmation

• Palaentology - fossil growth lines
• During the 1970s there was a great interest in
  fossils showing growth lines (see Scrutton,
  1978)
• Growth lines suggest there were 410 days per year
  in the Silurian - equivalent to a day length of
  around 20 hours
• Rhythmites deposits
• Tidal deposits back to 600 - 900 million years
  ago (see Williams, 2000)

21
How has length of day LOD changed since origin of
life?

• Origin of Life 4Ga
• First fossils (Cyanobacteria) 2Ga
• Linear extrapolations (Lathe 2003) suggests LOD
  4 hours 4Ga
• Equations describing the Moons Orbital motion
  and the Earths rotation suggest a critical
  period around 1.8 billion years ago
• Actually this is very complicated BUT...

22
Krasinskys solutions Krasinsky, 2002 ..
23
Length of day and number of (then) days per lunar
month

• Non-linear change in day length down to around 4
  hours at tcrit around -1.8 Ga
• the number of running days per month increased
  rapidly to around 29 after tcrit but then
  declined only slowly

Epoch (ma) LoD Days per month Now 24
hr 27.3 -1200 17.5 29.5 -1843(tcrit) 5.95 9.6
24
Past earth moon system and the protoclock

• In the past the rotational velocity of the Earth
  was greater and length of day less
• LOD c18 hours in the Early Cambrian but possibly
  very dynamic increase from around 4 hours at
  -2Ga
• The Moon was closer - bigger tidal forces
• There was a single land mass Pangaea and an
  ocean, it probably had two tides per then day.

25
Implications of Krasinsky calculations IIPangaea

• The Moon was closer - bigger tidal forces
• There was a single land mass Pangaea and an ocean
  until recent
• Palaeotides? If semi-diurnal - period around 2
  hours until 2Ga
• Without continents high latitudes have diurnal
  tide and low latitudes semi-diurnal
• But what do we know about the ocean and land
  masses 4Ga? - next to nothing

26
Lets take an imaginary journey back in time
using as a model our Nereis data

• Tidal biorhythmicity in Nereis

27
Period of rhythm at different epochs
Worms much like modern worms present at this time
Rhythms in the earliest organisms may have been
like this
28
Conclusions

• The tidal period c 2 hours? may have been every
  bit as important as the length of day for
  proto-organisms
• circa-tidal and circadian clocks must have
  increased their period since the origin of the
  protoclock
• Models for the origin of the clock must take into
  account the changes in period that have occurred
  over biological time.

29
(No Transcript)
30
(No Transcript)
31
Platynereis dumerilli first demonstration of
lunar periodicity

• Epitoky in Platynereis cf eclosion biorhythnms of
  Drosophila
• Life cycle periodicity modular lunar not modular
  annual
• clear response to lunar signals.

32
Spawning of Platynereis has constant phase delay
? in relation to the end of the full moon phase
light at night)
Number
?
?
Lunar days
Lunar days
Data from Hauenschild (1960) Cold Spring Harbor
Symposia in Quantitative Biology 25 491-257
33
Palola viridis time keeper par excellence

• Pictures or data on spawning of palola
