Title: Closest Points


1

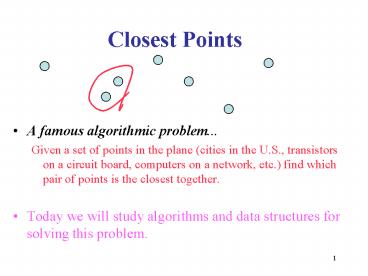

Closest Points
  • A famous algorithmic problem...
  • Given a set of points in the plane (cities in the
    U.S., transistors on a circuit board, computers
    on a network, etc.) find which pair of points is
    the closest together.
  • Today we will study algorithms and data
    structures for solving this problem.

2
Closest Pairformal definition
  • Algorithms for determining the closest pair
  • -brute force O(N2)
  • -divide-and-conquer O(N log N)
  • -plane-sweep O(N log N)

3
Brute Force Algorithm
(x1, y1)
p1
(x2, y2)
p2
Time Complexity O( N2 )
d(p1, p2)
(x2 - x1)2 (y2 - y1) 2
4
Plane-Sweep Algorithm
  • Maybe we can avoid checking the distance between
    every pair...
  • Plane-sweep worked for segment intersection...
  • Key observation if the closest pair of points to
    the left of the sweep line is distance d apart,
    the next point encountered cant be a closest
    pair with any point more than d units to the left
    of the line

The closest point to the left of p can only be in
the red-shaded region
5
Stored Information
  • Maintain the following information
  • closest pair (a,b) found so far, and distance d
    between them.
  • ordered dictionary S of the points lying in a
    strip of width d to the left of the sweep line,
    using the y-coordinates as keys

6
Updating
  • When the sweep line encounters a point p
  • update dictionary so it only contains points that
    might be a closest pair with p
  • remove all points r such that x(p)-x(r)gtd from S
  • find the closest point q to p in S
  • if d(p,q) lt d then update the current closest
    pair and distance
  • insert p into S

7
Searching the Dictionary
  • How to quickly find the closest point in the
    dictionary? (Note there could be O(N) points in
    the dictionary.)
  • Have x, y spacing so that y d/(n-1)
  • Good news not all of the points in the
    dictionary can improve d. The only eligible
    points are in the half circle of radius d
    centered at p.

d
p
8
Searching the Dictionary II
d
  • But how to search in a half-circle?
  • a rectangle is almost a half-circle
  • do a range search in the interval y(p)-d,y(p)d
  • this will get all the points in the half-circle
    (and maybe some others)
  • Use brute-force to check the distance to each
    point returned by the range query
  • But isnt that still a potentially large number
    of points?
  • actually, there are at most 6
  • key observation all of the points in the
    dictionary are at least distance d from each
    other

p
2d
9
Putting It All Together
  • sort points by x-coordinate and store in ordered
    sequence X
  • maintain references to two positions in sequence
  • -firstInStrip the leftmost point in S
  • -lastInStrip the new point to be added to S
  • at each step..
  • lastInStrip ? X.after(lastInStrip) // advance
    lastInStrip
  • // remove points that are no longer
    candidates from dictionary
  • while x(point(firstInStrip)) lt
    x(point(lastInStrip))-d do
  • S.remove(point(firstInStrip))
  • firstInStrip ? X.after(firstInStrip)
  • // update closest point information
  • find point q closest to point(lastInStrip)
    in S
  • if d(p,q) lt d then update closest pair
  • d ? d(p,q)
  • S.insert(point(lastInStrip)) // insert new
    point into dictionary

10
An Example
11
An Example Continued
12
Still Going...
13
Example Completed
14
Running Time
  • initial sort takes O(N log N) time
  • each point is inserted and removed once from S
  • S has at most N elements, so each
    insertion/removal takes O(log N) time
  • total insertion/removal time is O(N log N)
  • dictionary is searched once each time a point is
    inserted into S
  • each range query takes O(log N 6) O(log N)
    time
  • total time for range queries is O(N log N)
  • distance computations performed each time a point
    is inserted into S
  • at most 6 computations at each time
  • total time for distance computations is O(N)
