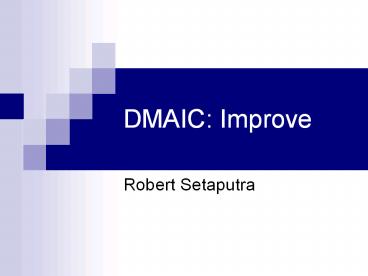

DMAIC Improve

- Robert Setaputra

Objective

- Ready to develop, test, and implement solutions

to improve the process by reducing variation in

the critical output variables caused by the vital

few of input variables.

Small note

- In many cases, it is difficult to completely

separate the activities in Measure, Analyze, and

Improve.

Design of Experiment (DOE)

- DOE is a collection of statistical methods for

studying the relationships between independent

variables, and their interactions (also called

factors, input variables, or process variables)

on a dependent variable (or CTQ).

Design of Experiment (DOE)

23.5 24.6

Factors

Replications

Levels

Design of Experiment (DOE)

- Full factorial
- All possible combinations
- No prior knowledge about the subject
- 2k k factors each with 2 levels
- 22 2 factors each with 2 levels
- Fractional factorial
- Excluding some combinations
- Preferred when it is costly to do experiments
- 2k-1 k-1 factors each with 2 levels

Design of Experiment (DOE)

- ANOVA One Factor
- ANOVA Two Factor
- Remember Gage RR with ANOVA?

Correlation Coefficient

- The sample correlation coefficient (r) measures

the degree of linearity in the relationship

between X and Y - -1 lt r lt 1

Correlation Analysis

Notes on Correlation Coefficient

- Correlation is a measure of linear association

and not necessarily causation - Just because two variables are highly correlated,

it does not mean that one variable is the cause

of the other, and vice versa.

Notes on Correlation Coefficients

How about this one? Do you think there is no

correlations between X and Y? Remember that rxy

only measures linear correlation.

Obviously, the above shows no correlations

between X and Y

Example

- A golfer is interested in investigating the

relationship, if any, between driving distance

and 18-hole score

Average Driving Distance (yds.)

Average 18-Hole Score

69 71 70 70 71 69

277.6 259.5 269.1 267.0 255.6 272.9

Example (contd)

x

y

69 71 70 70 71 69

-1.0 1.0 0 0 1.0 -1.0

277.6 259.5 269.1 267.0 255.6 272.9

10.65 -7.45 2.15 0.05 -11.35 5.95

-10.65 -7.45 0 0 -11.35 -5.95

Average

267.0

70.0

-35.40

Total

Std. Dev.

8.2192

.8944

Example

- Correlation Coefficient

Regression Analysis

- Simple Regression Analysis
- One predictor and one response.
- Multiple Regression Analysis
- Two or more predictors and one response.

Simple Linear Regression

- Analyzes the relationship between two variables
- It specifies one dependent (response) variable

and one independent (predictor) variable

Simple Linear Regression

Regression Model and Parameters

- Unknown parameters are
- b0 Intercept
- b1 Slope
- The assumed model for a linear relationship is
- yi b0 b1xi ei for all observations

(i 1, 2, , n)

Estimations

- The fitted model used to predict the expected

value of Y for a given value of X is - yi b0 b1xi
- The fitted coefficients are
- b0 the estimated intercept
- b1 the estimated slope

Formulas

- yi b0 b1xi
- where

Example

- Reed Auto periodically has a special week-long

sale. As part of the advertising campaign Reed

runs one or more television commercials during

the weekend preceding the sale. Data from a

sample of 5 previous sales are shown below.

Number of TV Ads

Number of Cars Sold

1 3 2 1 3

14 24 18 17 27

Example

- Slope
- Intercept
- Estimated regression equation

Assessing the Fit

- Relationship Among SST, SSR, SSE

SST SSR SSE

where SST total sum of squares SSR

sum of squares due to regression SSE

sum of squares due to error

R2 or Coefficient of Determination

- R2 is a measure of relative fit based on a

comparison of SSR and SST. - 0 lt R2 lt 1
- R2 1 means that the regression fits perfectly

(x can 100 explain the variations in y).

R2 or Coefficient of Determination

R2 SSR/SST

where SSR sum of squares due to

regression SST total sum of squares

Note that in a simple regression, R2 (r)2

Example

- In Reed Auto Example, the coefficient of

determination, R2 is

R2 SSR/SST 100/114 .8772

The regression relationship is very strong 88

of the variability in the number of cars sold can

be explained by the linear relationship between

the number of TV ads and the number of cars sold.

Hypothesis Testing

- We need to determine whether x is statistically

significant to y - To test for the significance, we must conduct a

hypothesis test to determine whether the value of

b1 is different than zero or not.

Regression Using Excel (Reed Auto previous TV

ads example)

gtgt Tools gtgt Data Analysis gtgt Regression

Interpreting the result

- The regression equation is
- y 10 5x
- The above means that when x 2, the model

predicts y (that is ) to be 20. - R2 0.8772 means that X could explain 87.72

variations in Y.

Interpreting the result

- Is the slope (b1) statistically significant?
- p-value for b1 is 0.01898. Using a 0.05, we

reject Ho (since a gt p-value). Therefore we

conclude that the slope is not equal to zero. It

means that X is statistically influencing Y.

- The above question can be rewrite as
- Is the slope (b1) statistically different than

zero? - We know that the slope is 5. But our interest is

to check whether this value, 5, is statistically

different than zero or not.

Reading ANOVA table

- Note that in this case K 1

Multiple Regression

- Multiple regression is simply an extension of

bivariate regression. - Multiple regression includes more than one

independent variable. - Same concepts as in Bivariate Analysis.

Multiple Regression

- Y is the response variable and is assumed to be

related to the k predictors (X1, X2, Xk) - Regression Model
- Estimated Regression Equation

Example (Y is Price)

Example (contd)

- Is SqFt significantly affecting Price?

p-value for b1 is 1.42561E-14 or 1.426 x 10-14

or 0.0000. Using a 0.05, we reject Ho (since a

gt p-value). Therefore we conclude that the slope

is not equal to zero. It means that SqFt is

statistically influencing Price.

Example (contd)

- Is LotSize significantly affecting Price?

p-value for b1 is 0.00011462. Using a 0.05, we

reject Ho (since a gt p-value). Therefore we

conclude that the slope is not equal to zero. It

means that LotSize is statistically influencing

Price.

Reading ANOVA table
