MixZones for Location Privacy in Vehicular Networks

1

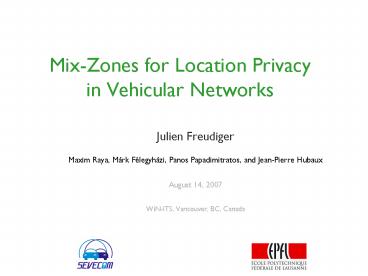

Mix-Zones for Location Privacy in Vehicular
Networks

• Julien Freudiger
• Maxim Raya, Márk Félegyházi, Panos
  Papadimitratos, and Jean-Pierre Hubaux
• August 14, 2007
• WiN-ITS, Vancouver, BC, Canada

2
Motivation

• Safety messages
• Position (p)
• Speed (s)
• Acceleration (a)

• Authenticated
• Digital Signature
• Certificate

3
No location privacy
4
Outline

• System and Threat Model
• Mix-Zones
• Vehicular Mix-Networks
• Simulation Results

5
Vehicular Networks

• Safety Messages
• (p,s,a)
• Timestamp
• Authenticated
• Certification Authority (CA)
• CA distributes public/private key pairs
  (Ki,j,Ki,j-1) with j1,,F to each vehicle i
• F is the size of the set of key pairs
• Public keys certificates are referred to as
  pseudonyms
• gt Vehicles are preloaded with a large set of
  pseudonyms and key pairs
• Vehicles have tamper proof devices that guarantee
  the
• Correct execution of cryptographic operations
• Non-disclosure of private keying material

6
Adversary

• We assume an external, global, and passive
  adversary
• Installs its own radio receivers
• Collects GPS coordinates and pseudonyms of safety
  messages
• Links pseudonym changes using GPS coordinates

• WiFi operator (e.g., Google, EarthLink )
• WiFi community network (e.g., FON)

http//www.earthlink.net/wifi/cities/
7
Mix-Zone Definition (1)

• A mix-zone is a restricted region where users
  cannot be located
• Entering event k (n,?) i.e., from road n at
  time ?
• Exiting event l (e,?) i.e., from road e at
  time ?
• Adversary has statistical information about
  mix-zones
• pn,e Prob(Vehicle enters from road n
  and exits from road e)
• qn,e(t) Prob(Time spent between road n and e
  is t)

8
Mix-Zone Definition (2)

• Mix-zones obscure the relation of incoming and
  outgoing vehicles
• Unlinkability
• An adversary estimates the mapping of entering
  and exiting events
• With two vehicles
• The probability of a mapping depends on the
  geometry of the mix-zone

9
Mix-Zone Effectiveness

• Entropy measures uncertainty of mapping
• N models the mix-zone density
• (pn,e, qn,e(t)) models the unpredictability of
  vehicles whereabouts

where N of mobiles in the mix-zone
10
Where to create Mix-Zones?

• Best mix-zone
• High N
• High vehicle whereabouts unpredictability (pn,e,
  qn,e(t))
• Road intersections

11
High Uncertainty
12
How to create a mix-zone?

• Cryptographic Mix-zone (CMIX)
• Encrypt Safety Messages (with a symmetric key
  SK)
• Computational security

13
CMIX Protocol(1) Key Establishment
Rely on presence of RSU at road intersection to
establish a symmetric key
Request, Ts, Signi(Request,Ts), Certi,k
EKi,j(vi, SK, Ts, SignRSU(vi, SK, Ts)), CertRSU
Ack, Ts, Signi(Ack,Ts), Certi,k
SK Symmetric Key Ts Time stamp Signi
Signature of i Certi,k Certificate of i
14
CMIX Protocol(2) Key Forwarding

• V2 unable to obtain key directly from RSU, thus
  to decrypt messages from V1
• RSU leverages on vehicles already in the mix-zone
  to forward symmetric key
• V2 broadcasts key requests until any vehicle in
  the mix-zone replies
• Vehicles do not encrypt their messages before
  entering the mix-zone

EK2,j(v2, v1, SK, Ts, SignRSU(v1, SK, Ts))
15
CMIX Protocol(3) Key Update

• RSU initiates key update to
• renew keys
• revoke keys
• Update is triggered when
• Mix-zone is empty
• CA is informed of new SK for liability issues
• Asynchronous key updates across mix-zones improve
  system security

16
Vehicular Mix-Network

• Mix-network cumulative entropy for vehicle v

where L Length of the path in the mix-network
17
Simulation Setup

• 10X10 Manhattan network with 4 roads/intersection
• N Poisson(?) vehicles per intersection at
  network initialization
• Vehicle inter arrival time ? Uniform0,T
  models
• High traffic congestion
• Low traffic congestion
• Intersection characteristics
• qn,e(t) N(?n,e, ?n,e) for each intersection
• pn,e randomly chosen for each intersection

18
Vehicular Mix-Zone

• Both network density and congestion affect the
  achievable location privacy
• Confidence intervals are small because there is
  low variability within one mix-zone

19
Vehicular Mix-Network

• Larger confidence interval due to varying number
  of vehicles and varying set of traversed
  mix-zones
• Tracking probability is quickly insignificant

Mix-zones effectiveness is high
20
Conclusions

• Mix-zone effectiveness depends on
• Intersections congestion
• Vehicles density
• Vehicles whereabouts unpredictability
• Vehicular mix-network effectiveness
• Has large variance
• But is overall high
• Need more simulations
• With realistic traffic traces
• Efficiency of vehicular mix-network is
  independent of CMIX protocol
• Alternative CMIX protocols could exploit location

21
References

• L. Buttyán, T. Holczer, and I. Vajda. On the
  Effectiveness of Changing Pseudonyms to Provide
  Location Privacy in VANETs. ESAS 2007
• A. R. Beresford. Mix-zones User privacy in
  location-aware services. PerSec 2004
• L. Huang, K. Matsuura, H. Yamane, and K. Sezaki.
  Silent cascade Enhancing location privacy
  without communication QoS degradation. SPC 2005
• M. Li, K. Sampigethaya, L. Huang, and R.
  Poovendran. Swing Swap User-centric Approaches
  Towards Maximizing Location Privacy. WPES 2006
• M. Raya, P. Papadimitratos, and J.-P. Hubaux.
  Securing Vehicular Communications. IEEE Wireless
  Communications magazine, 2006

22
CMIX Protocol Analysis

• Transmission Complexity
• Key requests scale with network condition
• Avoid key reply flooding by backoff mechanism and
  key acknowledgement
• Computational Complexity
• The number of exponentiations is manageable
• Load is shared among vehicles in the CMIX
• Security
• Impersonation/Instantiation attacks are
  unfeasible
• Denial of service attacks are hard
• Cost to become internal adversary is high
