One implementation of the LIST ADT

1

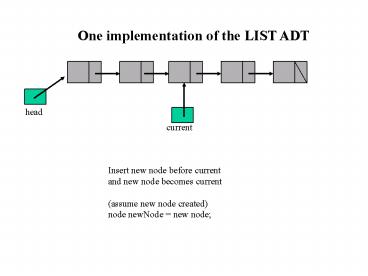

One implementation of the LIST ADT
head
current
Insert new node before current and new node
becomes current (assume new node created) node
newNode new node
2
One implementation of the LIST ADT
head
current
prev
prev head while (prev-gtnext ! current) prev
prev-gtnext
3
One implementation of the LIST ADT
head
current
prev
prev head while (prev-gtnext ! current) prev
prev-gtnext
4
One implementation of the LIST ADT
head
current
prev
newNode
node newNode new node prev-gtnext newNode
5
One implementation of the LIST ADT
head
current
prev
newNode
node newNode new node prev-gtnext
newNode newNode-gtnext current
6
One implementation of the LIST ADT
head
prev
current
newNode
node newNode new node prev-gtnext
newNode newNode-gtnext current current
newNode
7
One more implementation of the LIST ADT
Circular single linked list
tail
Start function. current tail-gtlink
8
One more implementation of the LIST ADT
Doubly linked list
head
current
Insert new node before current and new node
becomes current (assume new node created) node
newNode new node
9
One more implementation of the LIST ADT
Doubly linked list
head
current
newNode
newNode-gtprevcurrent-gtprev
10
One more implementation of the LIST ADT
Doubly linked list
head
current
newNode
newNode-gtprevcurrent-gtprev newNode-gtnextcurrent

11
One more implementation of the LIST ADT
Doubly linked list
head
current
newNode
newNode-gtprevcurrent-gtprev newNode-gtnextcurrent
newNode-gtprev-gtnext newNode
12
One more implementation of the LIST ADT
Doubly linked list
head
current
newNode
newNode-gtprevcurrent-gtprev newNode-gtnextcurrent
newNode-gtprev-gtnext newNode current-gtprev
newNode
13
One more implementation of the LIST ADT
Doubly linked list
head
current
newNode
newNode-gtprevcurrent-gtprev newNode-gtnextcurrent
newNode-gtprev-gtnext newNode current-gtprev
newNode current newNode
