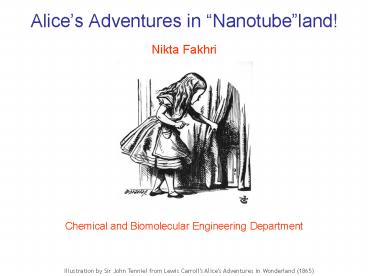

Alices Adventures in Nanotubeland!

• Nikta Fakhri

Chemical and Biomolecular Engineering Department
Illustration by Sir John Tenniel from Lewis
Carroll's Alice's Adventures in Wonderland (1865)
2
OUTLINE

• What is a carbon nanotube (CNT)?
• What is a single-walled carbon nanotube (SWNT)?
• How to Produce SWNT?
• Why do we care (SWNT properties)?
• Potential application
• Dispersing SWNTs

3
IT ALL STARTS WITH CARBON
4
SINGLE-WALLED vs. MULTI-WALLED CNTs
Length on the order of microns ? L / D 1000
5
SWNT ROLLED-UP SHEET OF GRAPHITE
6
SOME GEOMETRY!
7
WHAT IS CHIRALITY?

• Properties of nanotubes are determined by
  chirality
• Chiral numbers are noted by (n,m)
• n counts in the direction of a1 and m counts in
  the direction of a2

8
WHAT IS CHIRALITY?
9
NOT ALL SWNTs ARE CREATED EQUAL
n-m divisible by 3 metallic otherwise
semiconducting
10
PRODUCING NANOTUBES
11
PRODUCING NANOTUBES
High-Pressure Carbon Monoxide Deposition HIPCO
Mixture of length and chirality
12
PRODUCING NANOTUBES
13
SWNT PROPERTIES

• Exceptional mechanical strength
• Tensile strength gt 37 GPa
• (Steel 2 Gpa)
• Young modulus 0.62 1.25 TPa
• (Steel 0.3 Tpa)

• Low density 1.4 g/cm3
• (Steel 8 g/cm3, Aluminum 2.7 g/cm3)

• Electrical resistivity 1 mW cm
• (Copper 1.7 mW cm)

• Thermal conductivity 3000 W / m K
• (Diamond 2000 W / m K)

Review by Baughman et al., Science, 297, 787
(2002)
14
SOME POTENTIAL APPLICATIONS

• High-performance, lightweight fibers
• Replace Kevlar (PPTA) Zylon (PBO)

• High thermal conductivity fibers
• Heat pipes for space applications

• Ballistic electrical conductors
• The Armchair Quantum Wire
• Nearly lossless power transmission over gt 1000
  km
• No cooling (unlike High Temp Superconductors)

• Conductive transparent sheets coatings

• Multifunctional fibers and materials
• The ultimate carbon material !!!

15
SWNT ROADBLOCKS

• Biggest problems 1993 (discovery)-onward
• No availability of high-quality SWNTs (until
  1995)
• Very low availability of SWNTs (until 1998)

• Biggest problem 1998-onward
• How to assemble / process SWNTs into
  macroscopic
• objects (fibers, sheets, etc.)
• ? PROCESSING

In order to make fibers and sheets of CNTs we
have to process them in liquid phase
16
PUTTING CARBON NANOTUBES TO USE
MAKING FILMS AND FIBERS
Liquid processing

• Carbon nanotubes are sticky! (direct result of
  van der Waals forces
• Dispersion of nanotubes is important if you want
  to work with them

Possible approaches ?

1. Wrapping the nanotube
2. Functionalization
3. Acids

17
1. WRAPPING THE NANOTUBES

• Put the nanotubes in the wrapper solution
• Bombard them with sound waves to break the
  bundles (sonication)
• Drawbacks ???

PHYSICAL
Application making films, biomedicine
Islam et al. Nano Letters 3, 269-273 (2003)
18
2. SIDE-WALL FUNCTIONALIZATION

• Covalently bond functional groups to the side
  walls
• Open the carbon bonds
• Attach a molecule to the open bond to perform a
  desired function disperse better!
• Drawbacks ???

Application biomedicine
CHEMICAL
www.sunysb.edu/chemistry/ faculty/swong.htm
19
3. ACID
Application making fibers

• Acid protonates the side walls of carbon
  nanotubes
• A dense layer of sulfuric acid anions surrounds
  the individual nanotubes
• Drawbacks ???

Which method is better? Depends on application
Ericson et al., Science 2004?Vol. 305. no. 5689,
pp. 1447 - 1450
20
IMPORTANT POINTS

• Carbon nanotubes are a class of materials
• Two main subclasses
• Multi-walled
• Single-walled

• Each subclass is not a chemical species
• Chirality (n,m) identifies the species

• Now (2008)
• Mixtures of chiralities
• Mixtures of lengths

21
CONCLUSIONS

• Carbon nanotube has some work to do!!
• MWNTs when cost is important (bulk)
• SWNT for high-value applications
• Manufacturing is maturing
• Dispersion liquid processing under control
• Tailored to host material
• Tailored to applications

22
CONCLUSIONS

• Nanotubeland plays by its own rules rules we
  have yet to understand fully!

Illustration by Sir John Tenniel from Lewis
Carroll's Alice's Adventures in Wonderland (1865)
23
WE ARE ALMOST THERE NANO-RACQUETS

• Babolat Racquet
• Reinforced in the throat and the bottom half of
  the head with carbon nanotubes
• Net result increase in stiffness and power of
  the racquet without adding weight
• Price 199

24
SWNT MODEL TO SCALE

• Worlds largest SWNT model
• (22 April 2005, Guinness world record)
• Model of a (5,5) SWNT
• 65,000 pieces
• 360 m long, 0.36 m wide
• about 80 builders
• over 1000 in attendance

SMALL is really BIG!!
25
PROFESSOR SMALLEY PROFESSOR PASQUALI
Be a scientist, save the world!
