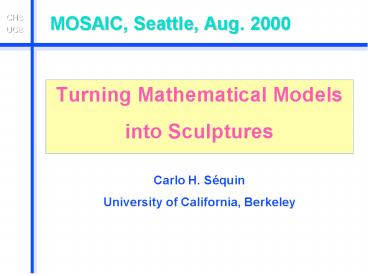

• Turning Mathematical Models
• into Sculptures
• Carlo H. Séquin
• University of California, Berkeley

2
Boy Surface in Oberwolfach

• Sculpture constructed by Mercedes Benz
• Photo from John Sullivan

3
Boy Surface by Helaman Ferguson

• Marble
• From Mathematics in Stone and Bronzeby
  Claire Ferguson

4
Boy Surface by Benno Artmann

• From home page of Prof. Artmann,TU-Darmstadt
• after a sketch byGeorge Francis.

5
Samples of Mathematical Sculpture

• Questions that may arise
• Are the previous sculptures really all depicting
  the same object ?
• What is a Boy surface anyhow ?

6
The Gist of my Talk

• Topology 101
• Study five elementary 2-manifolds(which can all
  be formed from a rectangle)
• Art-Math 201
• The appearance of these shapes as artwork(when
  do math models become art ? )

7
What is Art ?
8
Five Important Two-Manifolds
cylinder
Möbius band

• X0
  X0X0 X0
  X1G1 G2
  G1

torus
Klein bottle
cross-cap
9
Deforming a Rectangle

• All five manifolds can be constructed by starting
  with a simple rectangular domain and then
  deforming it and gluing together some of its
  edges in different ways.

cylinder Möbius band torus Klein
bottle cross-cap
10
Cylinder Construction
11
Möbius Band Construction
12
Cylinders as Sculptures
John Goodman
Max Bill
13
The Cylinder in Architecture
Chapel
14
Möbius Sculpture by Max Bill
15
Möbius Sculptures by Keizo Ushio
16
More Split Möbius Bands
Typical lateral splitby M.C. Escher
And a maquette made by Solid Free-form Fabrication
17
Torus Construction

• Glue together both pairs of opposite edges on
  rectangle
• Surface has no edges
• Double-sided surface

18
Torus Sculpture by Max Bill
19
Bonds of Friendship J. Robinson
1979
20
Proposed Torus Sculpture
Torus! Torus! inflatable structure by Joseph
Huberman
21
Rhythm of Life by John Robinson
DNA spinning within the Universe 1982
22
Virtual Torus Sculpture
Note Surface is representedby a loose set of
bands gt yields transparency
Rhythm of Life by John Robinson, emulated by
Nick Mee at Virtual Image Publishing, Ltd.
23
Klein Bottle -- Classical

• Connect one pair of edges straightand the other
  with a twist
• Single-sided surface -- (no edges)

24
Klein Bottles -- virtual and real
Computer graphics by John Sullivan
Klein bottle in glassby Cliff Stoll, ACME
25
Many More Klein Bottle Shapes !
Klein bottles in glass by Cliff Stoll, ACME
26
Klein Mugs
Klein bottle in glassby Cliff Stoll, ACME Fill
it with beer --gt Klein Stein
27
Dealing with Self-intersections

• Different surfaces branches should ignore one
  another !
• One is not allowed to step from one branch of
  the surface to another.
• gt Make perforated surfaces and interlace their
  grids.
• gt Also gives nice transparency if one must use
  opaque materials.
• gt Skeleton of a Klein Bottle.

28
Klein Bottle Skeleton (FDM)
29
Klein Bottle Skeleton (FDM)
Struts dont intersect !
30
Fused Deposition Modeling
31
Looking into the FDM Machine
32
Layered Fabrication of Klein Bottle

• Support material

33
Another Type of Klein Bottle

• Cannot be smoothly deformed into the classical
  Klein Bottle
• Still single sided -- no edges

34
Figure-8 Klein Bottle

• Woven byCarlo Séquin,16, 1997

35
Triply Twisted Fig.-8 Klein Bottle
36
Triply Twisted Fig.-8 Klein Bottle
37
Avoiding Self-intersections

• Avoid self-intersections at the crossover line of
  the swept fig.-8 cross section.
• This structure is regular enough so that this can
  be done procedurally as part of the generation
  process.
• Arrange pattern on the rectangle domain as shown
  on the left.
• After the fig.-8 - fold, struts pass smoothly
  through one another.
• Can be done with a single thread for red and
  green !

38
Single-thread Figure-8 Klein Bottle
Modelingwith SLIDE
39
Zooming into the FDM Machine
40
Single-thread Figure-8 Klein Bottle
As it comes out of the FDM machine
41
Single-thread Figure-8 Klein Bottle
42
The Doubly Twisted Rectangle Case

• This is the last remaining rectangle warping
  case.
• We must glue both opposing edge pairs with a
  180º twist.

Can we physically achieve this in 3D ?
43
Cross-cap Construction
44
Significance of Cross-cap

• lt 4-finger exercise gtWhat is this beast ?
• A model of the Projective Plane
• An infinitely large flat plane.
• Closed through infinity, i.e., lines come back
  from opposite direction.
• But all those different lines do NOT meet at the
  same point in infinity their infinity
  points form another infinitely long line.

45
The Projective Plane
PROJECTIVE PLANE
C
-- Walk off to infinity -- and beyond come
back upside-down from opposite direction. Project
ive Plane is single-sided has no edges.
46
Cross-cap on a Sphere

• Wood and gauze model of projective plane

47
Torus with Crosscap
Helaman Ferguson
( Torus with Crosscap Klein Bottle with
Crosscap )
48
Four Canoes by Helaman Ferguson
49
Other Models of the Projective Plane

• Both, Klein bottle and projective planeare
  single-sided, have no edges.(They differ in
  genus, i.e., connectivity)
• The cross cap on a torusmodels a Klein bottle.
• The cross cap on a spheremodels the projective
  plane,but has some undesirable singularities.
• Can we avoid these singularities ?
• Can we get more symmetry ?

50
Steiner Surface (Tetrahedral Symmetry)

• Plaster Model by T. Kohono

51
Construction of Steiner Surface

• Start with three orthonormal squares
  connect the edges (smoothly).--gt forms 6
  Whitney Umbrellas (pinch points with
  infinite curvature)

52
Steiner Surface Parametrization

• Steiner surface can best be built from a
  hexagonal domain.

Glue opposite edges with a 180º twist.
53
Again Alleviate Self-intersections
Strut passesthrough hole
54
Skeleton of a Steiner Surface
55
Steiner Surface

• has more symmetry
• but still hassingularities(pinch points).

Can such singularities be avoided ? (Hilbert)
56
Can Singularities be Avoided ?

• Werner Boy, a student of Hilbert,was asked to
  prove that it cannot be done.
• But found a solution in 1901 !
• 3-fold symmetry
• based on hexagonal domain

57
Model of Boy Surface

• Computer graphics by François Apéry

58
Model of Boy Surface

• Computer graphics by John Sullivan

59
Model of Boy Surface

• Computer graphics by John Sullivan

60
Quick Surprise Test

• Draw a Boy surface(worth 100 of score
  points)...

61
Another Map of the Boy Planet

• From book by Jean Pierre Petit Le
  Topologicon (Belin Herscher)

62
Double Covering of Boy Surface

• Wire model byCharles Pugh
• Decorated by C. H. Séquin
• Equator
• 3 Meridians, 120º apart

63
Revisit Boy Surface Sculptures

• Helaman Ferguson - Mathematics in Stone and Bronze

64
Boy Surface by Benno Artmann

• Windows carved into surface reveal what is going
  on inside. (Inspired by George Francis)

65
Boy Surface in Oberwolfach

• Noteparametrization indicated by metal bands
  singling out north pole.
• Sculpture constructed by Mercedes Benz
• Photo by John Sullivan

66
Boy Surface Skeleton

• Shape defined by elastic properties of wooden
  slats.

67
Boy Surface Skeleton (again)
68
Goal A Regular Tessellation

• Regular Tessellation of the Sphere
  (Buckminster Fuller Domes.)

69
Ideal Sphere Parametrization
Buckminster Fuller Dome almost all equal sized
triangle tiles.
70
Ideal Sphere Parametrization

• Epcot Center Sphere

71
Tessellation from Surface Evolver

• Triangulation from start polyhedron.
• Subdivision and merging to avoid large, small,
  and skinny triangles.
• Mesh dualization.
• Strut thickening.
• FDM fabrication.
• Quad facet !
• Intersecting struts.

72
Paper Model with Regular Tiles

• Only meshes with 5, 6, or 7 sides.
• Struts pass through holes.
• Only vertices where 3 meshes join.--gt Permits
  the use of a modular component...

73
The Tri-connector
74
Tri-connector Constructions
75
Tri-connector Ball (20 Parts)
76
Expectations

• Tri-connector surface will be evenly bent,with
  no sharp kinks.
• It will have intersections that demonstrate the
  independence of the two branches.
• Result should be a pleasing model in itself.
• But also provides a nice loose model of the Boy
  surface on which I can study various
  parametrizations, geodesic lines...

77
Hopes

• This may lead to even better modelsof the Boy
  surface
• e.g., by using the geodesic linesto define
  ribbons that describe the surface
• (this surface will keep me busy for a while yet !)

78
Conclusions

• There is no clear line that separatesmathematical
  models and art work.
• Good models are pieces of art in themselves.
• Much artwork inspired by such modelsis no longer
  a good model for understandingthese more
  complicated surfaces.
• My goal is to make a few great modelsthat are
  appreciated as good geometric art,and that also
  serve as instructional models.

79
End of Talk
QUESTIONS ?
80
spares
81
Rotating Torus
82
Looking into the FDM Machine
