Title: Three factors determine canopy reflectance


1

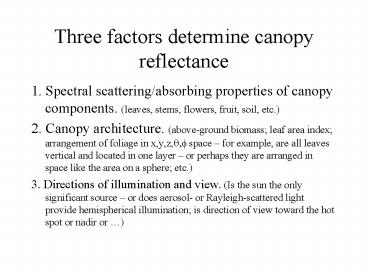

Three factors determine canopy reflectance
  • 1. Spectral scattering/absorbing properties of
    canopy components. (leaves, stems, flowers,
    fruit, soil, etc.)
  • 2. Canopy architecture. (above-ground biomass
    leaf area index arrangement of foliage in
    x,y,z,q,f space for example, are all leaves
    vertical and located in one layer or perhaps
    they are arranged in space like the area on a
    sphere etc.)
  • 3. Directions of illumination and view. (Is the
    sun the only significant source or does
    aerosol- or Rayleigh-scattered light provide
    hemispherical illumination is direction of view
    toward the hot spot or nadir or )

2
Three factors determine canopy reflectance
  • 2. Canopy architecture. (above-ground biomass
    leaf area index arrangement of foliage in
    x,y,z,q,f space for example, are all leaves
    vertical and located in one layer or perhaps
    they are arranged in space like the area on a
    sphere etc.)

3
Chlorophyll and Carbon Assimilation
The big picture
Potential carbon assimilation by canopy
Amount of chlorophyll in canopy
(Concentration x phytomass)
4
Chlorophyll Concentrations
Red or blue wavelength radiance, reflectance
chlorophyll concentration
5
Chlorophyll and Carbon Assimilation
The big picture
Monteith Equation The sum at each point in time
of the product of Apar, the photosynthetically
active radiation absorbed by the canopy,
multiplied by the conversion efficiency of
photons to assimilated carbon
Actual carbon assimilated by canopy each day

Satellite remote sensing can provide estimates
for one time during the day of Aparand/or Fpar,
the fraction of the PAR intercepted by the canopy.
6
What about estimating Phytomass?
First lets define phytomass leaf area x leaf
mass per unit area (m2 x kg/m2 kg) Then lets
introduce some surrogates for phytomass Leaf
Area Index (LAI)- one sided leaf area per unit
ground area (square meters of leaf area per
square meter of ground area Leaf area density
(LAD) leaf area per unit volume
Why use area instead of mass? Because estimating
the leaf mass per unit area using remote sensing
is very difficult. (How thick and heavy are the
leaves?) Estimating area is more straight forward
(remember areal mixtures)
7
First, notice that Canopy Reflectance varies with
Leaf Area
Question How to calculate LAI and FPAR, fraction
of PAR intercepted by canopy?
0.5
very high leaf area

0.4



very low leaf area
0.3
sunlit soil
reflectance()
0.2
0.1
0.0
400
600
800
1000
1200
Wavelength, nm
On moderately bright soil - In visible canopy
reflectance decreases as leaf area per unit
ground area (LAI) increases - In NIR canopy
reflectance increases as LAI increases
Conclusion LAI is a function of reflectance and
vice-versa.
8
Case Study 5 Red and NIR Reflectance by Canopy
Density
9
Correlation coefficient between canopy
reflectance and canopy leaf areais negative in
visible and positive in NIR
But notice
0.5
1.0
very high leaf area

0.4


Correlation positive



very low leaf area
0.3
reflectance()
sunlit soil

Correlation Coefficient
0.0
0.2
Correlation negative
Correlation 0.0 at approximately l 0.71mm
0.1
0.0
-1.0
400
600
800
1000
1200
400
600
800
1000
1200
wavelength
wavelength
10
Lets model this effect in the visible using a
single scattering model
  • 1. Assume spherical leaf angle distribution.
  • (Leaf area distributed like area on a
    sphere)
  • 2. Decrease of sunlight irradiance with depth z
    into canopy follows Beers absorption law
  • where LAD is leaf area density (the leaf area
    per
  • cubic meter of the canopy), I is the
    irradiance at
  • the top of the canopy and c1 is a fudge
    factor.
  • 3. Assume leaves are Lambertian with reflectance
    r.
  • 4. The radiance of a Dz layer is

11
Estimation of Leaf Area Index (LAI) and Fraction
of Photosynthetically Active Radiation
Intercepted (FPAR)
Bottom line
  • Models have been developed that estimate these
    two variables from spectral measurements.
  • LAI f(spectral variables) FPAR g(spectral
    variables)
  • Initial efforts during the 1980s were simple and
    involved vegetation indices.
  • Recent models are complex the MODIS Algorithm
    Theoretical Basis Document (ATBD) for FPAR runs
    more than 100 pages.

12
What are Vegetation Indices?
  • The gigantic chlorophyll absorption well
    distinguishes vegetation from non-vegetation.
  • Its size tells us chlorophyll concentration in
    the leaf and the canopy.
  • Many vegetation indices are a simplistic attempt
    to estimate the size of this absorption well.

13
Estimating the size of the absorption well
What are Vegetation Indices?
14
Vegetation Indices
  • Vegetation indices (VI) are combinations of
    spectral measurements in different wavelengths as
    recorded by a radiometric sensor. They aid in the
    analysis of multispectral image information by
    shrinking multidimensional data into a single
    value. Huete (1994) defined vegetation indices
    as
  • dimensonless, radiometric measures usually
    involving a ratio and/or linear combination of
    the red and near-infrared (NIR) portions of the
    spectrum. VI s may be computed from digital
    counts, at satellite radiances, apparent
    reflectances, land-leaving radiances, or surface
    reflectances and require no additional ancillary
    information other than the measurements
    themselvesWhat VI s specifically measure remains
    unclear. They serve as indicators of relative
    growth and/or vigor of green vegetation, and are
    diagnostic of various biophysical vegetation
    parameters.

15
Vegetation Indices
  • Vegetation indices (VIs) can be broken up into
    two basic categories
  • Ratio based indices VIs based on the ratio of
    two or more radiance, reflectance, or DN values
    (or linear combinations thereof).
  • Difference indices VIs based on the
    difference between the spectral response of
    vegetation and the soil background.

16
Common Ratio Indices
Simple Ratio Index (SR) NIR/R
Normalized Difference Vegetation Index (NDVI)
17
(No Transcript)
18
Typical Vegetation Index Response
But what about other objects within the field of
view (FOV) of the sensor other than vegetation?
19
Leaf area Density
20
Composite Canopy Reflectance
100 veg. Cover 1 leaf layer LAI 1
0 veg. Cover LAI 0
1 m2 of leaf area
pixel
50 veg. Cover 2 leaf layers LAI 1
33 veg. cover 3 leaf layers LAI 1
Are the reflectances of these 3 pixels the same?
21
Composite Canopy Reflectance
This region of the curve is dominated by a change
in percent vegetation cover
100 vegetation cover
In this region, there is complete vegetation
cover and differences are due to increasing
canopy density-Additive Reflectance (multiple
scattering)
22
Recent VIs to remember...
  • There are a Gazillion VIs in the literature...
  • Ive proposed one...ignore it - and most others
    in the literature.
  • Right now, the important VIs to know are
  • SAVI, Soil Adjusted VI
  • ARVI, Atmospherically Resistant VI
  • SARVI, Soil Atmospherically Resistant VI
  • EVI, Enhanced VI

23
Theory behind ...
  • Would like LAI ltgtVI
  • Curves of constant LAI on tasseled cap
  • Curves of constant LAI are species dependent
  • Many small leaves vs. few big leaves same LAI
    but more vs. less multiply scattered light and
    therefore higher vs lower reflectance and
    therefore larger vs. smaller VI for same LAI
  • Species dependent VI might overcome this effect...
