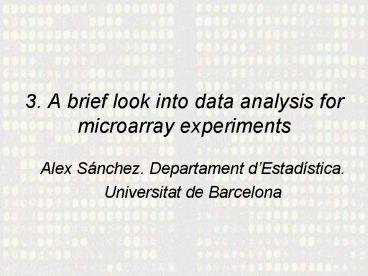

3. A brief look into data analysis for
microarray experiments

• Alex Sánchez. Departament dEstadística.
• Universitat de Barcelona

2
Outline

• Introduction
• 2-fold change approach (2 conditions, 1 sample)
• T-tests and extensions (2 conditions, gt 1 sample)
• Significance and multiple testing
• More than Two Conditions
• A brief introduction to clustering

3
Introduction
4
Identifying differentially expressed genes
(filtering?)

• Goal identify genes associated with covariate
  or response of interest such as
• Qualitative covariates treatment, cell type,
• Quantitative covariate dose, time
• Responses survival, infection time
• Any combination of these!
• Selecting a subset of differentially expres-sed
  genes is called sometimes filtering
• Previous step to other analysis procedures

5
Life cycle
Biological question
Experimental design
Failed
Microarray experiment
Quality Measurement
Image analysis
Today
Normalization
Pass
Analysis
Discrimination
Clustering
Testing
Estimation
Biological verification and interpretation
6
The experimental frame

• We can distinguish different situations
• No replicates (one chip/condition)
• 2 conditions ? One k-fold change analysis
• gt 2 conditions ? Several k-fold change analysis
• There are replicates
• 2 conditions on one chip ? One sample tests
• 2 conditions on two chips? Two sample tests
• More than 2 conditions ? ANOVA or linear models

7
Experimental frame for 2 conditions

• One chip per condition? 2 fold change
• Null hypothesis H0 log2(Rg/Gg)0, g1,,G
• Decision based on one value per gene
• Several chips? one or two-sample tests
• If two samples in same array replicated arrays
• H0 log2(R/G)0. Decision based on average
  logratios
• If we have a common reference (boths samples
  hybridize to same control) ?
• Hypothesis changes to log (R1/G)-log (R2/G)0
• Decision based on average difference of log ratios

8
Two-fold change (two conditions, one single chip)
9
Fold change (single slide) methods

• The observed (log2) ratio between two conditions
  is used
• Arbitrary cut-off value (2 fold?)
• Not a statistical test ? no associated level
  of confidence
• Some known problems
• Subject to bias if data not properly normalized
• Sensitive to variance heterogeneity across genes
• Solutions have been suggested (next slide)

10
Origin of the 2-fold change approach

• deRisi et al (1997) found only 19/6300 false
  positives using this criterion
• Perhaps correct for their experiment but
• Similar controls would be required for each new
  experiment? redefinition of k-fold value
• May be influenced by experimental factors
• A practical reason often there are no replicates
  because they are too expensive
• Making inferences with samples of size1 ?!!

11
Some approaches to use of k-fold-change criteria
(1)

• A naïve approach to standardize the data
• Assumption of normality (following Chen et al.,
  1998)
• Ratios can be converted into Z-scores
• Each of which has an associated P-value
• Problems
• Assumes normality, and homocedasticity
• Must use robust estimates of centrality (e.g.
  median) and dispersion (e.g. MAD)

12
Some approaches to use of k-fold-change criteria
(2)

• More sophisticated approaches have been proposed
• Mainly based in relaxing distributional
  assumptions
• Newton et al. Gamma-Gamma-Bernoulli hierarchical
  model for each (R,G).
• Roberts et al. Each (R,G) is assumed to be
  normally and independently distributed with
  variance depending linearly on the mean.
• Sapir Churchill. Each log R/G is assumed to be
  distributed according to a mixture of normal and
  uniform distributions. Decision based on R/G only.

13
Example Matt Callows Srb1 data (5).
Newtons and Chens single slide method

• It is not hard to do by eye
• The problem is probably beyond formal statistical
  inference (valid p-values, etc) for the
  foreseeable future.why?

14
T-tests and extensions(2 conditions, several
chips)
15
Tests of Differential Expression between two
conditions, several chips

• With several replicates per condition ?
• the variability of gene expression,
• on a gene per gene basis,
• can be taken in account
• Natural measures of differential expression
  will be based on the mean, or difference of
  means, conveniently standardized

16
Natural measures of discrepancy
Direct comparisons
Indirect comparisons
17
Some Issues

• Can we trust average effect sizes (average
  difference of means) alone?
• Can we trust the t statistic alone?
• Here is evidence that the answer is no.

Courtesy of Y.H. Yang
18
Some Issues

• Can we trust average effect sizes (average
  difference of means) alone?
• Can we trust the t statistic alone?
• Here is evidence that the answer is no.

Courtesy of Y.H. Yang

• Averages can be driven by outliers.

19
Some Issues

• Can we trust average effect sizes (average
  difference of means) alone?
• Can we trust the t statistic alone?
• Here is evidence that the answer is no.

• ts can be driven by tiny variances.

Courtesy of Y.H. Yang
20
Variations in t-tests (1)

• Let
• Rg mean observed log ratio
• SEg standard error of Rg estimated from data on
  gene g.
• SE standard error of Rg estimated from data
  across all genes.
• Global t-test tRg/SE
• Gene-specific t-test tRg/SEg

21
Some pros and cons of t-test
22
Alternatives suggested

• SAM
• Regularized t-test
• B (Empirical bayes) statistic
• Others

23
SAM t-test or S-test

• Adds a small constant (c perc90(SEg))
• Genes with small fold changes will not be
  selected as significant

24
Regularized t-test statistic

• ?0 relative contributions of ? and ?g
• n number of replicate measurements for each
  condition

25
Can we generate a list of candidate genes?
With the tools we have, the reasonable steps to
generate a list of candidate genes may be
?
A list of candidateDE genes
We need an idea of how significant are these
values ?Wed like to assign them p-values
26
Significance and multiple testing
27
Nominal p-values

• After a test statistic is computed, it is
  convenient to convert it to a p-valueThe
  probability of ocurrence of a test statistic
  equal to, or more extreme than the observed value
  under the assumption that the null hypothesis is
  true pPS S0H0 true

28
Significance testing

• Test of significance at the a level
• Reject the null hypothesis if your p-value is
  smaller than the significance level
• It has advantages but not free from criticisms
• Genes with p-values falling below a prescribed
  level may be regarded as significant

29
Calculation of p-values

• Standard methods for calculating p-values
• (i) Refer to a statistical distribution table
  (Normal, t, F, ) or
• (ii) Perform a permutation analysis

30
(i) Tabulated p-values

• Tabulated p-values can be obtained for standard
  test statistics (e.g.the t-test)
• They often rely on the assumption of normally
  distributed errors in the data
• This assumption can be checked (approximatedly)
  using a
• Histogram
• Q-Q plot

31
Histogram QQ-plots of t-statistics
32
More about QQ plots

• Not only useful for checking normality
• Also to identify genes with extreme t-values
  values off the line, at one end or another
• Very useful with thousands of genes, but
• We cant expect all differentially expressed
  genes to stand out as extremes
• many will be masked by more extreme random
  variation, which is a big problem in this context

33
(ii) Permutations tests

• Based on data shuffling. No assumptions
• Random interchange of labels between samples
• Estimate p-values for each comparison (gene) by
  using the permutation distribution of the
  t-statistics
• Repeat for every possible permutation, b1B
• Permute the n data points for the gene (x). The
  first n1 are referred to as treatments, the
  second n2 as controls.
• For each gene, calculate the corresponding two
  sample t-statistic, tb.
• After all the B permutations are done put p
  b tb tobserved/B

34
Permutation tests (2)
35
Permutation tests (3)
36
Are these p-values correct?

• Statistical tests usually control type I error
  the probability of rejecting H0 when it is true
• High number of tests ? Problem!!!
• If we perform 10.000 simultaneous tests on
  samples under the null hypothesis
• And fix a type I error ? of 2
• We expect to reject H0 about 200 times
• To avoid this adjust p-values

37
Why should we adjust p-values?

• A simulation study illustrates why
• Simulations of this process for 6,000 genes with
  8 treatments and 8 controls.
• All the gene expression values were simulated
  independent and identically distributated (i.i.d)
  from a N (0,1) distribution,
• i.e. NOTHING is differentially expressed.

38
Unadjusted p-values
Clearly we cant just use standard p-value
thresholds (.05, .01).
39
Steps to generate a list of candidate genes
revisited (2)
Nominal p-valuesP1, P2, , PG
A list of candidateDE genes
Select genes with adjusted P-valuessmaller than
a
Adjusted p-valuesaP1, aP2, , aPG
40
Multiple Testing

• Define an adequate type I error
• Use a procedure that
• Ensures an strict control of type I error
• Powerful (few false negatives)
• Based on the joint distribution of the
  multiple tests
• Calculate an adjusted p-value for each gene that
  reflects the global type I error

41
Multiple Testing (2)Approaches

• Two alternatives to controlling type I error for
  multiple testing are
• Control family-wise error rate (FWER) the
  probability of making one or more type I errors
• Bonferroni, Westfall and Young, etc
• Control the false discovery rate (FDR)
  proportion of false positives among all of the
  rejected null hypotheses

42
Multiple Testing (3)

• False discovery rate E(V/R)
• Family-wise p(V 1)

43
Some Advantages of p-value Adjustment

• Test level (size) does not need to be determined
  in advance
• Some procedures most easily described in terms of
  their adjusted p-values
• Usually easily estimated using resampling
• Procedures can be readily compared based on the
  corresponding adjusted p-values

44
Some p-values adjustment methods

• Bonferroni adjustment
• Westfall, PH and SS Young (1993) Resampling-based
  multiple testing (max T).
• Benjamini, Y Y Hochberg (1995) Controlling the
  false discovery rate a practical and powerful
  approach to multiple testing
• J Storey (2001) The positive false discovery
  rate a Bayesian interpretation and the q-value.
• Y Ge et al (2001) Fast algorithm for resampling
  based p-value adjustment for multiple testing.

45
More than 2 conditions

• K-samples experiments
• Factorial experiments

46
More than Two Conditions

• Many experiments are intended to make complex
  comparisons
• compare several conditions (gt 2 treatments),
• compare the joint effect of two drugs
• Compare two strains of mayze (mutant wild type)
  at two different times
• These can be analysed using factorial desingns
  which involve the use of ANOVA models
• We dont discuss them here. See references

47
Anova model
48
Finding patterns in genes

• Introduction to clustering

49
Expression profiles in microarray data
Expression profile for all genes in a single
experimental condition
Genes
Experimental conditions
Expression profile for one gene in all
experimental conditions
50
Why should we cluster data?

• Gene expression studies assume that genes with
  similar function
• Have similar patterns of expression
• Have common transcription factors
• If we believe the previous is true the analysis
  of patterns in the expression matrix should help
  to identify
• Biological function for uncharacterized genes
• Transcription factor for genes

51
Does common expression mean common regulation?
52
Genes associated with pathologies
53
Leukemia typologies identification
54
Cluster analysis

• Multivariate statistical methods (data mining,
  machine learning, ) that
• Given a set of individuals (points),
• Characterized by a series of attributes,
• And a similarity measure between them
• Allows to form groups (clusters) such that
• Points inside a group are more similar between
  them that points between different groups

55
Clustering Group identification
56
Clustering expression data

• Cluster genes (rows), to (try to) identify groups
  of co-regulated genes.
• Cluster samples (columns), to (try to) identify
  phenotypes using their molecular profiles
• One can cluster genes and samples simultaneously

57
Basic issues in clustering

• Issues to decide before clustering
• Which genes/arrays to use?
• Which similarity/dissimilarity measure?
• Which clustering algorithm?
• Its an exploratory technique
• Theres no optimal solution
• Any method will yield groups
• Which method gives good groups?

58
(No Transcript)
59
Similarity measures

• A similarity/dissimilarity measure between two
  individuals i, j, is an index, sij, (usually
  between 0 and 1, 0 sij 1) which measures the
  intensity by which i, and j are related.
• Its usually measured using
• a similarity coefficient in cathegorical
  variables
• A distance function with continuous
  variables(this is the case of expression data)

60
Similarity measures (1)
61
Distance functions (2)

• Amounts to pearsons correlation coefficient if
  variables are centered

62
Pearsons correlation coefficient

• Widely used in expression studies
• Some known problems
• Ignores data variability
• Can yield false positives(a-b)
• There exist robust variants
• jackknife

63
Clustering algorithms

• Many algorithms, based upon many ideas
• Most popular
• Hierarchichal methods
• Aglomerative (N? 1) or Divisive (1?N)
• Partititioning methods
• K-means, Self organizing maps (SOM)
• Other
• Support Vector Machines (SVM)

64
Clustering algorithms
65
Partititioning methods

• Each element is initially assigned to one of K
  groups which have been specified a priori
• A cost function is used to re-assign individuals
  to groups until an optimality criterion is
  reached (e.g. minimize SS inside clusters)
• Some partitive methods
• k-means, partitioning around medoids (PAM),
  self-organizing maps (SOM), model-based
  clustering

66
Partitioning methods
67
Hierarchical methods

• Number of groups isnt defined a priori
• Build dendogram, s.t. 2 individuals the nearer
  one finds two individuals ? the most similar they
  are
• Cutting it at any level gives cluters
• Can be
• Aglomerative (bottom-up) N ? 1 groups
• Divisive (top-down) 1 ? N groups

68
Hierarchical methods
69
Partitioning vs Hierarchical
Hierarchical
Partitioning

• Advantages
• Faster computation.
• Visual.
• Disadvantages
• Unrelated genes are eventually joined
• Rigid, cannot correct later for erroneous
  decisions made earlier.
• Hard to define clusters.

• Advantages
• Optimal for certain criteria.
• Genes automatically assigned to clusters
• Disadvantages
• Need initial k
• Often require long computation times.
• All genes are forced into a cluster.

70
Example Yeast cell-cycle
71
Acknowledgments

• Special thanks for Yee Hwa yang (UCSF) for
  allowing me to use some of her materials
• Sandrine Dudoit Terry Speed, U.C. Berkeley
• M. Carme Ruíz de Villa, U. Barcelona
• Sara Marsal, U. Reumatología, HVH Barcelona
