Title: ClassiPI A Classifier for next generation Content and Policy based Switches


1

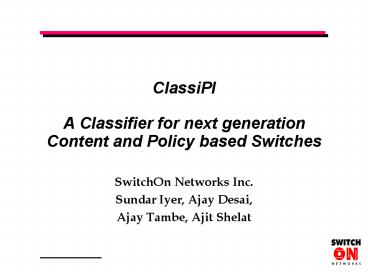

ClassiPIA Classifier for next generation
Content and Policy based Switches
  • SwitchOn Networks Inc.
  • Sundar Iyer, Ajay Desai,
  • Ajay Tambe, Ajit Shelat

2
Agenda
  • Classification Overview
  • Content Co-processor requirements
  • ClassiPI Architecture
  • Conclusion

3
Packet Processing Model
  • Packet Processing Model
  • Extract
  • Classify
  • Edit Actions

Classification Results
Extracted Fields Payload
3
1
Packet Classification
Packet Edit Actions
Extraction
2
Classification Based Lookups
External Memory
4
Content Processing - Sequenced Lookups
DIP
5-tuple
MAC
  • Layer 2 SMAC, VLAN Learning
  • Layer 2 DMAC, VLAN Forwarding
  • Layer 4 5-tuple, ACL Filtering
  • Layer 3 DIP Routing

5
Content Processing Packet Analysis
Layer 7
L2 L3 L4
URL, Cookies, Content, Application, User-name,
  • Its 700 PM.
  • Allow the session? Yes.

6
Packet Processing Performance
Content processing is the bottleneck!
7
Content Co-processor - Motivation
  • Content Processing
  • Is a memory intensive operation
  • Involves extraction classification
  • Requires sophisticated algorithms to perform
  • Layer 3 Lookups
  • Layer 4 ACLs
  • Layer 7 scanning
  • Layer 7 RegEx parsing
  • A Content Co-processor requires a new architecture

8
Content Co-processor System view
  • Content Co-processor should
  • Perform all Data plane classification operations
  • Allow implementation of classification sequences
    which reflect the packet processing flow on the
    Network processor
  • Interface gluelessly with Network Processors
  • Minimize Network processor bus bandwidth usage
  • Perform classification related operations such as
    statistics collection
  • Allow easy software integration

9
ClassiPI - Block Diagram
Results FIFO
Results
  • Results

Rule Update
Policy Rule Database Parallel Lookup
Engine
FieldExtractionEngine
Intermediate Results
Sync SRAM
Cascade Interface
other ClassiPIs
Key
  • Packet Data

System Interface
Control / Sequencer
  • Cntrl Reg

E-RAM Interface
  • ERAM Access

Sync SRAM
C-RAM
Stats
User
10
ClassiPI Architecture 1
  • Look-up Operation Descriptor
  • Defines classification parameters
  • High level abstraction of a classification
    operation

..
Packet Data
..
Look-up Engine
Operation Descriptor
Result Gen
Results
  • Field Extraction Spec
  • Look-up/Search Type

Participating Policy RuleDatabase
Policy Rule Database
  • Single Match or Multiple Match Generation

11
ClassiPI Architecture 2
  • Field Extraction Engine
  • Forms the Key using L3, L4, L4 and User defined
  • Automatically generates sequence of keys
  • Variable length, wide keys support

Multiple Field Extraction
Packet Data
Payload
Header
..
..
..
..
5-tuple
Any header fields
Long String Keys
Short String Keys
12
ClassiPI Architecture 3
  • Parallel Look-up Engine
  • Unique, flexible MISD architecture
  • Array of Nano-processors perform look-ups
  • Nano-processors have a powerful Policy Rule
    instruction set
  • Nano-processors operate on per field basis
  • Nano-processors and Policy Rule memory can be
    configured/partitioned to define an Operation

Extracted Key
Policy Rule Database
Results
Partition
13
ClassiPI Architecture 4
  • Per rule statistics collection Byte count,
    Packet count, Timestamp
  • Per rule User defined table look-up

One-to-One Correspondence
return
compare
Rule Memory
Statistics Associated Data
Data n
Rule Cell n
Data n1
Rule Cell n1
...
MATCH action
Statistics counter Update
...
.
.
Data z
Rule Cell z
Data z1
Rule Cell z1
14
ClassiPI Architecture 5
  • Conditional look-up sequencing
  • Fixed Look-up sequence
  • Look-up result based sequence
  • N-way branch capability

QoS
Ethernet MAC forwarding
ACL Filtering
IP Forwarding
URL Parsing
15
ClassiPI Architecture 6
  • Instruction Set
  • Relational/Arithmetic operations on a per field
    basis
  • EQ, GT, LT, Ranges, Masking, etc.
  • Logical operations between results
  • AND, OR, NOT

16
ClassiPI Architecture 7
  • Pattern/String Search
  • Up to 192 byte patterns
  • Case insensitive character/string matching
  • Simultaneous multi-pattern search
  • Reverse and forward search
  • RegEx subset search capability

URL string
GET
HOST
Host name
URI
.jpeg
http
Look-up host server 1 host
server 2 host server 3

Look-up directory 1 directory
2 directory 3

Search tokens .HhOoSsTt ALSO
UuRrIi
Search \.jpeg
Search .GgEeTt.HhTtTtPp\\
17
ClassiPI Architecture 8
  • Rule Complexity metric
  • Number of possible operations per rule
  • CAM rule complexity 1
  • TCAM rule complexity 2
  • ClassiPI rule complexity gt 1024
  • Additional features
  • Composite rules
  • Look-up sequencing

18
ClassiPI - Overview
  • Specifications
  • 16K Policy rules per ClassiPI
  • Up to 128K Policy rules in a cascade
  • L2 through L7 Content processing
  • On-chip IPv4 header extraction
  • IPv6 ready
  • Selectable look-up Key
  • Up to 192 byte key
  • 6.4 Gbps SSRAM compatible system interface
  • Performance
  • OC-192 capable Look-up Engine
  • Designed to match Network Processor system
    interface requirements

19
ClassiPI Vital Statistics 1
  • Lookup-Engine Performance
  • Aggregate memory bandwidth
  • 7.25 Tbits/sec to 58 Tbits/sec
  • Processing power
  • 256 GOPS to 2 TOPS

20
ClassiPI Vital Statistics 2
  • 25M transistors
  • 2M bits RAM
  • 2M gates logic
  • 0.18 micron
  • 352 Pin BGA
  • 200 MHz internal clock
  • 100 MHz interface clock

Die Layout
21
ClassiPI - Power Consumption
  • Power reduction mechanisms
  • Custom low power embedded SRAM
  • Selectable clock frequency
  • Hierarchical bus design
  • Rule utilization based power management
  • Low standby power
  • Maximum 4.5 Watts (estimated)

22
ClassiPI Architecture Scalability
  • OC-192 performance
  • with enhanced system interface
  • OC-768 performance
  • with silicon technology scaling
  • Flexible architecture
  • Cost, Performance and Power trade-offs

23
Conclusion
  • ClassiPI architecture provides
  • Functionality
  • Flexibility
  • Performance
  • Scalability
  • essential for Content Processing
