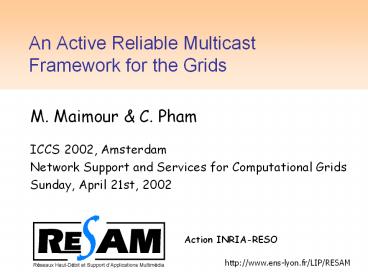

An Active Reliable Multicast Framework for the Grids

1
An Active Reliable Multicast Framework for the
Grids

• M. Maimour C. Pham
• ICCS 2002, Amsterdam
• Network Support and Services for Computational
  Grids
• Sunday, April 21st, 2002

Action INRIA-RESO
http//www.ens-lyon.fr/LIP/RESAM
2
Outline

• Motivations behind (reliable) multicast
• Use of active networks the DyRAM protocol
• DyRAM main services
• Simulation results
• Conclusion

3
From unicast
Sender

• Problem
• Sending same data to many receivers via unicast
  is inefficient.

data
data
data

data
data
data
Receiver
Receiver
Receiver
4
to multicast on the Internet.
Sender

• Problem
• Sending same data to many receivers via unicast
  is inefficient.
• Solution
• Using multicast is more efficient

data
data
data
data
Receiver
Receiver
Receiver
5
Reliable multicast

• At the routing level, IP Multicast efficiently
  delivers packets to all the receivers subscribed
  to a multicast session but without any
  reliability guarantees.
• Reliability (including flow and congestion
  control) is to be addressed at the transport
  level.

6
Reliable multicast a big win for grids
Data replications Database updates Code data
transfers Data communications for distributed
applications (collective gather operations,
sync. barrier)
SDSC IBM SP 1024 procs 5x12x17 1020
224.2.0.1
NCSA Origin Array 256128128 5x12x(422) 480
CPlant cluster 256 nodes
Multicast address group 224.2.0.1
7
Reliable multicast strategies

• End-to-end solutions
• Only the end hosts (the source and/or the
  receivers) are involved.
• Problem the lack of topology information at
  the end hosts.
• In-network solutions
• Some intermediate nodes (router/server) are
  involved in the recovery process.

8
Active networking solutions

• Active routers are able to perform customized
  computations on incoming packets
• cache of data,
• feedback aggregation,
• filtering, subcasting,

9
The DyRAM framework for grids(Dynamic Replier
Active Reliable Multicast)

• In order to enable distributed grid applications,
  main design goals are
• low recovery latency using local recovery
• low memory usage in routers local recovery is
  performed from the receivers (no cache in
  routers)
• low processing overheads in routers light
  active services

10
DyRAM loss recovery strategy main active
services

• DyRAM is NACK-based
• Global NACK suppression
• Early packet loss detection
• Subcast of repair packets
• Dynamic replier election

11
Global NACKs suppression
12
Early loss packet detection
The repair latency can be reduced if the lost
packet could be requested as soon as possible
These NACKs are ignored!
13
Replier election

• A receiver is elected to be a replier for each
  lost packet (one recovery tree per packet)
• Load balancing can be taken into account for the
  replier election

14
Replier election and repair subcast
D0
DyRAM
0
2
1
D1
DyRAM
Repair 2
R1
1
0
R2
R3
R4
R6
R5
R7
15
The DyRAM framework for grids
The backbone is very fast so nothing else than
fast forwarding functions.
source

• Nacks suppresion
• Subcast
• Loss detection

1000 Base FX
active router
active router
Any receiver can be elected as a replier for a
loss packet.
core network Gbits rate
active router
A hierarchy of active routers can be used for
processing specific functions at different layers
of the hierarchy.
active router
100 Base FX
active router

• Nacks suppression
• Subcast
• Replier election

16
Some simulation results

• Network model and metrics used
• Local recovery from the receivers
• DyRAM vs. ARM (cache in routers)
• DyRAM early lost packet detection

17
Network model
10 MBytes file transfer
Source router
18
Metrics

• Load at the source the number of the
  retransmissions from the source.
• Load at the network the consumed bandwidth.
• Completion time per packet (latency).

19
Local recovery from the receivers (1)
4 receivers/group

• Local recoveries reduces the end-to-end delay
  (especially for high loss rates and a large
  number of receivers).

grp 624
p0.25
20
Local recovery from the receivers (2)

• As the group size increases, doing the recoveries
  from the receivers greatly reduces the bandwidth
  consumption

48 receivers distributed in g groups ? grp 224
21
DyRAM vs ARM

• ARM performs better than DyRAM only for very low
  loss rates and with considerable caching
  requirements

22
DyRAM early lost packet detection
grp 624
4 receivers/group

• The end-to-end latency is decreased when the
  early lost packet detection is enabled

grp 624
23
Conclusions

• Reliability on large-scale multicast is
  difficult.
• Active services can provide more efficient
  solutions for reliable multicast related
  problems.
• Main DyRAM design goal is reducing the end-to-end
  latencies using active services
• which are keeped as light as possible making
  DyRAM more suitable to grid applications.
