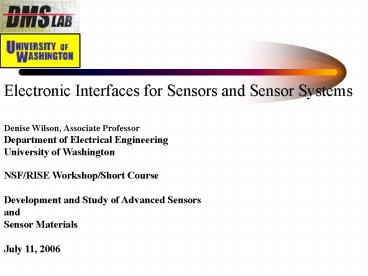

Electronic Interfaces for Sensors and Sensor
Systems Denise Wilson, Associate
Professor Department of Electrical
Engineering University of Washington NSF/RISE
Workshop/Short Course Development and Study of
Advanced Sensors and Sensor Materials July 11,
2006
2
Outline

• Basic Measurement Circuits
• Voltage
• Resistance
• Current
• Charge/Capacitance
• Phase Delay/Wave propagation
• Frequency
• Analog to Digital Conversion (ADC)
• Operational Amplifiers
• Power Supply Control

3
Electronic Interfaces for Sensors and Sensor
Systems

• Voltage Measurement
• Sample Measurement Circuit Standard Inverting
  Amplifier
• Simplest configuration available
• Inverts effect of input (as input increases,
  output decreases vice versa)
• Ro limits current in over-voltage conditions

4
Electronic Interfaces for Sensors and Sensor
Systems

• Voltage Measurement
• Sample Measurement Circuit Standard
  Non-Inverting Amplifier
• More inclined to saturate
• Retains effect of input (as input increases,
  output increases vice versa)
• Ro limits current in over-voltage conditions

5
Electronic Interfaces for Sensors and Sensor
Systems

• Voltage Measurement
• Sample Measurement Circuit Standard
  Differential Amplifier
• Two inputs tend to shift in same direction for
  non-stimulus related fluctuations
• Useful for reducing the influence of drift and
  other systematic errors
• Common mode gain must lie below acceptable error
  levels

R
V1
Vout A (V2-V1) ACM ((V2 V1)/2)
V2
Ro
6
Electronic Interfaces for Sensors and Sensor
Systems

• Voltage Measurement
• Issues to Consider
• High gain requires large resistors, which
  introduce higher noise
• Higher gain tends to induce greater instability
• Longer measurement windows (lower frequency)
  accumulate more noise
• Sensors that produce a voltage for output often
  require zero current to be drawn for accurate
  measurement.
• Filters can be used to
• Low-pass sensor signals Reduce aliasing (the
  appearance of high frequency information as lower
  frequency signals)
• High-pass sensor signals reduce impact of drift
  and systematic changes that occur over a time
  constant much longer than the sensor response
  time.
• Amplify at the same time as filtering
• Examples
• Piezoelectric Sensors, Electrochemical
  (potentiometric mode) sensors

7
Electronic Interfaces for Sensors and Sensor
Systems

• Voltage Measurement Noise minimization
• A low-noise voltage amplifier minimizes addition
  of noise incurred by the process of amplification
  but cannot reduce the noise at the sensor itself
• Sensors are especially vulnerable to noise
• Environments inherently difficult to control
  and predict
• Sensor surface large percentage of overall volume
  high noise situation
• Solution Lock-in Amplification (retains portion
  of signal exclusively related to sensor activity)
  -- fo X Sensor output gives strong DC component
  at fo.

8
Electronic Interfaces for Sensors and Sensor
Systems

• Resistance Measurement
• Sample Measurement Circuits

Voltage Divider Vout -Vcc (Vdd
Vcc)(Rload)/(Rsensor Rload)
Wheatstone Bridge Vout (R1/(R1Rsensor) -
R3/(R3R4))Vdd Balanced so that R1/Rsensor
R3/R4 when no stimulus is present (Vout 0)
9
Electronic Interfaces for Sensors and Sensor
Systems

• Resistance Measurement
• Issues to Consider
• The Wheatstone bridge is larger and dissipates
  more power
• The Wheatstone bridge provides a differential
  measurement Zero voltage output in the presence
  of zero stimulus
• Enables best matching of dynamic range between
  circuits best resolution
• Reduces power dissipation in subsequent circuits
• Both circuits distort linearity a linear sensor
  now produces a non-linear output (and variable
  sensitivity)
• Pair
• 1 calculate sensitivity for the voltage
  divider
• 2 calculate sensitivity for the Wheatstone
  bridge
• Share
• Is there any difference in sensitivity? Why or
  why not?

Activity
10
Electronic Interfaces for Sensors and Sensor
Systems

• Resistance Measurement (using the Howland Current
  Source)
• A more complex measurement circuit

When R2AR2B R1R4/R3 Io becomes independent of
Rsensor Vout Rsensor Io Sensitivity Io (is
constant!)
Io
11
Electronic Interfaces for Sensors and Sensor
Systems

• Resistance Measurement
• Issues to Consider (cont)
• Resistors (in the measurement circuit and in the
  sensor) are typically the noisiest possible
  components in electronics!
• Both measurement circuits should be matched to
  the dynamic range of subsequent circuits. For
  example
• An A/D Converter with 12 bits of resolution at
  0-10V connected to a
• Resistive sensor whose voltage output varies from
  2-3.5V
• Provides only 9 Bits of resolution to the sensor

• 10/212 .00214V of resolution
• 1.5V/.00214V 614 distinguishable levels from
  2-3.5V
• 614 is closest to 29 ( 512)
• A 12 bit converter provides only 9 bits of sensor
  resolution

12
Electronic Interfaces for Sensors and Sensor
Systems

• Resistance Measurement
• Sensor Examples
• Chemiresistors
• Composite polymer
• Metal-oxide
• Phthalocyanines
• Conductive Polymer
• Mechanical Sensors
• Piezoresistive elements in accelerometers/motion
  sensors
• Photoconductors

13
Electronic Interfaces for Sensors and Sensor
Systems

• Current Measurement
• Sample Measurement Circuit

R
Vout -IsensorR
14
Electronic Interfaces for Sensors and Sensor
Systems

• Current Measurement
• Issues to Consider For small currents (order of
  nA or smaller)
• The input current of the op amp must approach the
  ideal value of 0 (requires a MOSFET input)
• Parasitic capacitances/resistances in the
  breadboard/PCB/protoboard can overwhelm the
  current to be measured.
• Large resistors may be required in the feedback
  loop for desired gain
• Generate additional noise
• Can induce instability
• Many sensors require a constant non-zero (bias)
  voltage to increase current to be measured.
• Examples
• Photodiodes
• Electrochemical sensors (in amperometric mode of
  operation)

15
Electronic Interfaces for Sensors and Sensor
Systems

• Current Measurement
• Constant reverse bias across a photodiode during
  current measurement
• Higher reverse bias increases sensitivity

Vout -IphotodiodeR
Photodiode
16
Electronic Interfaces for Sensors and Sensor
Systems

• Analog to Digital Conversion
• Before Conversion
• Minimize Aliasing using Low-Pass filters
• Reduce Noise through
• Lock-in amplification
• Filtering, or
• Sensor averaging
• Amplify signal
• Differential amplification to reduce common mode
  influences
• Low noise pre-amplifier
• High gain post/primary amplifier
• Convert signal to voltage
• Frequency to voltage (commercially available
  ICs)
• Current to voltage (trans-resistance amplifier or
  configured op-amp)
• Resistance to voltage (Howland current source or
  Wheatstone bridge)

17
Electronic Interfaces for Sensors and Sensor
Systems

• Analog to Digital Conversion
• During conversion
• Match input signal range to ADC range for maximum
  resolution
• Choose best scale (linear, logarithmic) to match
  sensor behavior
• Example
• An electrochemical sensor has an output voltage
  that varies logarithmically as a function of
  calcium ion concentration.
• Use a logarithmic rather than linear converter
• This same sensor generates output voltages
  between 0 and 60mV across the full range of
  calcium ion concentrations of interest. The ADC
  has a voltage range from 0-12V
• Use an inverting, low-noise/low-offset
  pre-amplifier with gain of -2
• And, in series with the pre-amplifier
• Use an inverting, amplifier of gain approximately
  -100

18
Electronic Interfaces for Sensors and Sensor
Systems

• Operational Amplifiers Four basic types
• Voltage
• High input impedance
• Low output impedance
• Current
• Low input impedance
• High output impedance
• Transresistance (current input, voltage output)
• Low input impedance
• Low output impedance
• Transconductance (voltage input, current output)
• High input impedance
• High output impedance
• No op amp is truly general purpose!

19
Electronic Interface Examples

• Chemiresistor Interface
• Chemiresistors are typically designed for large
  array implementations
• Electronic Interfaces require small,
  low-component count circuits that make the best
  compromise in performance for small size and low
  power consumption
• Surface Plasmon Resonance Portable Interface
• SPR-based sensors are typically designed for one
  component, distributed signal (wavelength or
  angle) implementation
• System on chip solutions must compensate for the
  influence of the background medium AND implement
  a (pre-optimized) calibration vector for
  determining analyte concentration/refractive
  index
• Fluorescence Analysis Systems
• Require relatively complex electronics at both
  the light source (input) and output
  (photodetection) stages of system
• Electronic interface, for best performance, must
  be well matched to the (biochemical) requirements
  and fluctuations of the system.

20
Electronic Interfaces for Sensors and Sensor
Systems

• Example Electronic Interfaces for Chemiresistors
• Popular approach to chemical sensing
  (traditional)
• Small number (highly selective) sensors in an
• Application targeted to 1-2 analytes
• In an understood background
• Another approach to chemical sensing
  (olfactory)
• Large number (broad, overlapping selective)
  sensors in an
• Application targeted to many analytes
• And their (many) interferents
• In a cluttered and complicated background
• Candidates for high density arrays of chemical
  sensors are few
• Require small size, linear operation, broad
  selectivity, compatibility with integration, and
  room temperature operation

21
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• High resolution Sensor Arrays
• Require Integration
• Circuits produced in CMOS
• Gold post-deposited electrochemically
• Sensor coating sprayed on gold
• 1-2 layers of metal required for sensor
• Challenge Design processing circuits that
• Ignore large, variable baseline resistance
• Amplify very small changes in polymer resistance
  on top of large baselines
• Conform to VLSI footprint that addresses
• Electrode Geometry
• Required sensor density
• Circuit performance

22
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• Differential Approach
• On-chip chemiresistor divided into
• One chemically sensitive resistor
• One or (three) reference resistors
• Passivated (responsive to zero analytes) or
• Exposed, not functionalized (responsive to all
  analytes)
• Resistive Bridge is part of sensor
• Remaining circuits are designed for maximum gain
  under constrained footprint ( sensor platform)

23
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• Differential Approach
• Resistive Bridge output transferred to
• Differential Amplifier
• Comparator with ramping input for serial A/D
  conversion
• Design constraints
• Differential Amplifier maximum gain in small
  footprint
• Comparator fully serial (simple) A/D conversion
  acceptable because of slow sensor response time

24
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• Differential Approach
• Circuit Gain
• 20 (Differential Amplifier)
• -20 (Comparator)
• Sensor Performance
• Bridge approach eliminates effect of broad range
  in baseline on circuit gain
• However, additional bias resistors add more noise
  (electrical and transduction)

• Translation
• 25mV detection limit
• Independent of baseline
• 0.01 (DR) detection limit and resolution

25
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• Resistance to Frequency Conversion
• Sensor platform contains three terminals
• Outer ring terminals shorted together outside
  sensor platform to enable circuits to fit
  underneath
• Allows a single resistor per platform for
  chemical sensing
• More active area (fill factor) than previous
  approach.
• Electrode geometry more readily optimized for
  best noise performance.

26
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• Resistance to Frequency Conversion
• Operation
• Sensor resistance charges Co
• As the capacitor charges, it trips the Schmitt
  trigger, causing the feedback to discharge the
  capacitor
• The frequency of the charge/discharge cycle
  becomes smaller with increasing resistance
  (smaller current)
• Hysteresis reduces impact of noisy sensor response

27
Electronic Interfaces for Sensors and Sensor
Systems

• Electronic Interfaces for Chemiresistors
• Resistance to Frequency Conversion
• Sensitivity
• Baseline (730kW) .12/W
• Baseline (9.26kW) 4.1/W
• Resolution/Detection Limit
• Change in resistance from baseline
• Baseline (730kW) .07
• Baseline (9.26kW) .02

28
Electronic Interfaces for Sensors and Sensor
Systems

• Example Electronic Interfaces for Chemiresistors
• Both circuits fit underneath sensor platform (.04
  mm2 area)
• Fill Factor
• Approach 1 25
• Approach 2 close to 100 (with exceptions for
  metal routing)
• Sensitivity
• Approach 1 400 (V/V)
• Approach 2 between .12/W and 4.1/W
• Resolution/Detection limit
• Approach 1 .01 change in resistance
• Approach 2 between .02 and .07
• Other
• Approach 2 more resilience to fluctuations in
  response due to built in hysteresis.

29
Electronic Interfaces for Sensors and Sensor
Systems

• Example Surface Plasmon Resonance Systems
• Comparison of Four Approaches to SPR Interfaces
• Traditional (Software-based)
• Partial Integrated Circuit (Voltage-based)
• Full Integrated Circuit (Pulse-based)
• Full Integrated Circuit (Current-mode)
• All Interfaces assume
• Constant angle (variable wavelength)
  interrogation scheme
• Fiber-optic optical path
• Spectral dispersion (prism or similar) prior to
  photodetection

30
Electronic Interfaces for Sensors and Sensor
Systems SPR
Approach 1 (Traditional)
Software
High Resolution Photodetection
Approach 2 (Voltage-Mode, Partially Integrated)
Software
Integration Time Programming
Low Resolution Photodetection
Flatlining Reference Ratio
31
Electronic Interfaces for Sensors and Sensor
Systems SPR
32
Electronic Interfaces for Sensors and Sensor
Systems SPR
Approach 2
All Designs are mixed signal, fabricated in
standard CMOS
Approach 4
Approach 3
33
Electronic Interfaces for Sensors and Sensor
Systems SPR
15 pixel array fabricated on a 1cm2 die in the
1.5 micron AMI process through MOSIS
2mm
34
Electronic Interfaces for Sensors and Sensor
Systems SPR
