Title: MECO Cryogenic System


1

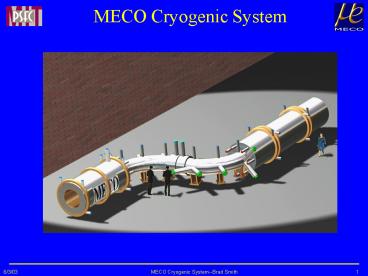

MECO Cryogenic System
2
Overview
  • Helium System
  • Steady state 4.5 k system
  • Steady state heat loads and operating points
  • Thermal design of Dewars TS and DS
  • Thermal Design of PS Dewar
  • Liquid N2 System
  • Quench
  • Recool after Quench

3
Component Overview
  • Four Separate Cryostats (PS, TS1, TS2 and DS)
  • One Liquefier/Refrigerator
  • Pressurized Liquid Nitrogen Tank-(Truck filled)
  • Forced Convection cooling in 3 dewars (TS1, TS2
    and DS)
  • Conduction cooling from He tubes to the coils (No
    He bath)
  • PS is pool cooled- Natural convection and/or
    Forced flow cooling.
  • Two storage/control dewars
  • Vacuum insulated LN2 traced MLI.

4
Design and Operation Overview
  • All active components are outside the shield
    wall.
  • Many interconnections and valves to allow for
    flexible operation.
  • Dewars can be cooled separately.
  • Cooling of one dewar does not affect the state of
    other dewars.
  • Valves allow the isolation of cryostats during a
    quench.
  • Cool down with He circulated from and LN2 heat
    exchanger for Tgt80 K.
  • Cool down with He from the liquefier for Tlt80K.
  • Dewars are protected against overpressure during
    a quench.

5
Steady State Operation
6
Estimated Heat Loads
7
States in Cooling System
8
Cryostat 4.5 K Cooling
All cryostats have stainless steel vacuum shells
and LN2-cooled thermal radiation shields.
  • PS
  • Bath cooled with 6700 liter LHe volume to safely
    remove 192 W of nuclear heat load at 4.5 K
  • 25 cm diameter quench vent stack keeps quench
    pressure below 5 atmospheres
  • TS and DS
  • Lack of nuclear heat load enables conduction
    cooling
  • Inner and outer copper shells intercept radiation
    heat load and take it to He-traced copper heat
    sinks at the top of each coil

9
He Vessel Pressure for PS Quench
10
Cooldown
11
Liquid Nitrogen System
  • Tank filled by commercial vendor
  • LN2 distribution lines cool shields in 4.5 K
    conduits.
  • LN2 cools heat stations on valves and vacuum
    separators.
  • Commercial MLI systems combined with an LN2
    shield is used for lines, cryostat and dewars.
  • LN2 cooled heat stations on mechanical supports
    in PS, DS and TS.
  • More details on the Ozone issue in a later
    talk
