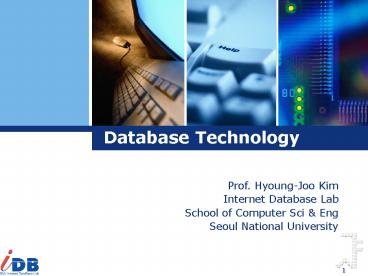

Database Technology
Prof. Hyoung-Joo Kim Internet Database Lab
School of Computer Sci Eng Seoul National
University
2
Contents

• A general survey of DBMS
• History of DBMS
• Database market share
• The current DBMS trend

Research in IDB Lab.
3
What is a Database?(1/10)

• DBMS
• A software system which provides the environment
  enables to store and retrieve massive data
  effectively

4
What is a Database?(2/10)

• A large collection of data
• Data Programs

STORE
Database
5
What is a Database?(3/10)

• Information about register and course of 40,000
  students of the Seoul Natl Univ.

course term register grade prof
45 courses, 10K records per student
course term register grade prof
10K Byte 40,000 400M Byte
Others library, health center, S-card,
6
What is a Database?(4/10)

• Information of SAT management

profile answer rate ranking
8K records per student
Profile Answer Rate ranking
Year 2006 550,000 Year 2005 570,000
8K Byte 550,000 4.4G Byte (109)
7
What is a Database?(5/10)

• Information of mobile phone

phone number station time
60KB record per one
phone number station time
39M 60 Byte 5calls/day 365 days 4T Byte
Korea 2006.7
China 370M in 2005
8
What is a Database?(6/10)

• Information of resident registration

SSN name addr domicile
10KB record per one
SSN name addr domicile
10K Byte 470 M 5T Byte (47millions)
9
What is a Database?(7/10)

• Google database

8billions Websites, 2billions indexing
terminology management
Usenet archive 700 Million messages
20KB/message 14 TB
10
What is a Database?(8/10)

• Hubble space telescope data from Mars

Data constructed by 2005 over 12 TB
Constructing and sending 35GBs data abroad daily
11
What is a Database?(9/10)

• NCBI (National Center for Biotechnology
  Information)

• GenBank
• management of information of 165,000 species
• add 3millions new DNA sequence monthly

12
What is a Database?(10/10)

• Genome map of Koreans

Venture MacroGen SNU Medical School Early
version 900G Byte Final product 15T Byte
13
What do we do with Database?(1/2)

• Record search
• Retrieve math grade of the student whose SSN is
  840101-12121

740,000 5 records 3.7 M records
12ms to fetch a record and check content
3.7M 12ms 44.4Kseconds over 12 hours
If we use DBMS, it will be less than 0.1sec!
Statistical processing for population census
DBMS
Search for the purchase pattern on customer
groups
Search for the correlation between gene and
disease
14
What do we do with Database?(2/2)

• Most (all?) computing applications use some type
  of a database

CRM
ERP
MIS, ERP
Data Warehouse
OLTP
EDPS
Database
Database
Database
Database
15
Database Management System (DBMS) (1/3)
Warehouse
16
Database Management System (DBMS) (2/3)
Warehouse
Warehouse keeper
17
Database Management System (DBMS) (3/3)
Database
Management of orders on-line
profile
product
customer
DBMS
user
Management of wages
sale
stock
Management of manager info.
Application
18
DBMS Architecture
naive users
application programmers
casual users
database administrator
application programs
system calls
query
database scheme
data manipulation language pre-compiler
query processor
data definition language compiler
application programs object
database manager
DBMS
file manager
Disk storage
19
A Sample Relational Database
20
SQL

• SQL widely used commercial query language
• E.g. find the name of the customer with
  customer-id 192-83-7465 select customer.customer-
  name from customer where customer.customer-id
  192-83-7465
• E.g. find the balances of all accounts held by
  the customer with customer-id 192-83-7465 select
  account.balance from depositor,
  account where depositor.customer-id
  192-83-7465 and depositor.account-number
  account.account-number

21
Major Commercial DBMS in 2006(1/3)
10g
22
Major Commercial DBMS in 2006(2/3)
23
Major Commercial DBMS in 2006(3/3)
24
Database Companies in the World
25
Contents

• A general survey of DBMS
• History of DBMS
• Database market share
• The current DBMS trend

Research in IDB Lab.
26
Hierarchical, Network DBMS
The early 70
IMS (IBM), System/2000(MRA)
DMS 1100 (Sperry), Total (Cincom)
Advantage quick data access using link
Drawback impossible to make out independent
application
27
Network Database example
Root Record
Customer records
Lowery
Maple
Queens
Hodges
SideHill
Brooklyn
Shiver
North
Bronx
Amount records
900
556
647
647
801
Query
Whats the total balance of Mr. Shiver in Bronx?
28
Network DB query example
sum0 get first customer where
customer.nameShiver and customer.city
Bronx while DB_status 0 do begin
sumsumcustomer.amount get next customer
where
customer.name Shiver and
customer.city Bronx end print(sum)
29
Relational DBMS

• The late 70 and early 80
• E.F.Codd, 1970 CACM paper, The Relational Data
  Model
• Relational Algebra Calculus
• The Spartan Simplicity!
• SQL Structured Query Language
• System/R - 1976, first commercial RDBMS
• Ingres - 1976, first academic RDBMS

30
Relational DBMS example
name street city amount
Lowerly Maple Queens 900
Shiver North Bronx 556
Shiver North Bronx 647
Hodges SideHill Brooklyn 801
Hodges SideHill Brooklyn 647
Select sum(amount) from customer
where customer.name Shiver
and customer.cityBronx
31
The advent of new DB application in 80 (1/4)
CAD/CASE/CAM massive design data
Artificial Intelligence Expert systems
Telecommunication
Multimedia IMAGE, TEXT, AUDIO, VIDEO, etc.
Rich data model DBMS function
32
The advent of new DB application in 80 (2/4)

• Massive design data in CAD/CASE/CAM

name street city amount
Lowerly Maple Queens 900
Shiver North Bronx 556
Shiver North Bronx 647
Hodges SideHill Brooklyn 801
Hodges SideHill Brooklyn 647
Previous DATA
CAD DATA
33
The advent of new DB application in 80(3/4)

• Artificial Intelligence Expert systems

Vehicle disorder
Symptoms
name street city amount
Lowerly Maple Queens 900
Shiver North Bronx 556
Shiver North Bronx 647
Hodges SideHill Brooklyn 801
Hodges SideHill Brooklyn 647
Control
Drive
Break
Handle
Gearbox
Engine
conclusion engine ECU disorder
Previous DATA
Expertise DATA
34
The advent of new DB application in 80(4/4)

• Multimedia image, audio, video

name street city amount
Lowerly Maple Queens 900
Shiver North Bronx 556
Shiver North Bronx 647
Hodges SideHill Brooklyn 801
Hodges SideHill Brooklyn 647
Previous DATA
MULTIMEDIA DATA
35
Advent of Object Oriented DBMS
17
36
Feature of Object Oriented DBMS
Object-Oriented Paradigm support object, object
identity, go back to traversal Network DB? Class
hierarchy, inheritance
37
Object Oriented Database example
name street city amount
Lowerly Maple Queens 900
Shiver North Bronx 556
Shiver North Bronx 647
Hodges SideHill Brooklyn 801
Hodges SideHill Brooklyn 647
ISA relationship
Is-part-of relationship
38
OQL query of Object Oriented DBMS
select sum(customer.deposit.balance) from
Customer customer where customer.name
Shiver and customer.deposit.branch.city
Bronx
39
Object Relational DBMS
1980 1985 ORDBMS Research Prototype PostGres
by UC Berkeley System/R Engineering Extension
Relational DBMS with Object Oriented function
Extension within SQL Tables! The early 90
OODBMS (Illustra, UniSQL, Mattise) downfall 1997,
Big3 ORDBMS advent
40
Object Relational Database example
name street city amount
Lowerly Maple Queens 900
Shiver North Bronx 556
Shiver North Bronx 647
Hodges SideHill Brooklyn 801
Hodges SideHill Brooklyn 647
41
Principal functions of Object Relational DBMS
LOB (large object) support
User defined type Stored procedure support
Abstract Data Type support
SQL procedure extension
Application domain specific extension support
Rule/trigger System support
Type Inheritance support
42
Product of Object Relational DBMS
43
Contents

• A general survey of DBMS
• History of DBMS
• Database market share
• The current DBMS trend

Research in IDB Lab.
44
DBMS market share(1/2)

• Worldwide market share for biggest sellers of
  corporate databases, 2005

15
48.6
22
Source Gartner Dataquest
45
DBMS market share(2/2)

• Worldwide sales for biggest sellers of corporate
  databases, 2005

6.7
3.0
2.1
billions of dollars
Source Gartner Dataquest
46
Domestic DBMS market share
source Report for database industry and
perspective in Korea, 2004
47
Domestic DBMS market sales

• Domestic market share for biggest sellers of
  corporate databases, 2004

?57.2
?45.3
?25.1
billions of won
Source Gartner Dataquest, South Korea(2005)
48
Preference in domestic market
Others 3
source Report for database industry and
perspective in Korea, 2004
49
Contents

• A general survey of DBMS
• History of DBMS
• Database market share
• The current DBMS trend

Research in IDB Lab.
50
XML Technology(1/2)

• The late 90 and now
• What is XML1)?
• Developed by the W3C
• Semi-structured text for dissemination and
  publication
• Self-describing

HTML
XML
lttrgt lttdgt ltfont
colorredgt?? lt/fontgt
lt/tdgt lttdgt???lt/tdgt lt/trgt lttrgt
lttdgt ltbgt??lt/bgt lt/tdgt
ltpersongt ltnamegt???lt/namegt
ltcitygt??lt/citygt ltagegt20lt/agegt
lt/persongt
Tagging for Display
Tagging for structure and semantics
1) eXtensible Markup Language
51
XML Technology(2/2)

• Why XML
• Standard data format for storing and exchange

XML
ltpersongt ltnamegt???lt/namegt
ltcitygt??lt/citygt lt/persongt



52
Semantic Web(1/2)

• ??? web
• 1) ??? ?? ???? ??? ??
• 2) ??? ??? ??? ??? ????? ??
• 3) ??? ?? ???? ???? ??? ??? ?? ?? ??
• ??? ???? ??? ?? ?? ??

search engine
Patient
53
Semantic Web(2/2)

• Semantic web
• Semantic web?? ??? ??? ??? ??
• ??? ?? ???, ? ??? ??, ?? ??, ??
• 1) ??? software agent?? ?? ??
• 2) ? ??? ????? ???? ??? ????? software agent? ???
  ??? ???? ???? ??, ??? ??? ???? ?? ??? ??? ??? ?

clinics web pages (with Semantic web)
appointment schedule
Software Agents
Patient
54
Knowledge discovery
Database
Data
Warehouse
useful,
interesting
hidden
Knowledge Discovery
information
Processing Data mining
apply
decision
55
Data warehouse(1/2)

• Storing data of time
• Analyze the pattern in times
• Summarized data
• Observation data in various view point
• Non-volatile

Need for new data model
Dimensional model
56
Data warehouse(2/2)
Sales Volumes
Jan
time
Product
Feb
C
Mar
B
A
Wong
Dewitt
Stonebreaker
Sales person
57
Data mining(1/2)

• ?? ??
• ??? ?? ???? ???? ?????? ??? ??? ??, ??? ? ??? ???
  ? ?? ?????, ??, ???? ???? ????? ??
• ?? ??
• ??? ????? ?? ?? ??? ??? ? ?? ??? ???? ???? ?? ??
  ????data mining algorithm?? ?????? ??

58
Data mining(2/2)
????
?? ??? ?? ??? 80? ??? ?? ?? ??? ???? ?? ??? 74?
??? ?? ??
????
?? ??? ??? ??? ??? ??? ?? ?? ?? ?? ??? ?? ??? ???
??
????
?? ???? (?, ??, ??), (??, ???, ??)? ?? ?? ?? ???
???? ?? ?,?? ??? ??
59
The emerging challenges
Rapid development of H/W
Rapid spread of Web and Internet
Disks and RAM size Access time Bandwidth
Millions of users Connected on Web
New areas emerging
Sensor Streams, Scientific dataUncertain data,
Information privacy
60
The Emerging Challenges

• Sophisticated Data type support

New DBMS
Structured data
temporal
Unstructured data
61
The Emerging Challenges

• Sensor streams
• Battery constraint, communication cost
• Rapidly changing configuration(Sensors die or
  disconnect)
• Complex forms of information integrationLocate
  a person from the heat, sound and vibration
  sensors

62
The Emerging Challenges

• Reasoning about uncertain data
• Scientific measurement errors
• Location data for moving objects
• Sequence, image and text similarity

Location data
Sequence data
Scientific measurement
63
The Emerging Challenges

• Personalization
• Different person, different answer
• WEB CRM example

Web Site Entry
Page Views
Event Select product Insert item to Shopping Cart
Recommendation Engine
Personalized View of Recommendation
64
The Emerging Challenges

• Privacy
• How to support the protection of personal or
  sensitive information
• Access by user and usage
• Include purpose description in query

Name income
We just want the statistics of the income not the
personal information !
Alice 25K
John 40K
