Title: Recovery Oriented Programming


1

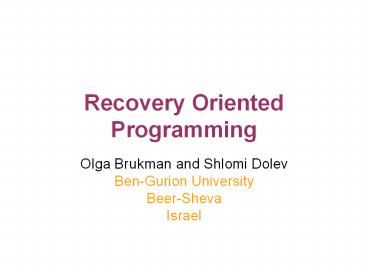

Recovery Oriented Programming
  • Olga Brukman and Shlomi Dolev
  • Ben-Gurion University
  • Beer-Sheva
  • Israel

2
Towards Correct Software
  • Software should respects its specifications
  • Safety, Liveness
  • Atomic power station
  • Safety the atomic station shouldn't explode
  • Liveness the atomic station should produce some
    electricity

Atomic power station
3
Recovery Oriented Design
  • Software performs substantially in accordance
    with specifications for a period of 90 days...
    (IEEE Computer, October 2006)
  • How to cope with such software?!
  • Recovery Oriented Computing PBB'02!
  • Recovery actions
  • Reboot, wait, reschedule
  • Non-intrusive avoid rewriting the program
    (possibly new other bugs)

4
Recovery Oriented Programming
  • Programmer
  • Best-effort implementation
  • Using same IO variables as specifier
  • Still bugs and unexpected states
  • Specifications Composer (Project Manager)
  • Invariants and predicates
  • important properties on program IO
  • Recovery actions

5
Recovery Oriented Programming Assumptions
  • Self-stabilizing processor
  • Self-stabilizing OS
  • Infrastructure for robust monitoring and recovery
  • Processes exist and execute their code

6
Recovery Oriented Programming Assumptions
  • Not immediately Byzantine
  • eventual Byzantine program

7
Our Framework
Subsystems hierarchy
Recovery tuples
Code
Subsystem External Monitor

System is able to recover from any state
8
Generated Code One Process
External Monitor
Recovery tuples
event-driven monitoring
Code
event-driven monitoring
9
Generated Code Subsystem
External Monitor
Subsystems hierarchy
event-driven monitoring
Recovery tuples
Subsystem External Monitor
10
Our Framework Transforming Recovery Tuples into
Code
Subsystems hierarchy
Pre-compiler
Recovery tuples
Code
Subsystem External Monitor
11
Safety Recovery Tuple
1 process
PRED x!7 RA this.restart()
temp_xa if temp_x!7 xtemp_x else
this.restart()
Pre-compiler
... xa ...

12
Safety Recovery Tuple in the Scope of
Stabilization External Monitoring
1 process
if !(ps.x!7) ps.restart()
PRED x!7 RA this.restart()
temp_xa if temp_x!7 xtemp_x else
this.restart() ...
Pre-compiler
... xa ...
No more x...

13
Liveness Recovery Tuple
1 process
xx2 if (xy15) this.history ... yy5
if (xy15) this.history
INV eventually xy15 RA this.restart() HTR
history
Pre-compiler
xx2 ... yy5 ...
historyhistory?this.state() if loop in
history and CPU(this)
ps.restart()

History ... .., x1,y2,..,
.., x3,y7,.., ...
14
Generated Monitoring Code for Subsystem
sub p1, p2
History ... distributed
snapshot(sub), ...
External monitor for sub
Recovery Tuples
Pre-compiler
Code for p1

Code for p2
15
Generic Correctness Theorem
  • In the program produced by the pre-compiler every
    rsf (restart supporting fair)-execution E has a
    suffix in which the program respects its
    specification function
  • A rsf-execution is the execution in which system
    is trusted to behave according to its
    specifications after restart.

16
Generic Correctness Proof
  • Assumption Processes and external monitors are
    scheduled fairly due to presence of
    self-stabilizing software platform
  • Safety process either reaches monitoring section
    in its code or its external monitor makes
    scheduled check
  • Subsystem external monitor makes scheduled check

17
Generic Correctness Proof Cont.
  • Liveness the process (subsystem) external
    monitor makes scheduled check of the history log
  • Corrupted history
  • If causes (unnecessary) recovery - trimmed
  • New correct records are eventually accumulated
    and reflect the real state of system

18
Related Work Perfect Software
  • Formal specification languages
  • ASM GRS'04, IO Automata L'96, NURPL CKB'84
  • Gradually and manually translated into fully
    verified program
  • Model checking
  • Doesn't scale
  • Specification embedding programming languages
  • SRC (Software Cost Reduction) language RLHL'06
  • Programmer bugs

19
Related Work Programming Tools
  • Design By Contract
  • Eiffel, iContract for Java
  • Checking invariants on an object state,
    pre-/post-conditions on object methods, recovery
    by predefined recovery action
  • Partial monitoring of liveness, based on timeout
  • Monitoring of safety outside of stabilization
    scope
  • Exceptions
  • Suitable for single process only
  • Unpractical for changing the program flow

20
Related Work Online Recovery
  • Recovery blocks (N-programming) RX94
  • ROC PBB02, Java MOPCR'05, Kinesthetics
    eXtreme KPGV'03, "On Modeling and Tolerating
    Incorrect Software" AT'03
  • Monitoring/correcting layer that alternates the
    failed component behaviour

21
Related Work Online Recovery
  • Assumption of monitoring/correcting layer
    stability
  • ROC PBB02, Java MOPCR'05, Kinesthetics
    eXtreme KPGV'03
  • Intrusive correcting actions
  • Empty program correcting actions define the
    program
  • "On Modelling and Tolerating Incorrect Software"
    AT'03

22
Conclusions
  • Recovery Oriented Programming paradigm for a
    programming language
  • Full monitoring of safety and liveness properties
    in the scope of stabilization
  • Formal correctness proof scheme for the resulting
    code
