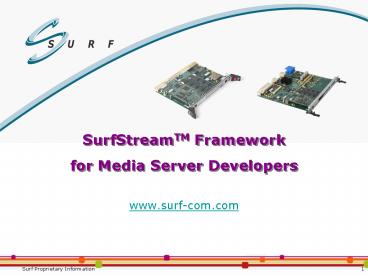

SurfStreamTM Framework for Media Server Developers

1
SurfStreamTM Framework for Media Server
Developers

• www.surf-com.com

2
Presentation Highlights

• Media Server Development Challenges
• SurfStream Framework Overview
• Building a Media Server using SurfStream
  Framework
• SurfStream Feature Support
• SurfStream Hardware Integration
• Surfs Value Propositions

3
Media Server Development Challenges
4
Service Provider Needs

• Deliver highest quality cross-network services
  for mobile and IP devices
• Voice/video mail
• Video portal
• Video conferencing
• Multimedia servers
• Recording servers
• Support multiple formats for multiple devices
• Combine traditional TDM-based applications with
  next-generation IP Audio/Video services
• Simple migration path for supporting future
  formats

5
Service Provider Needs

• Video deployment demands are still relatively
  small compared to voice deployment
• Flexible channel media type assignment is
  required to reach entire audience
• Price and ROI
• Smooth and flexible migration from voice
  systems to voice and video systems
• Fast integration into current infrastructure

6
Media Server Development Challenges

• Growing number of codecs
• Interoperability signaling and media
• Quality issues due to environmental changes
• DSP code optimization
• Application type optimization
• System bottlenecks
• New hardware standards

7
Typical Media Server
Applications
Signaling
H.323 SIP
H.223H.245 (3G-324M)
Transport
TDM H.223/ H.221
IP/ UDP

• Video proc
• Transcoding
• Resizing
• Frame rate adapt
• Mixing

• Video coding transcoding
• MPEG4 SP
• H.263
• H.264
• MPEG-4 ASP
• H.261
• H.263/

• Voice Coding
• G.729
• G.723.1
• G.726
• G.711
• NB-AMR
• FR/EFR
• EVRC
• WB-AMR
• G.728
• iLBC

• RTP/RTCP
• RFC3550/3551
• RFC3016 (Video support)
• RFC3267 (AMR support)
• Adaptive Jitter buffer
• Security AES
• Quality- RFC2198

• Telephony Events
• RFC2833
• All Tones det/gen from TDM and IP
• VAD/CNG/PLC handling
• Caller ID I/II det/gen

• Fax Channel
• T.38 Fax relay
• T.32 Fax termination
• Transparent Fax over G.711 (IP)
• IP-aware fax
• V.34HD highspeed fax

Media Processing

• Voice proc
• Mixing
• Sample rate adjustment
• ECAN G.168 128ms

8
Typical Media Server
Applications
Signaling
Transport
Media Processing
9
Buying Boards or Chips

• Why Boards?

• Why Chips?

• Pre-requisite
• Standard form factor or
• Standard mezzanine-card connector
• Lowest risk
• Lowest initial investment
• Cheapest solution in the long run
• Negotiation
• Change vendor
• Easiest migration path to next generation DSPs

• Proprietary form factor
• Single-DSP solutions
• Very high volumes (10K)

Prediction By 2008 all new Tier-I
infrastructure solutions will be based on
standard boards and modules that are made by
third parties.
10
New Hardware Standards
11
Why Put Audio Video on the Same Chip/Module?

• Easy migration path from 0 video / 100 audio to
  100 video / 0 audio and anything in-between
• Minimal system delay -gt higher overall quality
• No need to separate audio from video and send
  each to a separate chip/module
• Easier to establish lip-sync between audio and
  video when packets are lost or delayed
• Lower operational expenses
• Only need to support one chip/board
• Lower integration efforts
• Single API for audio and video
• No need for an aggregation device to
  combine/split audio and video

12
Why Run 3G-324M (H.223) on the DSP and Not on
the Host ?

• Minimal delay -gt higher overall quality gateways
• Same DSP runs 3G-324M, audio transcoding, video
  transcoding and sends audio/video RTP directly to
  IP network
• Scalability
• When H.223 is running on the DSP, host processor
  performance is not a limiting factor for moving
  to higher densitiesjust add more DSPs/boards.
• Lower operational expenses
• Less components in the system. No need for
• Specific DSP board/module for audio transcoding
• Specific DSP board/module for video transcoding
• Controller module/board for 3G-324M

13
Media Server Development Challenges

• A typical Media Server is composed of four
  components
• Media processing DSP code
• Host-based state machines and APIs
• Hardware platform
• Media server application

• Generic

• Generic

• Generic

• Application-Specific

All generic components are provided by Surf,
allowing our customers to focus their resources
on the application specific part.
14
SurfStream Framework Overview
15
SurfStream Framework Principles

• All application development needs in one SW
  package
• Host-based library for DSP control and monitoring
• OS-specific drivers for all boards
• Windows-based diagnostic tool for easy debugging
• Short development cycle
• Feature rich for maximal flexibility
• User-friendly APIs sample applications
• Comprehensive documentation
• Technical support

16
SurfStream Framework Principles (contd)

• Best of Breed
• High capacity
• Efficient implementation
• Optimized for all type of telecom/media server
  applications
• Field-proven
• Standards compliant
• Intensively tested
• Flexible

17
(No Transcript)
18
Target Applications

• Audio Video Mail Servers
• Media Download Streaming Services
• Cross-platform Video Conferencing Servers
• Unified Messaging Servers
• Video Surveillance

19
Application 1 Voice Video Mail
Audio/Video message stored as .MP4 file parsed
and sent to media board
Video MPEG4 -gt H.263 CIF ? QCIF 30FPS -gt
10FPS Audio WB-AMR?NB-AMR Transport H.223
Audio, Video Control multiplexed in 3G-324M
using H.223
20
Application 2 Media Streaming Server
Prompt for file transfer
Audio/Video Over H.324 (V.34 modem)
Audio/Video 3G-324M
Voice Over PSTN
Audio/Video Over RTP
Audio Over RTP
21
Building a Cross-platform Media Server with the
SurfStream Framework

• Mobile IP Video

22
Activating SurfStream 3G-324M Video Application
Video Application Server
SurfUP
SurfH324 (H.245 / H.223)
Activate Call
Operate Media
Control
23
Step 1 Initializing HW Devices

• API concept
• Controls C-callable functions
• Monitors Callback functions
• Steps
• Reset DSP
• Download DSP software
• Activate DSP
• Reset layer-2 switch
• Set layer-2 switch to default mode
• Reset H.100 matrix
• Reset E1/T1 interface
• Set DSP and channel callback functions
• Establish logical Host-DSP connection

24
Step 2 Initialize Channels and Routing for
3G-324M H.263 Video Streaming

• Step 2.1 Create Configure
• Video channel
• Audio channel
• H.223 channel

File system
Host API
FEP
H.245
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Audio channel
• AMRlt-gtG729
• RTP
• JB

• H.223 channel
• Mux
• Demux
• Adaptation layer
• NSRP/WNSRP

Circuit Switch Interface
Channels can be located on the same DSP or on
separate DSPs
E1/T1 interface
25
Step 2 Initialize Channels and Routing for
3G-324M H.263 Video Streaming

• Step 2.2 Configure packet routing
• Video channel
• Audio channel
• H.223 channel

File system
Host API
FEP
H.245
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Voice channel
• AMRlt-gtG729
• RTP
• JB

• H.223 channel
• Mux
• Demux
• Adaptation layer
• NSRP/WNSRP

Circuit Switch Interface
Routing is identical whether or not channels are
on the same DSP
E1/T1 interface
26
Step 2 Initialize Channels and Routing for
3G-324M H.263 Video Streaming

• Step 2.3 Configure circuit-switch routing
• H.223 channel
• E1/T1 interface

File system
Host API
FEP
H.245
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Voice channel
• AMRlt-gtG729
• RTP
• JB

• H.223 channel
• Mux
• Demux
• Adaptation layer
• NSRP/WNSRP

Circuit Switch Interface
E1/T1 interface
27
Step 3 Play Video Audio Streams to a .3gp or
.mp4 File

• Associate Video channel with a FEP
• Associate Voice channel with a FEP
• Associate a file with a FEP
• Command for FEP to start streaming

File system
Host API
FEP
H.245
SurfStream API
Layer II switch
Packet Interface

• Video channel
• MPEG4-gtH.263
• QCIF-gtCIF
• RTP
• JB

• Voice channel
• AMRlt-gtG729
• RTP
• JB

• H.223 channel
• Mux
• Demux
• Adaptation layer
• NSRP/WNSRP

Circuit Switch Interface
E1/T1 interface
FEP File End Point
28
SurfStream Framework Feature Support
29
General Features

• Dynamic port assignment for Audio/Video/Modem
• Direct DSP?network interface, resulting in lowest
  possible delay
• DSPs connected to Ethernet eliminate the need for
  an aggregation unit that causes excessive delay
• Open Framework
• Vendors can build a user-defined channel to
  create a competitive advantage or re-use in-house
  algorithms
• Diagnostics included in release version allow
  easy bug analysis and resolution

30
Play/Record Features

• Enables playing/recording of audio and video
  streams from Host file system to IP, TDM, or 3G
  networks
• Supports real-time video streaming of proprietary
  optimized SRF file format
• Standard and proprietary file formats
• MP4
• 3GP
• SRF
• Reliable Host-DSP communication over UDP
• Supports .WAV audio file format with G.711
  A-law/µ-law encoding

31
Audio Features

• Audio Codecs G.711, G.729, G.723.1, G.729AB,
  GSM FR, GSM EFR, GSM NB-AMR, EVRC
• Up to 32 TDM or IP Audio Conferencing
  participants
• Block size 5-30ms (5ms resolution)
• Echo cancellation - G.168 2002 Echo tail up to
  128ms
• VAD, CNG, Packet Loss Concealment
• RTP/RTCP RFC 3550, 3551, 3389
• Fixed/Adaptive Jitter Buffer Up to 300 ms
• Caller ID Detection Generation
• Tone and Events Monitoring, Relay and Generation

32
Video Features

• Video Codecs MPEG-4 and H.263
• Roadmap - H.264, H.263, H.263, H.261
• Resolution CIF, QCIF
• Frame Rate 1-30FPS
• Video Toolbox (Advanced Features)
• Configurable frame rate
• Bit rate change
• Any resolution resize
• Video codec change
• Logo insertion

33
Video Features (contd)

• Bit rate
• CBR (Constant Bit Rate) 10768Kbps
• VBR (Variable Bit Rate) Minimum Maximum
  Quality (automatic bit rate adjustment)
• Configurable deblocking levels
• RTP Encapsulation
• Multiple destination support
• Jitter Buffer - Supporting packet rearranging and
  packet loss handling

34
Video Conferencing Features

• Video conferencing
• Up to 16 participants on a single DSP
• Up to 96 participants when using inter DSP
  communication
• Dynamic participants display
• Addition/removal of participants during video
  conference
• User-defined screen layout defining size and
  location for each picture component
• Pre-defined layouts (roadmap feature)
• Dynamic configuration of layout
• Background and foreground setting in run-time
• Transparency alpha blending per picture (roadmap)
• Picture overlap support
• Raw video interface
• YUV format

35
Mobile Video Features

• 3G-324M Support
• H.324 Annex C
• H.223 Annex A B
• H.223 running on the DSP for enhanced performance
• H.245 running on the host
• Passive 3G-324M for Lawful Interception
• High-level 3G-324M APIs

36
SurfStream Framework Hardware Integration
37
Chip-Level
Chip-Level Solution C64x-based

• Surf STP-12 (based on C6412_at_600/720MHz)
• Supports audio/video/fax/modem
• Ideal for various applications
• Gateway
• Conferencing
• Streaming
• Supports simultaneous TDM?IP interfaces for VOIP
  gateway
• SurfDetect for real-time streaming diagnostics
  from DSP
• Open Framework for integration of customer
  technology
• Solution is also available on other TI C64x-based
  DSPs

38
Board-Level - PCI

• SurfAce-112
• Form Factor PCI
• Number of STP-12 DSPs 1 on board/2,4 or 8 with
  daughter card
• Interfaces
• Ethernet
• E1/T1 (optional)
• PCI
• H.100
• Software features same as STP-12
• Modes of operation
• Control through PCI
• Stand-alone mode Control through Ethernet

39
Board-Level - PTMC
Board-Level Solutions PCI, PTMC AMC

• SurfRider-812/PTMC
• Form Factor PTMC (cPCI mezzanine)
• Number of STP-12 DSPs 2,4,or 8
• Interfaces
• Ethernet
• PCI
• H.100
• Software features same as STP-12
• Modes of operation
• Control through PCI, Media through Ethernet
• Stand-alone mode Control Media through Ethernet

40
Board-Level - AMC
Board-Level Solutions PCI, PTMC AMC

• SurfRider/AMC
• Fully compliant, half-height, single-size AMC
  form factor
• 2,4,6,8 DSPs of C64x or any other processor/logic
  type
• Supports all next-generation TI DSPs
• High capacity of audio / video
• Very high throughputs up to 10Gb between
  external interface and any DSP, and between the
  DSPs.
• Supports ALL types of external interfaces
• GbEthernet, PCI_Express, Advanced switching,
  Rapid IO, Fiber channel, Infiniband and others.
• Mounted on ATCA (up to 8 boards) or MicroTCA

41
SurfRider-812/PTMC integrated with cPCI
42
SurfRider-812/PTMC integrated with ATCA
43
Roadmap

• Version 4.1 Mobile 3G and Enhanced Video
• Beta currently available, GA Jan 2006
• 3G-324M mobile-IP media streaming
• Inter-DSP communication for multi-DSP video
  conferencing
• More
• Version 4.2 TMS320C6455, AMC Video
  Enhancements
• Q2/06
• AMC DSP farm board
• TI TMS320C6455TM support
• H.264 encoding/decoding/transcoding
• Audio/video sync enhancements
• More

44
Surfs Value Propositions
45
Surfs Value Propositions

• Unique approach integrated audio/video platform
  (instead of separate systems)
• Next Generation DSPs
• Open Framework
• Seamless integration of video into audio
  infrastructures
• Easy integration of third-party technology
• Optimized architecture and APIs for a wide range
  of applications

46
Surfs Value Propositions, contd

• Strategic partnership with TI
• Market presence
• Established customer base
• Field-hardened solutions
• Credibility
• Market-proven since 1996
• Well-known and reputable provider of Universal
  Port solutions
• Field-hardened
• Patents
• 26 pending
• 4 approved

47
Thank You

• www.surf-com.com
