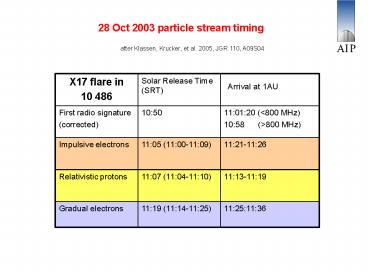

28 Oct 2003 particle stream timing

1
28 Oct 2003 particle stream timing
after Klassen, Krucker, et al. 2005, JGR 110,
A09S04
X17 flare in 10 486 Solar Release Time (SRT) Arrival at 1AU
First radio signature (corrected) 1050 110120 (lt800 MHz) 1058 (gt800 MHz)
Impulsive electrons 1105 (1100-1109) 1121-1126
Relativistic protons 1107 (1104-1110) 1113-1119
Gradual electrons 1119 (1114-1125) 11251136
2
Overview all sources 11-12 UT
Pmin
3
Fibers during relativistic (GLE) proton injection
(time derived radio spectra)
Courtesy M. Karlicky
4
Field lines selected by fiber burst sources (I)
Cartesian potential field extrapol.
1113-1114 and 1117-1119
1113-1114
Cubes NRH source sites of fiber bursts
Method AA 435, 1137 (2005)
5
Field lines selected by fiber burst sources (II)
Spheric potential field extrapol. (Schrijver
DeRosa 2003)
6
Magnetic field around AR 10486
150-300 Mm
acc. to Schrijver DeRosa 2003
7
Multi-loop structure during GLE proton injection
