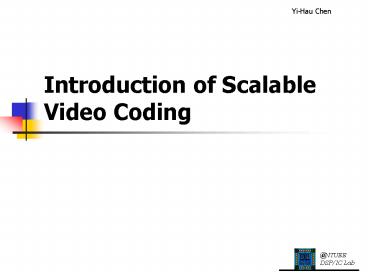

Introduction of Scalable Video Coding

1
Introduction of Scalable Video Coding
2
Outline

• What is Scalability
• Drawbacks of traditional scalable video coding
• Open-Loop Motion Prediction Video Coding
• Current SVC status

3
What is Scalability

• For video over non-guaranteed QoS (Quality of
  Service) networks, we want to provide best
  service for all consumers

4
Scalability

• SNR scalability
• Different given bit-rate
• Temporal scalability
• Display different frame-rate
• Spatial scalability
• Display different video-size

5
How to Perform Scalable

• One bitstream, multiple adaptions

CIF 15fps
D1 30fps
D1 30fps
QCIF 15fps
6
Traditional Scalable Video Coding

• MPEG-4 FGS (Fine Grain Scalability Profile)
• Simple or Advanced Simple Profile as the
  base-layer
• Supports various layers of SNR enhancements
• Combines with temporal scalability
• Closed-loop video coding

7
FGS Scheme

• Base layer lower bound
• Provide enhancement layer to meet the upper bound

8
MPEG-4 FGS
9
Performance of FGS
10
Drawbacks of FGS

• Closed-loop video coding
• Error propagation
• Reference frame is reconstructed frame
• DPCM loop
• Reference frames in encoder and decoder are the
  same
• Weak scalability
• PSNR penalty of FGS scalability

11
Open-loop Motion Prediction Concept

• Advantage of open-loop video coding
• Provide the drift-free scalability
• Temporal scalability

12
Motion-Compensated Temporal Filtering (MCTF)
For example, temporal level 3
spatial level 3
13
MCTF Haar filter

• L(m,n)B(m,n)A(mk,nl)/2
• L(m,n)B(m,n) if multiple connected
• H(m,n)A(m,n)-B(mk,nl)
• H(m,n)A(m,n)-A(m,n)
• if unconected

unconnected
multiple connected
14
MCTF

• Can be extended to longer filter, ex 5/3 filter
• Basic idea is still block displacement
• Only integer-pixel accuracy can perfect
  reconstruct (PR) in traditional MCTF

15
Why sub-pixel is not PR?

• PR only if you can get the interpolated A and B
  pixels, which is unavailable
• So, only 2-level temporal DWT can be performed

Closest integer to dm
W is interpolation filter
16
Performance of MCTF

• Lifting v.s. Invertible MC v.s. Integer pixel
• Entropy coding should be 3DSB-FSSB, not EZBC

17
Motion-Compensated Temporal Lifting (MCTL)

• Perfect reconstruct in any fractional pixel
  accuracy
• Invertible because of lifting scheme
• Ex. Haar filter

W(a-gtb) warping a frame to b frame
Inverse filtering
18
MCTL
W is interpolation filter
19
MCTL Using 5/3 Filter
20
ABSMA vs. H.264
21
Current Wavelet Video Coding

• T2D MCTF
• Temporal decomposition first
• Weak in spatial scalability
• 2Dt MCTF ( In-band MCTF)
• Spatial decomposition first
• Weak in temporal scalability
• 2Dt2D MCTF
• Hybrid method

22
In-band MCTF Scheme
23
(2Dt2D) Structure for MC 3D-DWT
24
Scalability for 3D-DWT Video Coding

• Scalability
• SNR scalability
• 3D EBCOT coding
• Temporal scalability
• Spatial scalability
• Other topics scalable motion vector

Transforms in the encoder
Transforms in the decoder
Half frame-rate
¼ frame-size
25
Current SVC status

• Core Experiment 1
• Adaptive Block-size Motion Alignment by Microsoft
  Research Asia
• Core Experiment 2
• H.264 (base layer) MCTF (enhancement layer)
