Rough Schedule

1

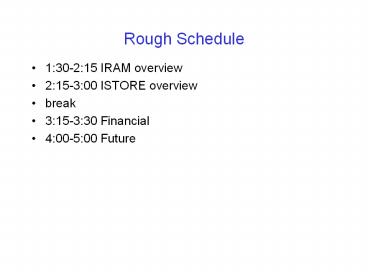

Rough Schedule

• 130-215 IRAM overview
• 215-300 ISTORE overview
• break
• 315-330 Financial
• 400-500 Future

2
IRAM Hardware and Software

• Kathy Yelick
• Computer Science Division
• UC Berkeley

3
Intelligent RAM IRAM

• Microprocessor DRAM on a single chip
• 10X capacity vs. DRAM
• on-chip memory latency 5-10X, bandwidth 50-100X
• improve energy efficiency 2X-4X (no off-chip
  bus)
• serial I/O 5-10X v. buses
• smaller board area/volume
• IRAM advantages extend to
• a single chip system
• a building block for larger systems

4
VIRAM System on a Chip

• 0.18 um EDL process
• 16 MB DRAM, 8 banks
• MIPS Scalar core and
  caches _at_ 200 MHz
• 4 64-bit vector unit
  pipelines _at_ 200 MHz
• 17x17 mm, 2 Watts target
• 25.6 GB/s memory (6.4 GB/s per direction
  and per Xbar)
• 0.8 Gflops (64-bit), 6.4 GOPs (16-bit)

Memory (64 Mbits / 8 MBytes)
Xbar
Memory (64 Mbits / 8 MBytes)
5
IRAM Chip Update

• IBM supplying embedded DRAM/Logic (100)
• Agreement in place and technology files available
• MIPS supplying scalar core (100)
• MIPS processor, caches, TLB
• MIT supplying FPU (100)
• VIRAM-1 Tape-out scheduled for late-2000
• Simplifications
• Floating point
• Network Interface

6
VIRAM-1 Chip Design Status

• MIPS scalar core
• Synthesizable RTL code received from MIPS
• Cache RAMs to be compiled for IBM technology
• FPU RTL code almost compete
• Vector unit
• RTL models for sub-blocks developed currently
  integrated and tested
• Control logic to be compiled for IBM technology
• Full-custom layout for multipliers/adders
  developed layout for shifters to be developed

• Memory system
• Synthesizable model for DRAM controllers done
• To be integrated with IBM DRAM macros
• Full-custom layout for crossbar under development
• Testing infrastructure
• Environment developed for automatic test
  validation
• Directed tests for single/multiple instruction
  groups developed
• Random instruction sequence generator developed

7
IRAM Architecture Update

• ISA mostly frozen since 6/99
• Changes in 2H 99 for better fixed-point model and
  some instructions for short vectors (auto
  increment and in-register permutations)
• Minor changes in 1H 00 to address new
  co-processor interface in MIPS core
• ISA manual publicly available
• http//www.cs.berkeley.edu
• Suite of simulators actively used
• vsim-isa (functional)
• Major rewrite underway for new scalar processor
• All UCB code
• vsim-p (performance), vsim-db (debugger),
  vsim-sync (memory synchronization)

8
IRAM Compiler Status

• Retarget of Cray Backend
• Steps in compiler development
• Build MIPS backend (done)
• Build VIRAM bacckend for vectorized loops (done)
• Instruction scheduling for VIRAM-1 (works, but
  could be improved)
• Insertion of memory barriers (using Cray
  strategy, improving)
• Optimizations for short loops (reduce overhead)
• Feedback results to Cray, new version from Cray
  (ongoing)

9
IRAM Compiler Update

• Study of compiler quality using 100 Dongarra
  loops
• 70 vectorized
• Average 10x reduction in dynamic instruction
  count
• Average vector length of 42
• 30 did not, usually due to a dependence
• Some reductions missed
• Vector version of math libraries (sin, cos, etc.)
  needed
• Some failed due to bugs in benchmark
• Identified 2 specific areas for improvements in
  loop overhead
• Use VL and MVL more carefully
• Use auto-increment instruction more extensively

10
Compiled Applications Update

• Applications using compiler
• Speech processing under development
• Developed new small-memory algorithm for speech
  processing
• Uses some existing kernels (FFT and MM)
• Vector search algorithm is most challenging
• DIS image understanding application under
  development
• Compiles, but does not yet vectorize well
• Singular Value Decomposition
• Better than 2 VLIW machines (TI C67 and TM 1100)
• Challenging BLAS-1,2 work well on IRAM because of
  memory BW
• Kernels
• SAXPY, MVM, etc.
• Will include DIS stress-marks

11
(10n x n SVD, rank 10)
(From Herman, Loo, Tang, CS252 project)
12
Hand-Coded Applications Update

• Image processing kernels (old FPU model)
• Note BLAS-2 performance

13
Problem General Element Permutation

• Hardware for a full vector permutation
  instruction (128 16b elements, 256b datapath)
• Datapath 16 x 16 (x 16b) crossbar scales by
  0(N2)
• Control 16 16-to-1 multiplexors scales by
  0(NlogN)
• Time/energy wasted on wide vector register file
  port

14
Simple Vector Permutations

• Simple steps of butterfly permutations
• A register provides the butterfly radix
• Separate instructions for moving elements to
  left/right
• Sufficient semantics for
• Fast reductions of vector registers (dot
  products)
• Fast FFT kernels

15
Hardware for Simple Permutations

• Hardware for 128 16b elements, 256b datapath
• Datapath 2 buses, 8 tristate drivers, 4
  multiplexors, 4 shifters (by 0, 16b, 32b only)
  Scales by O(N)
• Control 6 control cases scales by O(N)
• Other benefits
• Consecutive result elements written together
• Buses used only for small radices

16
FFT Uses In-Register Permutations
Without in-register permutations
17
Summary

• IRAM takes advantage of high on-chip bandwidth
• BLAS-2 performance confirms this
• Vector IRAM ISA utilizes this bandwidth
• Unit, strided, and indexed memory access patterns
  supported
• Exploits fine-grained parallelism, even with
  pointer chasing
• Compiler
• Well-understood compiler model, semi-automatic
• Still some work on code generation quality
• Application benchmarks
• Compiled and hand-coded
• Include FFT, SVD, MVM, sparse MVM, and other
  kernels used in image and signal processing

18
IRAM as Building Block for ISTORE

• System-on-a-chip enables computer, memory,
  redundant network interfaces without
  significantly increasing size of disk
• Target for 5-7 years

• building block 2006 MicroDrive integrated with
  IRAM
• 9GB disk, 50 MB/sec disk (projected)
• connected via crossbar switch
• O(10) Gflops
• 10,000 nodes fit into one rack!
