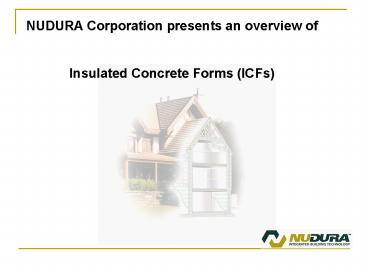

NUDURA Corporation presents an overview of

1
NUDURA Corporation presents an overview
of Insulated Concrete Forms (ICFs)
2
History of Concrete

• In 128 A.D., the Romans used concrete material to
  build the Pantheon. It still stands today
• Concrete mixtures were characterized by low
  cement material content, low water content, slow
  rate of development, and little shrinking or
  cracking during drying
• 40 years ago, EPS (expanded polystyrene) was
  introduced to the standard concrete wall because
  of its insulating value
• Today, ICFs offer structural integrity, thermal,
  moisture and acoustical barriers making them the
  highest performing wall system available

3
What are ICFs?

• ICFs (Insulated Concrete Forms) are comprised of
  two layers of foam
• insulation
• Insulated material is usually manufactured of
  expanded or extruded
• polystyrene (EPS)
• Two layers of insulation are held together with
  webbing or ties creating a
• hollow block which acts as a form for a steel
  reinforced concrete center

4
What are ICFs?

• Ties within the ICF keep rebar placement firm
  during pouring of concrete
• Resulting blocks are stacked like building
  blocks through interlock
• placement
• Concrete is poured within the hollow form to
  create a solid 4 to 12 core
• The result is a solid insulated wall assembly
  with good thermal resistance

5
Types of ICFs
Panel
Waffle Grid
Screen Grid (Post Beam)
6
Types of Flat Wall ICFs

• Ribbed interior cavity

• Smooth interior cavity

• Ribbed interior cavities allow the concrete to
  adhere to the EPS

7
Design Considerations with ICFs
8
Features of ICFs

• ICF Construction takes framing, insulating and
  wrapping a building and ties it all into one
  process
• Almost any finish can be applied to the inside
  and outside of an ICF
• Air leakage through and air movement within ICFs
  is far lower than frame construction due to the
  dense insulation and concrete

9
Features of ICFs

• Fastening strips provide a face on the ICF to
  fasten internal and external finishes
• Webbing provides structural integrity during
  rebar placement as well as during concrete pour
• Webbing is usually produced of polypropylene
  which will not deteriorate over time when
  embedded in concrete

10
Features of ICFs

• The performance structural, thermal, moisture
  and acoustic of an ICF wall is superior to a
  wood or steel framed wall
• Designed to withstand high wind, fire, elements
  and the test of time
• Resulting structure is very strong and exceeds
  code requirements for tornado and hurricane prone
  areas

11
Types of ICF Structures
Residential
12
Types of ICF Structures
Multi Residential
13
Types of ICF Structures
Institutional
14
Types of ICF Structures
Commercial
15
Types of ICF Structures
Industrial / Agricultural
16
ICF Structure Options
Flooring
Radius
Pool
Gable
17
Building with ICFs - Footings

• ICFs can easily be cut to fit various height
  increments
• Reversible forms are ideal as they have the least
  amount of waste

18
Reinforcements

• Placement of horizontal and vertical rebar
• Location of reinforcement determined by
  engineering
• Stirrups can be pre-bent or site bent

• 4 rebar (10M) footing dowels and horizontal
  vertical reinforcement as required by
  engineering.
• 5 rebar (15M) footing dowels and horizontal
  vertical reinforcement as required by
  engineering.
• 6 rebar (20M) and larger lintel bottom bars
  as required

19
Minimums For Reinforcing Concrete

• ¾ (19mm) of concrete cover
• All lap splices must be a minimum of 40x rebar
  diameter
• 4 20 lap, 5 25 lap, 6 30 lap
• 10M 400mm (16), 15M 600mm (24), 20M 800mm
  (32)
• Minimum solid wall segment length is 2-0
• If the wind is perpendicular to the roof ridge it
  is 4-0
• Minimum percent of solid wall length along
  exterior lines 5.5 flat wall types 15-50, 6
  waffle-grid 15-60, 6 screen-grid 15-70
• Engineering is required for all structures in
  immediate hurricane prone coastline subject to
  storm surge. (i.e.. Beachfront property coastal
  construction zone)
• All post-and-beam ICF walls require engineering
  because they are analyzed as a concrete frame
  rather than as monolithic concrete wall
  construction.

20
Lap Splices
21
Windows Doors
Concrete Lintel Details
22
Lintel Design Criteria

• Depth of lintel
• Width of opening
• Superimposed load
• Concrete strength
• Thickness of concrete
• Point loads

23
Lintels

• Lintels are required over all openings greater
  than or equal to 4 in width
• Lintels in screen grid and post and beam ICF
  walls spanning greater than 4 are not allowed
• Lintels in all ICF walls except flat walls must
  be formed
• ICF must be cut away and a flat lintel with a
  uniform shape must be provided
• Minimum lintel size for flat or formed ICF walls
  is 8
• Minimum lintel size for screen grid ICF walls is
  12
• Stirrups must be a minimum of 4 rebar
• Maximum stirrup spacing is half of the height of
  the lintel less the depth of the bottom cover of
  concrete
• If formed with wood then the bottom cover is at
  least 1 ½

24
Lintel Schedules
25
Wall to Floor / Roof Connections

• Anchor bolts can be located anywhere in the cores
  of flat wall forms
• Anchor bolts can only be located in the main
  cores (thickest portion) of waffle grid and
  screen grid ICF walls

Anchor bolts for ledgers
26
Wall to Floor / Roof Connections

• Foam must be removed in the location of the
  anchors to insure a tight connection
• At least a 3 diameter hole with the anchor bolt
  in the center
• Ledgers shall be a minimum of 2x8 No. 2 Southern
  pine or No. 2 Douglas fir
• Anchor bolts shall be a minimum of ½ diameter, 6
  feet on center, embedded a minimum of 4 inches
  (on all size forms)

27
Slump

• Should be 5 6

5 ¼
8
28
Consolidation

• Proper use fast in, slow out
• ¾ to 1 head size

• Consolidated concrete shall be dense and free of
  cold joints, voids and honeycombing.
• Concrete shall be well bonded to all rebar,
  anchors, embedments etc.
• Precautions should be taken to keep the lintel
  area free of concrete spillage until that area is
  to be filled and consolidated.

29
Placement Methods

• Pump Truck
• Line Pump
• Conveyor Belt
• Crane and Bucket
• Directly off Chute

30
Electrical Installations

• Rough-In for electrical work is accomplished in
  various ways

31
Plumbing Installations

• Up to 1 ½ PVC pipe with coupler
• Rough in as for electrical

32
Exterior Finishes
brick
33
Exterior Finishes
stucco
34
Exterior Finishes
siding
35
Features and Benefits of ICFs

• Save on Labor Costs
• ICFs are designed for speed. You can save on
  both labor and financing costs
• Reduced Maintenance
• Conventional construction is prone to maintenance
  problems such as drywall pops and basement leaks.
• Building with NUDURA solves these problems, and
  gives you a stronger, more durable, and more
  energy efficient home.

36
Features and Benefits of ICFs

• Save on Construction
• Less sub trades to coordinate
• The same ICF installers are used for
• Foundations
• Walls
• Interior / exterior studding
• Insulation
• Vapor / air barriers

37
Benefits and Specifications

• Energy Efficiency
• Lack of thermal bridging, thermal mass, and air
  tightness are real, measurable and significant
  benefits of ICF
• Up to 70 heating cost savings
• Thermal resistance of R22 (RSI 3.89 6 form
  unit) with performance running up to R50
• Thermal performance of an assembled wall can be
  double that of a typical wood framed wall,
  dependant on certain climatic conditions

38
Effective R-Value of Typical Walls)
FRAMING MEMBER NOMINAL CAVITY EFFECTIVE
WHOLE AND SPACING INSULATION WALL
R-VALUE   FRAME WOOD FRAME
STEEL 2 x 4 16 o.c. R-13 R-10.1
R-6 2 X 4 24 o.c. R-13
R-10.7 R-7.2 2 x 6 16
o.c. R-21 R-16.2 R-7.4 2
X 6 24 o.c. R-21
R-17.2 R-9.0   Source ASHRAEs 90.1
Committee   Nudura
R22.4 Up to R50
39
Benefits and Specifications

• Water Vapor Transmission
• Can sustain flooding with no structural damage
• ICF as a high mass substrate is not susceptible
  to
• Dry rot
• Termites
• Mold
• Maximum water permeance rating of 3.50 perms-in
  (200ng/PA.s.m2/25mm)
• Tested average based on total EPS 1.68 perms-in
  (96ng/Pa.s.m2/25mm)
• Waterproofing / damp proofing and drainage as
  required by building code compatible with EPS

40
Environmental Elements

• Options for very heavy termite hazard areas
• Protective exterior peel and stick coating
• Chemical spray for exterior area of site
• 6 cavity in EPS foam to expose concrete
• Embed flashing barrier into EPS/cavity prior to
  concrete pour

41
Benefits and Specifications

• Fire / Flammability Resistance
• Non-combustible self extinguishing materials
• Mandatory flame retardant in all foam plastic
  insulation (bromine)
• Flame spread 10
• Smoke Developed 300
• from UL File R5817(A)
• Code dictates all foam plastic protected with
  thermal barrier
• Exteriors of multi storey buildings protected
  from flame propagation
• Flame ignition temperature of 698F and self
  ignition temperature of 806F in accordance with
  ASTM D1929
• Concrete core provides a fire resistance rating
  of up to 4 hours. Rating is based on how long
  you can safely get out of the building. Stick
  frame rating is 20 minutes (ASTM E119 CAN/ULC -
  101)

42
Benefits and Specifications

• Sound Transmissions
• 6 concrete core provides a Sound Transmission
  Class Rating of 50 (totally inaudible) (ASTM E336
  E413)
• Wind Resistance
• Reinforcing dictated to higher degree per wind
  speed and earthquake zone classifications
  providing greater impact resistance than wood
  frame or even concrete block
• Up to 250 mph
• Structural Design Considerations
• Wall design principle is a monolithic structural
  concrete wall. It is up to 9x stronger than a
  wood framed wall.
• Designed as reinforced concrete in accordance
  with all applicable US prescriptive tables per
  IRC, SBC, Florida Building Code, PCA/NAHB EB118
  or Engineered design per ACI 318

43
North American Code Approvals

• USA
• ICC-ES ER-6163)
• NES NER-663
• Various Individual State approvals as applicable
• CANADA
• CCMC (NRC Canada 13063-R)
• Ontario Ministers Ruling

44
For More Information

• Visit www.nudura.com
• Call 1-866-468-6299
• Enroll in NUDURAs one day training course
