Data Sources for Tropical Cyclone Analysis, Calibration, Post-Analysis, and Warnings?

1

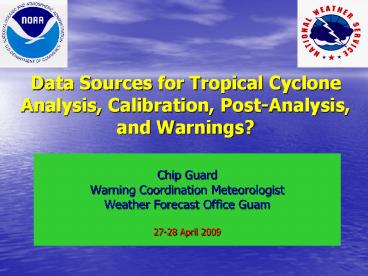

Data Sources for Tropical Cyclone Analysis,
Calibration, Post-Analysis, and Warnings?

• Chip Guard
• Warning Coordination Meteorologist
• Weather Forecast Office Guam
• 27-28 April 2009

2
WFO Guam Tropical Cyclone Warning Points Area
of Responsibility
3
Tropical Cyclone Data Availability

• Numerous but limited data platforms
• Aircraft only during field experiments
• Synoptic sources
• ASOS FMQ-19, Aviation
• AMOS Handar
• Fixed and Drifting Buoys
• Upper Air
• University of Wyoming
• Secondary observations (synoptic)
• Ship Reports
• Various websites
• e.g., Florida State University
• Doppler Radar Data
• Antidotal Spotter Observations
• Historical Observations

4
Land Surface Observations

• 24-hr (manned) 9 locations
• Limited (manned) 6 locations
• Secondary (synoptic) 10 locations
• Remote (manned) 3 locations
• Remote (unmanned) 7 locations
• Spotters 150

5
Automated Surface Observing System--ASOS

• 1 on Guam
• 1 on Saipan

6
HandarCommercial Port Guam

• 4 on Guam
• Mangilao at University
• Commercial Port
• Inarajan (inland)
• Merizo
• 1 on Rota (airport)
• 1 on Tinian (airport)

7
AMOSKosrae Airport

• Only 3 of 18 original sites operational 1
  working
• Kosrae Airport
• Pagan (NOAA ship will repair it, hopefully)
• Ulithi (we plan to repair it)
• 3 were destroyed
• 2 sited but not installed
• 10 inoperative due to decay and/or logistics
• Program over 15 years old

AMOS
Airport winds
8
Aircraft

• Left the western North Pacific in 1987
• For research, data is available before 1987 and
  during special experiments
• TCM-90, TCM-92, TCM-93
• THORPEX--T-PARC--TCS-08
• There are many improvements to the aircraft data
  since they were stationed out here
• Older aircraft data was valuable, but had
  problems it needs to be reassessed someday,
  especially for intensities data reassessment
  needed for climate applications

9
Upper Air

• 7 UA sites in an area the size of the Continental
  US
• Use hydrogen with helium backup--reliable
• 2 per day 4 per day when a tropical cyclone is
  within 300 nm
• Outstanding quality

10
Ship Reports

• 95 are accurate tendency to question ship
  winds e.g., its in a thunderstorm What is a
  typhoon but organized convection?
• Ship report coverage is poor data at best must
  be looked at as the minimum maximum or least
  intensity, not the maximum
• Statistically, the storms maximum intensity must
  be greater than that indicated by a few ships
• QS winds provide much wider coverage

11
Fixed and Drifting Buoys

• 1 fixed buoy Scripps and USACE funded to study
  the effects of reefs on waves
• Moored Met Buoysnone
• TOGA Buoysmost are south and east of area most
  lack meteorological sensors
• DART Buoys (for tsunami monitoring)lack
  meteorological sensorsbeing evaluated
• Drifting Buoysnot routinely used now

12
Doppler Weather Radar

• Mangilao, Guam (Andersen)
• Kwajalein
• 17th WS makes official
• position/intensity reports for the Andersen
  radar
• WFO Guam usually makes supplementary reports

13
Meteorological Satellite Data Sources

• Direct Readout of MT-SAT imagery
• NRL Monterey Website
• NESDIS
• CIMSS University of Wisconsin
• CIRA Colorado State University
• Numerous other available websites
• We are largely a satellite-dependent warning
  agency

14
Meteorological Data Types

• Satellite Imagery
• Geostationary Visible, infrared, water vapor
• Polar Orbiter Visible, infrared, MODIS
• Microwave
• Sources SSMIS, SSM/I, AMSU, AMSR-E
• 19GHz, 22GHz, 37GHz, 85GHz, etc
• TRaP
• Ocean Wind Data
• QuickScat, ASCAT, SSM/I, Windsat
• Altimetry Data
• JASON-1, JASON-2, ENVISAT

15
Dvorak Intensity Technique

• Visual (1974) and Enhanced Infrared (1983)
  Techniques initially evaluated at JTWC
• Measures vorticity, shear, convective vigor
• Assumes
• The center location is accurately known
• The 24-hour old intensity estimate was correct
• Uses patterns and eye and cloud temperatures
• Uses T-numbers and Current Intensity (CI)-numbers
• Weakest area is from T3.5-T5.0 with no eye
• Improvements can be made with modifications to
  the CI-numbers
• Must take care that the technique is not degraded
  by mis-use likely will have to identify a
  microwave era
• Despite all the complaints, it hasnt been
  replaced in 35 yrs

16
Dvorak Intensity Technique
17
Microwave Data
18
QuickScat and Tropical Winds

• We compare QS winds with island winds daily they
  are mostly accurate
• In the tropics, surface winds usually increase
  with convective rainfall rain-flagged winds are
  frequently representative of gusts
• QS winds are 8-min winds 30-kt QS is 35-kt
• 1-minute (US) wind
• QS winds considered to over-estimate below 35 kt
  and under-estimate above 35 kt
• QS saturates at about 60-70 kt
• Verification data is often hard to find around TCs

19
QuickScat
Guam
20
QuickScat
21
QuickScat with Ambiguities
Using ambiguities requires dedicated training and
practice
22
Other Conventional and Satellite Data Uses

• Rainfall Data We have numerous rainfall stations
  in Micronesia, but few are real-time TRaP data
  important for warnings for flash floods and
  mudslides
• Sea Level Data There are several tide gauges in
  Micronesia, but only a few with GPS sites
  satellite altimetry data is very valuable for
  open-ocean wave heights

23
TRaP Rainfall Data for Typhoon Tingting
24
Mudslides in Chuuk, Pohnpei, Kosrae Guam

• Long-chain clay molecules
• Critical Parameters
• 15 rain in 36 hr or 10 rain in 24 hr
• Continued 0.5/hr rain
• Forecast Parameters
• 10-12 rain in 36 hr or 6-8 rain in 24 hr
• Expected continued 0.5/hr rain

25
Mudslides in Palau

• Short-chain clay molecules
• Critical Parameters
• 8 rain in 36 hr or 6 rain in 24 hr
• Continued 0.5/hr rain
• Forecast Parameters
• 6 rain in 36 hr or 4 rain in 24 hr
• Expected continued 0.5/hr rain

26
Antidotal Spotter Observations

• Waterspout came ashore
• NOAA/NWS tropical cyclone wind assessments
• I provide a 2-hour spotter training course most
  spotters also take a 2-day Tropical Cyclone,
  Disaster Preparedness and Climate Workshop I teach

27
Historical Observations

• Spennemann Book German Documents
• Spanish Documents
• Newspapers
• Padgett Summaries
• Typhoons Affecting Guam
• Damage photos
• Valuable for reassessment and climate work

28
Decreasing Order of Tropical Cyclone-Related
Causes of Deaths in Micronesia

• Most deaths in Micronesia due to mudslides19
  (1997), 43 (2002)both were during El Nino
  periods
• High surf (before and after worst conditions)
• Wind
• Storm surge
• Flash floods

29
Decreasing Order of Tropical Cyclone-Related
Property Damage in Micronesia

• Wind
• Storm surge
• Mudslides
• High surf
• Flash floods

30
Costliest Locations in Micronesia

• Costs Function of valuation and vulnerability
• Vulnerability Function of Risk, Population, and
  Preparedness, Response Mitigation
• Costs in Decreasing Order
• Guam
• CNMI
• FSM (Chuuk, Yap, Pohnpei, Kosrae)
• Marshall Islands (Kwajalein/Ebeye Majuro)
• Palau
