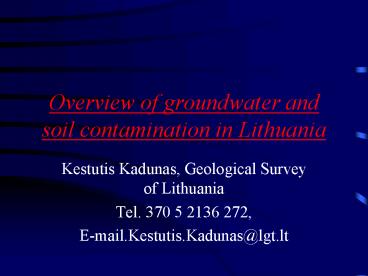

Overview of groundwater and soil contamination in Lithuania

1
Overview of groundwater and soil contamination in
Lithuania

• Kestutis Kadunas, Geological Survey of Lithuania
• Tel. [phone],
• E-mail.Kestutis.Kadunas_at_lgt.lt

2
Action plan in environment management

• Prepare law on responsibility for damages caused
  by former activity
• Law on topsoil protection
• Inventory of polluted sites including sanitation
  programs

• Reclamation of old landfills
• Restoration of polluted sites
• Organization of sanitation of former pesticide
  storages

SourceEnvironment protection strategy of
Lithuania, 1996
3
Groundwater use and protection Strategy, 2002 -
2010

• To prepare and keep the Register of Pollution
  Sources of the Geological Environment
• To survey pollution sources, to carry out their
  monitoring, to establish priorities of
  reclamation, to prepare programmes, to initiate
  the sanitation of priority territories
• To produce methodical recommendations on
  investigation and monitoring of pollution sources

• To set pollution thresholds in the soil and
  groundwater

4
Overview of contaminated lands(point sources of
pollution)

• Sanitary landfills and waste sites
• Former and present military sites
• Civil oil facilities
• Pesticide storages

5
Inventory of sanitary landfills waste sites

• Inventory of sanitary landfills and waste sites
  carried out in 1993
• Totally 636 sites find out
• In 264 sites storage of chemical wastes were
  ascertained
• Detail investigation carried out in 36 sites
• Calculation of remediation for 8 sites - 1,5 bil.
  USD

Source Kruger Consult Geological Survey of
Lithuania
6
Inventory of sanitary landfills waste sites

• Group A - dangerous sites, detailed
  investigations and sanitation needed
• Group B - investigations for decision needed
• Group C D - no chemical waste, limited
  investigation

Source Kruger Consult Geological Survey of
Lithuania
7
Industrial landfill, Ketvergiai

• Wood (bark) waste
• Sludge from waste
• water treatment plant
• 500000 100 000 m3

• Contamination of
• GW?ponds ?SW
• Phenols, NH4,
• organic compounds
• Risk to contaminate
• private dug wells
• Contaminated SW
• flows to Baltic see

Source Geological Survey of Lithuania
8
Obeliai waste disposal

• Waste of alcohol production
• Oil waste
• Domestic waste
• Contamination by mineral
• oil, heavy metals
• Polluted area - gt 100 000 m2
• Total volume to be purified
• 9 000 000 m3
• Remediation cost 1,5bil USD

Landfill
Contaminated GW
Source Geological Survey of Lithuania Ecorem
9
Former and present military facilities

• The inventory carried out in 1994
• In 275 sites were located 421 units
• 160 sites are polluted by hydrocarbons
• In 35 cases surface water pollution
• In 10 investigated sites remediation action
  needed

Source Kruger Consult
10
Registered soil groundwater contamination in
military sites

• Oil contamination - 556
• Chemicals - 56
• Rocket fuel - 20
• Waste sites - 478

Source Kruger Consult
11
Pajuoste military airfield
Source Geological Survey of Lithuania
12
Soil Groundwater contamination in former
military sities
Source Kruger Consult
13
Civil oil facilities (petrol stations,oil
storages)
Source GROTA Ltd
14
Number of civil oil facilities

• Small storages 5000
• Petrol stations 423
• Oil storages 30
• Power plants 130

Source GROTA Ltd
15
Area of civil oil facilities
Source GROTA Ltd
16
Number of investigated civil oil facilities
.
Source GROTA Ltd
17
Areas of contaminated soils groundwater in
civil oil facilities(167 sites)
Source GROTA Ltd
18
Remediation plan for Bugeniai railway station

• Contaminated area with oil
• concentration gt 5000 mg/kg
• exceeds 40 000 m2
• Entire area inside ring road needed
• for remediation 427 067 m2

• Cost of remediation according
• Lithuanian norms 7.507.000USD
• Full cost - 33.917.498 USD

Source Geological Survey of Lithuania Ecorem
19
Pesticide storages

• 954 pesticide storages inventored in 1996 - 97
• Not detail investigation carried out (18
  investigated)
• Not action plan developed

Source Geological Survey Ministry of Environment
20
Grave of pesticidesygmantikes, alcininkai

• In groundwater simazin, prometrin,
  propazin,atrazin
• ? - and ? - HCH were discovered in 1995 m.
• Sum of pesticides 35 - 200µg/l

Source Geological Survey of Lithuania Minstry
of Environment
21
Source Geological Survey of Lithuania Ecorem
22
What we lack to be faster ??

• Law on responsibility for damages caused by
  former activity
• Developed clean - up priorities/criteria
• To develop methodology for prioritisation of
  inventored sites for action plan design

23
Environment standards regulations

• Maximum permitted concentration of oil products
  in soils and groundwater LAND 9-2002 (clean-up
  criteria)
• Order on Inventory and Information Collection of
  Discharges to Groundwater of the Main Pollutants
  (priority substances) (describes order for
  declaration of potentially contaminated sites,
  sets limits for groundwater contamination

24
Results of inventory of contaminated sites
(Register at the Geological Survey of Lithuania)
