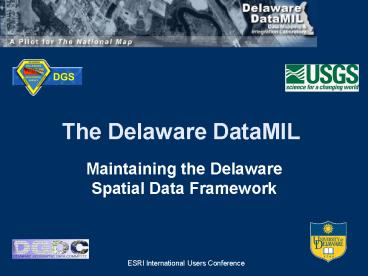

The Delaware DataMIL

1
The Delaware DataMIL

• Maintaining the Delaware Spatial Data Framework

2

• Delawares GIS Community
• Delaware Spatial Data Framework
• Delaware and The National Map
• DataMIL Architecture
• Map Production Laboratory
• Public Participation
• Future Directions

3
Delaware

• No central GIS Authority
• Data developed at, and shared among, all levels
  of government
• Based on a shared Framework standard data sets
  work together
• All contribute data, all gain data

4
Delaware

• 2,000 Square Miles
• (Give or Take)
• 784,000 Folks
• 3 Counties
• 57 Municipalities

5
A Close-Knit Community

• The Sec. of Agriculture and the State Planning
  Director

Levy Court Commission Brooks Banta and Governor
Ruth Ann Minner
6
Our Challenge

• Create and maintain useful spatial data
• Accurate, up-to-date, statewide
• Open to all
• In a completely distributed environment
• With no truly formal control

7
Coordination, Not Control

• Local expertise creates better data
• Two keys
• Communicate
• Share Data

8
Delawares GIS Community

• Inter-related Committees
• State Mapping Advisory Committee
• Delaware Geographic Data Committee
• Delaware Spatial Data I-Team
• Focused on Delawares Spatial Data Framework

9
The Spatial Data Framework

• Accepted in 2000
• The skeleton that supports a wide variety of
  spatial data sets
• Limited to core, skeletal data sets
• Part of the National Spatial Data Infrastructure
  (NSDI)

10
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
11
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
12
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
13
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
14
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
15
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
16
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
17
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
18
Geographic Names Land Use Cadastral Transportation
Hydrography Governmental Units Geodetic
Control Hypsography Orthoimagery
19
Need for Improvement

• Delaware topographic map series (DRGs/DLGs)
  produced in early 1990s
• Updated Delaware DOQQs 1997/2002, Land Use,
  DelDOT Transportation Network, Municipal
  Boundaries, Watersheds (Delaware Framework)
• Several USGS National datasets under development
  GNIS, NHD, NED, Imagery, Land Cover (The
  National Map)

20
Why so Fast and Complete?

• Partnerships
• DGS, USGS, DGDC, SMAC, DE-GIS Community
• Remember what we said about being small?

21
NSGIC, Sept. 2000, Tahoe

• Discussion With USGS
• We have data
• you have data
• DLG updates?

22
The National Map

• Seamless
• Nationwide
• Current
• Partnership based
• Major data themes
• Public domain
• Online accessibility

23
Can We Have

• Somewhere on-line to combine and compare data?
• A collaboratory where we can host discussions?
• Mini topo maps?
• Easy-to-use interface?

24
Serendipity?

• Coincidence of DataMIL and The National Map
• Past Present Partnerships
• Tremendous Synergy and Focus

25
What Is the DataMIL?

• Delaware Data Mapping and Integration Laboratory
  (DataMIL)
• Maintain and improve Delaware Framework through
  collaboration
• Provide access to Delaware Framework information
  for all

26
DataMILs Components

• Partnership-based MOAs among State and Federal
  agencies
• Spatial Data and Metadata Servers
• Public Participation/Feedback Process
• Web Services
• Web Site

27
DataMIL Distributed (G.NET)
Web Services

• Mapping
• Feature Streaming
• Metadata Publish
• Metadata Browse

Database Archive
28
DataMIL Technology

• Web
• ASP, JSP, HTML/JavaScript
• iPlanet 6.0, ChiliSoft ASP 3.6.2
• Mapping Metadata
• ArcIMS 4.0, ArcGIS 8.2
• ArcSDE 8.2, Oracle 8i
• Discussion Forums
• Akiva WebBoard 5.0

29
Web Server
Map Server
Dual PIV 1.4 GHz 2 GB RAM 40 GB Disk
Dual PIV 2.0 GHz 2 GB RAM 60 GB Disk
Quad PIII Xeon 700 MHz 2 MB L2 cache/proc 4 GB
RAM 2-36 GB OS RAID1 4-36 GB Data RAID5
Data Server
30
Web Site Architecture
Portal
Metadata Explorer
Integration Lab
Standards Collaboration Integration
Production Lab
Forums
31
Metadata within Delaware

• ArcIMS Metadata Server
• Delaware Metadata Explorer (Web)
• ArcCatalog (ArcGIS Desktop)
• Distributed Maintenance
• Each agency with unique login folder
• Edit/Publish through ArcCatalog or web

32
DemonstrationDelaware Metadata Explorer
33
DemonstrationMap Production Laboratory
34
DemonstrationDiscussion Forums
35
April 18, 2002
Delaware was the First State at the start of
the nation now we're ready to be the first state
in the new, 21st century National Map. -- Gov.
Minner
Gov. Minner at Delaware GIS 2002 Connecting
Communities
36
Making It Known

• Governors Press Release
• Newspapers, TV, Radio
• Web links
• Extensive e-mailing

37
Real World Uses

• Its Shields, Not Shilds
• Thats not a stream, thats a driveway.
• Selbyville Police Chief
• Emergency planning
• Knowing where the ditches are

38
What Next?

• Mapping Partnership Office (MPO)
• Cadastral Layers
• Vertical Integration of Framework Layers
• Develop Delaware Framework Data Model
• Non-Framework Layers?

39
The Delaware DataMIL

• http//datamil.udel.edu
