Extrusion

1

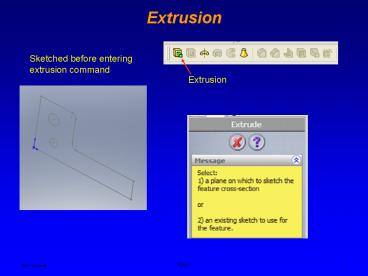

Extrusion
Sketched before entering extrusion command
Extrusion
2
Extrusion
Handle bar to change extrusion depth and direction
Option for extrusion depth
3
Extrusion
Extrusion direction has to be linear
Extruded along a specified direction
4
Extrusion
Hollow extrusion, specify wall thickness
5
Extrusion
Two sketches selected for extrusion, small hole
is excluded
Select a particular sketch to extrude
6
Extrude Cut
Sketch a desired shape for cutting
7
Extrusion example
