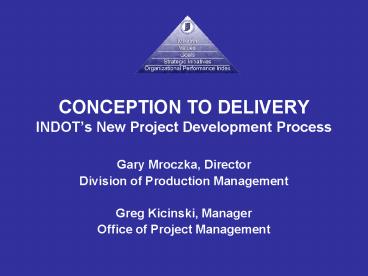

CONCEPTION TO DELIVERY INDOTs New Project Development Process

1
CONCEPTION TO DELIVERYINDOTs New Project
Development Process

• Gary Mroczka, Director
• Division of Production Management
• Greg Kicinski, Manager
• Office of Project Management

2
Conception to Delivery

• Why a New Process?
• Highlights of New Major PDP Process
• Detailed Overview of New Major PDP
• Project Management
• Detailed Overview of New Minor PDP
• How does INDOT convert?
• Questions

3
Why a New Process?

• Strategic Initiative 3 Goal
• Reduce project delivery by 50
• Construction Task Group 10
• Time
• Unreliable Project Delivery
• Peaks and Valleys
• Accountability

4
Why a New Process?

• MAJOR MOVES
• Deliver Program at Warpspeed Pace!!!
• Must Maintain Scope
• Innovative Processes
• Challenge All Professionals

5
Why a New Process?

• CURRENT PROJECT APPROACH

6
Why a New Process?

• Current Consultant Approach

Over the Wall Mentality
7
Why a New Process?

• Very Limited Project Management
• Why do we need ? Old INDOT Philosophy

Budget
Budget
PROJECT START
Project Completion
Schedule
Scope
Schedule
Scope
Quality
Quality
8
Highlights of New Process

• New Project Development Processes
• Started with ODOT
• Site Visits
• Talked to Author
• Training?
• Why?
• Accountability
• Responsibility
• Ease to Customers

9
Highlights of New Process

• ODOTs PDP
• Clear
• Task Durations
• New Tasks
• Constructability
• Reviews
• Red Flag Summary
• Cost Controls

10
Highlights of New Process

• ODOTs PDP
• Items INDOT did not like about ODOTs PDP.
• Environmental Process
• Technical Reviews

11
Highlights of New Process

• New Professional Services Strategy
• Efficient!!!
• One RFP advertisement
• Major Projects
• Teaming!!!
• Multiple Contracting Steps
• Steps 2 and 3 (Preliminary Solutions
  Transitional Step)
• Steps 4 and 5 (Transitional Step- Survey)
• Steps 6 12 (Final Env. Doc, Design and R/W Eng.)

12
Highlights of New Process

• New Consultant Approach

13
Highlights of New Process

• New Consultant Evaluation Approach

Project Manager
P N
Draft Env. Doc
30 Plans
60 Plans
Permit App.
90 Plans
Tracings
ContractDivision
District Const.
14
Highlights of New Process
MAJOR PDP GANDT CHART
15
TopDOT Construction Task Group 10
MAJOR PDP ROAD MAP
16
Major Project Development Process

• Identify Problem
• Develop Broad Scope of Work
• Completed by CO Planning Division CO Program
  Manager
• Project Limits

STEP 0
17
Major Project Development Process

• Professional Services
• Project Mgr Assigned
• Advertise RFP
• Evaluate Proposals
• Selection
• Scope of Work Meeting
• Fee Negotiated

STEP 1
18
Major Project Development Process

• Professional Services
• (Continued)
• Contract Prepared
• Contract Executed
• Task Order Steps 2 and 3
• Deliverable Purpose and Need Statement

STEP 1
19
Major Project Development Process

• Research and Technical Studies
• Red Flag Summary
• Refine Purpose and Need Statement
• Initiate NEPA
• Collect Data

STEP 2
20
Major Project Development Process

• Identify Evaluate Conceptual Solutions
• Develop and Analyze Conceptual Solutions
• Screening and Eliminate Conceptual Solutions
• Hold Public Info Mtgs

STEP 3
21
Major Project Development Process

• Identify Evaluate Conceptual Solutions
• (Continued)
• Initiate Resource Agency Consultation
• Purpose and Need
• IPOC Concurrence
• Evaluate Consultant
• Supplement Contract for Steps 4 and 5

STEP 3
22
Major Project Development Process

• Identify Evaluate Conceptual Solutions
• Whats a Conceptual Solution???

STEP 3
23
Major Project Development Process

• Develop Preliminary Alternatives
• Engineering Studies
• Environmental Field Studies
• Analyze and Screen Preliminary Alternatives
• Hold Public Info. Mtg.

STEP 4
24
Major Project Development Process

• What are Preliminary Alternatives?

Three Lanes Four Lanes Five Lanes
STEP 4
25
Major Project Development Process

• Develop Preliminary Alternatives (Cont.)
• Resource Agency Consultation
• Select Feasible Alternatives.

STEP 4
26
Major Project Development Process

• What are Feasible Alternatives?

STEP 4
27
Major Project Development Process

• Refine Feasible Alternatives
• Develop Design Elements
• Environmental Assessment
• Prepare Draft Environmental Doc.
• Hold Constructability Review

STEP 5
28
Major Project Development Process

• Refine Feasible Alternatives (Cont.)
• Analyze and Screen Feasible Alternatives
• Select Preferred Alternative

STEP 5
29
Major Project Development Process

• Preferred Alternative
• Added Travel Lanes
• 4 Lane Section

STEP 5
30
Major Project Development Process

• Refine Feasible Alternatives (Cont.)
• Publish and Distribute Draft Environmental
  Document
• Hold Public Hearing
• IPOC Concurrence
• Evaluate Consultant
• Supplement Contract
• Steps 6-12

STEP 5
31
Major Project Development Process

• Develop Preferred Alternative Stage 1 Design
• Incorporates detailed design into Env. Doc.
• Tightens Down Footprint
• Assists in Impacts / Permitting

STEP 6
32
Major Project Development Process

• Develop Preferred Alternative Stage 1 Design
  (Cont.)
• Ground or Aerial Survey
• Utilities Verifies Locations
• Subsurface Investigations
• Geotechnical
• Utility

STEP 6
33
Major Project Development Process

• Develop Preferred Alternative Stage 1 Design
  (Cont.)
• Pavement Design
• Complete Environmental Activities
• Determine Permits

STEP 6
34
Major Project Development Process

• Develop Preferred Alternative Stage 1 Design
  (Cont.)
• Design Exception Approval
• Value Engineering
• Constructability Review

STEP 6
35
Major Project Development Process

• Develop Stage 2 Design (31-60)
• Complete Draft Waterway Permit Applications
• Complete Phase 2 Environmental Assessment

STEP 7
36
Major Project Development Process

• Develop Stage 2 Design (31-60)
• Prepare Final Environmental Document
• Hold Public Info. Mtg.
• 45 Design Plans
• Utilities Identifies Conflicts
• Construction - Utility Review

STEP 7
37
Major Project Development Process

• Environmental Approval
• Publish / Distribute Final Environmental Document
• Obtain FONSI or ROD
• Publish in Federal Register

STEP 8
38
Major Project Development Process

• Prepare Final R/W Plans
• Will include purchasing R/W for Utility
  Relocation.

STEP 9
39
Major Project Development Process

• Begin Land Acquisition
• FHWA Funding Authorization
• Prepare Appraisals
• Purchase R/W
• Relocation Assistance
• Condemnation
• R/W Clearance
• Record Deeds

STEP 10
40
Major Project Development Process

• Develop Stage 3 Design (61-90)
• Relocation Plans Designed by Utilities
• Utility Agreements Prepared and Approved
• All Waterway Permits Applied For.
• Final Field Review
• Public Info Mtg.

STEP 11
41
Major Project Development Process

• Prepare Final Plan Package
• Construction Cost Estimate
• Special Provisions
• Final Tracings
• Production Team Review
• Project Submitted to Contracts

STEP 12
42
Major Project Development Process
STEP 13
43
Project Management

• So What is Project Management?
• Almost any human activity that involves carrying
  out a non-repetitive task can be a project.
• So we are all project managers!
• We all practice project management (PM).

44
Project Management

• So What is Project Management?
• But there is a big difference between carrying
  out a very simple project involving one or two
  people and one involving a complex mix of people,
  organizations and tasks.
• Answer Project Management

45
Conception to Delivery

• Project Management (Whats there role?)
• Why do we need ? TopDOT Philosophy

Budget
Budget
PROJECT COMPLETION
PROJECT START
Schedule
Scope
Schedule
Scope
Quality
Quality
46
Office of Project Management
47
Office of Project Management

• Responsibilities
• All Managers have the same primary
  responsibilities
• Manage all aspects of Major New (IPOC) projects
  development from project inception through
  construction.
• Work with nearly every area in INDOT to ensure
  projects are delivered on time and budget and
  within the original scope
• Report variances to the program manager

48
Office of Project Management

• Responsibilities (Cont.)
• If project budget or schedule can not be held,
  present options to the IPOC Committee for
  decision.
• Manage Value Engineering for projects exceeding
  25M.
• Develop and maintain the Project Development
  Process Manual.
• Provide training to the Districts on the PDP.
• Provide Project Management training to the
  Districts and Central Office.

49
Project Manager Functions

• So What is Project Management?

50
Project Manager Functions
51
Project Manager Functions

• So What is Project Management?

52
Project Manager Functions
53
Project Manager Functions
54
Risk Management

• Risk Assessment at Project Start
• Determine what can go wrong
• Geotechnical issues, Environmental issues,
  Political issues
• Utilities, R/W, Inflation ..
• What items are within the control of the project
  team.
• What items are beyond the control of the project
  team.
• Items beyond the control of the project team
  still must be accounted for and managed.

55
Risk Management
56
Risk Management
57
Risk Management
58
Risk Management
59
Risk Management
60
Risk Management
61
Risk Management
62
Risk Management

• Risks must be properly assigned to who can best
  manage that risk.
• INDOT
• Consultant
• Contractor

• Contingencies (Time and Budget) must be added to
  properly account for risk.

63
Risk Management

• CPM schedule should be developed for each project
  .
• Contingencies can be reduced as the project
  progresses.
• Early dialog with all stakeholders should be
  started.
• District
• Utilities
• Environmental Agencies
• Local Elected officials
• Property Owners
• Business Owners
• Schools

64
Value Engineering

• Value Engineering is required on all projects
  over 25M that use federal funds. However, this
  can be done on any project.
• Project does NOT equal a contract.
• A project is considered all that is covered by
  the environmental document.
• 25M includes all costs to develop the project.
  (PE, R/W, Utilities, Construction).

65
Value Engineering

• INDOT will be training multi-disciplinary teams
  to value engineer projects.
• There are multiple opportunities to value
  engineer a project each with advantages and
  disadvantages
• After Scoping (prior to NEPA)
• At 30 design
• After 60 design
• Any or all of the opportunities may be used
  depending on the complexity of the project

66
Constructability Reviews

• There are multiple opportunities for
  constructability reviews as well.
• May be performed by INDOT Central Office
  Construction, District Office Construction or in
  some cases by industry panel.
• These need to be done early enough to have an
  affect on the design of the project.

67
District Involvement inIPOC Projects

• Central Office is responsible for the management
  of the IPOC project. However, District
  involvement is critical to their success.
• District Planning, Production, Construction and
  Maintenance must be involved early and often
  during the project development.

68
Think Out of the Box

• We MUST do whatever is needed to deliver projects
  on time and on budget.
• No longer can we continue to increase the budget
  to include thing that would be nice to have
  while we are there. We must stick to the
  original scope.
• No longer can we continue to move out project
  schedules because we did not plan enough
  resources or we did not properly assess the
  project risks.

69
Think Out of the Box

• We MUST look at different ways of getting things
  done.
• Strategically use 100 state funds on certain
  projects to eliminate sticking points within NEPA
  or R/W acquisition.
• Work with utilities to design and construct
  relocations
• Consider alternate project delivery methods when
  design is on the critical path
• Work with environmental agencies to come up with
  solutions to issues

70
Conception to Delivery
MINOR PDP ROAD MAP
71
Conception to Delivery
MINOR PDP GANDT CHART
72
Minor Project Development Process

• Identify Problem
• Develop Broad Scope of Work
• Completed by CO Planning Division CO Program
  Manager
• Project Limits

STEP 0
73
Minor Project Development Process

• Develop Purpose and Need of Project
• Stakeholder Input
• Perform Research
• Collect Data
• Site Inspection
• Perform Technical Studies

STEP 1
74
Minor Project Development Process

• Develop Purpose and Need of Project
• (Continued)
• Conduct Red Flag Summary
• Identify Major Issues
• Determine Avoidance
• Develop Purpose and Need Statement

STEP 1
75
Minor Project Development Process

• Determine Scope, Schedule and Budget
• Identify Alternatives
• Develop Project Scope (Abbreviated)
• Determine Project Schedule

STEP 2
76
Minor Project Development Process

• Determine Scope, Schedule and Budget (Cont.)
• Develop Initial Project Budget
• PE, RW, Utility, CN
• District Concurrence

STEP 2
77
Minor Project Development Process

• Perform Environmental Analysis Begin
  Pre-Engineering
• Project Survey
• Develop Alternatives
• 5-10 Engineered Design
• Environmental Field work

STEP 3
78
Minor Project Development Process

• Perform Environmental Analysis Begin
  Pre-Engineering
• (Continued)
• Constructability Review
• Screen Alternatives
• Hold Public Info Meeting
• Select Preferred Alternative
• District Concurrence

STEP 3
79
Minor Project Development Process

• Develop Stage 1 Design Environmental Document
• Complete Environmental Field Studies
• Geotechnical Investigation
• Pavement Design
• Stage 1 Design
• Design Exceptions

STEP 4
80
Minor Project Development Process

• Develop Stage 1 Design Environmental Document
  (Cont.)
• Design Field Check
• Public Utility Verifies Locations
• Value Engineering
• Constructability Review

STEP 4
81
Minor Project Development Process

• Develop Stage 2 Design
• CE Approved
• Environmental Commitments
• Identify Waterway Permits
• Preliminary R/W Plans
• Public Utility Identifies Conflicts
• Hold Public
• Info Mtg.

STEP 5
82
Minor Project Development Process

• Final R/W Plans
• Accommodation for Public Utility Relocations

STEP 6
83
Minor Project Development Process

• Begin Land Acquisition
• Traditional Process
• (INDOT Regional Offices)
• Appraising
• Buying
• Relocation
• Condemnation
• Record Deeds

STEP 7
84
Minor Project Development Process

• Develop Stage 3 Design
• Public Utility Prepares Relocation Plans
• Process Utility Agreements
• Apply for Waterway Permits
• Final Field Review
• Hold Public Info Meeting

STEP 8
85
Minor Project Development Process

• Prepare Final Plan Package
• Similar to Major Project Step 12
• Final Cost Estimate, Special Provisions, Tracings
• Production Review

STEP 9
86
How Does INDOT Convert?

• To-Do List Before On-line
• PDP Manual Completion July 2006
• Major, Minor and Maintenance Projects
• Training (CO, Districts, Consultants)
• July to Dec 2006.
• System Implementation
• Upgrades On-going on Current System

87
How Does INDOT Convert?

• New Projects
• Recent and New RFPs New Process
• Current Active Projects
• In Design Follow old way to completion
• Environment Complete Design yet to start
  Finish in New Process

88
Conception to Delivery

• Questions
• ???
