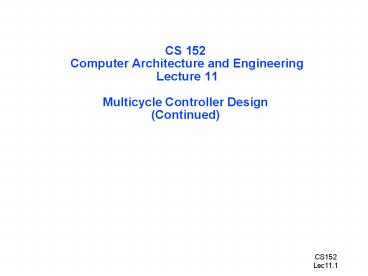

CS 152 Computer Architecture and
EngineeringLecture 11Multicycle Controller
Design (Continued)
2
The Big Picture Where are We Now?

• The Five Classic Components of a Computer
• Todays Topics
• Microprogramed control
• Administrivia
• Microprogram it yourself
• Exceptions

3
Controller Design

• The state digrams that arise define the
  controller for an instruction set processor are
  highly structured
• Use this structure to construct a simple
  microsequencer
• Control reduces to programming this very simple
  device
• ? microprogramming

4
Multicycle Datapath
Equal
nPC_sel
E
Reg File
A
PC
IR
Next PC
B
Instruction Fetch
Operand Fetch
5
State Diagram of Controller
instruction fetch
IR lt MEMPC
0000
decode
A lt Rrs B lt Rrt
0001
LW
R-type
ORi
SW
BEQ
PC lt Next(PC)
S lt A fun B
S lt A or ZX
S lt A SX
S lt A SX
0100
0110
1000
0011
1011
M lt MEMS
MEMS lt B PC lt PC 4
1001
1100
Rrd lt S PC lt PC 4
Rrt lt S PC lt PC 4
Rrt lt M PC lt PC 4
0101
0111
1010
6
Using a Jump Counter
instruction fetch
IR lt MEMPC
0000
inc
decode
A lt Rrs B lt Rrt
0001
load
LW
R-type
ORi
SW
BEQ
PC lt Next(PC)
S lt A fun B
S lt A or ZX
S lt A SX
S lt A SX
0100
0110
1000
0011
1011
inc
inc
inc
inc
zero
M lt MEMS
MEMS lt B PC lt PC 4
1001
1100
inc
Rrd lt S PC lt PC 4
Rrt lt S PC lt PC 4
Rrt lt M PC lt PC 4
zero
0101
0111
1010
zero
zero
zero
7
Example Jump-Counter
i
i
0000
i1
Map ROM
None of above Do nothing (for wait states)
op-code
zero inc load
Counter
8
Sequencer

• Sequencer-based control unit
• Called microPC or µPC vs. state register
• Control Value Effect 00 Next µaddress
  0 01 Next µaddress dispatch ROM
  10 Next µaddress µaddress 1
• Dispatch
• ROM

Microprogram
1
microPC
Adder
Opcode Dispatch State R-type 000000 0100 BEQ 00
0100 0011 ori 001101 0110 LW 100011 1000 SW 101011
1011
Mux
0
1
2
0
µAddress Select Logic
Dispatch ROM
Opcode
9
Microprogramming (Maurice Wilkes)

• Control is the hard part of processor design
• Datapath is fairly regular and well-organized
• Memory is highly regular
• Control is irregular and global

Microprogramming -- A Particular Strategy for
Implementing the Control Unit of a processor
by "programming" at the level of register
transfer operations Microarchitecture --
Logical structure and functional capabilities of
the hardware as seen by the
microprogrammer Historical Note IBM 360
Series first to distinguish between architecture
organization Same instruction set across wide
range of implementations, each with
different cost/performance
10
Macro and micro - instruction Interpretation
User program plus Data this can change!
Main Memory
ADD SUB AND
. . .
one of these is mapped into one of these
DATA
execution unit
AND microsequence e.g., Fetch Calc
Operand Addr Fetch Operand(s)
Calculate Save Answer(s)
control memory
CPU
11
Variations on Microprogramming

• Horizontal Microcode
• control field for each control point in the
  machine
• Vertical Microcode
• compact microinstruction format for each class
  of microoperation
• local decode to generate all control points
  (remember ALU?)
• branch µseq-op µadd
• execute ALU-op A,B,R
• memory mem-op S, D

µseq µaddr A-mux B-mux bus enables
register enables
Horizontal
Vertical
12
Extreme Horizontal
1
3
input select
. . .
N3
N2
N1
N0
1 bit for each loadable register enbMAR
enbAC . . .
Incr PC
ALU control
Depending on bus organization, many potential
control combinations simply wrong, i.e.,
implies transfers that can never happen at
the same time. Makes sense to encode fields to
save ROM space Example mem_to_reg and
ALU_to_reg should never happen simultaneously
gt encode in single bit which is decoded
rather than two separate bits NOTE the
encoding should be only wide enough so that
parallel actions that the datapath supports
should still be specifiable in a single
microinstruction
13
More Vertical Format
next states
inputs
src
dst
other control fields
MUX
D E C
D E C
Multiformat Microcode
6
1
3
Branch Jump
0
cond
next address
1
3
3
3
1
dst
src
alu
Register Xfer Operation
D E C
D E C
14
Hybrid Control
Not all critical control information is derived
from control logic E.g., Instruction Register
(IR) contains useful control information, such
as register sources, destinations, opcodes, etc.
enable signals from control
Register File
R S 1 D E C
R S 2 D E C
R D D E C
rs1
op
rs2
rd
IR
to control
15
Summary Horizontal vs. Vertical Microprogramming
NOTE previous organization is not TRUE
horizontal microprogramming
register decoders give flavor of encoded
microoperations Most microprogramming-based
controllers vary between horizontal
organization (1 control bit per control point)
vertical organization (fields encoded in the
control memory and must be decoded to
control something)
Vertical easier to program, not very
different from programming a RISC machine in
assembly language - extra level of
decoding may slow the machine down
Horizontal more control over the potential
parallelism of operations in the
datapath - uses up lots of control store
16
Microprogramming a multicycle processor

• 1) Choose datapath and sequencer architecture
• 2) Assign states and sequence of each
  (multicycle) instruction (i.e. define the
  controller FSM)
• 2) Choose microinstruction format (minimum bits
  to describe all allowable functions of sequencer
  and datapath)
• 3) Map instructions into microinstruction
  sequences

17
Sequencer

• Sequencer-based control unit
• Called microPC or µPC vs. state register
• Control Value Effect 00 Next µaddress
  0 01 Next µaddress dispatch ROM
  10 Next µaddress µaddress 1
• Dispatch
• ROM

Microprogram
1
microPC
Adder
Opcode Dispatch State R-type 000000 0100 BEQ 00
0100 0011 ori 001101 0110 LW 100011 1000 SW 101011
1011
Mux
0
1
2
0
µAddress Select Logic
Dispatch ROM
Opcode
18
Datapath single memory, single regfile

• Miminizes Hardware 1 memory, 1 adder

PCWr
PCWrCond
PCSrc
Zero
ALUSelA
MemWr
IRWr
RegWr
RegDst
IorD
1
Mux
32
PC
0
Zero
32
Rs
Ra
RAdr
5
32
32
Rt
32
Rb
busA
A
ALU
Ideal Memory
32
Reg File
5
4
Rt
0
32
Rw
WrAdr
32
B
1
32
Rd
Mem Data Reg
Din
Dout
busW
busB
2
32
3
Imm
32
ALUOp
MemtoReg
ExtOp
ALUSelB
19
Finite State Machine (FSM) Spec
IR lt MEMPC PC lt PC 4
instruction fetch
0000
decode
Q What can we do in state 0001?
0001
LW
BEQ
R-type
ORi
SW
ALUout lt A fun B
ALUout lt A or ZX
ALUout lt A SX
ALUout lt A SX
ALUout lt PC SX
Execute
0100
0110
1000
1011
0010
M lt MEMALUout
MEMALUout lt B
Memory
If A B then PC lt ALUout
1001
1100
0011
Rrd lt ALUout
Rrt lt ALUout
Rrt lt M
Write-back
0101
0111
1010
20
Finite State Machine (FSM) Spec (improved)
IR lt MEMPC PC lt PC 4
instruction fetch
0000
ALUout lt PC SX
decode
0001
LW
BEQ
R-type
ORi
SW
ALUout lt A fun B
ALUout lt A or ZX
ALUout lt A SX
ALUout lt A SX
If A B then PC lt ALUout
Execute
0100
0110
1000
1011
0010
M lt MEMALUout
MEMALUout lt B
Memory
1001
1100
Rrd lt ALUout
Rrt lt ALUout
Rrt lt M
Write-back
0101
0111
1010
21
Designing a Microinstruction Set

• 1) Start with list of control signals
• 2) Group signals together that make sense (vs.
  random) called fields
• 3) Place fields in some logical order (e.g., ALU
  operation ALU operands first and
  microinstruction sequencing last)
• 4) Create a symbolic legend for the
  microinstruction format, showing name of field
  values and how they set the control signals
• 5) To minimize the width, encode operations that
  will never be used at the same time

22
1) Start with list of control signals

• Signal name Effect when deasserted Effect when
  assertedALUSelA 1st ALU operand PC 1st ALU
  operand RegrsRegWr None Reg. is written
  MemtoReg Reg. write data input ALU Reg. write
  data input memory RegDst Reg. dest. no.
  rt Reg. dest. no. rdMemRd None Memory at
  address is read, MemWr None Memory at address is
  written IorD Memory address PC Memory address
  SIRWr None IR lt MemoryPCWr None PC lt
  PCSourcePCWrCond None IF ALUzero then PC lt
  PCSourcePCSrc PCSource ALU PCSource
  ALUoutExtOp Zero Extended Sign Extended

Single Bit Control
Signal name Value Effect ALUOp 00 ALU adds
01 ALU subtracts 10 ALU does function
code 11 ALU does logical OR ALUSelB 00 2nd ALU
input 4 01 2nd ALU input Regrt 10 2nd
ALU input extended,shift left 2 11 2nd ALU
input extended
Multiple Bit Control
23
2) Group into fields of unrelated signals

• Miminizes Hardware 1 memory, 1 adder

PCWrite
PCWr
PCWrCond
PCSrc
SRC1
Zero
ALUSelA
MemWr
IRWr
RegWr
RegDst
IorD
1
Mux
32
PC
0
Zero
32
Rs
Ra
RAdr
5
32
32
Rt
32
Rb
busA
A
ALU
Ideal Memory
32
Reg File
5
4
Rt
0
32
Rw
WrAdr
32
B
1
32
Rd
Mem Data Reg
Din
Dout
busW
busB
2
32
3
MemRd
ALU
Imm
32
ALUOp
MemtoReg
ExtOp
ALUSelB
SRC2
24
2,3 4 ) Group into fields, order and assign
names

• Field Name Values for Field Function of Field
  with Specific ValueALU Add ALU adds Subt. ALU
  subtracts Func ALU does function code Or ALU
  does logical ORSRC1 PC 1st ALU input lt
  PC rs 1st ALU input lt RegrsSRC2 4 2nd ALU
  input lt 4 Extend 2nd ALU input lt sign ext.
  IR15-0 Extend0 2nd ALU input lt zero ext.
  IR15-0 Extshft 2nd ALU input lt sign ex., sl
  IR15-0 rt 2nd ALU input lt Regrtdest(ination
  ) rd ALU Regrd lt ALUout rt ALU Regrt lt
  ALUout rt Mem Regrt lt Mem Mem(ory) Read
  PC Read memory using PC Read ALU Read memory
  using ALUout for addr Write ALU Write memory
  using ALUout for addrMemreg IR IR lt
  MemPCwrite PCwr PC lt PCSource PCSrc IF Zero
  then PCSource lt ALUout else ALU PCWrCond IF
  Zero then PC lt PCSource Seq(uencing) Seq Go to
  sequential µinstruction Fetch Go to the first
  microinstruction Dispatch Dispatch using ROM.

25
5) Encode each field

• Field Name Width Control Signals Set
• wide narrow
• ALU 4 2 ALUOp
• SRC1 2 1 ALUSelA
• SRC2 5 3 ALUSelB, ExtOp
• Dest 3 2 RegWrite, MemtoReg, RegDst
• Mem 3 2 MemRd, MemWre, IorD
• Memreg 1 1 IRWrite
• PCWrite 3 1 PCWr, PCSrc, PCWrCond
• Seq 3 2 AddrCtl
• Total width 24 14 bits

26
5) Encode each field (cont.)
Dest

• Code Name RegWrite MemToReg RegDest
• 00 --- 0 X X
• 01 rd ALU 1 0 1
• 10 rt ALU 1 0 0
• 11 rt MEM 1 1 0

SRC2
Code Name ALUSelB ExtOp 000 --- X X 001 4 00
X 010 rt 01 X 011 ExtShft 10 1 100 Extend 11
1 111 Extend0 11 0
27
Finally Do the microprogram.

• Label ALU SRC1 SRC2 Dest. Memory MemReg.
  PCWrite Seq
• Fetch Add PC 4 Read PC IR PCwr Seq
• Add PC Extshft Dispatch
• Rtype Func rs rt Seq
• rd ALU Fetch
• Ori Or rs Extend0 Seq
• rt ALU Fetch
• Lw Add rs Extend Seq
• Read ALU Seq
• rt MEM Fetch
• Sw Add rs Extend Seq
• Write ALU Fetch
• Beq Subt. rs rt PCWrCond. Fetch

0000 0001 0100 0101 0110 0111 1000 1001 1010 1
011 1100 0010
28
Microprogramming Pros and Cons

• Ease of design
• Flexibility
• Easy to adapt to changes in organization, timing,
  technology
• Can make changes late in design cycle, or even in
  the field
• Can implement very powerful instruction sets
  (just more control memory)
• Generality
• Can implement multiple instruction sets on same
  machine.
• Can tailor instruction set to application.
• Compatibility
• Many organizations, same instruction set
• Costly to implement
• Slow

29
Adding a more complex memory model
PC
addr
InstMem_rd
Instruction Memory
IM_wait
data
Inst. Reg
IR_en
Add a wait flag of indeterminate length
IM_wait (due to caching)
30
Controller handles non-ideal memory
instruction fetch
IR lt MEMPC
IMwait
IMwait
decode / operand fetch
A lt Rrs B lt Rrt
LW
R-type
ORi
SW
BEQ
PC lt Next(PC)
S lt A fun B
S lt A or ZX
S lt A SX
S lt A SX
M lt MEMS
MEMS lt B
wait
wait
wait
wait
Rrd lt S PC lt PC 4
Rrt lt S PC lt PC 4
Rrt lt M PC lt PC 4
PC lt PC 4
31
Really Simple Time-State Control
IR lt MEMPC
instruction fetch
IMwait
IMwait
A lt Rrs B lt Rrt
decode
LW
R-type
ORi
SW
BEQ
Execute
S lt A fun B
S lt A or ZX
S lt A SX
S lt A SX
Memory
M lt MEMS
MEMS lt B
wait
wait
Rrd lt S PC lt PC 4
Rrt lt S PC lt PC 4
Rrt lt M PC lt PC 4
PC lt Next(PC)
write-back
PC lt PC 4
32
Time-state Control Path

• Local decode and control at each stage

Valid
IRex
IR
IRwb
Inst. Mem
IRmem
WB Ctrl
Dcd Ctrl
Ex Ctrl
Mem Ctrl
Equal
Reg. File
Reg File
Exec
PC
Next PC
Mem Access
Data Mem
33
Overview of Control

• Control may be designed using one of several
  initial representations. The choice of sequence
  control, and how logic is represented, can then
  be determined independently the control can then
  be implemented with one of several methods using
  a structured logic technique.
• Initial Representation Finite State Diagram
  Microprogram
• Sequencing Control Explicit Next State
  Microprogram counter Function Dispatch ROMs

• Logic Representation Logic Equations Truth Tables
• Implementation PLA ROM Technique

hardwired control
microprogrammed control
34
Summary

• Specialize state-diagrams easily captured by
  microsequencer
• simple increment branch fields
• datapath control fields
• Most microprogramming-based controllers vary
  between
• horizontal organization (1 control bit per
  control point)
• vertical organization (fields encoded in the
  control memory and must be decoded to control
  something)
• Steps
• identify control signals, group them, develop
  mini language, then microprogram
• Control design reduces to Microprogramming
• Arbitrarily complicated instructions possible

35
Summary Microprogramming one inspiration for
RISC

• If simple instruction could execute at very high
  clock rate
• If you could even write compilers to produce
  microinstructions
• If most programs use simple instructions and
  addressing modes
• If microcode is kept in RAM instead of ROM so as
  to fix bugs
• If same memory used for control memory could be
  used instead as cache for macroinstructions
• Then why not skip instruction interpretation by a
  microprogram and simply compile directly into
  lowest language of machine?
