Transaction Concepts

1

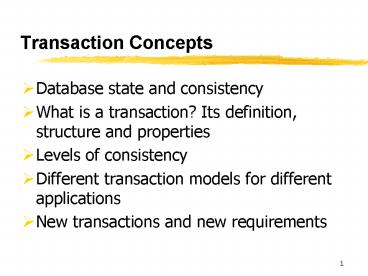

Transaction Concepts

• Database state and consistency
• What is a transaction? Its definition, structure
  and properties
• Levels of consistency
• Different transaction models for different
  applications
• New transactions and new requirements

2
Database Systems Transactions, Database TP

• Database Systems Transaction Processing Systems
• Database Systems
• (hardwaresoftware) work together to support read
  and write operations (from transactions) on
  database
• Software includes the programs, which create and
  process transactions and manage database
• The system has to maintain the properties of
  transactions and to ensure the correctness of
  database (I.e., the values of the data items are
  truly reflecting the current situations of the
  corresponding objects in the external
  environment)
• What are the transaction properties?
• What will be the consequence if the correctness
  of a database cannot be ensured?

3
What is a database?

• What is a Database? (from transaction processing
  viewpoints)
• A collection of named data items, e.g., customer
  account , customer name, amount
• Well-organized with an index to provide a fast
  access to the required data items
• Each item has a value, custJ. Smith
  amount10000
• The values of all the data items at any time
  point comprise the state of the database at that
  time point

4
Database state and consistency

• Database State
• The state of a database describes some facts in
  the real world
• the bank has a customer called J. Smith who has
  deposited US10,000 in the bank
• Customer_name J. Smith, deposited 10,000
• A database is in consistent state if it obeys all
  the consistency (correctness) constraints defined
  over it by the applications
• Remember the constraints are defined by the
  users or applications
• Some examples
• All the customers appear in the sales database
  should be found in the customer database
• The total debit value should equal to the total
  credit value
• So, if you examine the values of the records, you
  may be able to identify that some of it may
  contain incorrect value

5
What is a transaction?

• Definition of a transaction from user viewpoint
• The execution of a program to perform a function
  (functions) by accessing a shared database,
  usually on behalf of a user (application)
• You have a requirement (air ticket booking) -gt
  Your system implements a function to meet your
  requirement -gt You invoke the function to book an
  air ticket -gt a transaction is created
• Other Examples
• Reserve a room in a hotel
• Withdraw money from an ATM
• Verify a credit card sale
• Update a student record
• Place an order using an on-line catalog on the
  Internet

6
Transaction structure and database consistency

• The Structure of a transaction (how to generate
  it by the DBS)
• Database operations a collection of operations,
  usually read and write, on the database, together
  with some computation
• Transaction operations a begin operation and end
  operation
• Definition of a transaction from database view
  point (a requirement in execution)
• A transaction is generally defined as a unit
  which transfers the database from one consistent
  state to another consistent state (may be the
  same state)
• Before the processing of a transaction, the
  database is consistent (correct)
• During the processing, it may be inconsistent
• After the completion of the transaction (commit),
  the database state is consistent
• Assumption?? What will be the problem if the
  database initially is inconsistent?

7
Transaction structure and database consistency

Database may be temporarily in an inconsistent
state during execution
Database in a consistent state
Database in a consistent state
Execution of Transaction
Begin Transaction
End Transaction
8
An Example of Transaction

• An example
• A banking system maintains a database for all the
  accounts of the clients
• It provides operations to deposit and withdraw
  money, etc., in and from these accounts
• The operations
• Deposit(name, amount) gt write (name, amount)
• Withdraw(name, amount) gt write (name, amount)
• GetBalance(name) ? amount gt read(name)
• BranchTotal() ? total gt read(all branch accounts)

9
An Example of Transaction

• Begin_transaction Reservation
• Begin
• input(flight_no, date, customer_name)
• EXEC SQL SELECT STSOLD, CAP
• INTO temp1, temp2
• FROM FLIGHT
• WHERE FNO flight_no AND
  DATE date
• if temp1 temp2 then
• output(no free seats)
• Abort
• else
• EXEC SQL UPDATE FLIGHT
• SET STSOLD STSOLD 1
• WHERE FNO flight_no AND DATE date
• EXEC SQL INSERT
• INTO FC(FNO, DATE, CNAME, SPECIAL)
• VALUE (flight_no, date, customer_name,
  null)
• Commit
• output (reservation completed)

10
An Example of Transaction

• Begin_transaction Reservation
• begin
• input (flight_no, date, customer_name)
• temp Read(flight_no(date).stsold)
• if temp flight(date).cap then
• begin
• output(no free seats)
• Abort
• end
• else begin
• Write(flight(date).stsold, temp 1)
• Write(flight(date).cname,
  customer_name)
• Write(flight(date).special, null)
• Commit
• output (reservation completed)
• end
• end.Reservation

11
Formal Definition

• Let
• Oij(x) be operation Oj of transaction Ti
  operating on data item x, where Oj ?read, write
  and Oj is atomic (none or all)
• OSi ?j Oij
• Ni ? abort, commit
• Transaction Ti is a partial order ?i, lti where
• ?i OSi ? Ni
• For any two operations Oij, Oik ? OSi , if Oij
  R(x) and Oik W(x) for any data item x, then
  either Oij lti Oik or Oik lti Oij
• ? Oij ? OSi , Oij lti Ni
• The above definition is showing the structure of
  a transaction
• Partial order means NOT total order

12
Example

• Consider a transaction T
• Read(x)
• Read(y)
• x ?x y
• Write (x)
• Commit
• Then
• ? R(x), R(y), W(x), C
• lt (R(x), W(x)), (R(y), W(x)), (W(x),C),
  (R(x),C), (R(y),C)

13
Directed Graph Representation

• Assume
• lt (R(x), W(x)), (R(y), W(x)), (R(x), C),
  (R(y), C), (W(x), C)
• R(x)
• W(x) C
• R(y)

Partial Order R(x) and R(y) may execute
concurrently
14
Transaction Properties (ACID)

• How to maintain database consistency?
• If the system is serving concurrent transactions
  (more than one transaction) (for performance
  reason)
• If various types of failures may occur
• The execution of a transaction is stopped after
  the completion of a few operations
• The database may be inconsistent
• Enforce the correct execution of transactions
• What are they? ACID properties of transactions
• Atomicity
• Consistency
• Isolation
• Durability

15
Process Transaction Serially
CPU
Transaction
Process transaction to access Database
Transaction
Database (data items)
Transaction
DBS (software)
16
An Example Schedule
The lost update problem
Transaction T BankWithdraw ( A, 4
) BankDeposit ( B, 4)
Transaction U BankWithdraw ( C, 3
) BankDeposit ( B, 3)
balance A.Read () 100 A.Write (balance
4) 96
balance C.Read () 300 C.Write (balance
3) 297
balance B.Read () 200
balance B.Read () 200 B.Write (balance
3) 203
B.Write (balance 4) 204
17
Atomicity

• All-or-nothing, no partial results
• E.g. in a money transfer, debit one account,
  credit the other. Either debit and credit both
  run, or neither runs.
• Successful completion is called Commit
• Transaction failure is called Abort
• A transaction may be aborted while it is
  executing, i.e., due to system or process errors
  (division by zero)
• A transaction will commit only after all its
  operations have been successfully completed
• Commit and abort are irrevocable actions
• For abort, an undo operation (generated by the
  recovery manager) is required to restore the
  database to the (consistent) state before the
  execution of the transaction
• The activity of preserving the transactions
  atomicity in the presence of transaction aborts
  due to input errors, system overloads, or
  deadlocks is called transaction recovery

18
Consistency

• Each transaction should maintain database
  consistency, I.e., maintain the correctness of
  data values so that they truly reflect the
  situation in the external environment
• Referential integrity - E.g. each order
  references an existing customer number and
  existing part numbers
• The books balance (debits credits, assets
  liabilities)
• If each transaction starts from a consistent
  database state, the database consistency can be
  maintained after its commit

19
Consistency Degrees

• How to maintain database consistency?
• Limit the degree of interleaving in transaction
  execution (i.e., the delaying the execution of
  some ready operations. What is a ready
  operation?)
• Degree 0
• Transaction T does not overwrite dirty data of
  other transactions
• Dirty data refer to the data values that have
  been updated by a transaction and the transaction
  has not committed

T1 write (x) T2
write (x) Time
r
20
Consistency Degrees

• Degree 1
• T does not overwrite dirty data of other
  transactions
• T does not commit any writes before EOT (end of
  transaction).

T1 write (x)
commit T2 write (x)
Time
r
21
Consistency Degrees

• Degree 2
• T does not overwrite dirty data of other
  transactions
• T does not read dirty data from other
  transactions
• T does not commit any writes before EOT

T1 write (x)
commit T2 write (x) read (x)
Time
r
r
22
Consistency Degrees

• Degree 3
• T does not overwrite dirty data of other
  transactions
• T does not read dirty data from other
  transactions
• T does not commit any writes before EOT
• Other transactions do not dirty any data read by
  T before T completes

T1 write (x) read(y)
commit T2 write (x) read (x)
write (y) Time
r
r
r
23
Isolation

• Isolation is similar to consistency. It also
  limits the degree of interleaving in transaction
  execution
• Intuitively, the effect of a set of transactions
  should be the same as if they run independently
  (or one by one)
• Formally, an interleaved execution of
  transactions is serializable if its effect is
  equivalent to a serial one (one by one
  execution).
• Implies a users view where the system runs each
  users transaction stand-alone.
• Of course, transactions in fact run concurrently
  to maximize resource utilization and to improve
  system performance (reduce response time).
• If isolation cannot be ensured, cascading abort
  may occur
• Compare the differences between isolation and
  different degree of consistency

24
Serial execution
Transaction T BankWithdraw ( A, 100
) BankDeposit ( B, 100)
Transaction U BankBranchTotal ()
balance A.Read () 200 A.Write (balance
100) 100 balance B.Read () 200 B.Write
(balance 100) 300
balance A.Read () 100 balance balance
B.Read () 300 balance balance C.Read ()
400 .
25
Concurrent Execution Inconsistent Retrieval
Problem
The inconsistent retrievals problem
Transaction T BankWithdraw ( A, 100
) BankDeposit ( B, 100)
Transaction U BankBranchTotal ()
balance A.Read () 200 A.Write (balance
100) 100
Dirty read
balance A.Read () 100 balance balance
B.Read () 300 balance balance C.Read ()
300 .
balance B.Read () 200 B.Write (balance
100) 300
26
Concurrent Execution Lost Update Problem
Transaction T BankWithdraw ( A, 4
) BankDeposit ( B, 4)
Transaction U BankWithdraw ( C, 3
) BankDeposit ( B, 3)
balance A.Read () 100 A.Write (balance
4) 96
balance C.Read () 300 C.Write (balance
3) 297
balance B.Read () 200
balance B.Read () 200 B.Write (balance
3) 203
Fuzzy read
balance B.Read () 203
27
Durability

• If a transaction has committed, its results will
  survive failures (become permanent and cannot go
  back)
• Makes it possible for a transaction to be a legal
  contract
• Implementation is using transaction logs
• DB system writes all transaction updates to its
  log (in stable storage)
• To commit, it adds a record commit(Ti) to the
  log
• When the commit record is on disk, the
  transaction is committed.
• System waits for disk ack before acking to user
  (to signal the completion of the transaction)
• Withdrawal of money from ATM
• When to deliver the money? Before commit or after
  commit?

28
Transaction Models

• Transaction model how to organize the operations
  of a transaction from application?
• The model introduced in the first part of this
  lecture is only one of the transaction models
• One Begin and one end Transfer database state
  from a consistent state to another consistent
  state
• Definition of Transaction Model
• The structure, the conditions for commit and
  abort
• Common Transaction Models
• Distributed Transaction Model
• Flat (or simple) transactions
• Nested transactions
• Workflows
• The main purpose of using different transaction
  models for difference applications is to improve
  the system performance and reduce the cost of
  transaction abort

29
Flat Transaction Model

• Flat transaction
• Consists of a sequence of primitive operations
  embraced between a begin and end markers.
• I.e., the transaction for fund transfer
• Begin_transaction Reservation
• end.

Database in a consistent state
Database may be temporarily in an inconsistent
state during execution
Execution of Transaction
30
Nested Transaction Model

• The transaction is a tree-like structure
• Some operations of a transaction may be grouped
  to be a sub-transactions
• Each sub-transaction may have other
  sub-transactions
• Each sub-transaction has the same properties
  (ACID) as its parent
• Benefits higher concurrency and smaller recovery
  cost
• Commit after all the sub-transactions have
  pre-committed
• Abort if the parent aborts, all sub-transactions
  have to abort

31
Nested Transaction Model
Transaction T1
abort
Transaction T1,1
Transaction T1,2
Transaction T1,1,1
Transaction T1,1,2
commit
32
Nested Transaction Model

• Types
• Closed nesting
• Sub-transactions begin after their parent and
  finish before them
• Commit of a sub-transaction is conditional upon
  the commit of the parent (commit through the
  root).
• The problem in case of network failure in a DDBS
• Open nesting
• Sub-transactions may execute and commit
  independently
• No need to wait for the pre-commit of all its
  children
• Compensation may be necessary in case of abort

33
Nested Transaction Model

• Begin_transaction Reservation
• Begin_transaction Airline
• end. Airline
• Begin_transaction Hotel
• end. Hotel
• end.Reservation

reservation
Hotel
Airline
34
Workflows

• Transactional workflows
• A collection of tasks organized to accomplish
  some (business) process
• The duration to complete the whole process is
  usually quite long, i.e., months or years
• The task may be divided into many sub-tasks
  (sub-transactions)
• The tasks (and sub-tasks) are organized into a
  network structure
• Each task may need access to the information
  (data) generated from the previous tasks and it
  may produce information (data) for other tasks.
• In processing a task, it may require access to
  heterogeneous, autonomous information which is
  distributed, and need to satisfy the ACID
  properties

35
Workflow
36
Distributed Transaction Model

• A master process at the site of origination of
  the transaction
• A set of cohorts (participants) with each cohort
  at a site where the required data items of the
  transaction are residing
• A cohort process is created upon the request from
  the master process
• The master process is responsible for
  coordination and commitment of the transaction
• A two-levels structure (nested transaction has
  multiple levels)

37
Distributed Transaction Model
Example
Master Process
Cohort 1 Site 1
Cohort 2 Site 2
Cohort 3 Site 3
38
New Transactions

• Conventional transaction model and requirements
  are too restrictive (Think about the atomicity
  requirement for long transactions)
• For many new applications, we may want to relax
  the ACID requirements, especially in a
  distributed and open environment (unreliable
  environment), to improve the system performance
• If one of the cohorts of a distributed
  transaction is at a mobile host and the mobile
  host is disconnected from the network
• New applications may have new requirements which
  are of equal importance comparing with database
  consistency
• Examples
• Timing requirement
• I.e., Complete within 5 seconds
• View maintenance
• I.e, Stock price and stock index
• Proxy cache maintenance, etc.

39
New Transactions

• Real-time transactions
• A real-time transaction is associated with a
  deadline on its completion time
• Meeting the transaction deadline is of equal
  importance to providing consistent data to a
  transaction,
• I.e., air-flight navigation systems, robot
  control and monitoring
• Missing the deadline may result in disasters
• To meet the deadline, we need a
  priority-cognitive scheduling algorithm (I.e.,
  assign transaction priority for processing based
  on deadline, earliest deadline first)
• The priority defines the execution orders of the
  transactions
• priority scheduling algorithms to schedule the
  processor to serve the processes

40
Real-time Transactions

• Real-time transactions
• Meet the deadlines and maintain database
  consistency
• Priority inversion problem (a high priority
  transaction waits for a low priority transaction
  due to lock conflict)
• How to resolve the conflict between concurrency
  control protocol (I.e., since most CCP uses
  blocking to resolve data conflicts, in 2PL) and
  real-time scheduling
• The performance question is how to make a
  tradeoff between the consistency requirement and
  the deadline requirement of the transactions
• Hard real-time transactions
• Soft real-time transactions
• Firm real-time transactions
• I.e., in case of priority inversion, abort
  (restart) the lower priority transaction

41
Priority Inversion Example
T1 write (x) commit T2 ... read
(x) Time Priority T2 gt T1
42
Update and Derived Transactions

• Update and derived transactions
• Example A stock trading system consists of two
  types of data items base items, i.e., the last
  traded prices of stock and derived items, i.e.,
  the stock index, which are calculated from a set
  of base items and derived items
• Another example temperature of the turbo engine
  safety level
• Whenever there is an update on a base item, the
  corresponding derived item (by derived
  transactions) may need to be re-calculated (view
  maintenance)
• The rate of changes of the base items can be very
  high (or even continuously) gt high recomputation
  cost
• When to recalculate the value for the derived
  item?
• Every update? Heavy recalculation overhead
• Periodically? Inconsistency between the view
  (derived item) and base data items

43
Base Items and Derived Item
U1 write (x) base item U2 write (y) base
item U3 write (z) base item D1 R(x), R(y),
R(z) W(D) derived item
44
Proxy Cache Maintenance

• Proxy cache maintenance
• Consistency between a cached data item at the
  proxy and the original data item at the server
• High cost in maintaining a tight consistency due
  to delay in network transmission and rapid change
  in values
• Currently, we use time-to-live (TTL) to define
  the validity of a cached data item
• The value of the time-to-live (TTL) of a cached
  item is usually defined based on the dynamic
  property of the data item and the user
  requirement
• A tradeoff between data refreshment workload and
  consistency (data currency/freshness)

45
Proxy Cache Example
Server
Client
result
Proxy cache
New value
DB
request
request
Validity interval TTL TS TS update time
Data item is valid if (TTLTS gt current Time)
46
New Requirements

• Temporal consistency
• I.e., temperature, stock and traffic conditions
  (continuously changing)
• How well the data maintained by a database models
  the actual state of a changing (dynamic)
  environment
• The validity of a data item changes with time
  rapidly
• No transaction is allowed to access a data item
  which is invalid (out-dated)
• TC consists of two parts absolute and relative
  consistency
• Absolute consistency individual data item (base
  item)
• Relative consistency the consistency amongst a
  group of data items

47
Temporal Consistency
Updates
Re-computation
Base item
Dynamic Environment
Temporal consistency
Application Transactions
Views
48
Temporal Consistency

• Absolute consistency
• A data item is absolute consistent (fresh) if it
  timely reflects the current state of an external
  object that the data item models
• Data item its value changes with time
  continuously, I.e., the temperature and location
  of a moving object
• The validity of a data item may be defined by an
  absolute validity interval (avi) (life-span of a
  data value).
• When its avi expires, a new value is needed to
  refresh the data item
• No transaction is allowed to access out-dated
  (stale) data item (absolutely inconsistent)
• I.e., proxy cached data maintenance

49
Absolute Consistency example
update
AVI
x becomes stale
x
update
AVI
y
y becomes stale
Time
50
Relative Consistency

• Relative consistency
• A set of data items is relatively consistent if
  they are temporally correlated with each other,
  i.e., representing the status of the entities at
  the same time point.
• They have to represent the status of the objects
  at the same time point.
• The set of data items accessed by a transaction
  have to be relatively consistent. Otherwise, it
  is observing information from different time
  points
• Transactions may allow to access stale data item
  provided that they are relatively consistent
• Relative consistency is less restrictive
  comparing with absolute consistency. The purpose
  is to reduce the number of transaction aborts
  (restarts)
• If a transaction observes absolute consistency,
  its accessed data items are also relative
  consistent

51
Relative Consistency Example
update
update
x1
x2
update
update
y1
y2
Time
RC1
RC1 x1 y1 correct RC x1 y2 incorrect
52
References

• Ozsu Ch10
• Ceri 7.1
• Dollimore 12.4
• Bernstein 1.1
• Korth Ch 15.1, 15.2, 24.2, 24.4, 24.5.3, 24.5.4
