Day 1 Labs

1

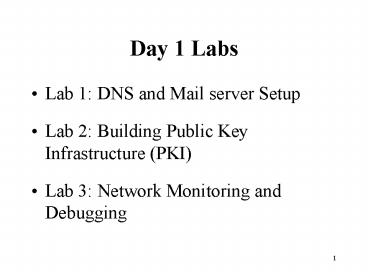

Day 1 Labs

• Lab 1 DNS and Mail server Setup
• Lab 2 Building Public Key Infrastructure (PKI)
• Lab 3 Network Monitoring and Debugging

2
Lab 1 DNS and Mail

• Domain Name System (DNS)
• for translating hostnames into Internet addresses
• A distributed database
• The database is pictured as an inverted tree
• Each node can be the root of a new subtree
• Each of these subtrees represents a partition of
  the overall database domain in DNS
• Each domain can further divided into additional
  partitions, called subdomains in DNS

3
Lab1 DNS and MailAn example of ie.cuhk.edu.hk
domain
hk
org
edu
gov
net
com
cuhk
hku
ust
cse
ee
ie
se
acae
4
Lab1 DNS and MailTop-Level Domains

• com
• Commercial organizations, such as Hewlett-Packard
  (hp.com), Sun Microsystems (sun.com), and IBM
  (ibm.com)
• edu
• Educational organizations, such as U.C. Berkeley
  (berkeley.edu) and Purdue University (purdue.edu)
• gov
• Government organizations, such as NASA (nasa.gov)
  and the National Science Foundation (nsf.gov)

5
Lab1 DNS and Mail Top-Level Domains

• mil
• Military organizations, such as the U.S. Army
  (army.mil) and Navy (navy.mil)
• net
• Networking organizations, such as NSFNET
  (nsf.net)
• org
• Noncommercial organizations, such as the
  Electronic Frontier Foundation (eff.org)

6
Lab1 DNS and Mail Resolution of
girigiri.gbrmpa.gov.au on the Internet
7
Lab1 DNS and Mail addr.arpa domain tree
8
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• Serial, Refresh, Retry, Expire, TTL
• NS Name Server
• A Name to Address mapping
• PRT Address to name mapping
• CNAME Canonical name (for aliases)
• MX Mail eXchange

9
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• Serial
• The serial number applies to all the data within
  the zone. When a slave name server contacts a
  master server for zone data, it first asks for
  the serial number on the data. If the slave's
  serial number is lower than the master server's,
  the slave's zone data are out of date. In this
  case, the slave pulls a new copy of the zone.

10
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• Refresh
• The refresh interval tells the slave how often
  to check that its data are up to date. Most users
  will tolerate a delay of half of a working day
  for things like name server data to propagate
  when they are waiting for their new workstation
  to be operational.

11
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• Retry
• If the slave fails to reach the master name
  server(s) after the refresh period (the host(s)
  could be down), then it starts trying to connect
  every retry seconds. Normally, the retry interval
  is shorter than the refresh interval, but it
  doesn't have to be.

12
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• Expire
• If the slave fails to contact the master
  server(s) for expire seconds, the slave expires
  its data. Expiring the data means the slave stops
  giving out answers about the data because the
  data are too old to be valid. The expiration time
  should always be much larger than the retry and
  refresh intervals if the expire time is smaller
  than the refresh interval, your slaves will
  expire their data before trying to load new data.

13
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• TTL (Time To Live)
• This value applies to all the resource records
  in the zone file. The name server supplies this
  TTL in query responses, allowing other servers to
  cache the data for the TTL interval. If your data
  don't change much, you might consider using a
  minimum TTL of several days. One week is about
  the longest value that makes sense. A value as
  short as one hour can be used, but it is not
  recommended because of the amount of DNS traffic
  it causes.

14
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• What values you choose for your SOA record will
  depend upon the needs of your site. In general,
  longer times cause less load on your systems and
  lengthen the propagation of changes shorter
  times increase the load on your systems and speed
  up the propagation of changes.

15
Lab1 DNS and Mail DNS Records

• SOA Start Of Authority
• RFC 1537 recommends the following values for
  top-level domain servers
• 86400 Refresh 24 hours
• 7200 Retry 2 hours
• 2592000 Expire 30 days
• 345600 Minimum TTL 4 days

16
Lab1 DNS and Mail Send Mail and Anti-spam

• Configure a mail (e.g MX record, sendmail.cf)
• Use of virtual host table and aliases
• Use access file for anti-spamming
• Trace the source of the spam mail (e.g nslookup,
  whois query)

17
Lab1 DNS and Mail Mail aliases

• Configure /etc/aliases file. E.G.
• abuse root
• info user_at_ie.cuhk.edu.hk
• group1 user1,user2
• Mails sent to abuse will be forwarded to root
  account mails sent to info will be forwarded to
  info account mails sent to group1 will be
  forwarded to user1 and user2 accounts.
• Type "newaliases" to update the aliases.db

18
Lab1 DNS and Mail Virtual Hosting with sendmail

• DNS Configuration
• Choose an available domain name, says
  yourdomain.com
• Establish two machines as primary and secondary
  name servers for your domain
• Configure MX records for your domain, e.g.
• yourdomain.com. MX 10 yourmailserver.yourdomain
  .com.

19
Lab1 DNS and Mail Virtual Hosting with sendmail

• Sendmail Configuration
• Compile and install sendmail software
• Configure the mc file E.G.
• FEATURE(virtusertable',hash -o
  /etc/mail/virtusertable')
• Generate the sendmail.cf file from the mc file

20
Lab1 DNS and Mail Virtual Hosting with sendmail

• Sendmail Configuration
• Configure the virtual table users E.G.
• jane_at_yourdomain.com jdoe_at_othercompany.com
  _at_yourdomain.com jschmoe
• Configure the sendamil.cw to accept mails for
  your domain, youdomainc.com.
• Update the virtual table and start the sendmail

21
Lab1 DNS and Mail Anti-spamming with sendmail

• Sendmail Configuration
• Compile and install sendmail software
• Configure the mc file E.G.
• FEATURE(access_db')
• Generate the sendmail.cf file from the mc file

22
Lab1 DNS and Mail Anti-spamming with sendmail

• Sendmail Configuration
• Configure the access file E.G.
• localhost.localdomain RELAY
• localhost RELAY
• 127.0.0.1 RELAY
• 192.168.36.26 RELAY
• spam_at_spam.com 550 You are banned from this site

• Update the access.db and start the sendmail

23
Lab1 DNS and Mail Trace the source of the spam
mail

• Examine mail header
• Query tools nslookup and whois queries
• To check out the DNS records and the domain
  registration information of the spam site.
• Reporting spam to spam.com

24
Lab1 DNS and Mail Examine mail header

• From chris.ip_at_tvb.com.hk Tue Jan 22 112648 2002
• Received from viruswall.ie.cuhk.edu.hk
  (viruswall 137.189.96.52)
• by eng.ie.cuhk.edu.hk (8.11.6/8.11.6)
  with ESMTP id g0M3QmH14402
• for ltshlamgt Tue, 22 Jan 2002 112648
  0800 (HKT)
• Received from smtp02.hk.linkage.net
  (smtp02.hk.linkage.net 202.76.4.21)
• by viruswall.ie.cuhk.edu.hk
  (8.12.1/8.12.1) with ESMTP id g0M3Qlkm008158
• for ltshlam_at_ie.cuhk.edu.hkgt Tue, 22 Jan
  2002 112647 0800 (HKT)

25
Lab1 DNS and Mail Examine mail header

• Received from exchange2.tvb.com.hk
  (pc036.tvb.com.hk 202.76.104.36)
• by smtp02.hk.linkage.net (8.11.6/8.11.6)
  with ESMTP id g0M3Vik25192
• for ltshlam_at_ie.cuhk.edu.hkgt Tue, 22 Jan
  2002 113145 0800 (HKT)
• Received by pc036.tvb.com.hk with Internet Mail
  Service (5.5.2653.19)
• id ltC04BZFB6gt Tue, 22 Jan 2002 112329
  0800
• Path pc036.tvb.com.hk -gt exchange2.tvb.com.hk -gt
  smtp02.hk.linkage.net -gt viruswall.ie.cuhk.edu.hk
  -gt eng.ie.cuhk.edu.hk

26
Lab1 DNS and Mail nslookup and whois
queryquery of tvb.com.hk NS records

• cshgt nslookup -queryns tvb.com.hk
• Server fortress.fox.hkntec.net
• Address 192.168.128.230
• Non-authoritative answer
• tvb.com.hk nameserver ns2.hk.linkage.net
• tvb.com.hk nameserver ns1.tvb.com
• tvb.com.hk nameserver ns2.tvb.com
• tvb.com.hk nameserver ns1.hk.linkage.net
• Authoritative answers can be found from
• ns2.hk.linkage.net internet address
  202.76.4.2
• ns1.hk.linkage.net internet address
  202.76.4.1
• .

27
Lab1 DNS and Mail nslookup and whois
queryquery of tvb.com.hk SOA records

• cshgt nslookup -querysoa tvb.com.hk
• tvb.com.hk
• origin ns1.tvb.com
• mail addr dcs.staff.tvb.com
• serial 2001101003
• refresh 1800 (30M)
• retry 600 (10M)
• expire 604800 (1W)
• minimum ttl 1800 (30M)

28
Lab1 DNS and Mail nslookup and whois
queryquery of tvb.com.hk MX records

• cshgtnslookup -querymx tvb.com.hk
• Non-authoritative answer
• tvb.com.hk preference 10, mail exchanger
  mail.tvb.com.hk
• tvb.com.hk preference 20, mail exchanger
  relay.hk.linkage.net
• tvb.com.hk preference 30, mail exchanger
  relay.us.linkage.net
• Authoritative answers can be found from
• tvb.com.hk nameserver ns1.tvb.com
• tvb.com.hk nameserver ns2.tvb.com
• tvb.com.hk nameserver ns1.hk.linkage.net
• tvb.com.hk nameserver ns2.hk.linkage.net
• mail.tvb.com.hk internet address 202.76.104.36
• ns1.tvb.com internet address 152.101.96.22
• .

29
Lab1 DNS and Mail nslookup and whois
queryquery of reverse mapping of IP
202.76.104.36

• cshgtnslookup 202.76.104.36
• Server fortress.fox.hkntec.net
• Address 192.168.128.230
• Name pc036.tvb.com.hk
• Address 202.76.104.36

30
Lab1 DNS and Mail nslookup and whois
queryquery of tvb.com.hk whois information

• cshgt whois tvb.com.hk_at_whois.hkdnr.net.hk
• whois.hkdnr.net.hk
• Registrant
• Television Broadcasts Ltd
• 19/F, Leightion Ctr.
• 77 Leighton Rd.
• HK
• Domain Name TVB.COM.HK
• Record last updated on 27-JUN-96.
• Record expired on .
• Record created on 22-APR-96.
• Contract Type Unknown.
• ..

31
Lab1 DNS and Mail nslookup and whois
queryquery of pc036.tvb.com.hk IP
202.76.104.36 whois information

• cshgt whois 202.76.104.36_at_whois.apnic.net
• whois.apnic.net
• inetnum 202.76.104.0 - 202.76.104.255
• netname TVB-HK
• descr TVB Co Ltd
• descr Hong Kong
• country HK
• admin-c PN29-AP
• tech-c PN29-AP
• mnt-by MAINT-HK-PSINET
• changed hostinfo_at_psinet.com.hk 20010612
• source APNIC
• ..

32
Lab1 DNS and Mail nslookup and whois
queryList of common whois servers

whois.apnic.net (Asia-Pacific Region) whois.hkdnr
.net.hk (domain under .hk) whois.arin.net
(American Registry for Internet
Numbers) whois.ripe.net whois.networksolutions.co
m (domain under .com.org.net) whois.internic.net
whois.nic.mil whois.nic.gov http//www.allwhoi
s.com/ (other region whois servers)
33
Lab1 DNS and Mail Anti-spamming and anti-virus

• Install your viruswall or firewall server to scan
  and filter spam mails and virus mails
• Configure your DNS MX record pointed to your
  viruswall server
• Configure your SMTP outgoing server pointed to
  your viruswall server
• Configure your viruswall server to forward mails
  to your back end mail server after scanned
• Update your viruswall server virus definition
  frequently

34
Lab1 DNS and Mail Using viruswall to filter
incoming mail
35
Lab1 DNS and Mail Using viruswall to filter
incoming mail
When virus/worm is detected, viruswall will
filter out the virus/worm part of the mail and
send warning message to both sender and
recipient. EG. Sender will receive Subject
Virus Alert The mail message (file
worm_myparty) you sent to shlam contains a virus.
(on viruswall) Recipient will receive -----------
------- Virus Warning Message (on
viruswall) Found virus WORM_MYPARTY.A in file
worm_myparty The uncleanable file worm_myparty
is moved to /etc/iscan/virus/virJOBtCaGlz. ------
--------------------------------------------------
- Sending you a Worm party testing -------------
----- Virus Warning Message (on
viruswall) worm_myparty is removed from here
because it contains a virus.
36
Lab 2 Public Key Infrastructure (PKI)

• Asymmetric cryptography vs symmetric cryptography

• Digital Signature
• Certificate
• Certification Authority (CA)
• Secure Sockets Layer (SSL) protocol

37
Lab 2 PKI

• Asymmetric cryptography vs symmetric cryptography

• Symmetric cryptography
• traditional form of cryptography
• a single key is used for both encryption and
  decryption
• the sender and receiver share a key
• Asymmetric cryptography (public key cryptography)
• uses two mathematically related keys
• a message encrypted by one key can only be
  decrypted by the other key
• receive secure messages by simply publishing one
  key (the public key) and keeping the other secret
  (the private key)

38
Lab 2 PKI

• Asymmetric cryptography vs symmetric cryptography

39
Lab 2 PKI

• Digital Signature
• The digital signature of a document is a piece of
  information based on both the document and the
  signer's private key
• It is created by encrypting a digest of the
  message, and other information (such as a
  sequence number) with the sender's private key
• Anyone may decrypt the signature using the public
  key and then compare the digest of the message
• If the digests are matched, the signature is only
  good for that message. It also ensures the
  integrity of the message since no one can change
  the digest and still sign it

40
Lab 2 PKI Digital Signature
41
Lab 2 PKI

• A public-key infrastructure (PKI) consists of
  protocols, services, and standards supporting
  applications of public-key cryptography.
• PKI consists of
• Certificates
• Certificate Authorities (CA)
• Certificate Revocation Lists (CRL)
• Repositories to store public-keys for people

42
Lab 2 PKI
Certificates Certificates are digital documents
attesting to the binding of a public key to an
individual or other entity. They allow
verification of the claim that a specific public
key does in fact belong to a specific individual.
It also includes identification information as to
who the own of the certificate is, as well as a
signature by a CA validating that the data hasn't
been forged. Certificates help prevent someone
from using a phony key to impersonate someone
else. In their simplest form, certificates
contain a public key and a name. As commonly
used, a certificate also contains an expiration
date, the name of the certifying authority that
issued the certificate, a serial number, and
perhaps other information.
43
Lab 2 PKI
Certificate Authorities (CA) Certificates are
issued by a Certificate Authority, who usually
will sign the certificate as well as provide some
revocation facilities. Certificate Revocation
Lists (CRLs) If the private-key is compromised
(i.e. inadvertently made public), then the
certificate containing that key needs to be
"revoked". That essentially means the CA who
assigned the certificate posts the certificate on
its website. This allows people to publicly check
this fact. Repositories (e.g. LDAP directories)
So that public-keys for people can be found.
44
Lab 2 PKI
SSL The Secure Sockets Layer (SSL) protocol,
originally developed by Netscape, has become the
universal standard on the Web for authenticating
Web sites to Web browser users, and for
encrypting communications between browser users
and Web servers. Because SSL is built into all
major browsers and Web servers, simply installing
a digital certificate, or Server ID, enables SSL
capabilities.
45
Lab 2 PKI

• How SSL works
• A customer contacts your site and accesses a
  secured URL a page secured by a Server ID
  (indicated by a URL that begins with "https"
  instead of just "http" or by a message from the
  browser).
• Your server responds, automatically sending the
  customer your site's digital certificate, which
  authenticates your site.
• Your customer's Web browser generates a unique
  "session key" to encrypt all communications with
  the site.
• The user's browser encrypts the session key
  itself with the site's public key so only the
  site can read the session key.
• A secure session is now established. It all takes
  only seconds and requires no action by the user.
  Depending on the browser, the user may see a key
  icon becoming whole or a padlock closing,
  indicating that the session is secure.

46
Lab2 PKI How SSL work
47
Lab2 PKIPKI Lab

• Set up a Secure Web server
• Build your CA Server
• Sign a server cert and user cert
• Set up Client Authentication and Access Control

48
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Traffic analysis by tcpdump
• Tools for traffic analysis
• Simple Network Management Protocol (SNMP)
• Multi Router Traffic Grapher (MRTG)

49
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• ifconfig
• It provides information about the basic
  configuration of the interface. It is useful for
  detecting bad IP addresses, incorrect subnet
  masks, and improper broadcast addresses
• E.G.
• cshgt ifconfig -a
• eth0 Link encapEthernet HWaddr
  00D00928F9F9
• inet addr192.168.64.23 Bcast192.168.64.255
  Mask255.255.255.0
• UP BROADCAST RUNNING MULTICAST MTU1500 Metric1

• RX packets10113996 errors231 dropped0
  overruns0 frame231
• TX packets2575002 errors0 dropped0 overruns0
  carrier0
• collisions0 txqueuelen100
• Interrupt3 Base address0xc000

50
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Check for the error packets and collision values
• The Input errors/Input packet ratio and Output
  errors/Output packet ratio should be lt 0.025
• Large Input errs gt the interface just discards
  the packet
• there may be faulty hardware on the network
  (Faulty hardware can be anything from another
  computer system that is generating packets
  improperly to a bad connector or terminator)
• or your system cannot receive packets fast enough


51
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Check for the error packets and collision values
• Large Output errs gt your system's network
  interface is faulty
• something wrong the CPU and the ethernet cable
• the problem should be local not from outsiders
• Collisions are normal events and don't indicate
  hardware problems. However, if Collision/Output
  packets gt 10 constantly gt network overloaded

52
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Check for the error packets and collision values
• Besides "ifconfig -a", "netstat -i" and "cat
  /proc/net/dev" can also show the Input and Output
  packet statistics
• e.g
• ntec23/tmpgt netstat -i
• Kernel Interface table
• Iface MTU Met RX-OK RX-ERR RX-DRP RX-OVR TX-OK
  TX-ERR TX-DRP TX-OVR Flg
• eth0 1500 0 10153378 231 0
  0 2588097 0 0 0
  BRU
• lo 3924 0 14174 0 0
  0 14174 0 0
  0 LRU

53
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Measure the throughput between two points
• ttcp
• At the receive side, ttcp -r -s
• At the send side, ttcp -t -s receive_side_host_na
  me
• For example, ntec94/rootgt ttcp -t -s ntec93
• ttcp-t buflen8192, nbuf2048, align16384/0,
  port5001 tcp -gt ntec93
• ttcp-t socket
• ttcp-t connect
• ttcp-t 16777216 bytes in 2.05 real seconds
  7978.76 KB/sec
• ttcp-t 2048 I/O calls, msec/call 1.03,
  calls/sec 997.35

54
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Measure the throughput between two points
• ftp
• You can use ftp to get a very large file to
  local /dev/null so that your ftp transfer rate
  will not be affected by your host disk I/O
• E.G.
• ftpgt get pkg.tar /dev/null
• local /dev/null remote pkg.tar
• 200 PORT command successful.
• 150 Opening BINARY mode data connection for
  pkg.tar (63006720 bytes).
• 226 Transfer complete.
• 63006720 bytes received in 6.7 seconds (9.2e03
  Kbytes/s)

55
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Check the routing table by using netstat
• The routing decisions are quite simple
• If the destination host is on the local network,
  the data is delivered to the destination host.
• If the destination host is on a remote network,
  the data is forwarded to a local gateway.
• You can display the routing table's contents with
  the netstat -ner command.

56
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Check the routing table by using netstat
• E.G.
• csh gt netstat -ren
• Kernel IP routing table
• Destination Gateway Genmask
  Flags Metric Ref Use Iface
• 192.168.20.11 0.0.0.0 255.255.255.255 UH
  0 0 0 eth0
• 192.168.20.0 0.0.0.0 255.255.255.0
  U 0 0 0 eth0
• 127.0.0.0 0.0.0.0 255.0.0.0
  U 0 0 0 lo
• 0.0.0.0 192.168.20.254 0.0.0.0
  UG 0 0 0 eth0

57
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Address Resolution by using arp
• The physical networks that underlay the TCP/IP
  network do not understand IP addressing. Physical
  networks have their own addressing schemes. One
  task of the network access protocols is to map IP
  addresses to physical network addresses.
• The most common example of this network access
  layer function is the translation of IP addresses
  to Ethernet addresses. The protocol that performs
  this function is Address Resolution Protocol
  (ARP),

58
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Address Resolution by using arp
• The ARP software maintains a table of
  translations between IP addresses and Ethernet
  addresses. This table is built dynamically. When
  ARP receives a request to translate an IP
  address, it checks for the address in its table.
  If the address is found, it returns the Ethernet
  address to the requesting software. If the
  address is not found in the table, ARP broadcasts
  a packet to every host on the Ethernet. The
  packet contains the IP address for which an
  Ethernet address is sought. If a receiving host
  identifies the IP address as its own, it responds
  by sending its Ethernet address back to the
  requesting host. The response is then cached in
  the ARP table.

59
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Address Resolution by using arp
• The arp command displays the contents of the ARP
  table. To display the entire ARP table in cache,
  use the arp -a command.
• e.g.
• ntec23/tmpgt /sbin/arp -a
• router.arm.hkntec.net (192.168.64.254) at
  00B0D011CB4B ether on eth0
• castle (192.168.64.230) at 00B0D0220A28
  ether on eth0
• athena (192.168.64.232) at 0001023A9325
  ether on eth0

60
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Testing Basic Connectivity by ping
• The ping command tests whether a remote host can
  be reached from your computer. If ping shows that
  packets can travel to the remote system and back,
  the user's problem is probably in the upper
  layers. If packets can't make the round trip,
  lower protocol layers are probably at fault.
• If your ping fails, or the user's ping fails,
  pay close attention to any error messages. The
  error messages displayed by ping are helpful
  guides for planning further testing.

61
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Testing Basic Connectivity by ping
• Common ping error messages
• Unknown host
• The remote host's name cannot be resolved by
  name service into an IP address. The name servers
  could be at fault (either your local server or
  the remote system's server), the name could be
  incorrect, or something could be wrong with the
  network between your system and the remote name
  server. If you know the remote host's IP address,
  try to ping that. If you can reach the host using
  its IP address, the problem is with name service.


62
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Testing Basic Connectivity by ping
• Common ping error messages
• Network unreachable
• The local system does not have a route to the
  remote system. If the numeric IP address was used
  on the ping command line, re-enter the ping
  command using the hostname. This eliminates the
  possibility that the IP address was entered
  incorrectly, or that you were given the wrong
  address. If a routing protocol is being used,
  make sure it is running and check the routing
  table with netstat.

63
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Testing Basic Connectivity by ping
• Common ping error messages
• No answer
• The remote system did not respond. Some network
  utilities may refer this message as "100 packet
  loss" , "Connection timed out" or "cannot
  connect." All of these errors mean the same
  thing. The local system has a route to the remote
  system, but it receives no response from the
  remote system to any of the packets it sends.

64
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Testing Basic Connectivity by ping
• Common ping error messages
• No answer
• There are many possible causes of this problem.

• The remote host may be down.
• Either the local or the remote host may be
  configured incorrectly.
• A gateway or circuit between the local host and
  the remote host may be down.
• The remote host may have routing problems.
• Only additional testing can isolate the cause of
  the problem. Carefully check the local
  configuration using netstat and ifconfig. Check
  the route to the remote system with traceroute.

65
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Tracing Routes using traceroute
• If the local routing table is correct, the
  problem may be occurring some distance away from
  the local host. Remote routing problems can cause
  the "no answer" error message, as well as the
  "network unreachable" error message. But the
  "network unreachable" message does not always
  signify a routing problem. It can mean that the
  remote network cannot be reached because
  something is down between the local host and the
  remote destination. traceroute is the program
  that can help you locate these problems.
• traceroute traces the route of UDP packets from
  the local host to a remote host. It prints the
  name (if it can be determined) and IP address of
  each gateway along the route to the remote host.

66
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Tracing Routes using traceroute
• traceroute uses two techniques, small ttl
  (time-to-live) values and an invalid port number,
  to trace packets to their destination. traceroute
  sends out UDP packets with small ttl values to
  detect the intermediate gateways. The ttl values
  start at 1 and increase in increments of 1 for
  each group of three UDP packets sent. When a
  gateway receives a packet, it decrements the ttl.
  If the ttl is then 0, the packet is not forwarded
  and an ICMP "Time Exceeded" message is returned
  to the source of the packet. traceroute displays
  one line of output for each gateway from which it
  receives a "Time Exceeded" message.

67
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Tracing Routes using traceroute
• When the destination host receives a packet from
  traceroute, it returns an ICMP "Unreachable Port"
  message. This happens because traceroute
  intentionally uses an invalid port number (33434)
  to force this error. When traceroute receives the
  "Unreachable Port" message, it knows that it has
  reached the destination host, and it terminates
  the trace. So, traceroute is able to develop a
  list of the gateways, starting at one hop away
  and increasing one hop at a time until the remote
  host is reached.
• traceroute sends out three packets at each ttl
  value. If no response is received to a packet,
  traceroute prints an asterisk (). If a response
  is received, traceroute displays the name and
  address of the gateway that responded, and the
  packet's round-trip time in milliseconds.

68
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Tracing Routes using traceroute
• E.G.
• ntec1-20/tmpgt nslookup www.i-cable.com
• Non-authoritative answer
• Name www.i-cable.com
• Address 210.80.60.12
• ntec1-20/tmpgt traceroute www.i-cable.com
• traceroute to www.i-cable.com (210.80.60.12), 30
  hops max, 38 byte packets
• 1 router-20.hkntec.net (192.168.20.254) 0.515
  ms 0.389 ms 0.413 ms
• 2 router-250.hkntec.net (192.168.250.254)
  0.822 ms 0.456 ms 0.503 ms
• 3 router99.ie.cuhk.edu.hk (137.189.99.254)
  1.204 ms 4.987 ms 1.307 ms
• 4 137.189.200.250 (137.189.200.250) 8.217 ms
  30.299 ms 1.276 ms
• 5 vpn.cuhk.edu.hk (137.189.192.238) 2.278 ms
  2.332 ms 2.032 ms
• 6 i-cable2-PVC.hkix.net (202.40.161.155) 3.684
  ms 3.628 ms 4.716 ms
• 7 flute.i-cable.com (210.80.60.12) 4.792 ms
  4.839 ms

69
Lab3 Network Monitoring and Debugging

• Flow of traceroute packets

70
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Checking network connection by netstat
• e.g.
• ntec23/tmpgt netstat -tu
• Active Internet connections (w/o servers)
• Proto Recv-Q Send-Q Local Address
  Foreign Address State
• tcp 0 0 ntec23646
  castle988 TIME_WAIT
• tcp 0 0 ntec23643
  castle988 TIME_WAIT
• tcp 0 0 ntec23www
  router2294 TIME_WAIT
• tcp 0 0 ntec23www
  router2293 TIME_WAIT
• tcp 0 0 ntec23641
  castle988 TIME_WAIT
• tcp 0 0 ntec23www
  router.2293 TIME_WAIT
• tcp 0 0 ntec23637
  castle988 TIME_WAIT
• tcp 0 0 ntec232907
  ntec93domain TIME_WAIT
• tcp 0 0 ntec232906
  ntec93domain TIME_WAIT
• tcp 0 0 ntec23ftp
  ntec43446 ESTABLISHED
• tcp 0 1216 ntec23ssh
  ntec41018 ESTABLISHED

71
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Checking network connection by netstat
• netstat OUTPUT
• Proto
• The protocol (tcp, udp, raw) used by the
  socket.
• Recv-Q
• The count of bytes not copied by the user
  program connected to this socket.
• Send-Q
• The count of bytes not acknoledged by the
  remote host.
• Local Address
• The local address (local hostname) and
  port number of the socket. Unless the -n
  switch is given, the socket address is
  resolved to its canonical hostname, and the port
  number is translated into the corresponding
  service name.
• Foreign Address
• The remote address (remote hostname) and
  port number of he socket. As with the
  local addressport, the -n switch turns off
  hostname and service name resolution.

72
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Checking network connection by netstat
• netstat OUTPUT
• State
• ESTABLISHED
• The socket has an established
  connection.
• SYN_SENT
• The socket is actively attempting
  to establish a connection.
• SYN_RECV
• A connection request has been
  received from the network.
• FIN_WAIT1
• The socket is closed, and the
  connection is shutting down.
• FIN_WAIT2
• Connection is closed, and the
  socket is waiting for a shutdown from the remote
  end.
• TIME_WAIT
• The socket is waiting after close
  to handle packets still in the network.

73
Lab3 Network Monitoring and Debugging

• Network trouble shoot tools
• Checking network connection by netstat
• netstat OUTPUT
• State
• CLOSED
• The socket is not being used.
• CLOSE_WAIT
• The remote end has shut down,
  waiting for the socket to close.
• LAST_ACK
• The remote end shut down, and the
  socket is closed. Waiting for acknowledgement.
• LISTEN
• The socket is listening for incoming
  connections. Those sockets are only displayed if
  the -a,--listening switch is set.
• CLOSING
• Both sockets are shut down but we
  still don't have all our data sent.
• UNKNOWN
• The state of the socket is unknown.

74
Lab3 Network Monitoring and Debugging
75
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump tcpdump is a
very powerful and easy to use tool for protocol
packet capture. It captures packets from an
Ethernet in promiscuous mode, and displays their
contents. Numerous options exist to filter the
output down to only those packets of interest.
76
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump Here are some
basic examples tcpdump dump all packets
tcpdump -e dump the packet header too
tcpdump -ex dump the packet header and the
packet content in hex tcpdump -exa dump the
packet header and the packet content in hex and
ascii tcpdump -c 500 dump 500 packets and
exit
77
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump Here are some
basic examples tcpdump -c 500 -w dump.log
dump 500 packets and write it to dump.log file
tcpdump -r dump.log read the packets
from dump.log rather than the network interface
tcpdump tcp dump tcp packets only tcpdump udp
Dump udp packets only tcpdump -ex broadcast
dump broadcast packets only with packet header
and content
78
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump Here are some
basic examples tcpdump -exs 500 dump packets
header and content with packet length up to 500
bytes. The defualt display packet length is 64
tcpdump greater 512 dump packets whose packet
length greater than 512 tcpdump less 512 dump
packets whose packet length lesser than 512
tcpdump host ntec23 dump packets from and to
ntec23 host only tcpdump port 21 dump ftp
packets only
79
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump The output of
tcpdump is protocol dependent. The most three
common protocols are ARP, TCP and UDP ARP csh gt
tcpdump arp tcpdump listening on
eth0 152628.340765 arp who-has
router-20.hkntec.net tell ntec10-20 152628.34078
0 arp reply router-20.hkntec.net is-at
03fdfa301c 152639.019795 arp who-has
router-20.hkntec.net tell ntec4-20 152639.029743
arp reply router-20.hkntec.net is-at
03fdfa301c 152645.499830 arp who-has
router-20.hkntec.net tell ntec7-20
80
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump The output of
tcpdump is protocol dependent. The most three
common protocols are ARP, TCP and UDP TCP csh gt
tcpdump tcp port finger tcpdump listening on
eth0 153005.772726 ntec2.ie.cuhk.edu.hk.1693 gt
ntec3-20.finger S 111695275111695275(0) win
32120 ltmss 1460,sackOK,timestamp 508816181tcpgt
(DF) 153005.772730 ntec3-20.finger gt
ntec2.ie.cuhk.edu.hk.1693 S 18448808671844880867
(0) ack 111695276 win 32120 ltmss
1460,sackOK,timestamp 588729366tcpgt
(DF) 153005.772850 ntec2.ie.cuhk.edu.hk.1693 gt
ntec3-20.finger . ack 1 win 32120
ltnop,nop,timestamp 508816181 588729366gt
(DF) 153005.773817 ntec2.ie.cuhk.edu.hk.1693 gt
ntec3-20.finger P 13(2) ack 1 win 32120
ltnop,nop,timestamp 508816181 588729366gt
(DF) 153005.773820 ntec3-20.finger gt
ntec2.ie.cuhk.edu.hk.1693 . ack 3 win 32120
ltnop,nop,timestamp 588729366 508816181gt
(DF) 153005.840632 ntec3-20.finger gt
ntec2.ie.cuhk.edu.hk.1693 P 120(19) ack 3 win
32120 ltnop,nop,timestamp 588729373 508816181gt
(DF) 153005.840638 ntec3-20.finger gt
ntec2.ie.cuhk.edu.hk.1693 F 2020(0) ack 3 win
32120 ltnop,nop,timestamp 588729373 508816181gt
(DF) 153005.840642 ntec2.ie.cuhk.edu.hk.1693 gt
ntec3-20.finger . ack 20 win 32101
ltnop,nop,timestamp 508816188 588729373gt
(DF) 153005.840645 ntec2.ie.cuhk.edu.hk.1693 gt
ntec3-20.finger . ack 21 win 32100
ltnop,nop,timestamp 508816188 588729373gt
(DF) 153005.840687 ntec2.ie.cuhk.edu.hk.1693 gt
ntec3-20.finger F 33(0) ack 21 win 32120
ltnop,nop,timestamp 508816188 588729373gt
(DF) 153005.840688 ntec3-20.finger gt
ntec2.ie.cuhk.edu.hk.1693 . ack 4 win 32120
ltnop,nop,timestamp 588729373 508816188gt (DF)
81
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump The output of
tcpdump is protocol dependent. The most three
common protocols are ARP, TCP and UDP TCP The
general format of a tcp protocol line is src gt
dst flags data-seqno ack window urgent options
Src and dst are the source and destination IP
addresses and ports. Flags are some combination
of S (SYN), F (FIN), P (PUSH) or R (RST) or a
single .' (no flags).
82
Lab3 Network Monitoring and Debugging
Traffic analysis by using tcpdump The output of
tcpdump is protocol dependent. The most three
common protocols are ARP, TCP and UDP UDP cshgt
tcpdump udp tcpdump listening on
eth0 153341.300667 ntec1-20.syslog gt
ntec16-36.syslog udp 44 153341.301376
ntec1-20.syslog gt ntec16-36.syslog udp
49 153341.313577 ntec1-20.699 gt fortress.989
udp 92 153341.314269 fortress.989 gt
ntec1-20.699 udp 68 153342.900653
ntec3-20.649 gt fortress.989 udp
56 153342.901399 ntec1-20.700 gt fortress.989
udp 92 153342.899936 fortress.989 gt
ntec3-20.649 udp 28 153342.900232
fortress.989 gt ntec1-20.700 udp 64
83
Lab3 Network Monitoring and Debugging
More tools for traffic analysis IPTraf --- An IP
Network Statistics Utility
84
Lab3 Network Monitoring and Debugging
More tools for traffic analysis ethereal ---
Interactively browse network traffic
85
Lab3 Network Monitoring and Debugging
SNMP In brief, SNMP, the Simple Network
Management Protocol, is a protocol designed to
give a user the capability to remotely manage a
computer network by polling and setting terminal
values and monitoring network events. SNMP
composes of 3 elements the MIB, the manager, and
the agent. SNMP composes of 3 elements the
MIB, the manager, and the agent.
86
Lab3 Network Monitoring and Debugging
SNMP Managment information bases (MIBs) are a
collection of definitions, which define the
properties of the managed object within the
device to be managed. Every managed device keeps
a database of values for each of the definitions
written in the MIB. It is not the actual database
itself - it is implementation dependant. Latest
Internet MIB is given in RFC 1213 sometimes
called the MIB-II. The agent runs off of each
node on the network. Many UNIX software vendors
include this with their terminal software. It
collects network and terminal information as
specified in the MIB. The manager is located on
the host computer on the network. It's main role
is to poll the agents for certain requested
information. Again, there are lots of shareware
managers available. For example, on PC, there is
NetGuard and is freely available. On UNIX network
managers range from the simple and free to the
very complex and expensive, like HP's OpenView or
SunNet Manager.
87
Lab3 Network Monitoring and Debugging
SNMP MIB (Management Information Base) Structure
All managed objects in the SNMP environment are
arranged in a hierarchical or tree structure. The
leaf objects of the tree are the actual managed
objects, each of which represents some resource,
activity, or related information that is to be
managed. The tree structure itself defines a
grouping of objects into logically related sets.
88
Lab3 Network Monitoring and Debugging
MIBII
89
Lab3 Network Monitoring and Debugging
SNMP
The object ID No. .1.3.6.1.2.1.2.2.1.11.2 Is
corresponding to .iso.org.dod.internet.mgmt.mib2.
interfaces.ifTable.ifEntry.ifInUcastPkts.2
90
Lab3 Network Monitoring and Debugging
MRTG The Multi Router Traffic Grapher (MRTG) is a
tool to monitor the traffic load on
network-links. MRTG generates HTML pages
containing GIF images which provide a LIVE visual
representation of this traffic. MRTG is based on
Perl and C and works under UNIX and Windows NT.
E.G. The follow MRTG graph shows a peak traffic
at 1600
91
Lab3 Network Monitoring and Debugging
MRTG Using external Program to collect data
Besides using SNMP to collect data, MRTG can
allow you to use some external program to do the
data gathering. The external command must return
4 lines of output Line 1 current state of the
first variable, normally 'incoming bytes count'
Line 2 current state of the second variable,
normally 'outgoing bytes count' Line 3 string
(in any human readable format), telling the
uptime of the target. Line 4 string, telling
the name of the target. Depending on the type of
data your script returns you might want to use
the 'gauge' or 'absolute' arguments for the
Options keyword.
