Title: VODCA:%20View-Oriented,%20Distributed,%20Cluster-based%20Approach%20to%20parallel%20computing

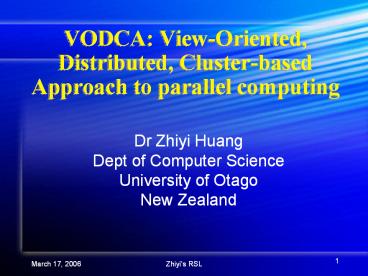

1
VODCA View-Oriented, Distributed, Cluster-based
Approach to parallel computing
Dr Zhiyi Huang Dept of Computer
Science University of Otago New Zealand
2
Motivation
  • DSM applications are not as efficient as MPI on
    cluster computers

3
VOPP
  • VODCA is a system supporting View-Oriented
    Parallel Programming (VOPP)
  • Why a new programming style?
  • Improve the performance of DSM applications on
    cluster computers
  • Provide a programming style better than MPI
  • Message passing is notoriously known as a
    difficult programming style

4
What is a view?
  • Suppose M is the set of data objects in shared
    memory
  • A view is a group of data objects from the shared
    memory
  • ? V, V?M
  • Views must not overlap each other
  • ? Vi, Vj, i ? j, Vi ? Vj ?
  • Suppose there are n views in shared memory
  • ? ViM

5
VOPP Requirements
  • The programmer should divide the shared data into
    a number of views according to the data flow of
    the parallel algorithm.
  • A view should consist of data objects that are
    always processed as an atomic set in a program.
  • Views can be created and destroyed anytime.
  • Each view has a unique view identifier

6
VOPP Requirements (cont.)
  • View primitives such as acquire_view and
    release_view must be used when a view is
    accessed.
  • acquire_view(View_A)
  • A A 1
  • release_view(View_A)
  • acquire_Rview and release_Rview can be used when
    a view is only read by a processor.

7
Example
  • A VOPP program for a producer/consumer problem

If(prod_id 0) acquire_view(1)
produce(x) release_view(1) barrier(0) a
cquire_Rview(1) consume(x) release_Rview(1)
8
Advantages of VOPP
  • Keep the convenience of shared memory programming
  • Focus on data partitioning and data access
    instead of data race and mutual exclusion
  • View primitives automatically achieve mutual
    exclusion
  • View primitives are not extra burden
  • The programmer can finely tune the parallel
    algorithm by careful view partitioning

9
Philosophy of VOPP
  • Shared memory is a critical resource that needs
    to be used with care
  • If there is no need to use shared memory, dont
    use it
  • Justification is wanted before a view is created

10
VOPP vs. MPI
  • Easier for programmers than MPI
  • For problems like task queue, programming with
    MPI is horrific.
  • Can mimic any finely-tuned MPI program
  • Shared message ? view
  • Send/recv ? acquire_view
  • Essential differences
  • View is location transparent
  • More barriers in VOPP

11
Implementation
  • VODCA View-Oriented, Distributed, Cluster-based
    Approach to parallel computing
  • VODCA version 1.0
  • Released as an open source software
  • A library run at the user space
  • Based on View-based Consistency
  • Use an efficient consistency protocol VOUPID

12
View-based Consistency
  • Condition for View-based Consistency
  • Before a processor Pi is allowed to access a view
    by calling acquire_view or acquire_Rview, all
    previous write accesses to data objects of the
    view must be performed with respect to Pi
    according to their causal order.
  • In VOPP, barriers are only used for
    synchronization and have nothing to do with
    consistency maintenance for DSM.

13
Consistency protocols
  • They are page based
  • Update protocol
  • Modify immediately
  • Invalidation protocol
  • Use a write notice to invalidate a page
  • When the page is accessed, a page fault causes
    the fetch of diffs which are applied on the page

14
Consistency protocols (cont.)
  • Home-based protocol
  • Based on invalidate protocol, but
  • For each page, use a copy as its home
  • When a diff is created, it is applied to the home
    copy immediately
  • When the page is accessed, a page fault causes
    the fetch of the home copy (Pros resolve the
    diff accumulation problem)

15
The VOUPID protocol
  • View-Oriented Update Protocol with Integrated
    Diff
  • Based on the update protocol
  • Diffs of a page of a view are merged into a
    single diff
  • The single diff is used to update the page when
    the view is acquired

16
Experiment
  • Use a cluster computer
  • The cluster computer, in Tsinghua Univ., consists
    of 128 Itanium 2 running Linux 2.4, connected by
    InfiniBand. Each node has two 1.3 GHz processors
    and 4 Gbytes RAM. We run two processes on each
    node.
  • We used four applications, Integer Sort (IS),
    Gauss, Successive Over-Relaxation (SOR), and
    Neural Network (NN).

17
Related systems
  • TreadMarks (TMK) is a state-of-the-art
    Distributed Shared Memory system based on
    traditional parallel programming.
  • Message Passing Interface (MPI) is a standard for
    message passing-based parallel programming. We
    used LAM/MPI.

18
Performance of NN
19
Performance of IS
20
Performance of SOR
21
Performance of Gauss
22
Future work on VOPP
  • More benchmarks/applications
  • Performance evaluation on larger clusters
  • Optimized implementation of barriers for VOPP
  • More auxiliary utilities for VOPP programmers
  • A view-based debugger for VOPP
  • A fault-tolerant system for VODCA

23
Questions?
