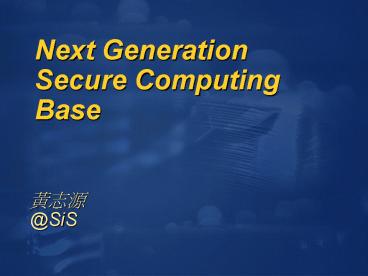

Next Generation Secure Computing Base

1
Next Generation Secure Computing Base

• ???
• _at_SiS

2
Contents

• Next Generation Secure Computing Base Overview
• Hardware Fundamentals For NGSCBPart 1 Core
  Hardware
• Hardware Fundamentals For NGSCBPart 2
  Peripheral Hardware
• Nexus Fundamentals

3
Next Generation Secure Computing Base Overview
4
Trustworthy Computing

• Resilient to attack
• Protects confidentiality, integrity,
  availability, and data

Individuals control personal data Products and
Online Services adhere to fair information
principles
Dependable Available when needed Performs at
expected levels
Help customers find appropriate solutions Address
issues with products and services Open
interaction with customers
Business Integrity
5
NGSCB Vision And Goals

• Vision
• NGSCB advances the PC ecosystem to meet
  customers requirements for security, privacy,
  and data protection
• Product Goal
• NGSCB will broaden the utility of the PC by
  delivering security on par with closed
  architecture systems while maintaining the
  flexibility of the Windows platform
• Business Goal
• NGSCB will help to revitalize the PC ecosystem by
  enabling a new generation of hardware and
  software products

6
Customer Security Issues

• Vulnerability introduced by enabling remote
  access
• Illegal access and usage of sensitive information
• Difficulty in knowing who a company is doing
  business with
• Difficulty in doing patch management
• Others
• Collaborating in a secure environment
• Protecting secrets, e.g., key pairs, certificates
• Virus and malicious code attacks

7
Why NGSCB?

• Vulnerabilities today
• Attacks on Core assets
• Attacks on Networks
• Attacks via Remote users/machines
• NGSCB can address software attacks on
  applications, secrets
• Damage from attacks can be compartmentalized and
  limited

8
How It Works The PC
9
How It Works Before NGSCB
10
How It Works Before NGSCB
11
How it Works Before NGSCB
12
How It Works With NGSCB
NGSCB
13
How It Works With NGSCB
14
How It Works With NGSCB
NGSCB
15
NGSCB Quadrants
Main OS
USB
NexusMgr.sys
Driver
HAL
16
Four NGSCB Features Groups
The first three are needed to protect against
malicious code Attestation breaks new ground in
distributed computing The identity of hardware,
nexus, and applications can be proven
1
2
4
3
17
Addressing Customer Needs With NGSCB

• Remote access
• Granularity of access at machine, nexus, and
  application level
• Application to application connection rather than
  VPN connection
• Patch management
• IT can specify that only a known configuration of
  nexus and application can execute or access
  corporate resources
• Preventing illegal access of information
• Reinforce rights management by rooting key pair
  in hardware
• Encryption of data based on secrets that never
  leave hardware
• Agents development
• Agents identity is rooted in secrets on the
  hardware
• Applications run in isolated process space and
  are impermeable to software attack
• Collaboration enablement
• End users can collaborate and communicate
  securely
• End users can establish content authenticity by
  digital signature

18
Four NGSCB Features Groups
19
What Does This All Mean?

• All NGSCB capabilities build off of four key
  features
• Strong process isolation
• Root key for persistent secret protection
• Secure path to and from the user
• Attestation (hardware (HW)/software (SW)
  authentication)
• The first three are needed to protect against
  malicious code
• Attestation breaks new ground in distributed
  computing
• Things (software, machines, services) can be
  securely identified

20
NGSCB Quadrants
Nexus-Mode (RHS)
Standard-Mode (LHS)
Agent
Agent
Agent
User
Trusted User Engine (TUE)
TSP
TSP
TSP
NCA Runtime Library
Main OS
Nexus
Kernel
USB
NexusMgr.sys
Driver
NAL
HAL
SSC
Hardware
Secure Input
Chipset
CPU
Secure Video
21
Four Key Features (1) Process Isolation
Nexus-Mode (RHS)
Standard-Mode (LHS)
Agent
Agent
Agent
User
Kernel
Hardware
22
Strong Process Isolation

• Nexus Computing Agents, or NCAs, run in curtained
  memory
• Not accessible by the standard Windows kernel
• Not accessible by hardware DMA
• Not accessible by other NCAs
• Enforced by hardware and software
• Changes to CPU, chipset
• Nexus arbitrates page tables

23
Four Key Features(2) Secure Path To and From User
Nexus-Mode (RHS)
Standard-Mode (LHS)
User
Nexus Manager Abstraction Layer (NMAL)
Nexus Manager Core
Nexus Dispatch Services
Shadow Service
Admin Service
Nexus Mgr IPC
Secure Video Filter Driver
Secure Input Filter Driver
Kernel
Object Security Manager
Shared Resource Manager
HW Allocator (memory wholesaler)
Nexus Loader
Secure video
Secure Input
Hardware
24
Secure Path To User

• Secure input
• Encrypted session between USB device and nexus
• Changes to standard USB driver stack
• Required for keyboard and mouse
• Alternate solution being developed for non-USB
  (laptops)
• Secure output
• Secure channel between graphics adaptor and
  nexus
• Changes to graphics adaptor
• Changes to video driver

25
Four Key Features (3) Sealed Storage
Nexus-Mode (RHS)
Standard-Mode (LHS)
User
Kernel
Nexus
NAL
SSC
Hardware
26
Hardware Protection Of Secrets

• Security Support Component (SSC) chip on
  motherboard
• SSC holds a secure keyset
• Each nexus generates a random keyset on first
  load
• SSC provides hardware protection of the nexus
  keyset
• NCAs use nexus facilities to generate and protect
  keys

27
Four Key Features (4) Attestation
Nexus-Mode (RHS)
Standard-Mode (LHS)
User
Kernel
Nexus
NAL
SSC
Hardware
28
AttestationSoftware/Hardware Authentication

• When requested, the nexus can prepare a chain
  that authenticates
• NCA by digest, signed by the nexus
• Nexus by digest, signed by the SSC
• SSC by public key, signed by OEM
• Other forms of attestation are possible that
  provide less information
• Using trusted third party
• User sets policy to control which NCAs can use
  which forms of attestation

29
Hardware Summary
Nexus-Mode (RHS)
Standard-Mode (LHS)
User
Kernel
SSC
Hardware
Secure Input
Secure Video
Chipset
CPU
30
Hardware Summary

• Modified components
• CPU
• Chipset
• Secure video
• Secure input (keyboard and mouse)
• Two versions USB and laptop
• New components
• SSC

31
A Qualitative Step Forward

• NGSCB extends the Windows platform
• We provide the core, others will build the
  solutions
• We really want to enable others to build new and
  exciting applications
• NGSCB is appropriate anywhere you could possibly
  imagine needing privacy, security or data
  protection
• We will ship some solutions in the box
• Enough to provide immediate value

32
Scenario Categories

• Secure remote access
• Corporate remote access
• Secure client access to middle tier servers
• Secure collaboration
• Chat and instant messaging
• E-Mail
• Rights management
• Digital signature

33
Secure Remote Access

• Examples
• To a client/server app, using a custom NCA client
• To your enterprise desktop, using a secure remote
  desktop client
• How it works
• Uses attestation for end-to-end authentication
• Uses strong process isolation and secure path to
  the user to be safe against attacks on the remote
  client
• Uses an application private network (APN) for
  secure communications
• Application-to-application encrypted session
• More secure than a VPN because the protection
  extends into the application layer itself


34
Application Private Network
Application (Client NCA)
Application (Server)
Presentation
Presentation
Session
Session
Transport
Transport
Network
Network
Datalink
Datalink
Physical
Physical
35
Secure Collaboration

• Examples
• Secure e-mail
• Secure text document creation and sharing
• Secure instant messaging
• Secure digital signature what you see is what
  you sign
• How it works
• Uses rights management based on hardware
  protection of secrets to protect and control
  access to data
• Uses strong process isolation and secure path to
  the user to be safe against spoofing and snooping
  attacks
• Uses an APN for end-to-end messaging security

36
Secure Digital Signature
NOTE for explanatory purposes only this is not
actual UI
37
Hardware Fundamentals For NGSCBPart 1 Core
Hardware

38
Agenda

• Threat Models
• What is NGSCB and Why?
• What does NGSCB do?
• NGSCB Features and Details
• Strong Process Isolation
• Attestation
• Sealed Storage
• Call to Action

39
Next Generation Secure Computing Base (NGSCB)
Defined

• New security technology for the Microsoft Windows
  platform
• Unique hardware and software architecture
• Protected computing environment inside the
  Windows PC
• A virtual vault that will sit side by side with
  the regular Windows environment
• New kinds of security and privacy protections for
  computers

40
NGSCB Quadrants
Standard-Mode (LHS)
Nexus-Mode (RHS)
Agent
Agent
Agent
User
Trusted User Engine (TUE)
TSP
TSP
TSP
NCA Runtime Library
Nexus
Main OS
Kernel
USB
NexusMgr.sys
Driver
NAL
HAL
SSC
Hardware
Secure Input
Chipset
CPU
Secure Video
41
NGSCB Threat Models

• Our Threat Model
• NO Software-Only Attacks Against Nexus-Space
  Operations
• NO Break-Once/Break-Everywhere (BOBE) attacks
• No Software-Only Attacks means
• No attacks based on micro-code, macro-code,
  adapter card scripts, etc.
• Any attacks launched from the Web or e-mail are
  software only
• Protection only applies to the release of
  secrets
• Viruses could still delete encrypted files

42
NGSCB Threat Models

• No BOBE attacks means
• Attacks dont scale
• Each Security Support Component (SSC) has unique
  keys
• Data MUST use unique or partially unique, rather
  than global keys
• One person breaking one machine yields the
  secrets sent to that machine only
• Does NOT allow that person to tell everybody else
  in the world how to break content
• Does allow the release of content bound to that
  machine

43
What And Why?

• Modifications to allow PCs to be used in new ways
• Hardware changes
• Software changes
• Allows users to interact with entities either
  inside or outside the machine
• Show them what code is running
• Make believable promises about code
• Prove that those promises are durable
• Changes what can be believed about computation
• Not what can be done with it

44
What And Why?

• This is the Next Big Thing
• Windowing in the 80s
• Networking in the 90s
• Security in the 00s
• Security and trust will advance the PC ecosystem
• Customers are demanding higher security and
  privacy
• From end-users to enterprises
• Governments are mandating as well
• Opens new markets that rely on trustworthiness of
  information technology

45
What Does NGSCB Do?

• Creates a safe region called nexus-space inside
  of a regular PC
• Think of an access-controlled, high-security
  vault in an open market
• All the rest of the PC is still present
• Apply full power and speed of the PC to security
  functions
• Co-processors dont scale with the CPU
• Adding main memory wont speed them up
• Majority of the hardware is unchanged
• E.g., PCI, Serial, Parallel, Memory

46
What Does NGSCB Do?

• NGSCB Code on NGSCB Hardware
• Designed to stop all software only threats in
  nexus-space
• Run all the old code
• Very obscure exceptions
• Qualitatively different
• Profound change in what can be believed, and
  hence, trusted

47
What Does NGSCB Do?

• Enhances Security
• Vault to store important material
• Both locally and remotely attestable
• Realistic control over which code can touch which
  data
• Control given to software, by users
• Enhances Robustness
• Better user control of what can run in NGSCB
  what it can do
• Enhances Privacy
• Users can know which code is doing what with
  private information
• Users can delegate privacy decisions in a usable
  way

48
How Does NGSCB Work

• New kind of process, called a Nexus Computing
  Agent, or NCA, or Agent
• Very much like a traditional process, but runs in
  a much more spartan environment
• The Key Assertions may be applied to agents

49
Key Assertions

• The agent is what it is attested to be
• The agent is running in the attested environment
  and THEREFORE
• The agent will be initiated correctly
• Agent behavior cannot be permuted by attacking
  initialization
• The agent is isolated
• From other agents
• From the Left Hand Side (LHS)
• Not even debuggers or device drivers can alter
  the agent at runtime
• The agent has someplace to keep a secret
• On clients, agents will have a secure path to the
  user

50
NGSCB Context
Standard-Mode (LHS)

• What exists in todays systems
• Main OS is rich, compatible with vast array of
  stuff, supports vast array of hardware it is
  large
• User can install drivers which get privileged
  access to memory remote parties can never be
  sure the program has not been negatively impacted
  by the driver

User Mode
DLL
DLL
Main OS
Kernel Mode
Drivers
HAL
51
NGSCB Quadrants
Standard-Mode (LHS)
Nexus-Mode (RHS)
User
Agent
Agent
Agent
NxSvc.exe
Main OS
Nexus
Kernel
NexusMgr.sys
Driver
NAL
HAL
SSC
Hardware
Secure Input
Chipset
CPU
Secure Video
52
NGSCB Quadrants
Standard-Mode (LHS)
Nexus-Mode (RHS)
User
Agent
Agent
Agent
NxSvc.exe
Main OS
Nexus
Kernel
NexusMgr.sys
Driver
NAL
HAL
SSC
Hardware
Secure Input
Chipset
CPU
Secure Video
53
NGSCB Strong Process Isolation

• Machine is locked into flat paged mode
• Address-Translation-Control prohibits std-mode
  code from mapping a nexus-mode page
• No CPU access to memory w/out mapping
• Requires CR3 loads trap to nexus
• Requires alteration of maps
• Requires PTE-writes to trap to the nexus or be
  filtered by hardware
• Chipset/Memory controller maintains a per-page
  list of pages to which DMA is prohibited, period

54
NGSCB Attestation

• Attestation is a crypto-signed digest of some
  code
• Proof that some bit vector is known by this
  digest
• SSC and CPU compute digest of nexus at nexus boot
• Nexus computes the digest of agents
• Digests are gathered together to make attestation
  vector that is passed back to a challenger

55
NGSCB Attestation

• Root of attestation stack is the security support
  component (SSC)
• Proof valid because the SSC provides a proof of a
  secret that only the SSC knows
• This secret never leaves the SSC
• Secret not revealed
• Secret not a privacy hazard

56
NGSCB Attestation Example

• Digest1 is for the SSC
• Establishes confidence in validity of NGSCB
  hardware
• Digest2 is for the nexus
• Establishes confidence in validity of nexus
• Has meaning only if Digest1 is valid
• Digest3 is for the agent
• Establishes confidence in validity of agent
• Has meaning only if Digest1 and Digest2 are valid

57
NGSCB Attestation Caveat

• Attestation is NOT a judgment of code quality or
  fitness
• Hardware will run any nexus, and attest to the
  digest of any nexus
• Our nexus will run any agent (in accordance with
  user policy) and attest to the digest of that
  agent
• Attestation leaves judgment up to challenger
• Done with excellent confidence
• Not up to hardware/nexus

58
NGSCB Attestation ? Hardware

• Attestation is implemented at the root by the SSC

• Must be tightly bound to the CPU and the chipset
  for
• Booting of the nexus
• Attestation of the nexus
• Chain of attestation

59
NGSCB Seal

• Heres a good mental model
• Seal(secret) ? cryptoblob(secret)
• Crytoblob(secret) may be stored anywhere
• The call is really
• Seal(secret, DigestOfEnvironment,
  DigestOfCallingAgent, MigrationControls) ?
  cryptoblob(secret)
• Unseal(cryptoblob(somesecret)) ? somesecret
• BUT Unseal is really
• Unseal(cryptoblob(somesecret), DigestOfEnvironment
  , DigestOfCallingAgent) ? somesecret nothing
• If the Digest of the environment or the calling
  agent does not match with those that did the
  seal, Unseal returns NOTHING

60
NGSCB Seal

• What it means
• If we ignore migration and indirection
• Seal/Unseal say that if agent A running on
  environment B seals a secret, then,
• Only agent A running on environment B can unseal
  it
• This gives agent A a way to hide a key
• Seal is implemented by the nexus in cooperation
  with the SSC
• Same hardware build rules as for attestation
• What's an "environment"
• Matching attestation vector for nexus-mode only
• Booting some other OS that can call the SSC does
  NOT reveal the secrets

61
NGSCB Seal

• Migration and indirection
• Caller gets to specify certain properties
• What agents may unseal the secret
• What hardware may unseal the secret
• What nexus may unseal the secret
• What users may unseal the secret
• Agents shouldnt seal against the SSC
• They should seal against the nexus
• which seals against the SSC
• Backup, restore, migration are all possible using
  intermediate keys and certificates

62
Hardware Fundamentals For NGSCBPart 2
Peripheral Hardware
63
GSCB Desktop Secure Input

• Threat Model
• NO Software Only Attacks Against Secured
  Keystrokes
• NO Break-Once/Break-Everywhere (BOBE) attacks
• Out of scope
• People swapping the keyboard hardware
• Patching into the keyboard cable
• Sticking some device between the keyboard and the
  box
• All require a physical attack
• Cannot send a physical attack via e-mail

64
Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Hazard
Kernel
USB Host Controller
65
Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Hazard
E
Kernel
USB Host Controller
E
E Encrypted
66
Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Hazard
E
Kernel
USB Host Controller
E
E Encrypted
67
Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Hazard
E
Kernel
USB Host Controller
E Encrypted
E
68
Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Hazard
E
Kernel
USB Host Controller
E Encrypted
E
69
Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Hazard
E
Kernel
Decrypted Text
USB Host Controller
E Encrypted
E
70
Mobile PC Secure Input
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
E
Hazard
Kernel
Chipset South Bridge (LPC bus Controller)
E
Key Board Controller (KBC)
E Encrypted
71
Secure Input

• Encryption for Human Interface Device (HID) will
  be done on the outboard side of a USB host
• Built into USB root hub
• Built into any USB hub
• Inside the device of interest
• In-line device (dongle) between the machine and
  the input device
• Best solution is 1

72
Secure Input Work In Progress

• For desktops
• Evaluating several different ways of establishing
  shared secret
• Security versus OEM and IT deployment tradeoffs
• For laptops
• Evaluating different ways to partition Secure
  Input Path firmware/microcode in Embedded
  Controller
• Legacy versus security certification issues
• Alternatives being evaluated
• More information in calls-to-action

73
Secure Video

• Threat Model for video
• NO Software-Only attacks against Secure Windows
  and the information displayed in them
• NO Break-Once/Break-Everywhere (BOBE) attacks
• This is not the ONLY hazard relevant to all stake
  holders
• It is what we can secure
• Security for external video interfaces is a
  matter for hardware standards
• NGSCB could support link protections but wont
  require it

74
Secure Video
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
User
Kernel
Graphics Adaptor (nexus-mode)
Hazard
Graphics Adaptor (std-mode)
USB Host Controller
75
Secure Video

• Secure Video assures
• Secure windows cannot be obscured
• Secure windows cannot be captured by unauthorized
  software
• Secure windows cannot be altered by unauthorized
  software
• Graphics adaptor may communicate with display in
  various formats
• We are working on accessibility

76
Secure Video

• The Challenge
• How does the video data get from nexus-mode to
  the graphics processor?
• Two general ways
• Closed path video MUST be integrated device
• Depends on special hardware path from nexus to
  video device
• Works when the video device is in close
  cooperation with the memory controller
• Encrypted path data is encrypted in nexus-mode
  and decrypted by the graphics adaptor
• Can reuse LHS driver stack

77
Closed Path T-Vid
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
Trusted Video Abstractor
User
Hazard
Kernel
Graphics Adaptor (nexus-mode)
Graphics Adaptor (std-mode)
USB Host Controller
78
Crypto Path T-Vid
Standard-Mode (std-mode/LHS)
Nexus-Mode (RHS)
Trusted Video Abstractor
E
User
Hazard
Graphics Adaptor (nexus-mode)
Kernel
E
Graphics Adaptor (std-mode)
USB Host Controller
E Encrypted
79
NGSCB Ecosystem

• Works today on x86 flat 32-bit architectures from
  multiple sources
• Could work on any CPU with
• User/kernel modes
• Page granular virtual memory mapping
• With effort, could be adapted to other CPU models

80
NGSCB Ecosystem

• Building an NGSCB capable machine requires

NGSCB CPU NGSCB Chipset SSC Secure Input Secure Video
All working in conjunction Include tamper
resistant/detecting hardware to pursue specific
opportunities
81
NGSCB Changing The Nexus

• The digest of the nexus is the basis for trust in
  the system
• So a change to the nexus is non-trivial
• Hardware changes which require nexus changes will
  face delays in market support
• We are working closely with core-logic vendors to
  minimize risk
• For RHS input and output its important to get
  things right
• This means that there will be a small number of
  practical INTERFACES for trusted-input and
  trusted-output
• This is about INTERFACES, not gates,
  technologies, fabs, speeds, or costs INTERFACES
• Microsoft is working to define these INTERFACES
  with leading providers of video and USB hardware
• LHS interfaces and software can change in the
  normal ways

82
Nexus Fundamentals
83
Device Drivers

• NGSCB doesnt change the device driver model
• NGSCB needs very minimal access to real hardware
• Secure reuse of Left Hand Side (LHS) driver
  stacks wherever possible
• Right Hand Side (RHS) encrypted channel through
  LHS unprotected conduit
• Every line of privileged code is a potential
  security risk
• No third-party code
• No kernel-mode plug-ins

84
Partitioned System

• RHS Security
• In the presence of adversarial LHS code the
  system must not leak secrets
• ? The RHS must NOT rely on the LHS for security
• LHS Richness and Compatibility
• In the absence of LHS cooperation NGSCB doesnt
  run
• ? The RHS MUST rely on the LHS for stability and
  services

85
What Runs On The LHS

• Applications and Drivers still run
• Viruses too
• Windows as you know it today
• Any software with minor exceptions
• The new hardware (HW) memory controller wont
  allow certain bad behaviors, e.g., code which
• Copies all of memory from one location to the
  next
• Puts the CPU into real mode

86
What NGSCB Needs From The LHS

• Device Driver work for Trusted Input / Video
• Memory Management additions to allow nexus to
  participate in memory pressure and paging
  decisions
• User mode debugger additions to allow debugging
  of agents (explained later)
• Window Manager coordination
• Nexus Manager Device driver (nexusmgr.sys)
• NGSCB management software and services

87
Close-Up Of The Lower RHS
88
I Think, Therefore I AmDescartes Problem

• Challenge for attestation must always come from
  outside the machine
• Local (the user with a superkey)
• Remote (some server)
• No nexus can directly determine if it is running
  in the secured environment
• No Agent can directly determine if it is running
  in the secured environment
• Must use Remote Attestation or Sealed Storage to
  cache credentials or secrets to prove the system
  is sound

89
Nexus Derivative Works

• The user can run any nexus, or write his own and
  run it, on the hardware
• That nexus can only report the attestation
  provided by the Security Support Component (SSC)
• The SSC wont lie
• The nexus cannot pretend to be another nexus
• Other systems will need to decide if they trust
  the new derived nexus
• Just need to prove to others your derivative is
  legitimate

90
Agent Derivative Works

• The user can run any agent, or write his own and
  run it, on the nexus
• That agent can report the attestation provided by
  the nexus
• The nexus wont lie
• The agent cannot pretend to be another agent
• Other systems will need to decide if they trust
  the new derived agent
• Just need to prove to others your derivative is
  legitimate

91
Policy Controlled By The Owner Of The Machine

• NGSCB enforces policy but does not set the policy
• The hardware will load any nexus
• But only one at a time
• Each nexus gets the same services
• The hardware keeps nexus secrets separate
• Nothing about this architecture prevents any
  nexus from running however, the owner can
  control which nexuses are allowed to run
• Proposed software (nexus) policies
• The Microsoft nexus will run any agent
• The platform owner can set policy that limits
  this
• User gets to pick some other delegated evaluator
  (e.g., my union) if they choose

92
Policy Notes

• Policy is a way for users and machine owners to
  make general, abstract statements, about what
  software runs
• Run any agent I click
• Run only agents whose source Ive read
• Run agents that a third party I trust, trusts

• The point of policy is to enable the users to
  control what runs on their machines

93
Next Generation Secure Computing Base Defined

• Microsofts Next-Generation Secure Computing Base
  (NGSCB) is a new security technology for the
  Microsoft Windows platform
• Uses a unique hardware and software design
• Gives people new kinds of security and privacy
  protections in an interconnected world

94
NGSCB Quadrants
Standard-Mode (std-mode / LHS)
Nexus-Mode (RHS)
Agent
Agent
Agent
User
Trusted User Engine (TUE)
TSP
TSP
TSP
NCA Runtime Library
Nexus
Main OS
Kernel
USB
NexusMgr.sys
Driver
NAL
HAL
SSC
Hardware
Secure Input
Chipset
CPU
Secure Video
95
Booting The Nexus

• Nexus is like an OS kernel, so it must boot
  sometime
• Can boot long after main OS
• Can shut down long before main OS (and restart
  later)

96
NGSCB Nexus Manager
Nexus-Mode (RHS)
Standard-Mode (LHS)
User
Nexus Manager Abstraction Layer (NMAL)
Nexus Manager Core
Nexus Dispatch Services
Shadow Service
Admin Service
Nexus Mgr IPC
Secure Video Filter Driver
Secure Input Filter Driver
Kernel
Object Security Manager
Shared Resource Manager
HW Allocator (memory wholesaler)
Nexus Loader
Secure video
Secure Input
Hardware
97
Booting The Nexus

• NexusMgr is a kernel mode LHS component
• Read and map the nexus code
• Allocate some pages from the main OS
• Pass that list of pages to the nexus via some
  platform-specific code/hardware
• Digest the nexus (with hardware help)
• Now the nexus starts, initializes Address
  Translation Control (ATC), and returns control to
  the LHS

98
Address Translation
Normal Page
Address Translation
Virtual addresses
Normal Page
Protected Page
99
Address Translation Control

• This is curtained memory (or strong process
  isolation)
• Cant tamper with a page unless you have a
  mapping to it
• On current PCs
• Any kernel mode code can modify Virtual Address
  (VA) ? Physical Address (PA) mapping structures
• Theres untrusted code in kernel mode
• NGSCB hardware calls nexus before
• Page map changes (process swap)
• Edits to mapping structures
• Turning off paging

100
Address Translation Control

• When the page map changes, the nexus
• Walks the tree of pages it maps
• Makes sure no protected pages are mapped
• No read/write mappings to the page map
• Now the map will remain safe, so hardware and
  software can manage a list of known safe page maps

101
Address Translation Control

• When a mapping structure changes, the nexus
• Walks the tree of pages getting mapped
• Makes sure no protected pages are getting mapped
• Ensures no read/write mappings to the page map
• ATC will almost always allow the mapping to
  change
• Legacy code will still work unless it attempts to
  access nexus space pages

102
Address Translation Control

• ATC protects
• Agent and nexus data
• Agent and nexus code
• All page mapping structures (LHS/RHS)
• Also protected from DMA (thanks to special
  hardware)
• Correct ATC implementation vital to NGSCB security

103
Memory Management (MM)

• Simplicity, robustness preferred over maximizing
  performance
• Allocate/free whole pages
• No shared memory between agents
• No paging-to-disk in this version
• If nexus were to page to disk, it would encrypt
  and sign the pages, then ask the main OS to flush
  them

104
Memory Management (MM)

• Nexus keeps some free pages that ATC is
  protecting
• Nexus can request extra pages from kernel via
  NexusMgr (seize)
• Nexus MM asks ATC if new pages are safe to use -
  any left side mappings?
• Nexus can give surplus pages back to kernel if
  the kernel needs them

105
Nexus Abstraction Layer (NAL)

• Multiple CPU vendors
• Different Security Support Components (SSC)
• Much nexus code is architecture independent

106
Interrupts

• Interrupts enabled on the RHS
• Most drivers are still on the LHS
• Sowhat if an interrupt for the NIC, SCSI card,
  etc. happens on the right?
• Nexus asks Porch to transition to the LHS
• NexusMgr replays the interrupt

107
Nexus Also Protects

• Model specific registers (MSRs)
• Some MSRs are used to implement NGSCB, but most
  will be accessible by left side code
• I/O ports
• Combined with ATC, this means PCI config space is
  protected
• Things like the DMA exclusion list are in chipset
  registers, so we must protect them
• The NAL helps decide what to protect
