Numerical differentiation

1

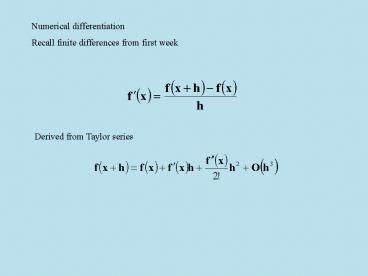

Numerical differentiation Recall finite
differences from first week
Derived from Taylor series
2
Neglecting all tersms higher than first order
Thats the forward difference - also backwards
and centered difference
3
Why is centered finite difference O(h2)?
Subtract second equation from first
4
We can combine Taylor series expansions in many
different ways to get estimates of
derivatives Example backwards second derivative,
O(h2) Start with
5
Multiply first equation by -5, second equation by
4 and add together

6
Multiply third equation by -1 and add to above
result

Rearrange
7
Where did I get -5, 4,-1?
We multiply 1st equation by a, second by b, third
by c
8
Now sum all equations and collect terms
Decide what derivatives we want to make disappear
- want a second derivative only - eliminate first
and third
9
Three unknowns - 2 equations - make an assumption
Let c-1
Can solve by hand
10
If we have more derivatives to get rid of, use
matrix methods - always one assumption
11
More Richardson extrapolation Recall
Can do the same thing with derivatives
12
Use same approach as Romberg integration with
halving the step size Example Formula for active
lateral pressure coefficient Ka with internal
angle of friction f and wall with slope b and
flat top is
Use Richardson/Romberg approach to estimate
at b10 degrees and f15 degrees
13
Use O(h2) estimates to get O(h6) estimate
14
Now do Richardson/Romberg trick
15
Derivatives of unequally spaced data Can use
matrix approach with different amounts of
h Example given values of f at x(1,2,5.5,9)
determine f at 2
16
Let h1, x2 (values at 1,2,5.5,9)
Equations to get rid of f and f are
and assume a value for c
17
Let c1, then a-22.8667, b-8.5333 then
or
18
Derivatives of unequally spaced data Another way
is to take derivative of interpolating
polynomial Lagrange polynomial - second order in
this case
19
Derivatives and integrals with errors in
data Errors in data points can cause
problems esp. with differentiation Example
with and without noise True
derivative is 2x-6
20
Look at ratio of noise in y to noise in dy/dx
For differentiation, fit a smooth line to the
data, then take derivative
