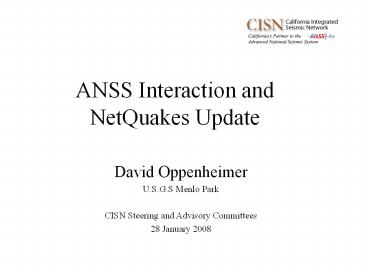

ANSS Interaction andNetQuakes Update
David Oppenheimer U.S.G.S Menlo Park CISN
Steering and Advisory Committees 28 January 2008
2
NSMP Project

• NSMP software written in 1992.
• Generates response and Fourier spectra, corrected
  acceleration, velocity, displacement

3
(No Transcript)
4
NSMP Project

• BAP uses file-based I/O and configuration
• 2-byte precision output and therefore duplicated
  at CESMD
• Poor interface to ANSS data
• NSMP project recently reorganized
• Data acquisition/processing in NCSN
• Field installation/maintenance in Earthquake
  Effects Project

5
Goals

• Migrate NSMP post-processing algorithms into CISN
  software architecture with effective
  user-interface tools
• Provide a supported, stable, and efficient
  processing platform for generating processed
  strong-motion records.
• Ensure that migrated software is capable of
  meeting present and future needs of ANSS, NSMP
  and the COSMOS user community.

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
The Parkfield Experience

• 50 SM stations within 20km
• 80 were SMA-1 recorders
• Wave field aliased

10
San Fernando
CISN ANSS
TriNet
Number/Yr
3600 more stations needed to achieve Vision 2005
goal of 5500 stations
It will take 70 years at this rate
11
3-pt leveling screws below
12
gt36-hour Sealed Lead Acid Battery
Colibrys SF2005S 3-g MEMS accelerometers
Three 1000sps Burr-Brown (TI) ADCs
13
Threaded rods
GPS
Power
Wireless
Console
Ethernet
Ethernet
14
Securing screws
Padlock hole
15
M3.1 2009/01/22 204658  recorded at CI.GSA
(40km)
CI
HNZ 0.34
NQ
HNE 0.42
HNN 0.41
Seconds
16
Software Status SeisNetWatch Server Functional
17
Software Status Registration Page Functional
18
Project Status

• 3 Servers operating in Menlo Park, Golden, and
  Caltech
• Peak ground motions fed into CISN system
• Waveform images created dynamically and available
  on USGS web server
• SOH fed into SNW
• 33 units delivered 25 more to be delivered soon
• 2 each sent to cooperating RSNs
• 16 to be deployed in SF Bay region 33 volunteers
• 5-year/3M IDIQ in place
