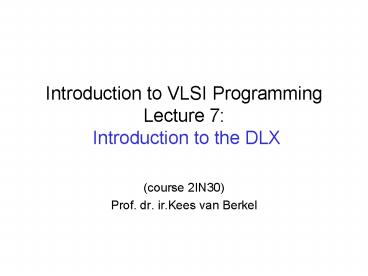

Introduction to VLSI Programming Lecture 7: Introduction to the DLX

1
Introduction to VLSI Programming Lecture 7
Introduction to the DLX

• (course 2IN30)
• Prof. dr. ir.Kees van Berkel

2
VLSI programming for

• Low costs
• introduce resource sharing.
• Low delay (high throughput)
• introduce parallelism.
• Low energy (low power)
• reduce activity

3
VLSI programming for low costs

• Keep it simple!!
• Introduce resource sharing commands, auxiliary
  variables, expressions, operators.
• Enable resource sharing, by
• reducing parallelism
• making similar commands equal

4
Procedure definition vs declaration

• Procedure definition P proc (). S
• provides a textual shorthand (expansion)
• each call generates copy of resource, i.e. no
  sharing
• Procedure declaration P proc (). S
• defines a sharable resource
• each call generates access to this resource

5
Hints and Tips optimization

• When asked to optimize for area (low cost) it is
  allowed to invest time (execution time, extra
  iterations, )
• When asked to optimize for speed, it is allowed
  to invest area (pipeline stages, parallelism, )

6
Hints and Tips a known bug

• Statement of form if x then S0 else S1 fi
• During simulation wrong alternative is selected
  (e.g. S0 when x true)
• Work around remove negation if x then S1 else
  S0 fi

7
Instruction Set Architecture

• ISA is interface between hardware and software.
• Hence, a good ISA
• allows easy programming (compilers, OS, ..)
• allows efficient implementations (hardware)
• has a long lifetime (survives many HW
  generations)
• is general purpose.

8
ISA classification
Code sequence for C AB
9
Reduced Instruction Set Computer

• 1980 Patterson and Ditzel The Case for RISC
• fixed 32-bit instruction set, with few formats
• load-store architecture
• large register bank (32 registers), all general
  purpose
• On processor organization
• hard-wired decode logic
• pipelined execution
• single clock-cycle execution

10
RISC processors

• Advantages
• smaller die size (single chip processor)
• shorter development time (simplicity)
• higher performance

• Disadvantages
• poor code density
• cannot execute X86 code

11
A Typical RISC

• 32-bit instructions, 3 fixed formats
• 32 general purpose registers, 32-bit
• 3 address arithmetic instructions, reg-reg
• single address mode for load/store address
  displacement
• simple branch conditions delayed branch

12
DLX (Deluxe)

• (AMD 29K DECstation 3100 HP850 IBM801
  Intel i860 MIPS M/120A MIPS M/1000 Motorola
  88K RISC I SGI 4D/60 SPARCstation-1 Sun
  4/110 Sun-4/260) / 13
• DLX
• Other RISC examples include
  Cray-1,2,3, AMD2900, DEC
  Alpha, ARM.

13
DLX instruction formats
31 26, 25 21, 20 16, 15 11, 10
0
14
Example instructions
15
GCD in GCL

• x,y X,Y
• do x?y ? if xgty ? x x-y
• xlty ? y y-x
• fi
• od
• R xgcd(X,Y)

16
GCD in DLX assembler

• pre LW R1,4(R0) R1Mem40
• LW R2,8(R0) R2Mem80
• loop SUB R3,R1,R2 R3R1-R2
• BEQZ R3,exit if (R30) then PCexit
• SLT R4,R1,R2 R4(R1ltR2)
• BEQZ R4,pos2 if (R40) then PCpos2
• pos1 SUB R2,R2,R1 R2R2-R1
• J loop PCloop
• pos2 SUB R1,R1,R2 R1R1-R2
• J loop PCloop
• exit SW 20(R0),R1 Mem200R1
• HLT

17
DLX instruction mixes
from HP, Figs 2.26, 2.27
18
DLX interface, state
Instruction memory
Mem (Data memory)
address
address
r0
pc
r1
r2
DLX CPU
Reg
instruction
data
r/w
r31
clock
interrupt
19
DLX Moore machine(ignoring interrupts)

• ?Reg0,pc ? ?0,0?
• do ?MemRegrs1 immediate, pc, Regrd ?
• ? if SW ? Regrd fi
• , if J ? pc4offset
• BEQZ ? if Regrs0 ? pc4
  immediate Regrs0 ? pc4 fi
• else ? pc4
• fi
• , if LW ? Memrs1immediate
• ADD ? ALU(add, Regrs1, Regrs2)
• fi ?
• od

20
DLX 5-step sequential execution
21
DLX 5-step sequential execution
IF
ID
EX
MM
WB
22
Bibliography

• Computer Architecture a Quantitative Approach
  (3rd Ed.) John L Hennessy David A Patterson
  Morgan Kaufmann Publishers Inc, 1996.
• ARM System Architecture Steve Furber Addison
  Wesley, 1996.
• DSP Processor Fundamentals, Architectures and
  Features Phil Lapsey et al (Berkeley Design
  Technology Inc.), IEEE, 1996.
• www.handshakesolutions.com
• www.arm.com/news/6936.html
• www.research.philips.com/ newscenter/archive/2004/
  handshake.html

23
Some references

• www.handshakesolutions
• www.arm.com/news/6936.html
• www.research.philips.com/ newscenter/archive/2004/
  handshake.html

24
Pipelining in Tangram (cntd)

• Output sequence b identical for P0, P1, and P2.
• P0 and P1 have same communication behavior P1
  is larger, slower, and warmer.
• P2 vs P1 similar in size, energy, and latency,
  but up to 3 times higher throughput, depending
  on (relative) complexity of f0, f1, f2.

25
DLX 5-step sequential execution
IF
ID
EX
MM
WB
26
DLX pipelined execution
Time ? in clock cycles 1 2 3
4 5 6 7 8
...
Program execution ? instructions
27
DLX pipelined execution
Instruction Fetch
Inst.Decode
EXecute
Memory
Write Back
4
0?
pc
Instr. mem
Reg
Mem
28
DLX system organization
RAMaddrdatatoRAMdatafromRAM
ROMaddrROMdata
dlx()

systemboundary
rom()
ram()
filesRAMoutRAMin
system_dlx()
file gcd.bin
29
dlx0.ht

• include types.ht
• dlx0 export proc ( ROMaddr!chan adtype
• ROMdata?chan word
• RAMaddr!chan rwadtype datatoRAM!chan
  S30 datafromRAM?chan S30
• ) .
• begin
• RF ram array U5 of S30
• end

30
system_dlx0.ht

• include "dlx0.ht"
• dlx0 proc ( ROMaddr!chan adtype
• ROMdata?chan word
• RAMaddr!chan rwadtype datatoRAM!chan
  S30 datafromRAM?chan S30
• ) . import
• env_dlx4 main proc (
• ROMfile? chan word
• RAMinfile? chan S30
• RAMfile! chan S30 / ltltaddress,datagtgt
  /
• ) .
• begin
• next slide
• end

31
system_dlx0.ht main body

• begin
• ROMaddr chan adtype
• ROMdata chan word
• RAMaddr chan rwadtype
• datatoRAM chan S30
• datafromRAM chan S30
• ROMinterface proc() . begin .. end
• RAMinterface proc() . begin .. end
• initialise() ROMinterface()
  RAMinterface() dlx0( ROMaddr, ROMdata,
  RAMaddr, datatoRAM, datafromRAM )
• end

32
script

• htcomp -B system_dlx0
• htsim -limit 1000 system_dlx0 gcd.bin RAMin
  RAMout
• htview system_dlx0
