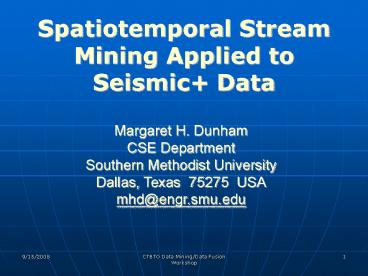

Spatiotemporal Stream Mining Applied to Seismic
Data

Margaret H. Dunham CSE Department Southern
Methodist University Dallas, Texas 75275
USA mhd_at_engr.smu.edu
2
Outline

• CTBTO Data
• CTBTO Modeling Requirements
• EMM

Work in Progress! Input/Feedback Needed!
3
CTBTO Data

• As a Data Miner I must first understand your DATA

• Diverse Seismic, Hydroacoustic, Infrasound,
  Radionuclide
• Spatial (source and sensor)
• Temporal
• STREAM Data

4
From Sensors to Streams

• Stream Data - Data captured and sent by a set of
  sensors
• Real-time sequence of encoded signals which
  contain desired information.
• Continuous, ordered (implicitly by arrival time
  or explicitly by timestamp or by geographic
  coordinates) sequence of items
• Stream data is infinite - the data keeps coming.


5
CTBTO Data Mining

• Data Mining techniques must be defined based on
  your data and applications
• Cant use predefined fixed models and
  prediction/classification techniques.
• Must not redo massive amounts of algorithms
  already created.

6
CTBTO DM Requirements

• Model
• Handle different data types (seismic,
  hydroacoustic, etc.)
• Spatial Temporal (Spatiotemporal)
• Hierarchical
• Scalable
• Online
• Dynamic
• Anomaly Detection
• Not just specific wave type or data values
• Relationships between arrival of waves/data
• Combined values of data from all sensors

7
EMM (Extensible Markov Model)

• Time Varying Discrete First Order Markov Model
• Nodes are clusters of real world states.
• Overlap of learning and validation phases
• Learning
• Transition probabilities between nodes
• Node labels (centroid or medoid of cluster)
• Nodes are added and removed as data arrives
• Applications prediction, anomaly detection

8
Research Objectives

• Apply proven spatiotemporal modeling technique to
  seismic data
• Construct EMM to model sensor data
• Local EMM at location or area
• Hierarchical EMM to summarize lower level models
• Represent all data in one vector of values
• EMM learns normal behavior
• Develop new similarity metrics to include all
  sensor data types (Fusion)
• Apply anomaly detection algorithms

9
EMM Creation/Learning
lt18,10,3,3,1,0,0gt lt17,10,2,3,1,0,0gt lt16,9,2,3,1,0,
0gt lt14,8,2,3,1,0,0gt lt14,8,2,3,0,0,0gt lt18,10,3,3,1,
1,0.gt
10
Input Data Representation

• Vector of sensor values (numeric) at precise time
  points or aggregated over time intervals.
• Need not come from same sensor types.
• Similarity/distance between vectors used to
  determine creation of new nodes in EMM.

11
Anomaly Detection with EMM

• Objective Detect rare (unusual, surprising)
  events
• Advantages
• Dynamically learns what is normal
• Based on this learning, can predict what is not
  normal
• Do not have to a priori indicate normal behavior
• Applications
• Network Intrusion
• Data IP traffic data, Automobile traffic data
• Seismic
• Unusual Seismic Events
• Automatically Filter out normal events

Detected unusual weekend traffic pattern
Weekdays Weekend Minnesota DOT Traffic Data
12
EMM with Seismic Data

• Input Wave arrivals (all or one per sensor)
• Identify states and changes of states in seismic
  data
• Wave form would first have to be converted into a
  series of vectors representing the activity at
  various points in time.
• Initial Testing with RDG data
• Use amplitude, period, and wave type

13
New Distance Measure

• Data ltamplitude, period, wave typegt
• Different wave type 100 difference
• For events of same wave type
• 50 weight given to the difference in amplitude.
• 50 weight given to the difference in period.
• If the distance is greater than the threshold, a
  state change is required.
•  ?amplitude
• amplitudenew amplitudeaverage /
  amplitudeaverage
• ?period
• periodnew periodaverage /
  periodaverage

14
EMM with Seismic Data
States 1, 2, and 3 correspond to Noise, Wave A,
and Wave B respectively.
15
Preliminary Testing

• RDG data February 1, 1981 6 earthquakes
• Find transition times close to known earthquakes
• 9 total nodes
• 652 total transitions
• Found all quakes

16
EMM Nodes
.
Node Average amplitude Average period Phase code
1 1.649?m 0.119 sec P (primary wave)
2 8.353?m 0.803 sec P (primary wave)
3 23.237?m 0.898 sec P (primary wave)
4 87.324?m 0.997 sec P (primary wave)
5 253.333?m 1.282 sec P (primary wave)
6 270.524?m 0.96 sec P (primary wave)
7 7.719?m 20.4 sec P (primary wave)
8 723.088?m 1.962 sec P (primary wave)
9 1938.772?m 1.2 sec P (primary wave)
17
Hierarchical EMM
18
Now What?
DATA NEEDED
Interest DM COMMUNITY
NOISE MAY NOT BE BAD
KDD CUP
19
References

• Zhigang Li and Margaret H. Dunham, STIFF A
  Forecasting Framework for Spatio-Temporal Data,
  Proceedings of the First International Workshop
  on Knowledge Discovery in Multimedia and Complex
  Data, May 2002, pp 1-9.
• Zhigang Li, Liangang Liu, and Margaret H. Dunham,
  Considering Correlation Between Variables to
  Improve Spatiotemporal Forecasting, Proceedings
  of the PAKDD Conference, May 2003, pp 519-531.
• Jie Huang, Yu Meng, and Margaret H. Dunham,
  Extensible Markov Model, Proceedings IEEE ICDM
  Conference, November 2004, pp 371-374.
• Yu Meng and Margaret H. Dunham, Efficient
  Mining of Emerging Events in a Dynamic
  Spatiotemporal, Proceedings of the IEEE PAKDD
  Conference, April 2006, Singapore. (Also in
  Lecture Notes in Computer Science, Vol 3918,
  2006, Springer Berlin/Heidelberg, pp 750-754.)
• Yu Meng and Margaret H. Dunham, Mining
  Developing Trends of Dynamic Spatiotemporal Data
  Streams, Journal of Computers, Vol 1, No 3,
  June 2006, pp 43-50.
• Charlie Isaksson, Yu Meng, and Margaret H.
  Dunham, Risk Leveling of Network Traffic
  Anomalies, International Journal of Computer
  Science and Network Security, Vol 6, No 6, June
  2006, pp 258-265.
• Margaret H. Dunham and Vijay Kumar, Stream
  Hierarchy Data Mining for Sensor Data,
  Innovations and Real-Time Applications of
  Distributed Sensor Networks (DSN) Symposium,
  November 26, 2007, Shreveport Louisiana.
