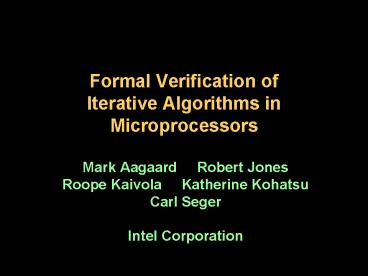

Title: Formal Verification of Iterative Algorithms in Microprocessors


1
Formal Verification of Iterative Algorithms in
Microprocessors
  • Mark Aagaard Robert Jones
  • Roope Kaivola Katherine Kohatsu
  • Carl Seger
  • Intel Corporation

2
Outline
  • Implementing iterative algorithms in hardware
  • Overview of verification strategy
  • Detailed example floating-point square root

3
Straight-Line Algorithms
input
output
4
Straight-Line Algorithms
input
output
5
Straight-Line Algorithms
input
output
6
Straight-Line Algorithms
input
output
7
Straight-Line Algorithms
input
output
8
Straight-Line Algorithms
input
output
Verification goal output Spec(input)
9
Circuits for Iterative Algorithms
input
output
10
Circuits for Iterative Algorithms
input
output
11
Circuits for Iterative Algorithms
input
output
12
Circuits for Iterative Algorithms
input
output
13
Circuits for Iterative Algorithms
input
output
14
Circuits for Iterative Algorithms
input
output
15
Circuits for Iterative Algorithms
input
output
16
Circuits for Iterative Algorithms
input
output
17
Circuits for Iterative Algorithms
input
output
18
Circuits for Iterative Algorithms
input
output
Verification goal output Spec(input)
19
Examples of Iterative Algorithms
  • Floating point units
  • Square root
  • Divide
  • Front end of microprocessor (update internal
    state for each chunk of data)
  • Mark boundaries between IA32 instructions
  • Predict branches
  • Back end of microprocessor
  • Maintain state to retire instructions in order

20
Verifying Iterative Algorithms
Input/output specification
output Spec(input)
RTL Circuit
21
Verifying Iterative Algorithms
  • Just as in program verification, iterative
    circuits are verified with invariants
  • Two major properties
  • Datapath invariant
  • Control circuitry specification
  • termination
  • correct steering of data
  • etc...

22
Verifying Iterative Algorithms
Input/output specification
output Spec(input)
RTL Circuit
23
Verifying Iterative Algorithms
Input/output specification
output Spec(input)
Data invariant
Control specification
RTL Circuit
24
Three Major Verification Tasks
Input/output specification
init
Data invariant
Control specification
ctrl
main
fini
RTL Circuit
25
Three Major Verification Tasks
Input/output specification
init
Data invariant
Control specification
ctrl
main
fini
RTL Circuit
26
Three Major Verification Tasks
Input/output specification
init
Data invariant
Control specification
ctrl
main
fini
RTL Circuit
27
Three Different Types of Verification
Input/output specification
theorem proving
init
Data invariant
Control specification
ctrl
main
datapath model checking
fini
control model checking
RTL Circuit
28
Forte
  • Forte formal verification system
  • Evolved from Voss
  • Developed by Seger at Univ of British Columbia
  • Datapath model checker
  • Symbolic trajectory evaluation (STE)
  • Based on symbolic simulation
  • Control circuitry model checker
  • Standard reachability analysis (e.g. SMV)
  • Theorem Prover
  • Seamless connection to model checking
  • Environment
  • General-purpose functional programming language
  • Extensive graphical interfaces

29
Case Studies In the Paper
  • Floating-point square root
  • Verification of datapath invariants
  • Floating-point divider and remainder
  • Theorem proving for iterative algorithms
  • Instruction boundary marker
  • Verification and the design cycle

30
Case Studies In the Paper
  • Floating-point square root
  • Verification of datapath invariants
  • Floating-point divider and remainder
  • Theorem proving for iterative algorithms
  • Instruction boundary marker
  • Verification and the design cycle

31
Floating Point Square Root
N
internal state Z partial root R partial
remainder i iteration count
Zout
32
Square Root Invariant
N
invariant N Z?Z 2-i?R
Zout
Z partial root R partial remainder i
iteration count
33
Square Root Invariant
init Z0, RN, i0 N Z?Z 2-i?N
N
invariant N Z?Z 2-i?R
Zout
Z partial root R partial remainder i
iteration count
34
Square Root Invariant
init Z0, RN, i0 N 0?0 2-0?N N N
N
invariant N Z?Z 2-i?R
Zout
Z partial root R partial remainder i
iteration count
35
Square Root Invariant
init Z0, RN, i0 N 0?0 2-0?N N N
N
invariant N Z?Z 2-i?R
final iMax N Z?Z 2-Max?R N Z?Z ?
Zout
Z partial root R partial remainder i
iteration count
36
Verifying Floating Point Square Root
Input/output specification
Data invariant
Control specification
N Z?Z 2-i?R
RTL Circuit
37
Challenge Model Checking Capacity
Input/output specification
natural invariant uses multiplication, which
causes BDD blow up in model checking
Data invariant
Control specification
N Z?Z 2-i?R
RTL Circuit
38
Decomposing Invariant Verification 1
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
decompose invariant into base and inductive cases
RTL Circuit
39
Decomposing Invariant Verification 1
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
invariant holds in initial state
if the invariant holds in the current
state, then it will hold in the next state
RTL Circuit
40
Decomposing Invariant Verification 2
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqns Z ...Z...R...
RemEqns R ...Z...R...
verify inductive case with recurrence equations
RTL Circuit
41
Recurrence Equations
  • Recall problems in high-level invariant
  • (High-level invariant N Z?Z 2-iR)
  • Z ? Z exponential in width of Z
  • Mentions all of N, Z, R
  • Choose recurrence equations for model checking
    efficiency
  • Get rid of multiplication
  • Find separate equations for Z and R
  • Z par_root_fn(Z, R)
  • R remainder_fn(Z, R)

42
Recurrence Equations
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqns Z ...Z...R...
RemEqns R ...Z...R...
verify inductive case with recurrence equations
RTL Circuit
43
Gap From Bit Vectors to Arithmetic
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqns Z ...Z...R...
RemEqns R ...Z...R...
unbounded arithmetic Z ... Z ...
fixed length bit-vectors
RTL Circuit
44
Solution BitVec Arith Library
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
unbounded arithmetic Z ... Z ...
RootEqnsBv
RemEqnsBv
bit vector arithmetic library with overflow
detection Z630 ... bvadd(... Z630) ...
RTL Circuit
45
Bit Vector Arithmetic Library
  • Background
  • In Forte, specifications are written in
    FL (functional language with built-in BDDS)
  • bit-vector addition implemented as recursive
    functions over lists of BDDs
  • Goal
  • Prove that if a property holds over fixed-length
    bit-vectors, then it will hold over unbounded
    integers
  • Solution
  • Write an enhanced bit-vector library that
    automatically detects overflow

46
Bit Vector Arithmetic Library
  • Implement bit-vectors as a pair
  • accurate flag TRUE iff bit-vector has not
    overflowed
  • BDD list bit vector value

47
Bit Vector Arithmetic Library
  • Implement bit-vectors as a pair
  • accurate flag TRUE iff bit-vector has not
    overflowed
  • BDD list bit vector value
  • Example bit vector addition
  • bvadd(bv1, bv2) data_out bvadd_raw(Fdata(bv1
    ), Fdata(bv2)) ok_out accurate(bv1) and
    accurate(bv2) and msb(data_out)
    ..... return(ok_out, data_out)

48
Bit Vector Arithmetic Library
  • Implement bit-vectors as a pair
  • accurate flag TRUE iff bit-vector has not
    overflowed
  • BDD list bit vector value
  • Example bit vector addition
  • bvadd(bv1, bv2) data_out bvadd_raw(Fdata(bv1
    ), Fdata(bv2)) ok_out accurate(bv1) and
    accurate(bv2) and msb(data_out)
    ..... return(ok_out, data_out)
  • Theorem (res bvadd(bv1, bv2)) AND
    accurate(res) ? bv2nat(data(res))
    bv2nat(bv1) bv2nat(bv2)

49
BitVec Arith Library
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
unbounded arithmetic Z ... Z ...
RootEqnsBv
RemEqnsBv
bit vector arithmetic library with overflow
detection Z630 ... bvadd(... Z630) ...
RTL Circuit
50
Verify Init State and Recurrence Eqns
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RTL Circuit
51
Verify Init State and Recurrence Eqns
  • To verify base case of invariant, need to
    compute initial state of circuit
  • To verify recurrence equations, need to compute
    next-state functions of circuit
  • We use symbolic simulation to get initial state
    and next-state functions from circuit
  • Advantages
  • Provides common semantic basis for STE and
    reachability based model checking
  • Built-in support for constant propagation and
    environmental constraints

52
Next-State Funs with Symbolic Sim
datapath
53
Next-State Funs with Symbolic Sim
f
d
  • Compute d f(d)

54
Next-State Funs with Symbolic Sim
clock
f
d
  • Compute d f(d)
  • Put BDD variables on latches

55
Next-State Funs with Symbolic Sim
clock
f
d
  • Compute d f(d)
  • Put BDD variables on latches
  • Clock circuit for one clock cycle

56
Next-State Funs with Symbolic Sim
clock
f
d
  • Compute d f(d)
  • Put BDD variables on latches
  • Clock circuit for one clock cycle
  • Sample inputs to latches

57
A Problem
  • Problem
  • Designers want to optimize circuit
  • Retiming is a common optimization

58
A Problem
  • Problem
  • Designers want to optimize circuit
  • Retiming is a common optimization
  • After retiming, Z and R are no longer latches
  • Conventional calculation of transition function
    via symbolic simulation is latch-to-latch

59
A Problem and A Solution
  • Problem
  • Designers want to optimize circuit
  • Retiming is a common optimization
  • After retiming, Z and R are no longer latches
  • Conventional calculation of transition function
    via symbolic simulation is latch-to-latch
  • Solution
  • Symbolic Trajectory Evaluation (STE) removes
    latch-to-latch restriction

60
Next-State Functions with STE
clock
  • Pick cut points for clean recurrence functions

61
Next-State Functions with STE
clock
  • Pick cut points with clean recurrence functions
  • Put BDD variables on cutpoints

62
Next-State Functions with STE
clock
  • Pick cut points with clean recurrence functions
  • Put BDD variables on cutpoints
  • Simulate circuit for one clock cycle

63
Next-State Functions with STE
clock
  • Pick cut points with clean recurrence functions
  • Put BDD variables on cutpoints
  • Simulate circuit for one clock cycle

64
Next-State Functions with STE
clock
  • Pick cut points with clean recurrence functions
  • Put BDD variables on cutpoints
  • Simulate circuit for one clock cycle
  • Sample cutpoints

65
Verify Init State and Recurrence Eqns
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RTL Circuit
66
Verify Init State and Recurrence Eqns
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
Next state
Initial state
RTL Circuit
67
Verify Init State and Recurrence Eqns
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
Next state
Initial state
RTL Circuit
68
Verify Recurrence Eqns
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
Next state
Initial state
RTL Circuit
69
Verify Recurrence Eqns
  • Recurrence equations for Z and R
  • Z par_root_fn(Z, R)
  • R remainder_fn(Z, R)
  • But, were not yet done...
  • Problem recurrence equations dont hold for all
    combinations of Z and R
  • Need to compute reachable state, or find
    additional invariants that are strong enough to
    verify recurrence equations

70
Verify Recurrence Eqns
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
Next state
Initial state
RTL Circuit
71
Additional Invariants
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
72
Yet Another Set of Invariants...
  • Conventional techniques failed to find invariants
    needed to verify recurrence equations
  • Optimizations greatly complicated the circuit
  • Automated reachability model checking still
    hopeless (approx 1000 latches in datapath alone)
  • Several months of manual efforts unsuccessful
  • too strong (couldnt verify against circuit)
  • too weak (couldnt verify against high-level
    invariant)

73
Circuit Optimizations
Z
R
Z par_root_fn(Z, R) R remainder_fn(Z, R)
Z
R
74
Circuit Optimizations
Z
R
Z par_root_fn(Z, R) R remainder_fn(Z, R)
f
g
Z
R
75
Circuit Optimizations
Z par_root_fn(Z, R) R remainder_fn(Z, R)
Z
R
X
h
need an invariant for relationship between Z, R,
X
f
g
Z
R
76
Overapproximating Reachable States
  • Solution overapproximate reachable states
  • create multiple invariants one for Z,X one for
    R,X
  • dont look at all of the bits of Z, R, X

R
X
Z
Z par_root_fn(Z, R) R remainder_fn(Z, R)
Z
R
X
77
Overapproximating Reachable States
  • Solution overapproximate reachable states
  • create multiple invariants one for Z,X one for
    R,X
  • dont look at all of the bits of Z, R, X
  • RootInv(Z, X) relates partial root and redundant
    state

R
X
Z
Z par_root_fn(Z, R) R remainder_fn(Z, R)
Z
R
X
78
Overapproximating Reachable States
  • Solution overapproximate reachable states
  • create multiple invariants
  • look at just some of the bits of Z, R, X
  • RootInv(Z, X) relates partial root and redundant
    state
  • RemInv(R, X) relates remainder and redundant state

R
X
Z
Z par_root_fn(Z, R) R remainder_fn(Z, R)
Z
R
X
79
Additional Invariants
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
80
Additional Invariants
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
81
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
82
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
83
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
84
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
85
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
86
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
87
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
88
Summary of Verification Strategy
Specification
N Z?Z 2-i?R
Data Invariant
Base
Induct
Control specification
RootEqnsInt
RemEqnsInt
RootEqnsBv
RemEqnsBv
RootInv
RemInv
Next state
Initial state
RTL Circuit
89
Summary of STE Properties
  • Initial state satisfies
  • datapath invariant
  • partial root invariant
  • partial remainder invariant
  • Inductive step of partial root invariant
  • Inductive step of partial remainder invariant
  • Next-state function for partial root satisfies
    recurrence equation
  • Next-state function for partial remainder
    satisfies recurrence equation

90
Case Studies In the Paper
  • Floating-point square root
  • Over approximation of reachable state
  • Using STE to extract next-state functions
  • BDD bashing for propositional reasoning
  • Floating-point divider and remainder
  • Manually deduced invariant
  • Application-specific theorem proving environment
    for weakest precondition reasoning
  • Instruction boundary marker
  • Porting verification script to new design
  • Maintaining verification script on live RTL

91
Summary
  • Used novel combinations of existing verification
    techniques to verify highly optimized circuitry
    that implements complex iterative algorithm
    against natural input/output specification
  • Forte environment allows for such flexibility and
    is key to success
  • Functional language interface
  • STE as primary engine
  • Verification on constantly changing RTL is much
    harder than on static designs.
  • Getting the first verification to go through is
    harder
  • Must maintain verification script as design
    evolves.

92
Conclusions
  • Optimistic about continued growth of FV
  • Formal verification on floating-point is a clear
    win
  • Still many challenges out there, but reusable
    methodologies improve probability of success and
    productivity
  • Need for combined model checking and theorem
    proving is clear

93
Formal Verification of Iterative Algorithms in
Microprocessors
  • Mark Aagaard Robert Jones
  • Roope Kaivola Katherine Kohatsu
  • Carl Seger
  • Intel Corporation

94
(No Transcript)
About PowerShow.com
