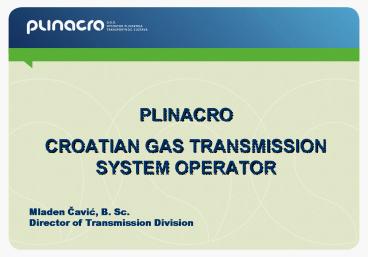

PLINACRO CROATIAN GAS TRANSMISSION SYSTEM OPERATOR

1
PLINACROCROATIAN GAS TRANSMISSION SYSTEM
OPERATOR
Mladen Cavic, B. Sc. Director of Transmission
Division
2
Energy Reforms

• Liberalization
• Security of supply
• Unbundling infrastructure system operators
• Regulatory Agency

3
Gas Transmission

• Legislative Framework TPA, Tariff system
• Energy subject TSO legally unbundled
• Technical and technological preconditions-
  construction of infrastructure

4
Legal Framework
Gas Market harmonization with EU directives

• Transmission of natural gas is defined as energy
  activity
• Transmission of gas is a public service
• The price of gas transmission service is
  regulated and set in accordance with the tariff
  system
• The licence (issued by HERA) is required for the
  gas transmission activity

5
Plinacro Ltd
Croatian Gas Transmittion Company

• Defined as Croatian TSO (Gas Transmission System
  Operator) by Gas Market Act - next 30 years
• Plinacro established by unbundling of gas
  transmission activity from INA Plc
• 100 state-owned company
• In charge of natural gas transmission
  maintenance, managing and supervision of the
  entire gas transmission system and its
  development and construction

6
ZAGREB
KARLOVAC
UGS OKOLI

• Plan of Development and Modernization
• of the Gas Transmission System
• in the Republic of Croatia
• first investment cycle 2002 2006
• second investment cycle 2007 - 2011

Key
50 bar do 2002 50 bar gt 2002 75 bar 63 bar
7
ZAGREB
BELI MANASTIR
LUCKO
I. Investment phase 2002-2006

KARLOVAC
BELICE
OSIJEK
KUTINA
Planned 210 million 520 km of pipelines
17 exit points new SCADA DC headquarters
S. BROD
PULA
Goals

• Increased reliability of pipeline system and
  security of gas supply

• Development of the gas transmission system
• and gasification of the parts of the Republic of
  Croatia Istra, Primorje and Gorski kotar

Kutina-Sl. Brod
Key
Zagreb Istok-Kutina
Pula-Karlovac
50 bar do 2002 50 bar gt 2002 75 bar 63 bar
Lucko-Ivanja Reka
Belice-Osijek
Bolman-Beli Manastir
8
ROGATEC
SV. IVAN ABNO
ZABOK
DRAVASZERDAHELY
ZAGREB
BELI MANASTIR
BJELOVAR
LUCKO
II. Investment phase 2007-2011
D. MIHOLJAC
KARLOVAC
BELICE
UMAG
OMANOVAC
OSIJEK
KUKULJANOVO
KUTINA

• Planned
• 996 km of pipelines
• 24 MRS
• 443 mil.

POEGA
DOBROVAC
BOSILJEVO
SLOBODNICA
JOSIPDOL
S. BROD
OMIALJ
NOVA KAPELA
B. BROD
VODNJAN
PULA
Goals

• Increased reliability of pipeline system and
  security of gas supply

GOSPIC

• Development of the gas transmission system and
  gasification of the parts of the Republic of
  Croatia Lika and Dalmatia

ZADAR
KNIN
BENKOVAC

• Opening of new import supply route

Sl. Brod-D. Miholjac
SPLIT
Dravaszerdahely-D. Miholjac
Vodnjan-Umag
Key
Kutina-Dobrovac
50 bar do 2002 50 bar gt 2002 75 bar 63 bar
PLOCE
Kukuljanovo-Urinj-Omialj
Slobodnica-Bosanski Brod
Split-Ploce
Rogatec-Zabok Zabok-Lucko
9
Hungary
Slovenia
ROGATEC
SV. IVAN ABNO
ZABOK
DRAVASZERDAHELY
ZAGREB
BELI MANASTIR
BJELOVAR
LUCKO
Interconnections
Serbia
D. MIHOLJAC
KARLOVAC
BELICE
UMAG
OMANOVAC
OSIJEK
KUKULJANOVO
KUTINA
POEGA
DOBROVAC
BOSILJEVO
Connections with neighboring countries
transmission systems
SLOBODNICA
JOSIPDOL
S. BROD
OMIALJ
NOVA KAPELA
B. BROD
VODNJAN
PULA
GOSPIC
Italy
Bosnia and Hercegovina
Italy
Montenegro
ZADAR
KNIN
BENKOVAC
BiH
Serbia
SPLIT
Hungary
PLOCE
Slovenia
Montenegro
10
PLINACRO Development Projects
