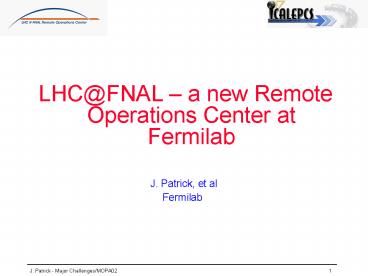

LHC_at_FNAL a new Remote Operations Center at
Fermilab
J. Patrick, et al Fermilab
2
Abstract

• Commissioning the LHC accelerator and experiments
  will be a vital part of the worldwide high-energy
  physics program beginning in 2008. A remote
  operations center, LHC_at_FNAL, has been built at
  Fermilab to make it easier for accelerator
  scientists and experimentalists working in North
  America to help commission and participate in
  operations of the LHC and experiments. Evolution
  of this center from concept through construction
  and early use will be presented as will details
  of its controls system, management, and expected
  future use.

3
Contents

• Introduction
• Concept
• Design
• Construction
• Early Use
• Details/Special Features
• Future Plans
• Summary Acknowledgements

4
What is LHC_at_FNAL?

• A Place
• That provides access to information in a manner
  that is similar to what is available in control
  rooms at CERN
• Where members of the LHC community can
  participate remotely in CMS and LHC activities
• A Communications Conduit
• Between CERN and members of the LHC community
  located in North America
• An Outreach tool
• Visitors will be able to see current LHC
  activities
• Visitors will be able to see how future
  international projects in particle physics can
  benefit from active participation in projects at
  remote locations.

5
What is LHC_at_FNAL?

• Allow experts located at Fermilab to participate
  in CMS and LHC commissioning and operations.
• Hardware and software necessary to participate
  effectively in CMS and LHC.
• Facilitate communication and help members of the
  LHC community in North America contribute their
  expertise.
• CMS
• One of several dedicated and interconnected
  operations and monitoring centers, including
• a traditional Control Room located at Point 5
  in Cessy, France
• a CMS Centre for up to fifty people located in
  Meyrin, Switzerland and
• remote centers such as the LHC_at_FNAL at Fermilab.
• The Centers support the following activities
• CMS data quality monitoring, prompt sub-detector
  calibrations, and time-critical data analysis of
  express-line and calibration streams
• operation of CMS computing systems for
  processing, storage and distribution of real CMS
  data and simulated data, both at CERN and at
  offsite centers
• LHC
• An extension of the CERN Control Centre (CCC).
• Provide remote monitoring capabilities for LHC
  accelerator components developed and built in the
  U.S.
• Development of software for the LHC controls
  system
• A unique opportunity to have detector and
  accelerator experts in close proximity to each
  other solving problems together.

6
Remote operations for LHC and LARP

• LHC remote operations
• training prior to stays at CERN
• remote participation in studies
• service after the sale to support accelerator
  components built in the U.S.
• access to monitoring information
• software development for LHC controls system
  (LAFS)

CCC at CERN
LARP The US LHC Accelerator Research Program
(LARP) consists of four US laboratories, BNL,
FNAL, LBNL and SLAC, who collaborate with CERN on
the LHC. The LARP program enables U.S.
accelerator specialists to take an active and
important role in the LHC accelerator during its
commissioning and operations, and to be a major
collaborator in LHC performance upgrades.
CCC
7
How did the Concept Evolve?

• Fermilab
• has contributed to CMS detector construction,
• hosts the LHC Physics Center (LPC) for US-CMS,
• is a Tier-1 grid computing center for CMS,
• has designed and fabricated LHC machine
  components,
• is part of the LHC Accelerator Research Program
  (LARP), and
• is involved in software development for the LHC
  controls system through a collaboration agreement
  with CERN called LHC_at_FNAL Software (LAFS).
• The LPC had always planned for remote data
  quality monitoring of CMS during operations.
  Could we expand this role to include remote
  shifts?
• LARP was interested in providing support for
  US-built components, training people before going
  to CERN, and remote participation in LHC studies.
• We saw an opportunity for US accelerator
  scientists and engineers to work together with
  detector experts to contribute their combined
  expertise to LHC CMS commissioning.
• The idea of joint remote operations center at
  FNAL emerged (LHC_at_FNAL).

8
Concept

• Some proof of principle work done by LHC/LARP
  personnel
• Thanks to AB/OP colleagues at CERN
• CMS Remote Operations Center
• Unified Task Force formed at request of FNAL
  Director
• First meeting 4 May 2005
• Close-out 19 October 2006
• Requirements document created and reviewed
• CMS
• LHC
• CMS/LHC combined
• Constraints
• 63 total requirements
• Review 21 July 2005
• Proposal to Directorate and constitutients
• Construction Authorization and Engineering May
  2006
• Construction initiated September 2006

9
Site Visits

• Technology Research, Education, and
  Commercialization Center (TRECC) West Chicago,
  Illinois (Aug. 25, 2005)
• Gemini Project remote control room Hilo,
  Hawaii (Sept. 20, 2005)
• http//docdb.fnal.gov/CMS-public/DocDB/ShowDocumen
  t?docid425
• Jefferson Lab control room Newport News,
  Virginia (Sept. 27, 2005)
• http//docdb.fnal.gov/CMS-public/DocDB/ShowDocumen
  t?docid505
• Hubble Space Telescope STScI Baltimore,
  Maryland (Oct. 25, 2005)
• National Ignition Facility Livermore,
  California (Oct. 27, 2005)
• http//docdb.fnal.gov/CMS-public/DocDB/ShowDocumen
  t?docid532
• General Atomics San Diego, California (Oct.
  28, 2005)
• Spallation Neutron Source Oak Ridge, Tennessee
  (Nov. 15, 2005)
• http//docdb.fnal.gov/CMS-public/DocDB/ShowDocumen
  t?docid570
• Advanced Photon Source Argonne, Illinois (Nov.
  17, 2005)
• European Space Operations Centre Darmstadt,
  Germany (Dec. 7, 2005)

10
Design

• Design work done in-house
• Variation of CCC design due to purpose
• High Visibility location preferred
• Laboratory Director
• Adjacent to meeting and office areas
• Provide Security
• Maintain Privacy
• Special Features
• Storefront/mullion-free glass
• Projection Wall Screens
• Privacy glass between center and adjacent
  conference room
• Programmable lighting
• Standalone HVAC system
• Window treatment - morning glare

11
Location
Wilson Hall Main Entrance
Cafeteria
12
Renderings
13
Consoles

• Three Bids submitted
• Consider Cost Specifications
• Same Vendor as for CCC selected

14
Construction Summary

• Safety
• No injuries
• One incident
• On-time
• 12-week schedule
• Under budget

15
Construction Slide Show
16
Computing

• Separate Computing Systems/Platforms for
• Consoles
• Outreach
• Videoconferencing
• Projectors
• Gateway
• Server
• Protected access as appropriate

17
Early Use

• Current Organization
• Engineering Working Group
• Operations Support Team
• CMS WorkingGroup
• LHC Working Group
• Outreach Working Group
• Primary user to date is CMS
• Tier-1 Computing support
• Remote shifts by Tracking group from March - May
• Test beam activities by HCAL group
• Currently
• Global Commissioning runs
• CMS data operations - CSA07 computing challenge
• LARP
• SPS Beam Study period
• LHC Hardware Commissioning
• LHC_at_FNAL Software
• Applications development

18
Noteworthy Features

• Features that are currently available
• CERN-style consoles with 8 workstations shared by
  CMS LHC
• Videoconferencing installed for 2 consoles, can
  be expanded to 4 consoles
• Webcams for remote viewing of LHC_at_FNAL
• Secure keycard access to LHC_at_FNAL
• Secure network for console PCs (dedicated subnet,
  physical security, dedicated router with Access
  Control Lists to restrict access, only available
  in LHC_at_FNAL)
• 12-minute video essay displayed on the large
  Public Display used by docents from the
  Education Department to explain CMS and LHC to
  tour groups
• High Definition (HD) videoconferencing system for
  conference room
• HD viewing of LHC_at_FNAL, and HD display
  capabilities in the centre
• Secure group login capability for consoles, with
  persistent console sessions
• Role Based Access Control (RBAC) for the LHC
  controls system (LAFS)
• Screen Snapshot Service (SSS) for CMS and the LHC
  controls system

19
Details Special Features

• Role Based Access Control (RBAC) An approach to
  restrict system access to authorized users.
• What is a ROLE?
• A role is a job function within an organization.
• Examples LHC Operator, SPS Operator, RF Expert,
  PC Expert, Developer,
• A role is a set of access permissions for a
  device class/property group
• Roles are defined by the security policy
• A user may assume several roles
• What is being ACCESSED?
• Physical devices (power converters, collimators,
  quadrupoles, etc.)
• Logical devices (emittance, state variable)
• What type of ACCESS?
• Read the value of a device once
• Monitor the device continuously
• Write/set the value of a device
• Status
• Deployed at the end of June 2007
• This is a FNAL/CERN collaboration (LAFS) working
  on RBAC for the LHC control system.

The software infrastructure for RBAC is crucial
for remote operations in that it provides a
safeguard. Permissions can be setup to allow
experts outside the control room to read or
monitor a device safely.
20
Details Special Features

• Screen Snapshot Service (SSS) An approach to
  provide a snapshot of a graphical interface to
  remote users.
• What is a snapshot?
• An image copy of a graphical user interface at a
  particular instance in time.
• Examples DAQ system buffer display, operator
  control program,
• A view-only image, so there is no danger of
  accidental user input.
• Initially implemented for desktops, but could be
  targeted to application GUIs.
• What is the role of the service?
• Receives and tracks the snapshots from the
  monitored applications.
• Caches the snapshots for short periods of time.
• Serves the snapshots to requesting
  applications/users.
• Prevents access from unauthorized
  applications/users.
• Acts as a gateway to private network applications
  for public network users.
• How does this work?
• Applications capture and send snapshots to the
  service provider in the background.
• Users would access snapshots using a web browser.
• Status

21
Future Plans

• Ramp up CMS shifts
• LHC Hardware Commissioning
• Keep LHC Project Associates engaged after return
• US/LARP deliverable monitoring
• LAFS
• Continue Applications development
• LHC Beam Participation
• SPS and other Injector Beam Studies
• LARP Instrumentation
• LHC Commissioning and Beam Studies (especially
  for luminosity upgrades)

22
Summary

• Remote operations is the next step to enable
  collaborators to participate in operations from
  anywhere in the world. The goals are to have
• secure access to data, devices, logbooks,
  monitoring information, etc.
• safeguards, so actions do not jeopardize or
  interfere with operations
• collaborative tools for effective remote
  participation in shift activities
• remote shifts to streamline operations.
• Fermilab has built the LHC_at_FNAL Remote Operations
  Center, which is shared by scientists and
  engineers working on the LHC and CMS.
• Collaborative Design
• Built rapidly
• For the LHC it provides a means to participate
  remotely in LHC studies, access to monitoring
  information, a training facility, and supports
  the collaborative development of software for the
  LHC controls system.
• For CMS it provides a location (in a U.S. time
  zone) for CMS remote commissioning and operations
  shifts, and Tier-1 grid monitoring shifts.
• Already a popular stop for visitors and
  dignitaries.
• http//cd-amr.fnal.gov/remop/remop.html

23
Acknowledgements

• LHC_at_FNAL Task Force
• Especially Erik Gottschalk from whom many slides
  were taken
• Design, Engineering, and Construction Team from
  Fermilab/FESS
• Gary Van Zandbergen
• Steve Dixon
• Merle Olson
• Tom Prosapio
• CERN AB/OP
• Especially Djanko Manglunki
• Staff of Sites Visited
• Users of Facility
